FPGA vs. Microcontroller: Understanding the Key Differences

Introduction

Exploring the fascinating realms of FPGA (Field-Programmable Gate Array) and microcontrollers reveals that these two technologies play pivotal roles in the field of embedded systems and digital design. FPGAs are highly versatile integrated circuits that allow users to create custom digital circuits by programming them at a hardware level. They offer immense flexibility, making them ideal for complex applications that require rapid prototyping and reconfigurability. On the other hand, microcontrollers are compact integrated circuits that combine a processor core, memory, and various peripherals into a single chip. They are designed for specific tasks and provide a cost-effective solution for simple to moderately complex applications.

Understanding FPGAs

What is an FPGA?

A Field Programmable Gate Array (FPGA) is a semiconductor device that can be programmed to perform a wide range of digital functions. It consists of an array of programmable logic blocks and interconnects, which can be configured to implement custom digital circuits. Unlike microcontrollers that possess fixed hardware and execute instructions sequentially, FPGAs can be reprogrammed to perform different tasks by altering their internal connections and logic.

The main components of an FPGA are the logic elements (LEs) and the programmable interconnects. Logic elements are the building blocks of digital circuits and can perform various functions, such as basic logic operations, arithmetic, and memory storage. Each LE typically contains a look-up table (LUT), a flip-flop, and other components that enable it to perform complex operations. Programmable interconnects, on the other hand, are responsible for connecting the LEs to form the desired circuit. They can be configured to create a wide range of connections, allowing for immense flexibility in designing custom digital circuits.

FPGAs offer several advantages over traditional microcontrollers and Application-Specific Integrated Circuits (ASICs) in certain applications. One of the most significant benefits is their reprogrammability, which allows designers to modify the FPGA's functionality even after it has been deployed in the field. This feature enables rapid prototyping and iterative design, as well as the ability to update or fix hardware bugs without physically replacing the device. Additionally, FPGAs can provide superior performance for parallel processing tasks, as their architecture allows multiple operations to be executed simultaneously. This makes them well-suited for applications such as digital signal processing, high-performance computing, and cryptography.[1]

FPGA Architecture

The architecture of an FPGA plays a crucial role in its flexibility and customization capabilities. The primary components of an FPGA's architecture include logic blocks, interconnects, and Input/Output (I/O) blocks. These components work together to enable the implementation of custom digital circuits.

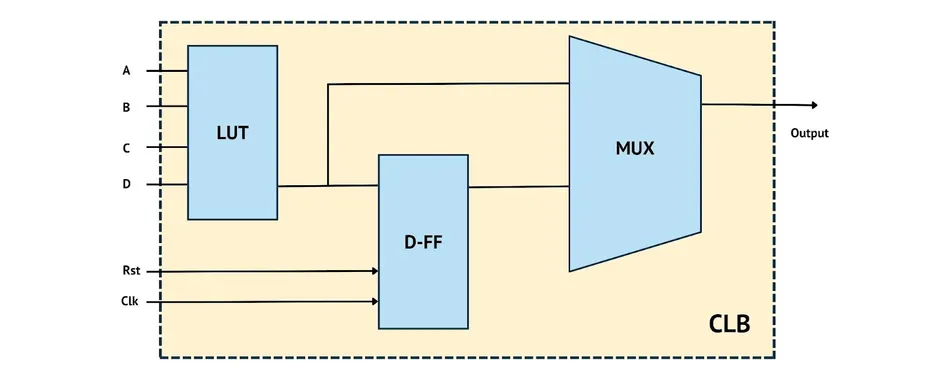

Logic Blocks: Logic blocks, also known as Configurable Logic Blocks (CLBs) or Adaptive Logic Modules (ALMs), are the fundamental building blocks of an FPGA. They contain Look-Up Tables (LUTs), flip-flops, and other components that enable them to perform a wide range of digital functions. LUTs are used to implement combinational logic, while flip-flops provide storage elements for sequential logic. The number of logic blocks in an FPGA can vary depending on the device's size and complexity, with larger FPGAs containing more logic blocks to support more complex designs.

Interconnects: Interconnects are programmable routing resources that connect the logic blocks within an FPGA. They form a network of wires and programmable switches, allowing for flexible connections between the logic blocks and I/O blocks. The interconnects can be configured to create custom routing paths, enabling the implementation of complex digital circuits. The flexibility of the interconnects is a key factor in the FPGA's ability to adapt to different design requirements.

I/O Blocks: I/O blocks are responsible for interfacing the FPGA with external devices and signals. They provide the necessary circuitry to connect the FPGA's internal logic to external pins, allowing for communication with other components in the system. I/O blocks can be configured to support various signal standards, such as LVCMOS, LVTTL, and LVDS, as well as different voltage levels and drive strengths. This configurability enables the FPGA to interface with a wide range of external devices and systems.

The combination of these components in an FPGA's architecture allows for a high degree of customization and flexibility. Designers can configure the logic blocks, interconnects, and I/O blocks to create custom digital circuits tailored to their specific application requirements. This adaptability makes FPGAs a powerful tool for implementing complex digital systems and enables rapid prototyping and iterative design processes.[2]

FPGA Programming and Configuration

FPGA programming and configuration involve defining the functionality of the FPGA by specifying the connections and logic within the device. This process typically involves the use of Hardware Description Languages (HDLs) and the generation of a configuration bitstream.

Hardware Description Languages (HDLs): HDLs, such as VHDL and Verilog, are used to describe the digital circuits implemented within an FPGA. These languages provide a high-level, human-readable representation of the desired functionality, allowing designers to define the behavior of the FPGA's logic blocks and interconnects. HDLs enable the description of complex digital systems using a combination of structural, behavioral, and dataflow modeling techniques. Once the design is complete, the HDL code is synthesized into a lower-level representation, such as a gate-level netlist, which can be used for further processing and optimization.

Bitstream Generation and Configuration: The synthesized design is then translated into a configuration bitstream, which is a binary file containing the data required to configure the FPGA's logic blocks, interconnects, and I/O blocks. This process, known as place-and-route, involves mapping the design's logic elements to the FPGA's physical resources and determining the routing paths for the interconnects. The resulting bitstream is loaded into the FPGA's configuration memory, either through a dedicated programming interface or an external memory device. Once the bitstream is loaded, the FPGA's internal connections and logic are configured according to the specified design, enabling the device to perform the desired functions.

Configuration Memory: The configuration memory in an FPGA is responsible for storing the bitstream data that defines the device's functionality. This memory is typically volatile, meaning that the data is lost when power is removed from the device. As a result, FPGAs must be reconfigured each time they are powered on, either by loading the bitstream from an external memory device or through a dedicated programming interface. Some FPGAs also offer non-volatile configuration memory options, which can retain the bitstream data even when power is removed, allowing for instant-on operation.

FPGA programming and configuration provide a flexible and adaptable approach to implementing custom digital circuits. By using HDLs and configuration bitstreams, designers can define the functionality of the FPGA and update or modify the device's behavior as needed, without the need for physical hardware changes. This flexibility enables rapid prototyping, iterative design, and the ability to address hardware bugs or implement new features in the field.

Recommended reading:  FPGA Design: A Comprehensive Guide to Mastering Field-Programmable Gate Arrays

Understanding Microcontrollers

What is a Microcontroller?

A microcontroller is a compact, integrated circuit designed to perform specific tasks within an embedded system. It typically consists of a Central Processing Unit (CPU), memory, and various peripherals, all integrated on a single chip. Microcontrollers are used in a wide range of applications, from simple control systems to more complex devices like smartphones and IoT devices. The CPU is the core of the microcontroller and is responsible for executing instructions stored in the device's memory. It processes data and controls the operation of the microcontroller's peripherals. The CPU's performance is determined by factors such as its clock speed, architecture, and instruction set.

Memory in a microcontroller is used to store both the program code and the data required for its operation. There are two main types of memory: program memory and data memory. Program memory, typically implemented as flash memory, stores the instructions that the CPU executes, while data memory, usually implemented as Static Random Access Memory (SRAM), stores variables and temporary data used during program execution.

Peripherals are additional components integrated into the microcontroller that provide specific functionality, such as communication interfaces, timers, and analog-to-digital converters (ADCs). These peripherals allow the microcontroller to interact with external devices and perform various tasks, such as reading sensor data or controlling actuators.

Microcontrollers offer several advantages in certain applications, including low power consumption, ease of programming, and a high level of integration. Their compact size and low cost make them ideal for use in embedded systems, where space and power constraints are critical factors. Additionally, microcontrollers can be programmed using high-level programming languages, such as C or C++, which simplifies the development process and allows for rapid prototyping and testing.[3]

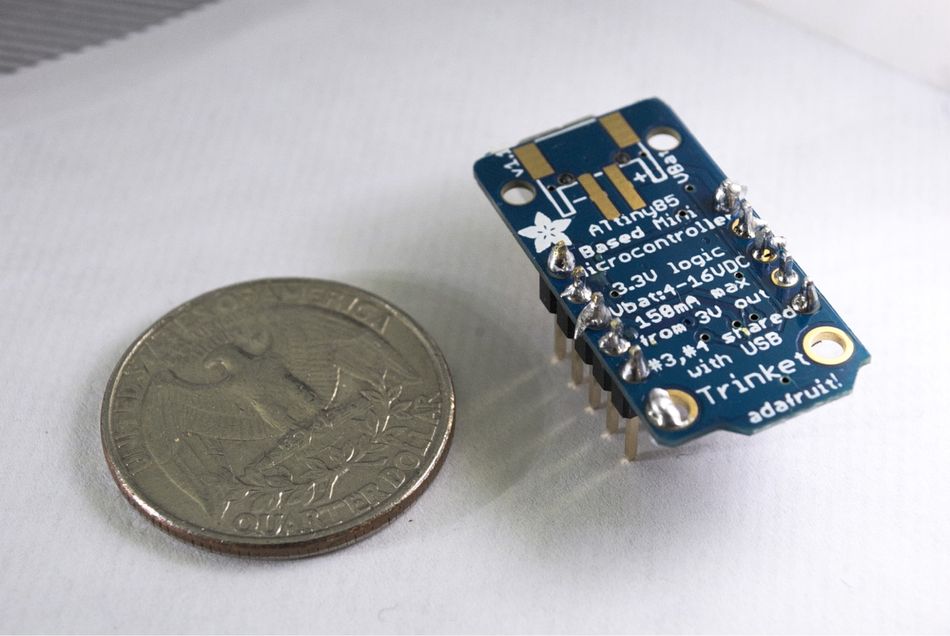

Future Microcontroller (CPU Socket)

Microcontroller Architecture

The architecture of a microcontroller plays a crucial role in determining its performance, power consumption, and ease of use. The primary components of a microcontroller's architecture include the Central Processing Unit (CPU), memory, and peripherals.

Central Processing Unit (CPU): The CPU is the heart of the microcontroller and is responsible for executing instructions stored in the program memory. It processes data and controls the operation of the microcontroller's peripherals. The CPU's architecture, such as Harvard or von Neumann, and its instruction set, such as RISC or CISC, can significantly impact its performance and power efficiency. Some common microcontroller CPU architectures include ARM Cortex, AVR, and PIC.

Memory: Memory in a microcontroller is used to store both the program code and the data required for its operation. There are two main types of memory: program memory and data memory. Program memory, typically implemented as non-volatile flash memory, stores the instructions that the CPU executes. Data memory, usually implemented as volatile SRAM, stores variables and temporary data used during program execution. The size and type of memory in a microcontroller can impact its performance, power consumption, and suitability for specific applications.

Peripherals: Peripherals are additional components integrated into the microcontroller that provide specific functionality. These can include communication interfaces (such as UART, SPI, and I2C), timers, counters, Pulse Width Modulation (PWM) generators, Analog-to-Digital Converters (ADCs), and Digital-to-Analog Converters (DACs). Peripherals enable the microcontroller to interact with external devices and perform various tasks, such as reading sensor data, controlling actuators, or communicating with other components in the system. The availability and capabilities of peripherals in a microcontroller can significantly impact its suitability for specific applications and ease of use.

The combination of these components in a microcontroller's architecture determines its overall performance, power consumption, and ease of use. By understanding the key components and their roles, designers can make informed decisions when selecting a microcontroller for their specific application requirements. This knowledge can help optimize the design for performance, power efficiency, and ease of development.[4]

Microcontroller Programming and Development

Programming and development of microcontrollers involves writing code to define the desired functionality, compiling the code into machine-readable instructions, and uploading the compiled code to the microcontroller's memory. This process typically involves the use of high-level programming languages, development tools, and environments.

High-Level Programming Languages: Microcontrollers are commonly programmed using high-level programming languages, such as C, C++, or Python. These languages provide a more human-readable representation of the desired functionality, allowing developers to write code that is easier to understand, maintain, and debug. High-level languages also offer libraries and frameworks that simplify the development process by providing pre-built functions and modules for common tasks, such as communication protocols, sensor interfacing, and control algorithms.

Compiling and Uploading Code: Once the code is written, it must be compiled into machine-readable instructions that the microcontroller's CPU can execute. This process involves translating the high-level code into a lower-level representation, such as assembly language or machine code, and optimizing the code for size and performance. The compiled code is then uploaded to the microcontroller's program memory, typically using a programming interface, such as a bootloader or an In-System Programming (ISP) connection. Some microcontrollers also support Over-the-Air (OTA) updates, which allow the code to be updated wirelessly without the need for a physical connection.

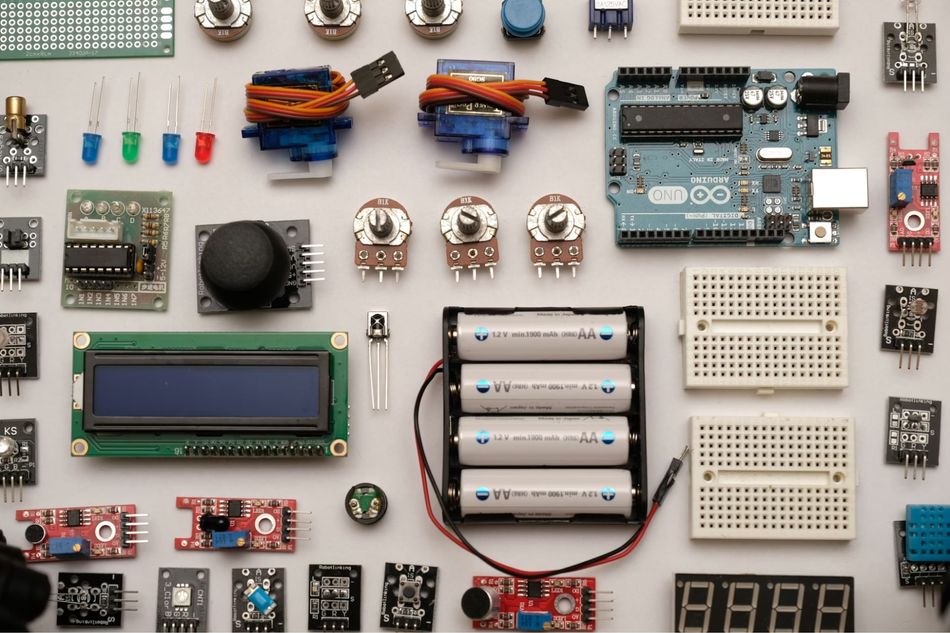

Development Tools and Environments: Microcontroller programming and development often require specialized tools and environments to facilitate the coding, debugging, and testing processes. These tools can include Integrated Development Environments (IDEs), such as Eclipse, Keil, or MPLAB X, which provide a unified interface for writing, compiling, and debugging code. Debugging tools, such as in-circuit debuggers and emulators, can also be used to test and troubleshoot the code during development. Additionally, development boards and evaluation kits, which contain a microcontroller and various peripherals, can be used to prototype and test the functionality of the code in a real-world environment.

Microcontroller programming and development enable the implementation of custom functionality tailored to specific application requirements. By using high-level programming languages, development tools, and environments, developers can create, test, and optimize code for microcontrollers, ensuring efficient and reliable operation in the target application. This process allows for rapid prototyping, iterative design, and the ability to address software bugs or implement new features without the need for physical hardware changes.[5]

Recommended reading: Microcontroller-Based IoT Development Kits: Powering the Next Generation of IoT Solutions

Comparing FPGAs and Microcontrollers

Performance

When comparing the performance of FPGAs and microcontrollers, it is essential to consider the nature of the tasks they are designed to perform. FPGAs excel in parallel processing tasks, while microcontrollers are optimized for sequential processing.

FPGAs can execute multiple operations simultaneously due to their parallel architecture, which consists of numerous configurable logic blocks and interconnects. This parallelism allows FPGAs to achieve high performance in applications that require concurrent processing, such as digital signal processing, image processing, and cryptography. For example, an FPGA can process multiple data streams in parallel, enabling real-time processing of high-bandwidth signals or high-resolution images.

Microcontrollers, on the other hand, are designed for sequential processing tasks. Their performance is determined by factors such as the CPU's clock speed, architecture, and instruction set. While microcontrollers may not match the parallel processing capabilities of FPGAs, they can still provide adequate performance for many applications, particularly those that involve control systems, sensor interfacing, and communication protocols. In these applications, the microcontroller's performance is often sufficient to meet the system's requirements, and its lower power consumption and ease of programming can be advantageous.

The choice between FPGAs and microcontrollers for a specific application depends on the performance requirements of the system. If the application demands high parallel processing capabilities, an FPGA may be the better choice. However, if the application requires sequential processing and can benefit from the lower power consumption and ease of programming offered by microcontrollers, a microcontroller may be more suitable.

Power Consumption

Power consumption is a critical factor to consider when comparing FPGAs and microcontrollers, as it can impact the overall efficiency, battery life, and thermal management of a system. Both FPGAs and microcontrollers have unique power consumption characteristics that can influence their suitability for specific applications.

FPGAs generally consume more power than microcontrollers due to their parallel architecture and the large number of programmable elements they contain. The power consumption of an FPGA depends on factors such as the number of active logic elements, the switching frequency of the interconnects, and the I/O activity. In applications that require high-performance parallel processing, the increased power consumption of FPGAs may be justified by the performance benefits they provide. However, in power-sensitive applications, such as battery-powered devices or energy-harvesting systems, the higher power consumption of FPGAs can be a disadvantage.

Microcontrollers, on the other hand, typically consume less power than FPGAs due to their simpler architecture and lower transistor count. Their power consumption is primarily determined by factors such as the CPU's clock speed, the activity of the peripherals, and the power management features implemented in the device. Many microcontrollers include advanced power management features, such as sleep modes and dynamic voltage scaling, which can further reduce power consumption during periods of low activity. This lower power consumption makes microcontrollers more suitable for applications where power efficiency is a critical requirement, such as wearable devices, IoT sensors, and remote monitoring systems.

When choosing between FPGAs and microcontrollers, it is essential to consider the power consumption requirements of the target application. If the application demands high-performance parallel processing and can tolerate higher power consumption, an FPGA may be the better choice. However, if the application requires low power consumption and can benefit from the simpler architecture and power management features offered by microcontrollers, a microcontroller may be more suitable.

Flexibility and Customization

Flexibility and customization are important factors to consider when comparing FPGAs and microcontrollers, as they can impact the ease of implementation and adaptability of a design. Both FPGAs and microcontrollers offer unique advantages in terms of flexibility and customization, which can influence their suitability for specific applications.

FPGAs are highly flexible and customizable due to their programmable architecture, which allows designers to create custom digital circuits tailored to their specific requirements. The logic blocks, interconnects, and I/O blocks within an FPGA can be configured to implement a wide range of digital functions, from simple logic gates to complex digital signal processing algorithms. This flexibility enables rapid prototyping and iterative design, as well as the ability to update or fix hardware bugs without physically replacing the device. Additionally, FPGAs can be reprogrammed to perform different tasks by altering their internal connections and logic, providing a high degree of adaptability for changing application requirements.

Microcontrollers, while not as flexible as FPGAs in terms of hardware customization, still offer a significant level of flexibility in terms of software customization. The functionality of a microcontroller is primarily defined by the code that is executed by its CPU, which can be easily updated or modified to implement new features or address software bugs. This software-based customization allows for rapid development and testing, as well as the ability to adapt the microcontroller's functionality to changing requirements without the need for hardware modifications. Additionally, microcontrollers often include a variety of integrated peripherals, such as communication interfaces, timers, and ADCs, which can be configured to support specific application requirements.

When choosing between FPGAs and microcontrollers, it is essential to consider the flexibility and customization requirements of the target application. If the application demands a high degree of hardware customization and adaptability, an FPGA may be the better choice. However, if the application can benefit from the software-based customization and integrated peripherals offered by microcontrollers, a microcontroller may be more suitable.

Development Time and Complexity

Development time and complexity are important factors to consider when comparing FPGAs and microcontrollers, as they can impact the overall efficiency and cost of a project. Both FPGAs and microcontrollers have unique advantages and challenges in terms of development time and complexity, which can influence their suitability for specific applications.

FPGAs, while offering a high degree of flexibility and customization, can be more complex and time-consuming to develop compared to microcontrollers. The development process for FPGAs typically involves writing code in a Hardware Description Language (HDL), such as VHDL or Verilog, which can have a steeper learning curve for developers who are more familiar with high-level programming languages like C or C++. Additionally, the process of synthesizing, placing, and routing the design can be computationally intensive and time-consuming, particularly for large and complex designs. Debugging and testing FPGA designs can also be more challenging, as it often requires specialized tools and equipment, such as logic analyzers and in-circuit emulators.

Microcontrollers, on the other hand, generally have a simpler and faster development process, as they can be programmed using high-level programming languages and development environments that are more familiar to software developers. The use of high-level languages, libraries, and frameworks can simplify the development process and reduce the time required to implement and test the desired functionality. Debugging and testing microcontroller code can also be more straightforward, as it often involves standard software debugging tools and techniques, such as breakpoints and step-through debugging.

When choosing between FPGAs and microcontrollers, it is essential to consider the development time and complexity requirements of the target application. If the application demands a high degree of hardware customization and the development team has the necessary expertise in FPGA development, an FPGA may be the better choice. However, if the application can benefit from the simpler and faster development process offered by microcontrollers, and the development team has more experience with software development, a microcontroller may be more suitable.[6]

Choosing Between FPGAs and Microcontrollers

Application Requirements

When deciding between FPGAs and microcontrollers for a specific project, it is crucial to consider the application requirements, as they can greatly influence the suitability of each technology. By evaluating factors such as performance, power consumption, flexibility, and development complexity, designers can make informed decisions that best meet the needs of their target application.

Performance requirements are a key factor in determining the appropriate technology for an application. If the application demands high parallel processing capabilities, such as digital signal processing or image processing, an FPGA may be the better choice due to its parallel architecture. Conversely, if the application requires sequential processing and can benefit from the lower power consumption and ease of programming offered by microcontrollers, a microcontroller may be more suitable.

Power consumption is another important consideration, particularly for battery-powered or energy-sensitive applications. Microcontrollers generally consume less power than FPGAs, making them a more suitable choice for applications where power efficiency is a critical requirement. However, if the application can tolerate higher power consumption in exchange for the performance benefits provided by FPGAs, an FPGA may be the better option.

Flexibility and customization are also essential factors to consider. FPGAs offer a high degree of hardware customization, allowing designers to create custom digital circuits tailored to their specific requirements. Microcontrollers, while not as flexible in terms of hardware customization, still provide a significant level of software customization, enabling developers to adapt the device's functionality through code updates.

Development time and complexity can also impact the choice between FPGAs and microcontrollers. If the development team has more experience with software development and high-level programming languages, a microcontroller may be more suitable due to its simpler and faster development process. However, if the team has expertise in FPGA development and the application demands a high degree of hardware customization, an FPGA may be the better choice.

By carefully considering the application requirements and weighing the advantages and disadvantages of each technology, designers can make informed decisions that best meet the needs of their target application, optimizing performance, power efficiency, flexibility, and development time.

Cost Considerations

Cost is an important factor to consider when choosing between FPGAs and microcontrollers, as it can impact the overall budget and feasibility of a project. Both FPGAs and microcontrollers have unique cost factors that can influence their suitability for specific applications.

FPGAs tend to have higher upfront costs compared to microcontrollers, primarily due to their more complex architecture and the need for specialized development tools and equipment. The cost of an FPGA is influenced by factors such as the number of logic elements, the size of the configuration memory, and the availability of integrated peripherals. Additionally, the development process for FPGAs can be more time-consuming and require specialized expertise, which can increase the overall development cost.

However, FPGAs can offer cost savings in certain scenarios, particularly when low production volumes or rapid prototyping are involved. Since FPGAs can be reprogrammed to perform different tasks, they can be used to implement multiple functions within a single device, potentially reducing the need for additional components in the system. This can lead to cost savings in terms of component procurement, assembly, and inventory management.

Microcontrollers generally have lower upfront costs compared to FPGAs, due to their simpler architecture and the availability of low-cost development tools and environments. The cost of a microcontroller is influenced by factors such as the CPU's performance, the size of the memory, and the availability of integrated peripherals. Additionally, the development process for microcontrollers is typically faster and more straightforward, which can reduce the overall development cost.

When considering cost factors, it is essential to evaluate the specific requirements of the target application and weigh the advantages and disadvantages of each technology. If the application demands high-performance parallel processing and can justify the higher upfront costs of FPGAs, an FPGA may be the better choice. However, if the application can benefit from the lower upfront costs and simpler development process offered by microcontrollers, a microcontroller may be more suitable.[7]

Recommended reading: How Cutting-edge Microcontrollers Build Security from the Ground Up

Conclusion

In summary, both FPGAs and microcontrollers offer unique advantages and challenges, making them suitable for different applications. FPGAs excel in parallel processing tasks and provide a high degree of hardware customization, while microcontrollers offer lower power consumption and a simpler development process. When choosing between these technologies, it is essential to consider factors such as performance, power consumption, flexibility, development time, cost, and the specific requirements of the target application. By carefully evaluating these factors and weighing the advantages and disadvantages of each technology, designers can make informed decisions that best meet the needs of their projects, optimizing performance, power efficiency, flexibility, and development time.

Frequently Asked Questions (FAQs)

1. What are the main differences between FPGAs and microcontrollers? FPGAs are highly customizable semiconductor devices that can be programmed to perform a wide range of digital functions, while microcontrollers are compact integrated circuits designed for specific tasks within embedded systems. FPGAs excel in parallel processing tasks, whereas microcontrollers are optimized for sequential processing.

2. When should I choose an FPGA over a microcontroller? You should consider choosing an FPGA when your application requires high-performance parallel processing, a high degree of hardware customization, or rapid prototyping and iterative design. FPGAs are well-suited for applications such as digital signal processing, image processing, and cryptography.

3. When should I choose a microcontroller over an FPGA? You should consider choosing a microcontroller when your application requires low power consumption, ease of programming, and a simpler development process. Microcontrollers are ideal for applications involving control systems, sensor interfacing, and communication protocols.

4. Can I use both an FPGA and a microcontroller in the same system? Yes, it is possible to use both.
