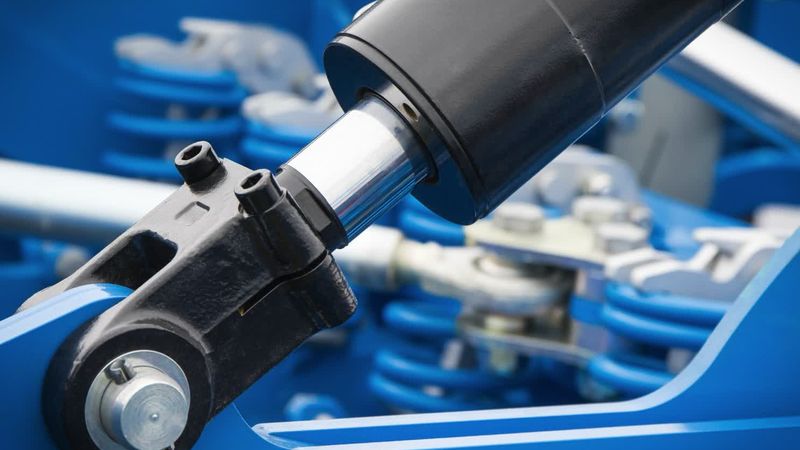

What are Pneumatic Actuators? Principles, Types, and Applications

Pneumatic actuators convert compressed air into mechanical motion, enabling precise and efficient control in various industrial applications.

author avatar

17 Jun, 2024. 16 min read

Pneumatic actuators harness compressed air to convert energy into mechanical motion, powering modern automation. Recent advancements in materials and digital integration have enhanced these devices, making them vital across various industries.

This article delves into the world of pneumatic actuators, exploring their core principles and components, operating mechanisms, and advanced control systems. Discover the latest technological advancements, real-world applications, and solutions to common challenges.

Introduction

Pneumatic actuators, which transform compressed air into linear or rotary motion, have been pivotal in automation since their inception. Originating in the early 20th century, these devices have evolved significantly, becoming vital in various engineering domains. They operate on the basic principle of using compressed air to drive a piston or gear, converting energy into mechanical motion with high efficiency and reliability.

Pneumatic actuators are relevant in numerous fields, from manufacturing to aerospace. In factories, they control machinery with precision, improving productivity and safety. In robotics, they enable the movement of arms and tools with remarkable accuracy. Aerospace engineers use them to manage control surfaces and landing gear systems, where reliability is paramount.

Pneumatic actuators have a substantial impact on engineering applications. By facilitating precise control and automation, they boost operational efficiency and innovation. Integrating these actuators allows engineers to design robust and adaptable systems, pushing the boundaries of what's possible in technology and industrial processes.

Further Reading: What is an Actuator? Types, Principles, and Applications

Understanding Pneumatic Actuators

Before examining the specific components, it is essential to grasp the fundamental working principles of pneumatic actuators. This provides a basis for exploring how each component contributes to its functionality and efficiency.

Core Principles and Components

Pneumatic actuators operate on the principle of converting compressed air into mechanical motion. This transformation is fundamentally governed by physical laws, such as Boyle's Law, which states that the pressure of a gas is inversely proportional to its volume at a constant temperature. In a pneumatic actuator, compressed air fills a chamber, creating a force that moves a piston or rotates a shaft. Historically, pneumatic technology has been instrumental in industrial automation, evolving significantly from its early use in simple air tools to today's sophisticated control systems.


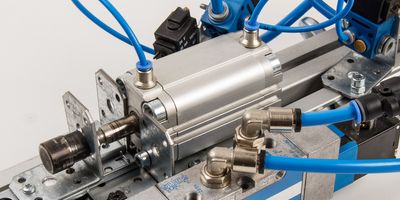

Critical components of a pneumatic actuator include the pneumatic cylinder/air cylinder, piston, control valves, and seals. The cylinder serves as the chamber where compressed air is introduced. Made from high-strength materials like aluminum or stainless steel, the cylinder ensures durability and resistance to wear. The piston, housed within the cylinder, is driven by the pressure of the compressed air. Arod that transfers the motion to the external load is attached to the piston. Valves control the flow and pressure of the air entering and exiting the cylinder. These valves are pivotal in controlling compressed air flow into and out of the actuator. These valves are often electrically operated and can be configured to open or close air pathways rapidly, allowing for accurate pneumatic control over the actuator’s movements. Feedback mechanisms, such as position sensors, are integrated to monitor the actuator's position and adjust the airflow to achieve the desired motion with high precision. Seals, typically made from rubber or polyurethane, prevent air leakage and maintain pressure within the system.

Types of Pneumatic Actuators

Pneumatic actuators come in two primary types: linear and rotary.

Linear actuators produce straight-line motion, ideal for opening and closing valves or driving conveyor belts. On the other hand, rotary actuators convert air pressure into rotational motion, making them suitable for tasks like turning a shaft or positioning a robotic arm. The rack and pinion mechanism is widely used in pneumatic actuators to convert linear motion into rotary motion. Each type has operational nuances. For example, linear actuators can be single-acting, where air pressure moves the piston in one direction and a spring returns it, or double-acting, where air pressure is used for both movements. Rotary actuators can vary in the angle of rotation and torque output, depending on their design.

Other types of actuators include:

  • Grippers: Grippers are specialized actuators used for gripping and manipulating objects. Angular grippers open and close in an angular motion around a pivot point, making them suitable for tasks requiring a sweeping motion. Parallel grippers, in contrast, move in a straight line to grip and release objects, ensuring the jaws remain parallel. These grippers are critical in robotic and automated systems for handling various components.

  • Diaphragm actuators: Diaphragm actuators employ a flexible diaphragm to produce linear motion, often used in valve control applications where precise positioning is crucial. Their ability to provide accurate control makes them indispensable in process control industries. Rodless actuators, including magnetic coupled rodless cylinders and cable cylinders, offer unique solutions where compact designs or flexible connections are required. Magnetic coupled rodless cylinders use a magnetic coupling to transfer motion from an internal piston to an external carriage, while cable cylinders use a cable for motion transfer.

  • Bellows actuators: Finally, bellows actuators feature a flexible bellows structure to generate linear motion. These actuators are ideal for applications demanding a large range of motion and flexibility. Each type of pneumatic actuator offers distinct advantages, making it essential to choose the right actuator based on the specific requirements of the application, such as the type of motion needed, force requirements, and environmental conditions.

Understanding these principles and components is crucial for leveraging the full potential of pneumatic actuators in various engineering applications. In manufacturing, for instance, pneumatic actuators control automated machinery, ensuring precise and repeatable movements essential for high-volume production. In robotics, they provide the necessary actuation for movement and manipulation, offering a reliable and cost-effective solution. Aerospace applications often rely on pneumatic systems for functions like landing gear deployment and control surface actuation, where reliability and performance are critical. By mastering the interplay of pressure, volume, and flow, engineers can configure efficient and robust systems, driving innovation across multiple industries.

Further reading: What Is Pneumatics? Answered by Our Experts - Rowse

Comparison with Other Actuators: Pneumatic Actuators vs Hydraulic Actuators vs Electric Actuators

  • When comparing pneumatic actuators to hydraulic and electric actuators, several technical specifics highlight their unique advantages and limitations:

Feature

Pneumatic Actuators

Hydraulic Actuators

Electric Actuators

Power Source

Compressed air

Hydraulic fluid

Electricity

Force Generation

Moderate

High

Low to moderate

Speed

Fast

Moderate to slow

Variable (can be fast or slow)

Precision

Moderate

Moderate

High

Control

Simple on/off control

Simple on/off control

Precise control with feedback systems

Efficiency

Moderate (energy loss due to air compression)

High (efficient but some loss due to fluid friction)

High (direct energy conversion)

Cost

Low to moderate

Moderate to high

Moderate to high

Maintenance

Low (simple design)

High (leaks, fluid replacement)

Low to moderate (electronics can fail)

Advantages

Simple design, cost-effective, fast response time, suitable for high-speed applications

High force output, precise control, suitable for heavy-duty applications

High precision, programmable control, clean operation without fluid or air

Limitations

Limited force output compared to hydraulics, potential for air leaks, requires a constant supply of compressed air

Complex system with more maintenance needs, potential for fluid leaks, slower response time compared to pneumatics

Higher initial cost, slower response time compared to pneumatics, limited force output compared to hydraulics

Applications

Suitable for high-speed applications - Industrial automation, robotics

Suitable for heavy-duty applications - Heavy machinery, industrial presses

Suitable for all sorts of applications - Robotics, precision machinery, CNC machines

Environment Suitability

Good for hazardous or explosive environments

Good for heavy-duty environments

More suitable for clean environments

Noise

Can be noisy

Quieter than pneumatics

Quiet

Durability

Good

Excellent

Variable

Flexibility

Moderate (limited by air supply)

Moderate (limited by hydraulic lines)

High (flexible in terms of placement)

Understanding the operating mechanisms and control systems of pneumatic actuators, along with their comparison to hydraulic and electric counterparts, provides a comprehensive insight into their functionality and application in various engineering fields.

Innovations in Pneumatic Actuators

Pneumatic actuators have been transformed by groundbreaking innovations. These advancements have significantly improved their performance, efficiency, and application range.

Recent Technological Advancements

In recent years, advancements in materials and design have significantly enhanced the performance and durability of pneumatic actuators. High-strength alloys and composites are at the forefront of these innovations. For instance, new aluminum alloys and composite materials have been developed to withstand higher pressures and reduce the overall weight of the actuators. These materials not only enhance the strength and longevity of the actuators but also improve their energy efficiency by reducing the energy required for operation.

The evolution of pneumatic technology has been marked by continuous improvements in materials science. Early pneumatic systems relied on basic metals, but modern actuators benefit from high-performance alloys and composite materials that provide superior strength-to-weight ratios. This transition has enabled pneumatic actuators to operate under higher pressures and more demanding conditions, extending their application range and reliability.

Improvements in energy efficiency and control precision are also notable. Modern pneumatic actuators now incorporate advanced sealing technologies and precision machining techniques that minimize air leakage and maximize the efficiency of air compression. For example, high-precision seals and bearings in the latest actuator models reduce friction and wear, ensuring smoother and more efficient operation. Additionally, integrating intelligent sensors and control algorithms allows for real-time air pressure and flow control adjustments, significantly enhancing control precision.

Further reading: What is a Sensor? An In-Depth Exploration and Comprehensive Guide to Engineering Principles and Applications

These technological advancements have practical applications across various industries. In manufacturing, advanced pneumatic actuators are used to control complex automation processes with high precision and reliability. In the automotive industry, they enable efficient assembly line operations, contributing to increased productivity and safety. The aerospace sector also benefits from these innovations, using lightweight and efficient pneumatic systems for critical functions such as landing gear operation and flight control.

airplane-pneumatic-actuator-boeing-747Boeing 747's landing gear system utilizing pneumatic actuators for precise and reliable operation

Cutting-edge pneumatic actuators, such as the Festo Motion Terminal, showcase these advancements with impressive technical specifications.[1] The Festo Motion Terminal, for instance, combines pneumatics with digitalization, featuring integrated sensors and software that allow for unprecedented levels of control and monitoring. This actuator can adapt its performance in real time based on feedback from its sensors, optimizing energy use and improving operational accuracy. Its technical specifications include a pressure range of up to 10 bar, a response time of less than 10 milliseconds, and the ability to perform up to 50 million switching cycles without maintenance.

Key Advancements

  • Materials:

    • New aluminum alloys and composites for higher pressure tolerance and reduced weight.

    • Advanced sealing technologies to minimize air leakage.

  • Energy Efficiency:

    • High-precision seals and bearings to reduce friction and wear.

    • Integration of smart sensors and control algorithms for real-time adjustments.

  • Control Precision:

    • Modern actuators with digital integration.

    • Real-time performance optimization based on sensor feedback.

These advancements illustrate the continuous evolution of pneumatic actuators, driven by innovations in materials science and control technologies. By leveraging these developments, engineers can design more efficient, reliable, and precise systems that meet the increasing demands of modern industrial applications.

Integration with Modern Systems

Pneumatic actuators have evolved significantly from their early mechanical forms to sophisticated components of intelligent systems, largely due to the advent of Internet of Things (IoT) technology. Historically, these actuators operated in isolation, requiring manual adjustments and regular maintenance. The integration of advanced sensors and control algorithms has now transformed them into intelligent, responsive units capable of real-time monitoring and adjustments.

Modern pneumatic actuators leverage sensors such as pressure transducers, position indicators/sensors, and flow meters to collect real-time data on operating conditions. This data is processed by control algorithms, which adjust the actuator's performance to optimize efficiency, precision, and reliability. The shift from manual to automated, sensor-driven systems marks a significant advancement in engineering capabilities.

For instance, in automated manufacturing lines, sensors can detect variations in air pressure and adjust valve positions to maintain optimal conditions. This improves the efficiency of the manufacturing process and reduces downtime by predicting and preventing potential failures through real-time data analytics. Similarly, smart pneumatic actuators in HVAC systems can adjust airflow based on real-time temperature and occupancy data, ensuring energy efficiency and comfort. Automated dampers driven by pneumatic actuators enhance environmental control.

Control algorithms, such as PID (Proportional-Integral-Derivative) controllers, play a crucial role in fine-tuning the actuator's response to changing conditions. These algorithms continuously adjust parameters based on sensor feedback, ensuring precise control over motion and force. Data analytics further enhances performance by providing insights into trends and facilitating predictive maintenance, extending the lifespan of actuators and reducing operational costs.

Further reading: PID Controller & Loops: A Comprehensive Guide to Understanding and Implementation

Features and Benefits

  • Real-time Monitoring:

    • Continuous data collection from sensors.

    • Immediate adjustments to operating conditions.

  • Enhanced Control:

    • Advanced control algorithms for precise operation.

    • Improved accuracy and reliability of actuator performance.

  • Predictive Maintenance:

    • Data analytics to foresee potential issues.

    • Reduction in downtime and maintenance costs.

  • Efficiency and Optimization:

    • Automated adjustments for optimal efficiency.

    • Reduced energy consumption through smart control.

These advancements demonstrate how integrating pneumatic actuators with IoT and smart systems has revolutionized engineering technology. This synergy enhances the performance and reliability of pneumatic systems and expands the possibilities for automation and intelligent control in various industrial applications.

Real-World Applications in Engineering

Pneumatic actuators, known for their reliability and simplicity, are widely utilized across various industries. Some key areas include:

Industrial Automation

Pneumatic actuators have been essential in industrial automation since the early 20th century, evolving from simple pneumatic tools to sophisticated components of modern manufacturing systems. Their precision, reliability, and efficiency have made them indispensable in various automated processes across multiple industries.

In the automotive industry, pneumatic actuators are crucial for controlling robotic arms that perform tasks such as welding, painting, and assembly. These actuators ensure consistent force and speed, essential for maintaining high-quality production standards. For example, in an automotive assembly line, the precision of pneumatic actuators allows for uniform application of paint and exact placement of parts, resulting in a superior final product.

The electronics industry also heavily relies on pneumatic actuators, particularly in the assembly of circuit boards. Pick-and-place machines, equipped with pneumatic actuators, position tiny components with incredible accuracy and speed. This not only increases throughput but also reduces the risk of damage to delicate electronic parts. The precision offered by pneumatic actuators ensures that each component is placed correctly, which is vital for the functionality of electronic devices.

In the packaging industry, pneumatic actuators are used to operate machinery that fills, seals, and labels products. Their fast response time and reliability are critical for maintaining the speed and efficiency of packaging lines. For instance, in a beverage bottling plant, pneumatic actuators control the filling valves, ensuring that each bottle is filled to the correct level quickly and accurately, thus keeping up with high production demands.

Industry-Specific Uses

  • Automotive:

    • Application: Controlling robotic arms for welding, painting, and assembly.

    • Performance Metrics: Consistent force and speed, high-quality production.

  • Electronics:

    • Application: Operating pick-and-place machines for circuit board assembly.

    • Performance Metrics: High accuracy, maintaining throughput, reducing damage risk.

  • Packaging:

    • Application: Operating machinery for filling, sealing, and labeling.

    • Performance Metrics: Fast response time, reliability, maintaining line speed and accuracy.

These examples highlight the versatility and effectiveness of pneumatic actuators in various industries. By providing precise and reliable motion control, pneumatic actuators enhance the efficiency and quality of automated processes, driving innovation and productivity across different sectors.

Robotics and Mechatronics

Pneumatic actuators have been integral to the development of robotics and mechatronics, providing the precise and reliable motion control necessary for various applications.

In robotic arms, pneumatic actuators are essential for controlling the movement of joints and end effectors. These actuators deliver high force and speed, making them ideal for tasks such as pick-and-place operations, material handling, and assembly. For instance, the Robotiq 2F-85 and 2F-140 adaptive grippers utilize pneumatic actuators to provide a strong and adaptive grip on various objects.[2] These grippers can adjust their force and position in real-time, ensuring a secure hold on objects of different shapes and sizes.

In mobile robotics, pneumatic actuators are used in systems requiring lightweight and flexible actuation solutions. Soft Robotics Inc.'s soft grippers, for example, use pneumatic actuators made from soft, flexible materials to grasp delicate objects without damaging them.[3] These actuators can conform to the shape of the object, providing a gentle yet firm grip.Pneumatic actuators also play a significant role in exoskeletons and wearable robots, where their high power-to-weight ratio is particularly advantageous. These systems use pneumatic actuators to assist or enhance human movement, supporting tasks that require repetitive or strenuous motions. The ATOUN Model Y exoskeleton, for instance, employs pneumatic actuators to assist in lifting heavy objects by providing additional force to the user's movements.[4]These examples illustrate the diverse applications of pneumatic actuators in robotics and mechatronics. By offering precise control, high force output, and adaptability, pneumatic actuators have become crucial components in advancing the capabilities and performance of robotic systems across various industries. Their continued development and integration into new robotic technologies promise to drive further innovations and improvements in the field.

Addressing Challenges

Incorporating pneumatic actuators into various applications is not without its challenges. Here is a list of some of them:

Technical and Practical Limitations

Pneumatic actuators, while highly effective, face several technical and practical challenges that can impact their performance and reliability. Understanding these challenges is crucial for engineers to develop effective solutions and ensure optimal operation in various applications.

One of the most common technical challenges is maintaining a consistent and reliable air supply. Pneumatic systems require a continuous supply of compressed air to function correctly. Variations in air pressure or supply interruptions can lead to erratic actuator performance or complete system failure. Engineers must design robust air supply systems with adequate storage capacity and pressure regulation to mitigate these issues. Regular maintenance and monitoring of the air supply infrastructure are also essential to prevent leaks and ensure consistent operation.

Another significant challenge is the maintenance of pneumatic actuators. These systems have numerous moving parts that are subject to wear and tear, especially seals and bearings. Over time, these components can degrade, leading to reduced efficiency and potential leaks. Engineers address this by selecting high-quality materials for seals and bearings and implementing regular maintenance schedules to inspect and replace worn components before they fail. Using advanced materials such as polytetrafluoroethylene (PTFE) for seals can also enhance durability and reduce maintenance frequency.

Common Challenges and Engineering Solutions

  • Air Supply Consistency:

    • Challenge: Variations in air pressure or supply interruptions.

    • Solution: Design robust air supply systems with adequate storage capacity and pressure regulation. Implement regular maintenance and monitoring to prevent leaks and ensure consistent operation.

  • Maintenance of Components:

    • Challenge: Wear and tear of moving parts, particularly seals and bearings.

    • Solution: Use high-quality materials for seals and bearings. Implement regular maintenance schedules to inspect and replace worn components. Employ advanced materials like PTFE to enhance durability.

  • Temperature Sensitivity:

    • Challenge: Pneumatic actuators can be sensitive to temperature changes, which can affect the air pressure and actuator performance.

    • Solution: Design systems with temperature compensation mechanisms. Use insulating materials to protect actuators from extreme temperatures and ensure consistent performance.

  • Noise and Vibration:

    • Challenge: Pneumatic systems can generate noise and vibrations that may be disruptive in certain applications.

    • Solution: Incorporate noise-dampening materials and vibration isolation mounts in the design. Regularly inspect and maintain system components to minimize noise and vibration.

Understanding and mitigating these challenges are essential steps in optimizing pneumatic systems for various engineering needs.

Safety and Reliability Concerns

Ensuring safety and reliability in pneumatic actuators is paramount to prevent accidents and ensure the longevity of the equipment. These systems must operate within stringent safety standards and protocols to protect both personnel and machinery. Key safety considerations include maintaining proper pressure levels, implementing emergency shut-off mechanisms, and following best installation practices.

Pneumatic actuators must operate within specified pressure limits to prevent system failures and hazards. Overpressure can cause dangerous malfunctions, making it crucial to use pressure relief valves that release excess pressure safely. Engineers should design systems that incorporate these valves and conduct regular inspections to ensure they function correctly.

Emergency shut-off mechanisms are essential for quickly isolating the pneumatic actuator from the air supply in case of a malfunction. These shut-off valves must be easily accessible and tested regularly to confirm they work properly in an emergency.

Proper installation practices, as outlined by manufacturers and industry standards, are necessary to ensure all connections are secure and free from leaks. Using high-quality components and adhering to correct installation procedures can significantly reduce the risk of accidental air release.

Adhering to standards such as ISO 4414 (Pneumatic fluid power – General rules and safety requirements for systems and their components) provides a comprehensive framework for designing and operating safe pneumatic systems.[5] These standards outline best practices for pressure regulation, component compatibility, and system maintenance.

Common Challenges and Engineering Solutions

  • Air Supply Consistency:

    • Challenge: Variations in air pressure or supply interruptions can lead to erratic actuator performance.

    • Solution: Design robust air supply systems with adequate storage capacity and pressure regulation. Implement regular maintenance and monitoring to prevent leaks and ensure consistent operation.

  • Maintenance of Components:

    • Challenge: Wear and tear of moving parts, particularly seals and bearings, can degrade efficiency.

    • Solution: Use high-quality materials for seals and bearings. Implement regular maintenance schedules to inspect and replace worn components. Employ advanced materials like PTFE to enhance durability.

  • Temperature Sensitivity:

    • Challenge: Pneumatic actuators can be sensitive to temperature changes, affecting air pressure and performance.

    • Solution: Design systems with temperature compensation mechanisms. Use insulating materials to protect actuators from extreme temperatures and ensure consistent performance.

  • Noise and Vibration:

    • Challenge: Pneumatic systems can generate noise and vibrations that may be disruptive.

    • Solution: Incorporate noise-dampening materials and vibration isolation mounts in the design. Regularly inspect and maintain system components to minimize noise and vibration.

Regular maintenance is essential to identify and address potential issues before they lead to system failures. Scheduling inspections to check for wear, leaks, and other problems and replacing worn components helps maintain efficiency.

Proper lubrication of moving parts reduces friction and wear. Using lubricants recommended by manufacturers ensures compatibility with system components and prolongs their lifespan. Protecting pneumatic actuators from harsh environmental conditions, such as extreme temperatures, dust, and moisture, with protective covers and enclosures also enhances reliability.

Training personnel on the proper operation and maintenance of pneumatic actuators is crucial. Comprehensive training ensures that staff can operate and maintain these systems safely and effectively. Maintaining detailed documentation of maintenance activities and system modifications supports ongoing reliability and safety. Troubleshooting guides in English and other local languages assist in resolving issues with pneumatic systems.

By addressing safety and reliability concerns through adherence to standards and proactive maintenance practices, engineers can ensure the safe and efficient operation of pneumatic actuators in various applications.

Conclusion

Pneumatic actuators are indispensable in modern engineering due to their versatility, reliability, and efficiency. Throughout this article, we have explored their fundamental principles, technological advancements, and real-world applications. These actuators have revolutionized various industries, from manufacturing and automation to robotics and aerospace.

Pneumatic actuators have enhanced productivity and innovation across multiple sectors by providing precise motion control and high-force output. As technology continues to evolve, the potential for pneumatic actuators to further transform engineering practices remains significant. Their continued development promises to drive further advancements and efficiencies in industrial applications.

Frequently Asked Questions

  1. What are pneumatic valve actuators and how do they work?
    Pneumatic actuators convert compressed air into mechanical motion, either linear motion or rotary, to drive various mechanisms in industrial applications.
  2. What are the primary advantages of pneumatic actuators?
    They offer high reliability, simplicity, rapid response, and ease of control. They are also capable of operating in harsh environments.
  3. What industries utilize pneumatic actuators the most?
    They are commonly used in manufacturing, automotive, food and beverage, pharmaceuticals, energy, aerospace, construction, and healthcare industries.
  4. What technical challenges are associated with pneumatic actuators?
    Challenges include the need for a constant supply of compressed air, potential energy costs, and maintenance issues like air leaks.
  5. How do pneumatic actuators compare to other types of actuators?
    Compared to hydraulic actuators, pneumatic ones have lower force output and speed control but are cleaner and simpler to maintain. They are often preferred for applications requiring less force.
  6. What technological advancements are being made in pneumatic actuators?
    Advances include improved materials for better durability, integration with smart sensors for enhanced control and monitoring, and more efficient designs to reduce air consumption and operational costs.
