Introduction to Industrial Automation

Industrial automation employs computers and robots to control processes and machinery, reducing human intervention. It enhances productivity and efficiency by enabling continuous, swift, and precise operations. Benefits include increased output, improved product quality, and long-term cost savings through reduced labor costs and waste. Additionally, it enhances workplace safety by automating hazardous tasks. With advancing technology, industrial automation is crucial in transforming processes across various industries.

History of Industrial Automation

The history of industrial automation began with the 18th-century Industrial Revolution, introducing mechanization. Henry Ford's 1913 assembly line revolutionized production, followed by World War II's demand for precise manufacturing, leading to Numerical Control (NC) machines in the 1940s.

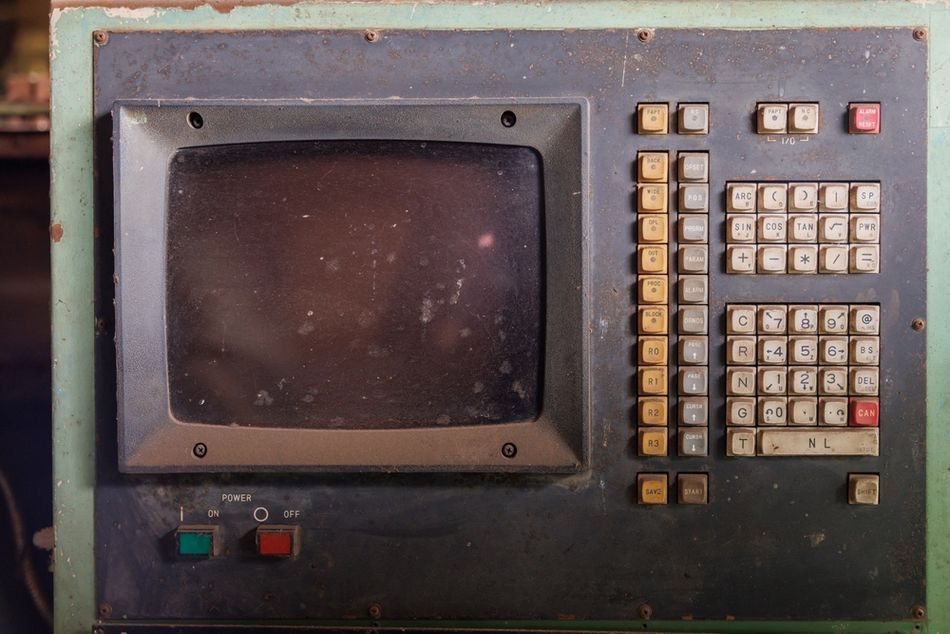

The 1950s-1960s integrated computers, giving rise to Computer Numerical Control (CNC) systems. The 1970s brought microprocessors and Programmable Logic Controllers (PLCs) for automated manufacturing.

The 1980s-1990s saw the rise of robotics and IT integration for tasks like welding and improved data analysis.

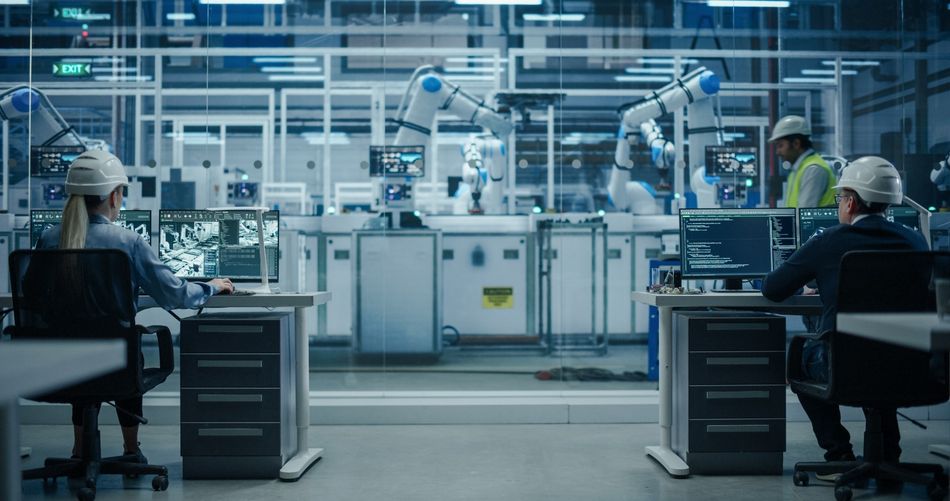

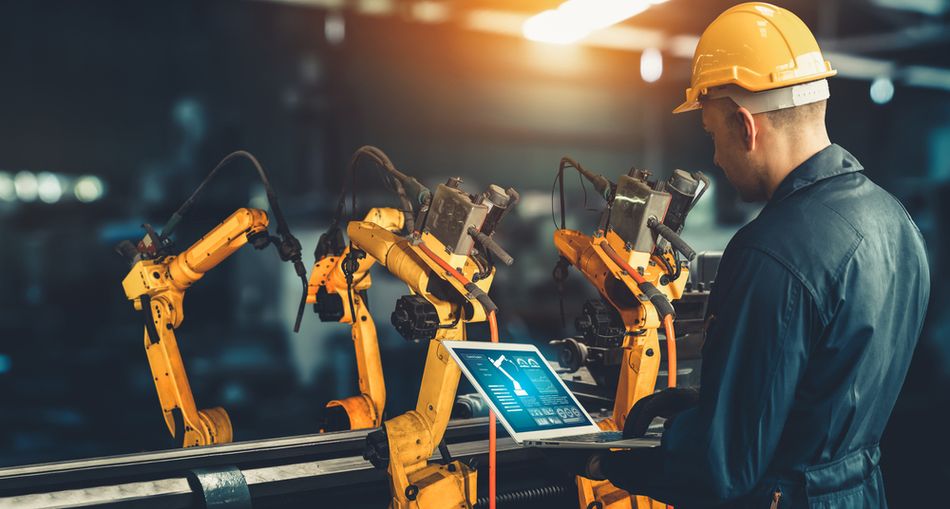

In the 21st century, Industry 4.0 and digitalization transformed industrial automation with connected, intelligent systems utilizing IoT, AI, and machine learning for optimized production processes and efficiency.

Key Concepts in Industrial Automation

Industrial automation is a complex field centered around key concepts crucial for designing, implementing, and operating automation systems.

A fundamental concept is the control system, responsible for managing, commanding, directing, or regulating the behavior of devices or systems to achieve desired results in industrial processes. Two main types of control systems are open-loop, where control action is independent of output, and closed-loop, where the control action relates to the output.

Sensors and actuators play a vital role. Sensors measure physical quantities like temperature or pressure, converting them into signals for the control system. Actuators respond to control system commands by performing physical actions.

Industrial robots are integral to automation, programmed for tasks such as assembling, painting, or welding with precision and speed. These concepts collectively form the foundation of industrial automation, shaping how machines and processes are managed in a production environment.

Control Systems

Control systems are integral to industrial automation, managing and regulating machinery and processes in production lines. Two main types are open-loop and closed-loop systems. Open-loop systems have independent control actions, like a constant-speed conveyor belt. Closed-loop systems adjust control actions based on output, like a furnace temperature control system. Programmable Logic Controllers (PLCs) are commonly used to implement control systems in industrial automation, known for their versatility, robustness, and reliability.

Sensors and Actuators

In industrial automation, sensors detect physical properties and provide crucial data to the control system, while actuators execute corresponding actions. Sensors, like temperature and proximity sensors, inform the control system's decisions, and actuators, such as motors and valves, carry out precise control over processes. These components serve as the eyes and hands of a control system, enabling interaction with the physical world. For instance, in an automated bottling line, proximity sensors detect bottle presence, triggering motor movement, while a pressure sensor monitors beverage levels and commands a valve to open when necessary. Sensors and actuators play a vital role in ensuring the precision and reliability of industrial automation systems.

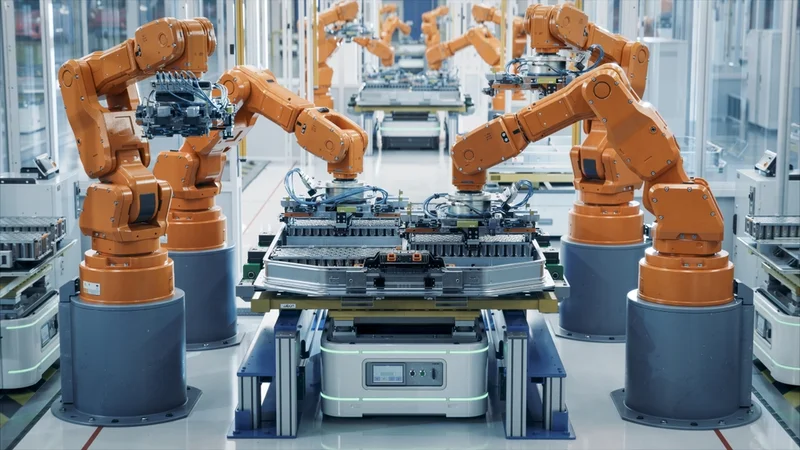

Industrial Robots

Industrial robots are a key component of many industrial automation systems. They are programmable machines designed to perform a variety of tasks with high precision, speed, and repeatability. Industrial robots have revolutionized manufacturing and other industries by taking over tasks that were previously performed by human workers, often with increased efficiency and reduced risk of injury.

There are several types of industrial robots, each designed for specific applications. Some common types include:

  • Articulated robots: These robots have multiple joints, or axes, which allow them to move in a wide range of directions. Articulated robots are versatile and can be used for tasks such as welding, painting, and assembly.

  • Cartesian robots: Also known as gantry robots, these robots move in a linear fashion along the X, Y, and Z axes. Cartesian robots are commonly used for tasks such as pick-and-place operations, material handling, and machine tending.

  • SCARA robots: Standing for Selective Compliance Assembly Robot Arm, SCARA robots have a limited range of motion compared to articulated robots but are known for their high speed and precision. They are often used for assembly, pick-and-place, and packaging tasks.

  • Delta robots: These robots have a unique parallel-linkage structure that allows them to move quickly and precisely. Delta robots are often used for high-speed pick-and-place operations, such as in the food and pharmaceutical industries.

Industrial robots, controlled by specialized robot controllers, interpret commands from a higher-level system to execute precise movements and manage safety features. They excel in high-precision, repeatable tasks, enhancing product quality and reducing waste. Operating continuously, robots boost productivity. Their ability to handle hazardous materials, extreme temperatures, and tasks requiring strength or dexterity makes them invaluable. Advancements in technology are expanding the capabilities of industrial robots, making them integral to evolving industrial automation systems.

Types of Industrial Automation

Industrial automation can be categorized into several types based on the level of flexibility and adaptability of the system. Understanding the different types of industrial automation is essential for selecting the most suitable solution for a specific application or industry. The three main types of industrial automation are fixed automation, programmable automation, and flexible automation.

Fixed Automation

Fixed automation, or hard automation, is an industrial process with predetermined sequences for a specific product or process. The machinery is designed exclusively for that purpose, resulting in high production rates and low flexibility. It is suitable for mass production, such as automobile assembly lines or bottling plants. While advantageous for optimized production and low unit costs, fixed automation has limitations in adaptability, requiring significant time and expense for modifications when changes are needed. Initial costs are often high due to specialized equipment requirements.

Programmable Automation

Programmable automation is an industrial automation type where production equipment can adapt to different product configurations by changing the sequence of operations. Controlled by a program, these systems are common in batch production, such as machining and robotic assembly. The main advantage is flexibility, enabling quick reconfiguration for various products. However, drawbacks include lower production rates compared to fixed automation, higher unit costs, and the need for skilled personnel to create and maintain programs. Programmable automation systems often require advanced computational power and control systems for interpreting programs and managing multiple sequences.

Flexible Automation

Flexible automation, a pinnacle of adaptability in industrial processes, enables swift reconfiguration of production equipment for a diverse product range. It relies on programmable machinery and advanced control systems for managing intricate operation sequences, making it beneficial for unpredictable demand and short product life cycles in industries like flexible manufacturing and robotic assembly. The system's paramount advantage lies in its ability to promptly respond to market changes. Through simple program adjustments, manufacturers can reconfigure the system to produce different products, facilitating quick adaptation to shifting demands. This flexibility is particularly advantageous in markets where customization is crucial.

However, the benefits of flexible automation come with trade-offs. While offering unparalleled adaptability, these systems entail higher complexity and costs. The machinery and equipment used tend to be more expensive than their fixed or programmable counterparts, and the control systems require a higher level of technical expertise for operation and maintenance. Additionally, flexible automation often demands substantial computational power and sophisticated control systems to handle complex operation sequences and adapt to changes in product design or production schedules. Despite these challenges, the adaptability of flexible automation remains crucial in dynamic markets, where the ability to produce a wide variety of products in small quantities is a key strategic advantage.

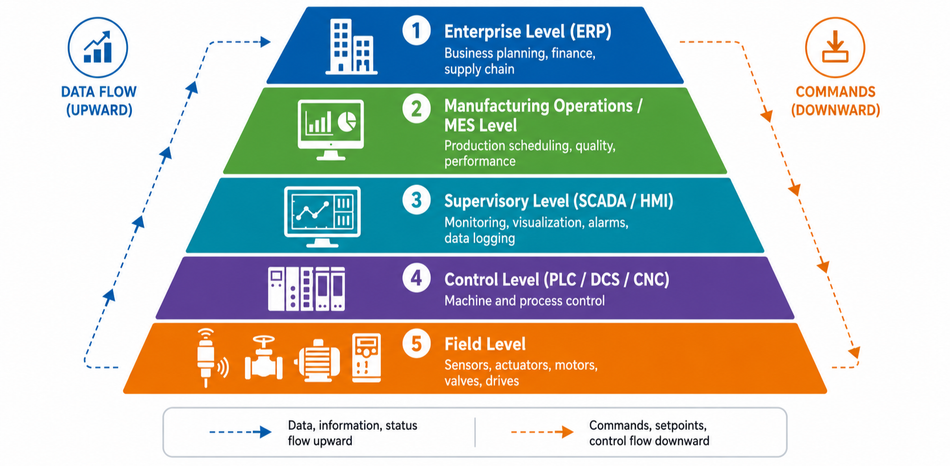

Industrial Automation Technologies

Industrial automation technologies encompass a wide range of tools, devices, and systems that are used to automate industrial processes. These technologies are designed to improve the efficiency, accuracy, and safety of industrial operations, and they play a crucial role in modern manufacturing and production industries.

Recommended Reading: Top 10 Benefits of Automation with Industrial Robots

PLC (Programmable Logic Controllers)

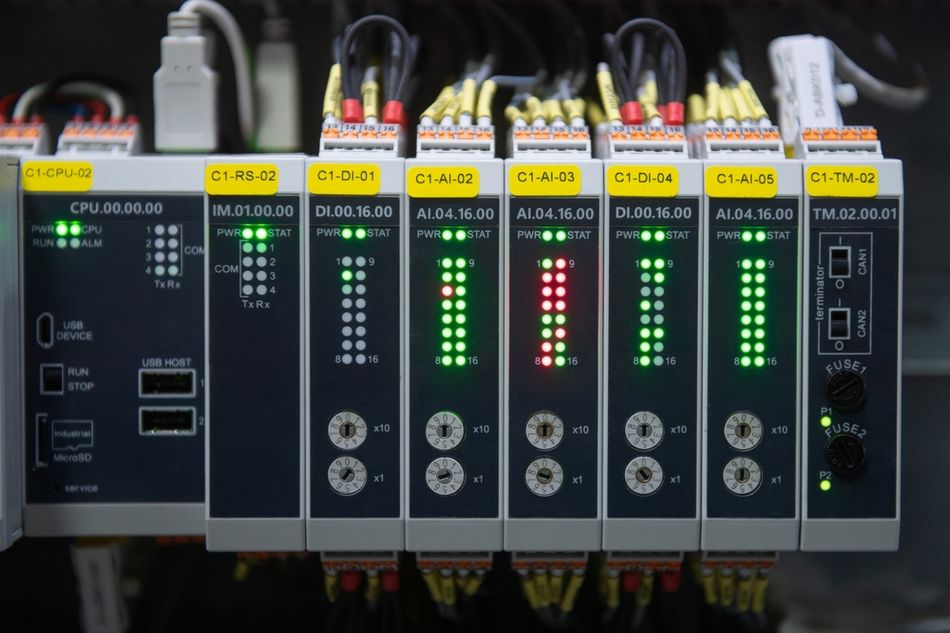

Programmable Logic Controllers (PLCs) serve as integral components in industrial automation, designed to control specific processes, machinery, or production lines in harsh industrial environments. Functioning by continuously monitoring input devices like sensors, PLCs make decisions based on custom programs, dictating the sequence of operations for output devices such as actuators. They vary in size and capabilities, with micro or nano PLCs handling simpler tasks, compact or small PLCs managing more complex control, and large modular or rack-mounted PLCs addressing the most intricate control requirements. Ranging from 10 to thousands of input and output channels, PLCs are versatile and can communicate over networks, supporting various programming languages. Their reliability, robustness, flexibility, and ease of programming contribute to their prominence in industrial control systems, reducing development and maintenance time and costs.

SCADA (Supervisory Control and Data Acquisition)

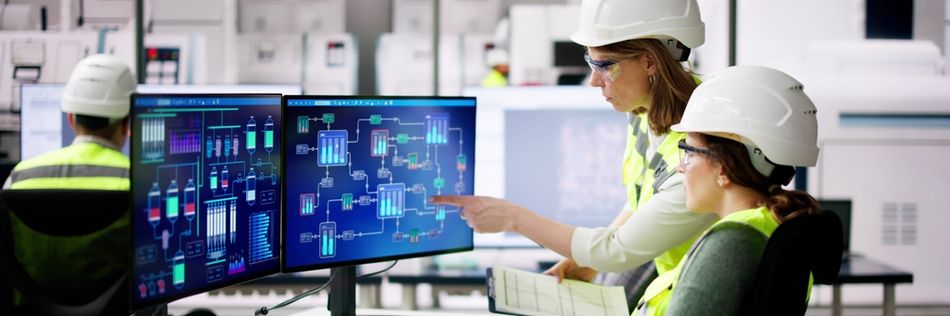

Supervisory Control and Data Acquisition (SCADA) is an industrial control system crucial for monitoring and controlling dispersed industrial processes in sectors like power generation, oil and gas, water treatment, and telecommunications. Comprising a central computer or master station, SCADA communicates with field devices, including sensors and actuators, via a wired or wireless network covering vast geographic areas. Utilizing communication protocols such as TCP/IP, Modbus, and DNP3, SCADA systems enable real-time monitoring and control, facilitating prompt responses to process changes for enhanced efficiency and safety.

SCADA systems boast data logging and archiving capabilities, enabling operators to analyze process performance over time for optimization and cost reduction. Challenges include the need for a reliable communication network and robust cybersecurity measures due to potential serious consequences of breaches. SCADA systems demand high computational power, storage capacity, and sophisticated software to process real-time data, store historical information, and provide user-friendly interfaces for operators.

Suggested Reading: What is SCADA: Understanding the Backbone of Industrial Automation

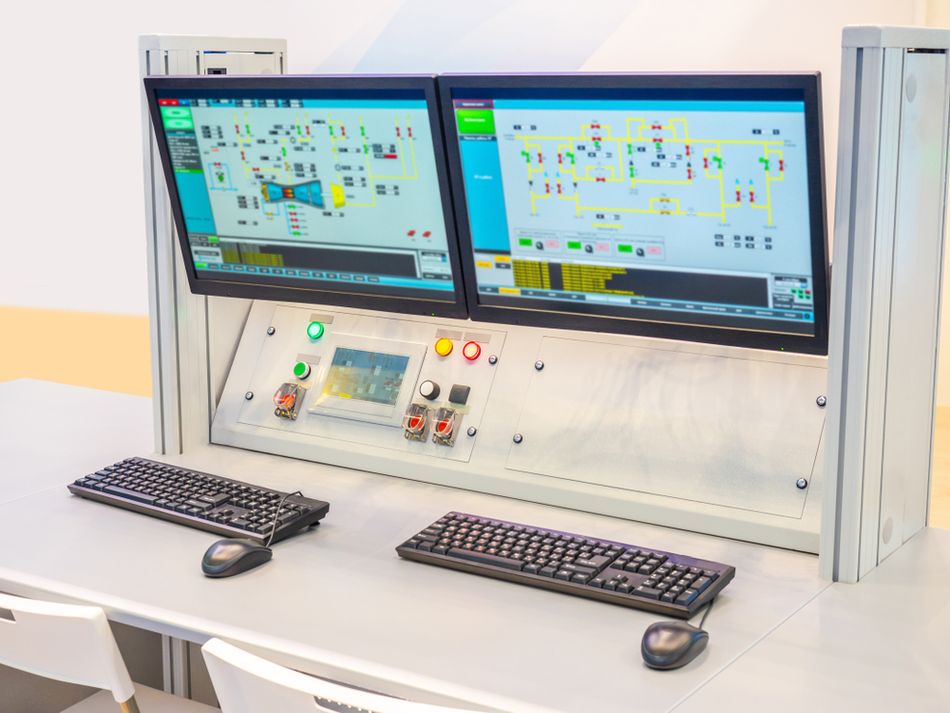

DCS (Distributed Control Systems)

Distributed Control Systems (DCS) are essential for managing expansive industrial processes, offering decentralized architecture with enhanced redundancy and scalability. Used in chemical, oil and gas, power generation, and pharmaceutical industries, DCSs divide control functions into subsystems, fostering seamless communication for operators in a central control room. Their distributed design ensures reliability and fault tolerance, allowing uninterrupted operation in case of failures. Scalability enables easy additions as processes evolve. Technical specifications mandate high computational power, advanced software, and sophisticated communication networks to manage control loops and coordinate subsystems. DCSs commonly use standard and industrial communication protocols, facilitating integration with PLCs and SCADA systems. In summary, DCSs are indispensable for industries requiring efficient coordination and control of large-scale, intricate processes due to their reliability, flexibility, and scalability.

Recommended Reading: What is Distributed Control System (DCS)?

Applications of Industrial Automation

Industrial automation is used across a wide range of industries to improve efficiency, productivity, and safety. By automating various processes, companies can reduce labor costs, minimize human error, and increase the overall quality of their products. Some of the most common applications of industrial automation can be found in manufacturing, automotive, and food and beverage industries.

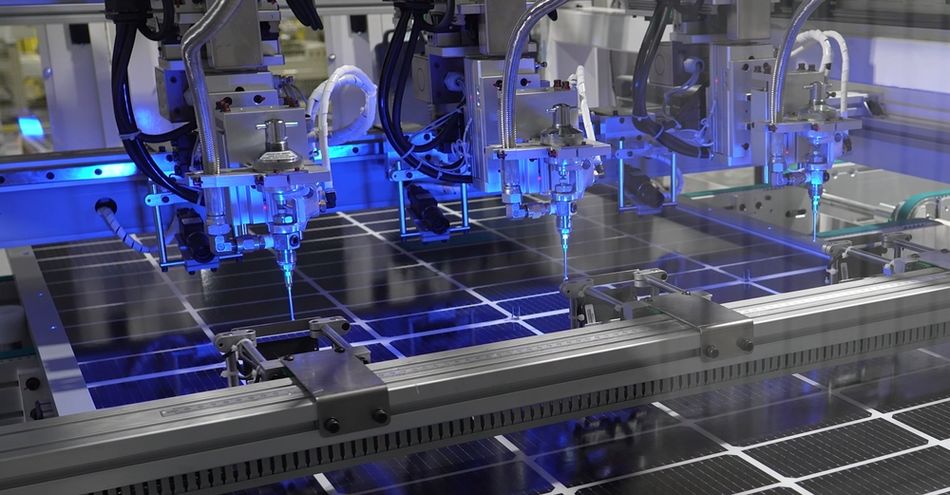

Manufacturing

Manufacturing is one of the primary sectors where industrial automation is extensively applied. Automation technologies have revolutionized the way products are made, enabling manufacturers to produce goods faster, more accurately, and with less waste.

In manufacturing, industrial automation can be used for various processes, including:

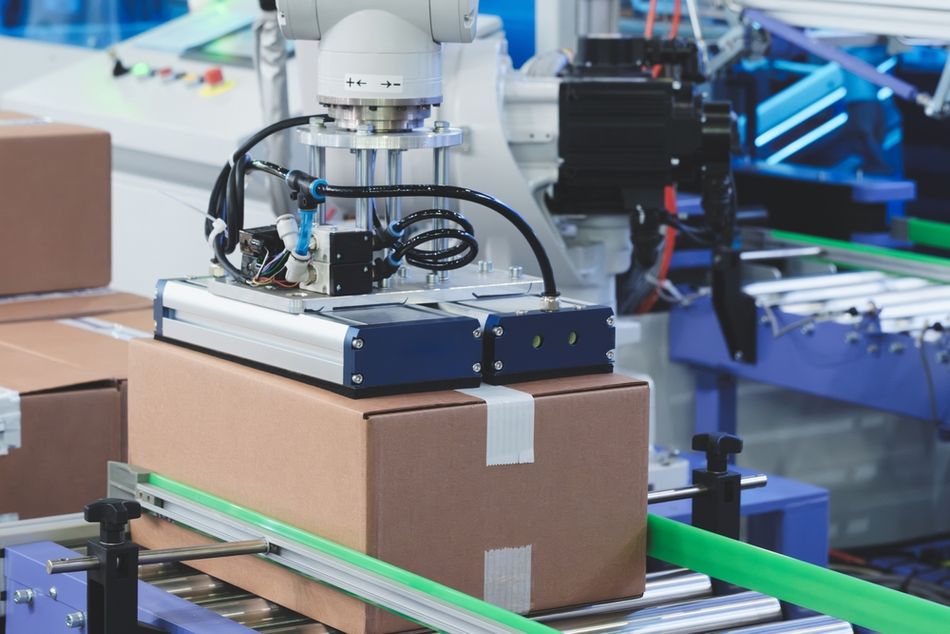

  • Material handling: Automated systems can transport raw materials, components, and finished products between different stages of the production process. Examples include conveyor belts, automated guided vehicles (AGVs), and robotic arms.

  • Assembly: Industrial robots and automated assembly machines can perform tasks such as joining parts, installing components, and packaging products. These systems can work with high precision and speed, ensuring consistent product quality.

  • Machining: Computer Numerical Control (CNC) machines, which are controlled by a programmable computer, can perform complex cutting, drilling, and milling operations with high precision and repeatability. CNC machines have significantly improved the efficiency and accuracy of machining processes.

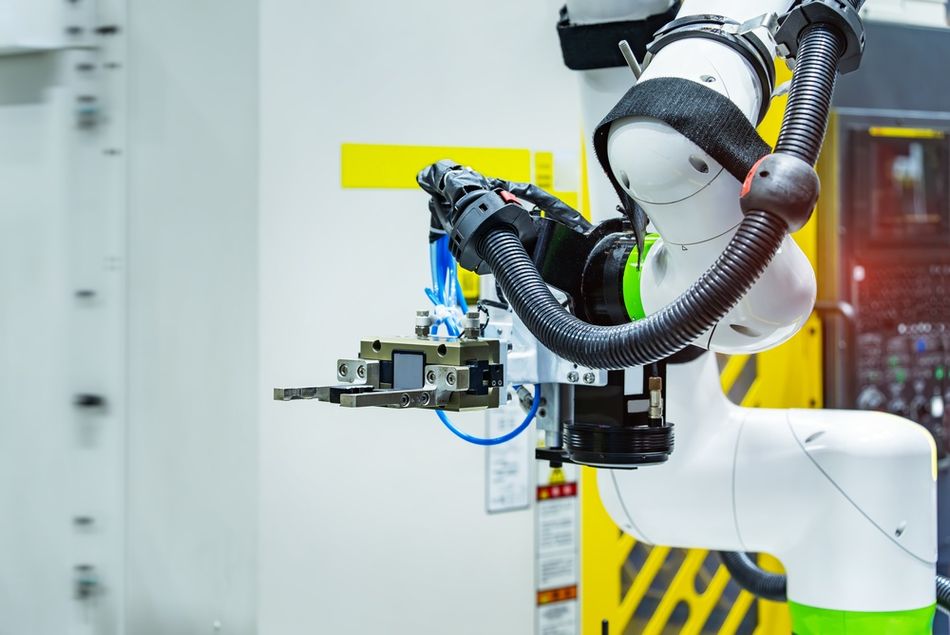

  • Inspection and quality control: Automated inspection systems, such as machine vision systems and sensors, can quickly and accurately inspect products for defects or deviations from specifications. This helps manufacturers maintain high product quality and reduce waste.

  • Process control: Industrial automation can be used to control various manufacturing processes, such as mixing, heating, and cooling. By monitoring and adjusting process parameters in real-time, automation systems can ensure that the process operates within the desired specifications, resulting in consistent product quality.

By implementing industrial automation technologies in manufacturing processes, companies can achieve significant improvements in productivity, efficiency, and product quality, ultimately leading to increased competitiveness and profitability.

Automotive

The automotive industry is another sector where industrial automation has been widely adopted. Automation technologies have transformed automotive manufacturing, enabling car manufacturers to increase production speed, improve product quality, and reduce manufacturing costs.

In the automotive industry, industrial automation is used in various stages of the production process, including:

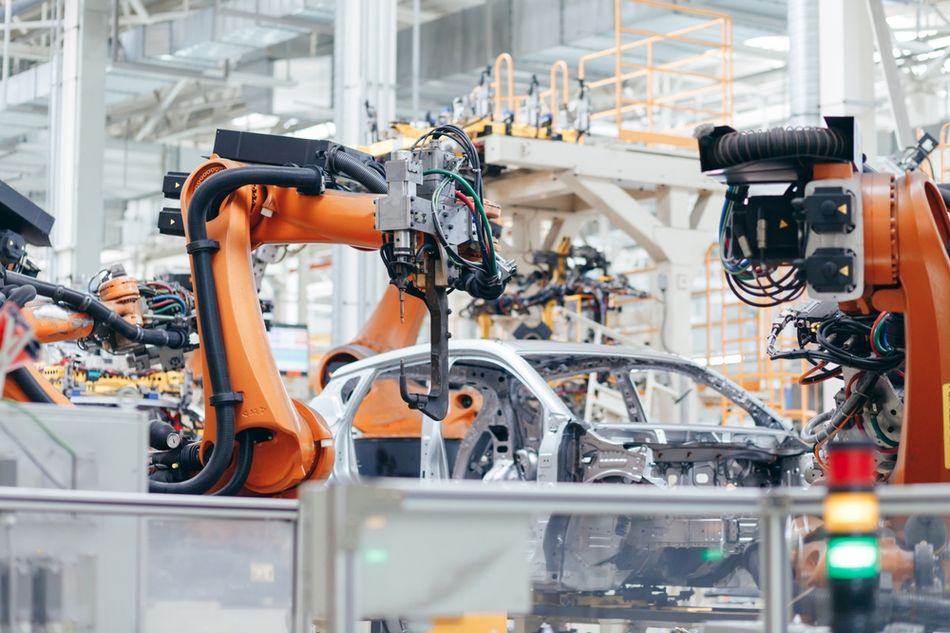

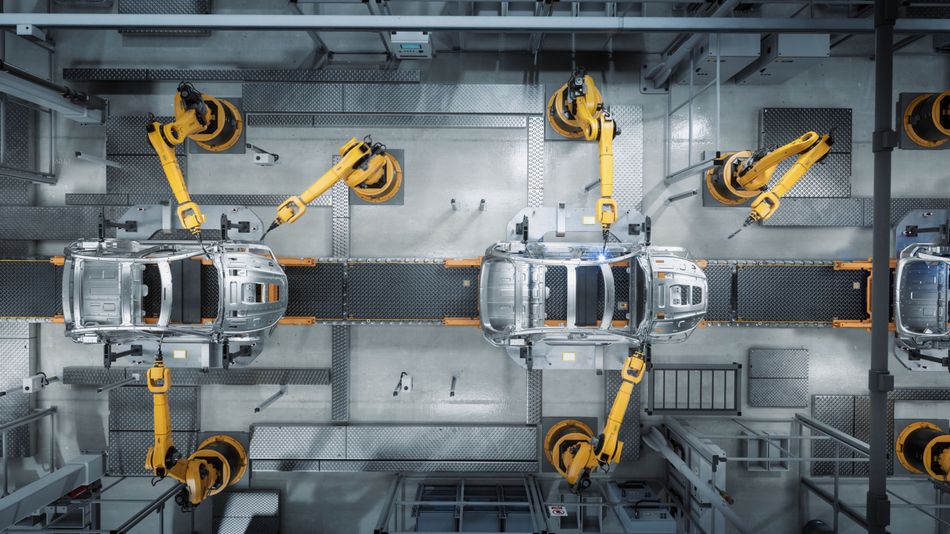

  • Body assembly: This is where the car's body is assembled from individual parts. Industrial robots are extensively used in this stage to perform tasks such as welding, riveting, and adhesive application. These robots can work with high precision and speed, ensuring consistent quality and reducing the time required for assembly.

  • Painting: Automated painting systems are used to apply paint to the car bodies. These systems can apply paint evenly and consistently, resulting in a high-quality finish. They also reduce waste by minimizing overspray and can quickly switch between different paint colors.

  • Final assembly: In this stage, the car's components such as the engine, transmission, and interior are installed. While some of these tasks are still performed by humans due to their complexity, many tasks are automated. For example, industrial robots can be used to install heavy components, apply sealants, or install windshields.

  • Inspection: Automated inspection systems, such as machine vision systems, are used to inspect the finished cars for defects. These systems can quickly and accurately detect defects that might be missed by human inspectors, ensuring that only cars that meet the quality standards are shipped to the customers.

  • Material handling: Automated guided vehicles (AGVs) and conveyor systems are used to transport parts and finished cars between different stages of the production process. These systems improve efficiency by ensuring that the right parts are delivered to the right place at the right time.

The automotive industry requires highly precise and fast automation systems, with industrial robots needing high payload capacity, repeatability, and flexibility. Adopting automation improves productivity, efficiency, and product quality, reducing costs and enhancing responsiveness to market changes, leading to increased competitiveness and profitability.


Food and Beverage

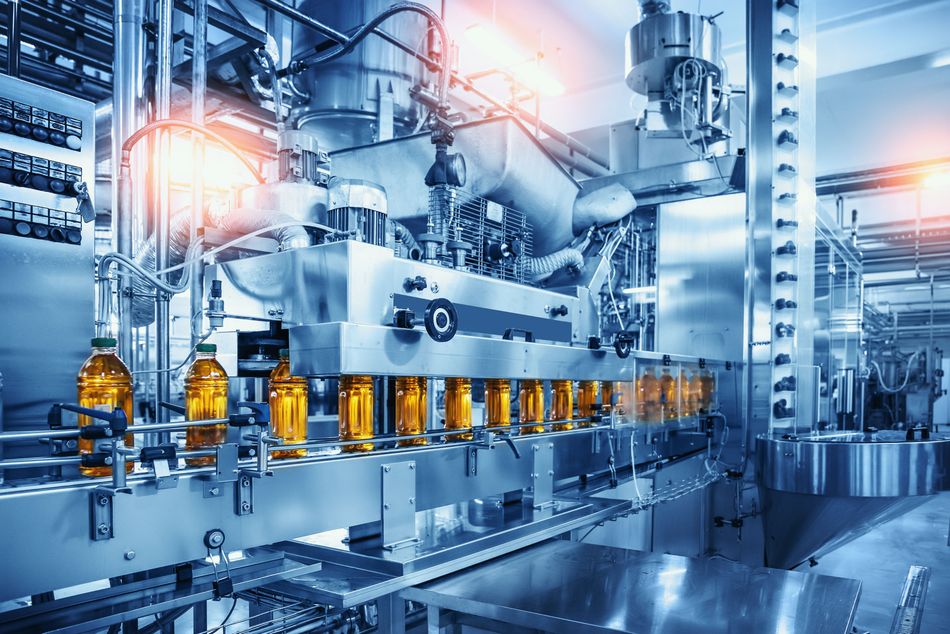

Industrial Automation in Food and Beverage Industry Industrial Automation in the Food and Beverage Industry

The food and beverage industry is another area where industrial automation has made a significant impact. Automation technologies have been adopted in various stages of food and beverage production, from processing raw materials to packaging finished products. The use of automation in this industry has led to increased efficiency, improved product quality, and enhanced safety.

In the food and beverage industry, industrial automation is used in various processes, including:

  • Processing: Automated systems are used to process raw materials, such as mixing, cutting, and cooking. These systems can ensure consistent product quality by maintaining precise control over process parameters, such as temperature, pressure, and mixing speed.

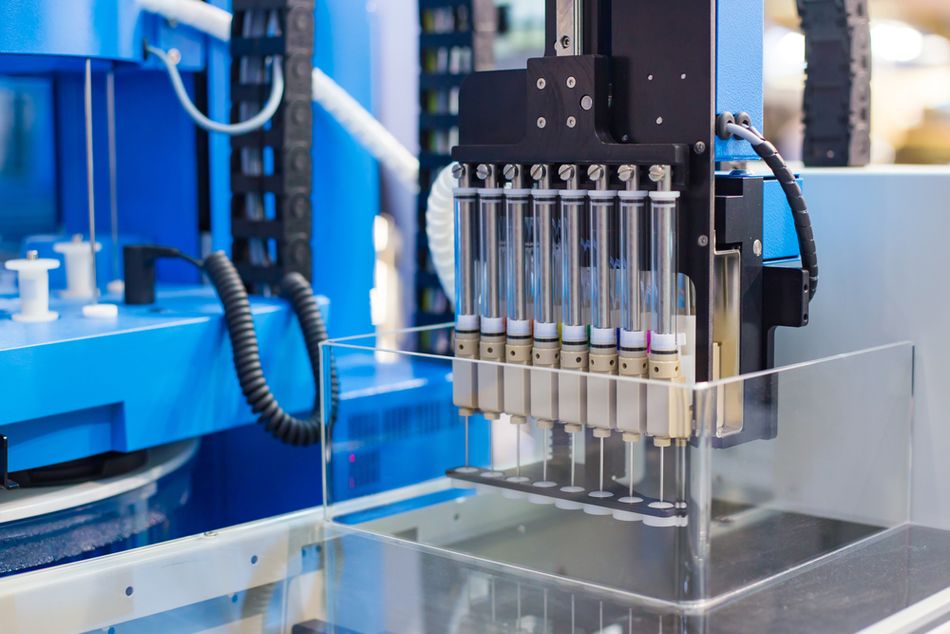

  • Filling and packaging: Automated filling and packaging machines are used to fill containers with food or beverage products and seal them. These machines can handle a wide range of container sizes and shapes, ensuring accurate filling and consistent sealing. They also reduce the risk of contamination by minimizing human contact with the product.

  • Labeling and coding: Automated labeling and coding systems are used to apply labels and print information, such as expiration dates and batch numbers, on food and beverage packages. These systems ensure that the labels are applied accurately and consistently, reducing the risk of mislabeling and ensuring compliance with regulations.

  • Inspection and quality control: Automated inspection systems, such as machine vision systems and sensors, are used to inspect food and beverage products for defects or deviations from specifications. These systems can quickly and accurately detect issues, such as foreign objects, incorrect labeling, or damaged packaging, ensuring that only products that meet quality standards are shipped to customers.

  • Material handling: Automated material handling systems, such as conveyor belts and automated guided vehicles (AGVs), are used to transport raw materials, work-in-progress, and finished products between different stages of the production process. These systems improve efficiency by ensuring that materials are delivered to the right place at the right time.

In terms of technical specifications, the food and beverage industry requires automation systems that are hygienic, easy to clean, and resistant to corrosion. This is because the production environment often involves exposure to water, chemicals, and food particles. Automation systems used in this industry also need to be flexible and adaptable, as food and beverage manufacturers often produce a wide range of products with varying production requirements.

Conclusion

Industrial automation has revolutionized various sectors, including manufacturing, automotive, and food and beverage industries. By automating processes, companies can increase efficiency, improve product quality, and enhance safety. The use of technologies such as PLCs, SCADA, and DCS has enabled precise control over complex processes, leading to increased productivity and reduced costs. As industries continue to evolve, the role of industrial automation is expected to grow, driving further advancements in these technologies.

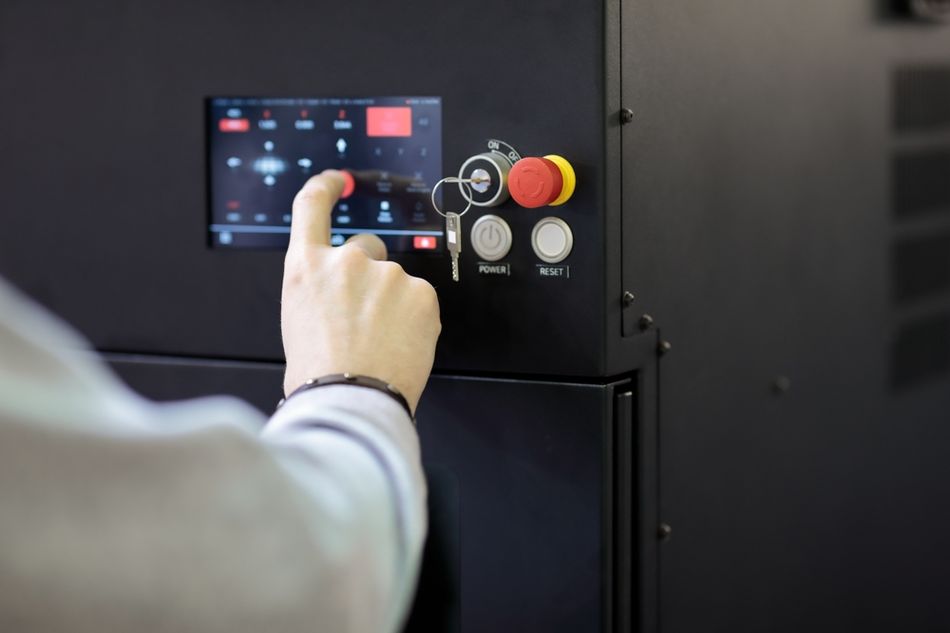

In conclusion, the fusion of human-machine interfaces, motion control, and industrial equipment, supported by robust power supply systems, defines a transformative era in industrial operations. The integration, enriched by the Industrial Internet of Things (IIoT), ensures precise control and real-time insights. The reliability of power supply is critical for sustaining this synergy, driving ongoing advancements in productivity, safety, and operational excellence at the intersection of human interaction, motion control, and industrial equipment.

Frequently Asked Questions (FAQs)

What is industrial automation?

Industrial automation refers to the use of control systems, such as computers or robots, and information technologies to handle different processes and machineries in an industry to replace a human being. It is the second step beyond mechanization in the scope of industrialization.

What are the benefits of industrial automation?

Industrial automation can increase the production rate and productivity, reduce production and manufacturing costs, improve product quality and reliability, perform tasks that are beyond human capabilities, such as handling heavy loads, and reduce routine manual tasks and improve worker safety.

What are some examples of industrial automation?

Examples of industrial automation include the use of PLCs to control the operations of industrial machines and processes, SCADA systems to monitor and control industrial processes over large geographical areas, and DCSs to manage and control complex, large-scale industrial processes.

What industries use industrial automation?

Industrial automation is used in a wide range of industries, including manufacturing, automotive, food and beverage, oil and gas, power generation, and pharmaceuticals.

What is the difference between PLC, SCADA, and DCS?

PLC is a type of industrial computer used to control industrial machines and processes. SCADA is a system used to monitor and control industrial processes that are geographically dispersed. DCS is a system used to manage and control complex, large-scale industrial processes. While all three are used for control and automation in industries, they differ in their architecture, functionality, and application areas.
