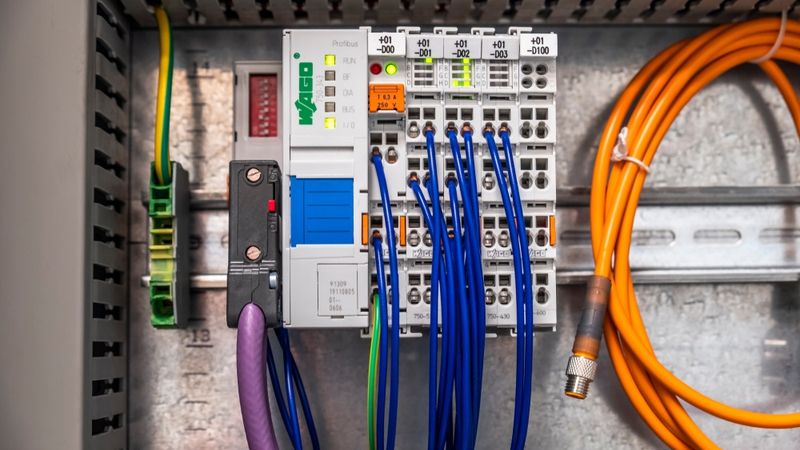

With its intuitive visual representation and logical structure, ladder logic resembling to electrical relay circuits, ladder logic programming has become a standard in the field to develop complex control systems

With its intuitive visual representation and logical structure, ladder logic resembling to electrical relay circuits, ladder logic programming has become a standard in the field to develop complex control systems

Ladder logic programming, a graphical language inspired by electrical relay logic circuits, has been a vital tool in industrial automation systems since their early days. Developed to simplify the programming and control of complex machinery like assembly lines and manufacturing equipment, ladder logic programming's intuitive visual representation and logical structure have made it a standard in the field.

Introduction

Ladder logic programming is a graphical programming language used primarily in industrial automation systems. It was developed to simplify the process of programming and controlling complex machinery, such as assembly lines and manufacturing equipment. With its intuitive visual representation and logical structure, ladder logic resembling to electrical relay circuits, ladder logic programming has become a standard in the field, enabling engineers and technicians to efficiently develop and maintain complex control systems

In this article, we will explore the history, components, and applications of ladder logic programming. We will also discuss best practices, troubleshooting techniques, and the future of ladder logic programming in industrial automation. By the end of this article, you will have a solid understanding of ladder logic programming and its role in modern industrial automation systems.

1. The Evolution of Ladder Logic Programming:

Ladder logic programming has its roots in the early era of industrial automation and control systems. Before the advent of digital computers and programmable logic controllers (PLCs), electromechanical relays were extensively used for control purposes. The wiring diagrams representing these relay circuits served as the inspiration for ladder programs. In the late 1960s and early 1970s, the introduction of PLCs revolutionized control systems, providing a flexible and efficient alternative to relay-based systems.

To facilitate a smooth transition from relay diagrams to digital control systems, ladder logic programming was introduced as a visual representation of control circuits. It gained popularity due to its familiarity and ease of use for engineers and technicians. The standardization of ladder logic programming in the IEC 61131-3 standard further solidified its position as a widely accepted programming language for industrial control systems. Since then, ladder program has evolved and integrated with other programming languages, remaining a fundamental and essential tool in industrial automation.

2. Basics of Ladder Logic Programming

PLCs work using binary signals, each of which can be set to zero or one, just like computers. This form of data is referred to as a boolean in the field of programming. The majority of fundamental PLC commands use booleans, which only require one memory bit and may be changed to 0 or 1.

One rung at a time, the PLC runs the programme that has been loaded into it. The PLC reads the instructions on the left and checks to see if the logic on that side of the rung is set to TRUE when it starts to process the rung. When a fictitious current is able to flow through the instructions, the logic evaluates to TRUE. Each instruction is TRUE or FALSE depending on a set of circumstances.

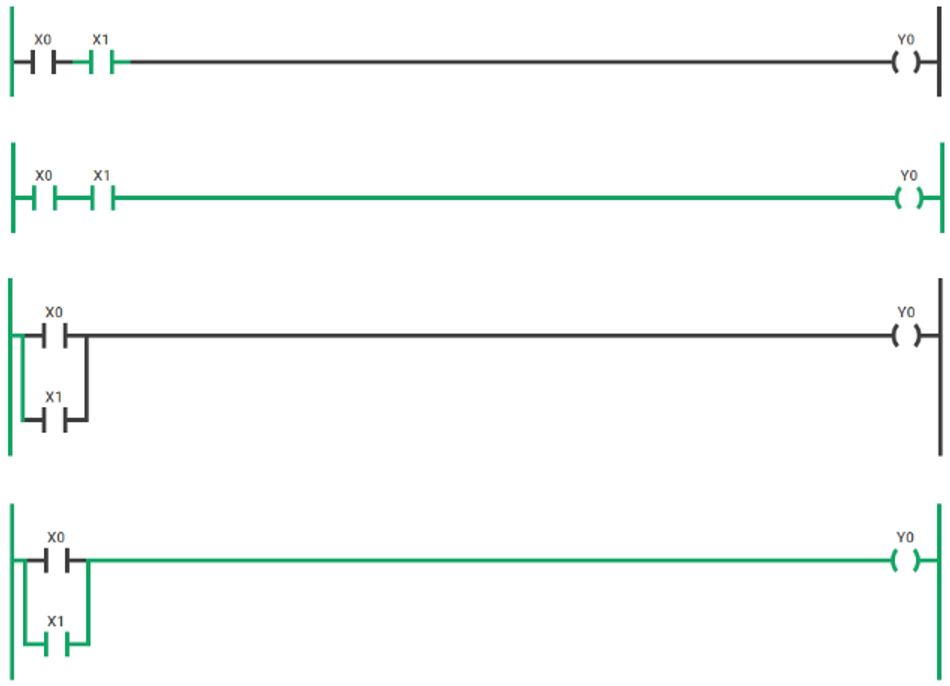

We'll begin with two of the most fundamental ladder logic plc programming instructions for the purposes of this tutorial: See if the output is closed and energised.

Examine If Closed [XIC] - When the given boolean bit is set to 1 (or HIGH), this input instruction will examine it and assess the condition as TRUE. The instruction evaluates to FALSE when the bit is at 0 (or LOW).

If the criteria of the input instruction are TRUE, the Output Energise [OTE] output instruction will set the given bit to 1 (or HIGH). The Output Energise instruction will set the bit to 0 (or LOW) if they are FALSE.

3. Components of a Ladder Logic Program

One of the top 5 PLC programming languages utilised in production environments is ladder logic. Prior to the invention of programmable logic controllers, factories used relay logic circuits to energise various loads dependent on the wiring of the relays. Ladder diagrams are the circuit layouts used for these drawings. Relays were expensive, needed ongoing maintenance, and were difficult to alter. It was crucial to maintain the previous system's consistency while PLCs took over this operation, which is why ladder logic was developed as the first PLC programming language.

Since the software is organised in the form of a ladder, it is known as Ladder Logic. Ladder programs instructions are set as conditions on the left side, and trigger instructions are set as conditions on the right side. The PLC executes each step of the ladder from top to bottom, from left to right.

Since the software is organised in the form of a ladder, it is known as Ladder Logic. Ladder logic instructions are set as conditions on the left side, and trigger instructions are set as conditions on the right side. The PLC executes each step of the ladder from top to bottom, from left to right.

Ladder logic programs consist of various components that work together to control and automate industrial processes. These components include:

  • Contacts: Contacts are the basic building blocks of ladder logic programs, representing input devices such as switches, sensors, and pushbuttons. There are two types of contacts: normally open (NO) and normally closed (NC). Normally open contacts are closed when the input device is activated, while normally closed contacts are open when the input device is activated. Contacts are used to create conditions in a ladder logic program that determine when specific actions should be taken.
  • Coils: Coils represent output devices, such as motors, solenoids, and indicator lights. They are used to control the state of these devices based on the conditions set by the contacts. Like contacts, coils can be normally open or normally closed. When a coil is energized, it changes its state, either activating or deactivating the connected output device.
  • Timers: Timers are used to introduce time-based control in ladder logic programs. They can be used to delay the activation or deactivation of output devices, create time-based sequences, or measure the duration of specific events. There are several types of timers, including on-delay timers (TON), off-delay timers (TOF), and retentive timers (RTO). Each type of timer has a unique function and can be used to achieve different control objectives.
  • Counters: Counters are used to track the number of times a specific event occurs, such as the activation of an input device or the completion of a process cycle. They can be used to control the execution of specific actions based on the number of occurrences of an event. Counters can be either up-counters, which increment their count each time an event occurs, or down-counters, which decrement their count each time an event occurs.
  • Math and Comparison Functions:  Ladder logic programs can also include mathematical and comparison functions, such as addition, subtraction, multiplication, division, and comparison operators (greater than, less than, equal to). These functions can be used to perform calculations and make decisions based on the values of input devices, timers, and counters.

These components are interconnected in a ladder logic program to create a series of rungs, which represent the control logic for the automation system. Each rung consists of a series of contacts and coils, with the contacts determining the conditions under which the coils are energized or de-energized. The program is executed by scanning each rung in sequence, evaluating the conditions set by the contacts, and updating the state of the coils accordingly.

A programmable logic controller (PLC) or programmable controller.The components are interconnected in a ladder logic program to create a series of rungs, which represent the control logic for the automation system.

4. Ladder Logic Symbols and Notation

Ladder logic programming uses a standardized set of symbols and notation to represent the various components and functions within a program. Understanding these symbols is essential for reading and creating ladder logic programs. Some of the most common symbols and their meanings are:

  • Normally Open Contact (NO): Represented by a pair of parallel lines, the normally open contact symbolizes an input device that is open (non-conductive) when not activated. When the input device is activated, the contact closes, allowing current to flow through the circuit.
  • Normally Closed Contact (NC): Depicted as a pair of parallel lines with a diagonal line crossing them, the normally closed contact represents an input device that is closed (conductive) when not activated. When the input device is activated, the contact opens, interrupting the current flow in the circuit.
  • Output Coil: The output coil is represented by a circle or a rectangle with a label inside. It symbolizes an output device, such as a motor or a solenoid. When the coil is energized, the output device is activated.
  • On-Delay Timer (TON): The on-delay timer symbol consists of a rectangle with the letters "TON" inside. It represents a timer that starts counting when its input condition is met. The timer's output is activated after a specified time has elapsed.
  • Off-Delay Timer (TOF): The off-delay timer symbol is a rectangle with the letters "TOF" inside. It represents a timer that starts counting when its input condition is no longer met. The timer's output remains activated for a specified time after the input condition is lost.
  • Retentive Timer (RTO): The retentive timer symbol is a rectangle with the letters "RTO" inside. It represents a timer that retains its accumulated time when its input condition is lost. The timer's output is activated when the accumulated time reaches a specified value.
  • Up Counter: The up counter symbol is a rectangle with the letters "CTU" inside. It represents a counter that increments its count each time its input condition is met.
  • Down Counter: The down counter symbol is a rectangle with the letters "CTD" inside. It represents a counter that decrements its count each time its input condition is met.
  • Math and Comparison Functions: Mathematical and comparison functions are represented by rectangles containing symbols or abbreviations for the specific function, such as "+" for addition, "-" for subtraction, or "GT" for greater than.

These symbols are used to create ladder logic diagrams, which visually represent the control logic of a ladder logic program. Each rung of the ladder diagram consists of a series of contacts and coils, connected in parallel or series, to create the desired control conditions and actions. 4. Creating a Ladder Logic Program

5. Steps to Develop a Ladder Logic Program

Developing a ladder logic program involves several key steps to ensure that the program effectively controls the desired industrial process. These steps include:

Planning and Design: Before starting to write a ladder logic program, it is essential to thoroughly understand the process to be controlled and the desired outcomes. This involves identifying the input and output devices, defining the control logic, and determining the sequence of operations. Creating a detailed flowchart or state diagram can help visualize the process and identify potential issues or improvements.

Selecting the Programming Language: Ladder logic programs can be written using various programming languages, such as Ladder Diagram (LD) or Structured Text (ST). The choice of language depends on factors such as the complexity of the program, the target hardware, and the preferences of the programmer. Each language has its advantages and disadvantages, so it is important to choose the one that best suits the specific project requirements.

Writing the Program: Once the planning and design phase is complete, the actual programming can begin. This involves creating the ladder logic diagram using the appropriate symbols and notation, as well as implementing any necessary timers, counters, and mathematical functions. It is important to follow best practices, such as using clear and concise naming conventions, modular programming, and proper documentation, to ensure that the program is easy to understand and maintain.

Testing and Debugging: After the program is written, it must be tested and debugged to ensure that it functions correctly and meets the desired control objectives. This may involve simulating the program using specialized software, testing it on a physical testbed, or running it on the actual automation system. During this phase, any issues or errors in the program must be identified and corrected.

Implementation and Monitoring: Once the program has been thoroughly tested and debugged, it can be implemented on the target automation system. It is important to monitor the performance of the program and the overall process to ensure that everything is functioning as intended. Regular maintenance and updates may be required to address any issues that arise or to accommodate changes in the process or equipment.

By following these steps, engineers and technicians can develop effective ladder logic programs that accurately control and automate industrial processes.

Recommended Reading: The Designers Guide to Logic and Its Applications

6. Ladder Logic Programming Languages

Ladder logic programs can be written using different programming languages, each with its own advantages and disadvantages. Two of the most common languages used for ladder logic programming are Ladder Diagram (LD) and Structured Text (ST).

Ladder Diagram (LD): Ladder Diagram is a graphical programming language that visually represents the control logic using symbols and notation similar to electrical relay logic circuits. LD is the most widely used language for ladder logic programming due to its intuitive nature and ease of understanding, especially for engineers and technicians familiar with electrical systems. LD is particularly well-suited for simple control tasks and applications where the control logic can be easily represented using a series of rungs and contacts.

Advantages of LD include:

  • Intuitive and easy to understand for those with electrical background.

  • Visually represents the control logic, making it easier to identify errors and troubleshoot.

  • Widely supported by various programmable logic controller (PLC) manufacturers.

Disadvantages of LD include:

  • Can become difficult to manage and understand for complex control tasks.

  • Limited support for advanced programming constructs, such as loops and conditional statements.

Structured Text (ST):

Structured Text is a high-level, text-based programming language that uses a syntax similar to Pascal or C. ST is more versatile than LD, allowing for more complex control tasks and greater flexibility in program structure. ST is particularly useful for applications that require advanced programming constructs, such as loops, conditional statements, and complex data manipulation.

Advantages of ST include:

  • Greater flexibility and versatility for complex control tasks.

  • Supports advanced programming constructs, such as loops and conditional statements.

  • Easier to manage and maintain for large-scale programs.

Disadvantages of ST include:

  • Steeper learning curve for those unfamiliar with text-based programming languages.

  • Less intuitive and visually representative than LD, making it more challenging to troubleshoot and debug.

7. Ladder Logic Programming in Industrial Automation

Ladder logic programming is widely used in industrial automation due to its intuitive nature, ease of implementation, and compatibility with various programmable logic controllers (PLCs). Some common applications of ladder logic programming in industrial automation include:

Motor Control:

Ladder logic programs are often used to control the operation of motors in various industrial processes. This can involve starting and stopping motors, controlling their speed and direction, and implementing safety features such as overload protection and emergency stops.

Conveyor Systems:

In manufacturing and material handling, ladder logic programs are used to control conveyor systems. This can include controlling the movement of products along the conveyor, coordinating the operation of multiple conveyors, and implementing safety features such as interlocks and emergency stops.

Batch Processing:

 Ladder logic programs can be used to control batch processes in industries such as chemical, pharmaceutical, and food processing. This involves coordinating the operation of various equipment, such as pumps, valves, and mixers, to ensure that the process is carried out according to predefined recipes and schedules.

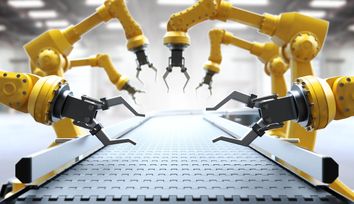

Assembly Lines:

 In automotive and electronics manufacturing, ladder logic programs are used to control assembly lines. This can involve coordinating the operation of robots, pick-and-place machines, and other equipment to ensure that products are assembled accurately and efficiently.

Packaging and Palletizing:

 Ladder logic programs are used to control packaging and palletizing systems in various industries. This can involve coordinating the operation of equipment such as cartoners, case packers, and palletizers to ensure that products are packaged and palletized according to predefined specifications.

Machine Safety:

Ladder logic programs are often used to implement machine safety features, such as interlocks, light curtains, and emergency stops. These features help protect workers from potential hazards and ensure that machines operate safely and efficiently.

These are just a few examples of the many applications of ladder logic programming in industrial automation. By leveraging the power and flexibility of ladder logic, engineers and technicians can develop effective control systems that improve the efficiency, safety, and reliability of various industrial processes.

8. Integration with Other Automation Technologies

Ladder logic programming is often integrated with other automation technologies to create comprehensive control systems for industrial processes. Some of these technologies include:

Human-Machine Interface (HMI): HMIs are graphical interfaces that allow operators to interact with and monitor the operation of industrial automation systems. Ladder logic programs can be integrated with HMI software to display real-time process data, control equipment, and receive operator inputs. This integration helps improve the overall usability and efficiency of the control system.

Supervisory Control and Data Acquisition (SCADA): SCADA systems are used to monitor and control large-scale industrial processes, such as power generation, water treatment, and oil and gas production. Ladder logic programs can be integrated with SCADA systems to provide real-time control and monitoring of equipment, as well as data logging and historical analysis.

Distributed Control System (DCS): DCSs are used to control complex, continuous processes in industries such as chemical, pharmaceutical, and power generation. Ladder logic programs can be integrated with DCSs to provide local control of equipment, while the DCS manages the overall process and coordinates the operation of multiple controllers.

Industrial Communication Protocols: Ladder logic programs can be integrated with various industrial communication protocols, such as Modbus, EtherCAT, and PROFINET, to enable communication between different automation devices and systems. This integration allows for the exchange of data and control signals between PLCs, HMIs, SCADA systems, and other automation equipment.

Industrial Internet of Things (IIoT): The IIoT is a network of interconnected industrial devices and systems that collect, analyze, and share data to improve the efficiency and performance of industrial processes. Ladder logic programs can be integrated with IIoT technologies, such as sensors, actuators, and edge computing devices, to enable real-time data collection and analysis, as well as remote monitoring and control.

By integrating ladder logic programming with these and other automation technologies, engineers and technicians can create powerful, flexible, and efficient control systems that meet the demands of modern industrial processes. This integration enables better decision-making, improved process performance, and increased overall productivity.

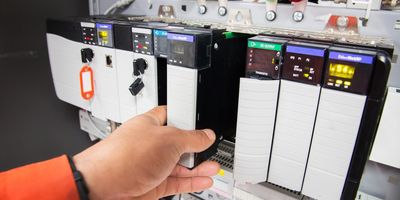

Programmable logic controllers installed in a control panel. Integrating ladder logic programming with automation technologies enables better decision-making, improved process performance, and increased overall productivity

9. Best Practices for Ladder Logic Programming

When developing ladder logic programs for industrial automation systems, it is important to follow best practices to ensure that the programs are efficient, reliable, and easy to maintain. Some of these best practices include:

  • Use Descriptive Naming Conventions: Choose clear, descriptive names for variables, inputs, outputs, and other elements to improve readability and maintainability.

  • Organize and Structure Your Program: Divide your ladder logic program into logical sections or routines corresponding to specific tasks or functions, and use comments and annotations for clarity.

  • Implement Error Handling and Diagnostics: Incorporate features to detect and respond to potential issues, such as equipment failures or communication errors, to improve reliability and robustness.

  • Use Modular and Reusable Code: Develop adaptable, reusable code to reduce development time and improve consistency and maintainability. Consider using function blocks or user-defined functions.

  • Test and Validate Your Program: Thoroughly test and validate your ladder logic program using simulation tools, test benches, or other methods to ensure it meets control system requirements.

  • Document Your Program: Create comprehensive documentation for your ladder logic program, including its purpose, functionality, and any special considerations or limitations, to aid in troubleshooting, maintenance, and training.

10. Troubleshooting and Debugging Ladder Logic Programs

Troubleshooting and debugging are essential skills for working with ladder logic programs, as they help identify and resolve issues that may arise during the development or operation of an industrial automation system. The following sections provide guidance on effective troubleshooting and debugging techniques for ladder logic programs.

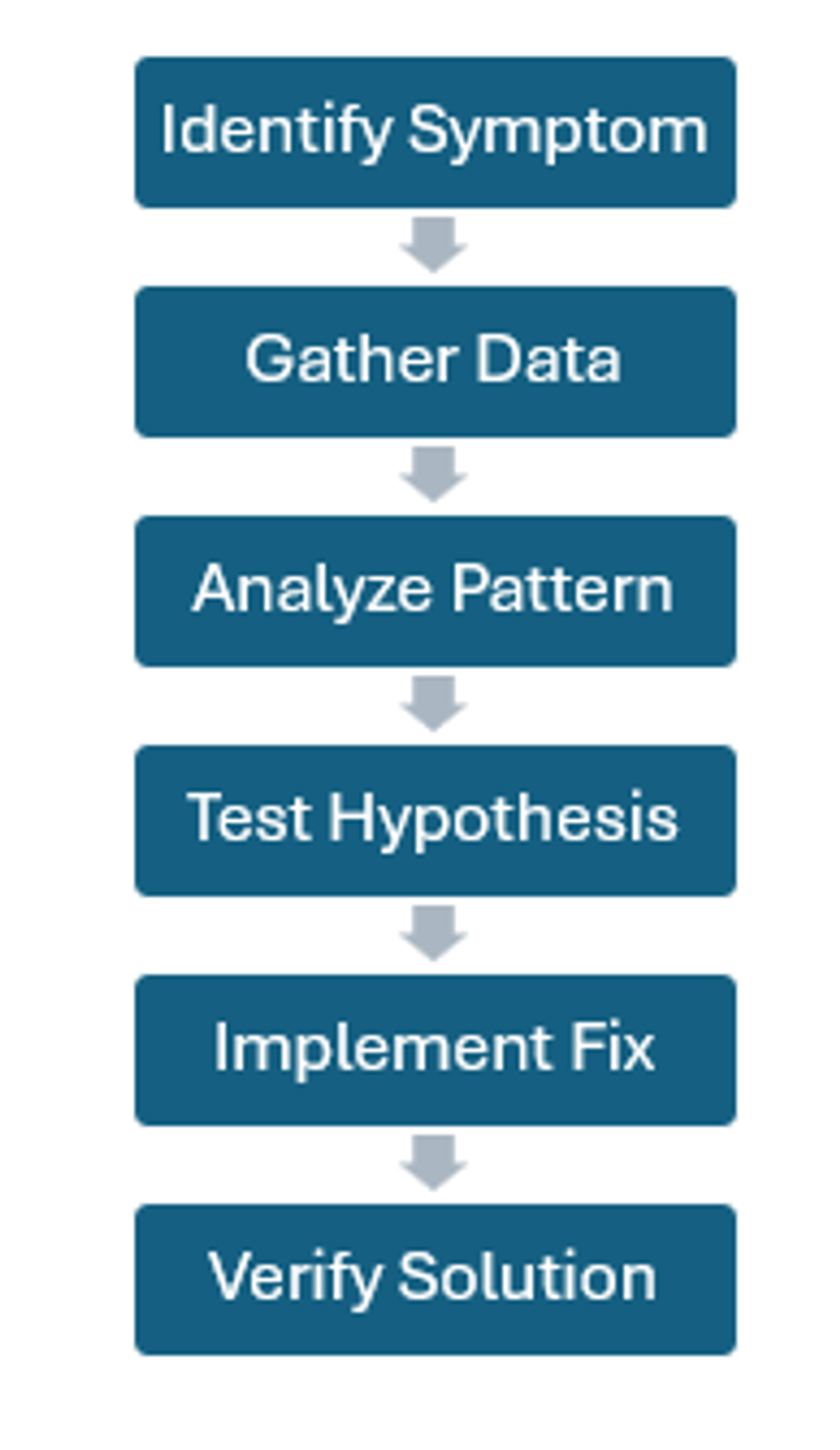

10.1. Systematic Approach to Troubleshooting

Adopting a systematic approach to troubleshooting can help you identify and resolve issues more efficiently. This approach typically involves the following steps:

  • Identify the problem: Clearly define the issue you are experiencing, such as unexpected behavior, incorrect output values, or equipment failures.

  • Gather information: Collect relevant data, such as input and output values, error messages, or system logs, to help diagnose the issue.

  • Analyze the information: Examine the data you have collected to identify patterns, trends, or anomalies that may indicate the root cause of the problem.

  • Develop a hypothesis: Based on your analysis, formulate a hypothesis about the cause of the issue and devise a plan to test your hypothesis.

  • Test your hypothesis: Implement your plan and observe the results to determine if your hypothesis is correct. If not, refine your hypothesis and repeat the process until the issue is resolved.

10.2. Debugging Tools and Techniques

Various debugging tools and techniques can be used to identify and resolve issues in ladder logic programs, including:

  • Online monitoring: Many PLC programming environments offer online monitoring features that allow you to view the real-time status of inputs, outputs, and internal variables while the program is running. This can help you identify issues related to timing, logic, or data flow.

  • Breakpoints and single-stepping: Use breakpoints and single-stepping features to pause the execution of your program at specific points, allowing you to examine the state of the system and the values of variables at each step.

  • Forced inputs and outputs: Temporarily force input or output values to simulate specific conditions or test the response of your program to different scenarios.

  • Data logging and trending: Record and analyze data from your program, such as input and output values or system events, to identify patterns or trends that may indicate issues.

11. Conclusion

Ladder logic programming is a powerful and widely used method for designing control systems in industrial automation. By understanding the fundamental concepts, components, and best practices, you can develop efficient and reliable ladder logic programs for a variety of applications. As you gain experience and expertise in ladder logic programming, you will be better equipped to troubleshoot and debug your programs, ensuring the smooth operation of your automation systems.

12. Frequently Asked Questions (FAQs)

Q: Can ladder logic programming be used for non-industrial applications?

A: Yes, ladder logic programming can be applied to non-industrial applications, such as home automation or building management systems. However, its primary use is in industrial automation, where it has been widely adopted due to its simplicity and ease of use.

Q: How can I learn ladder logic programming?

A: There are numerous resources available for learning ladder logic programming, including online tutorials, textbooks, and training courses. Many PLC manufacturers also offer training programs and support materials for their specific programming environments.

Q: What are the limitations of ladder logic programming?

A: Ladder logic programming has some limitations, such as limited support for complex data structures and algorithms, and a primarily graphical programming interface that may not be as intuitive for some users as text-based programming languages. However, its simplicity and widespread adoption in industrial automation make it a valuable skill for control system engineers and technicians.

Q: Can ladder logic programs be converted to other programming languages?

A: In some cases, ladder logic programs can be converted to other programming languages, such as Structured Text or Function Block Diagrams, using specialized software tools or manual conversion processes. However, the success of such conversions depends on the complexity of the original ladder logic program and the compatibility of the target programming language.
