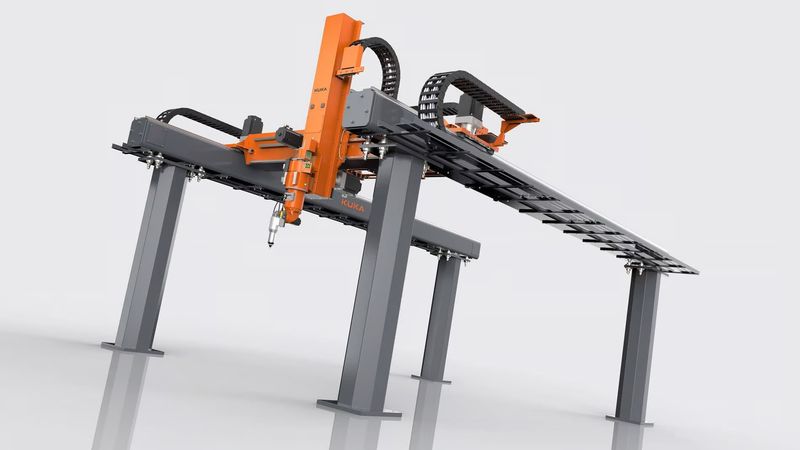

KUKA KR70 LP laser cutting gantry. Source: KUKA

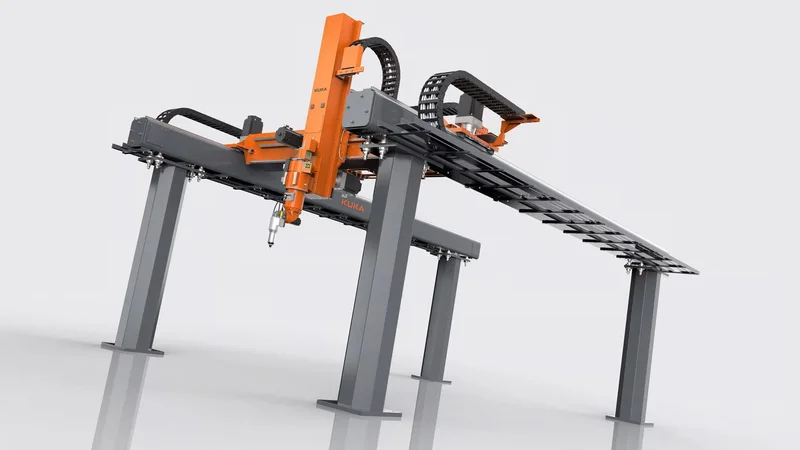

KUKA KR70 LP laser cutting gantry. Source: KUKA

Robot gantries are powerful tools in modern manufacturing and automation, offering increased precision, flexibility, and efficiency in a range of applications, as explored in this comprehensive article.

Introduction

A robot gantry is an industrial robot with a robotic arm mounted on an overhead rail system or frame. The gantry structure comprises a series of beams or struts that provide the robot with stability and precision to move along the X, Y, and Z axes. Robot gantries are commonly used in applications where heavy payloads must be lifted and moved over large working areas. The robots can be configured to operate in various environments, including clean rooms, hazardous environments, and other specialized applications.

This article provides a comprehensive overview of robot gantries, including their components, types, operation, applications, advantages and limitations, selection and integration, and future prospects. We will explore the different types of robot gantries, their capabilities, and the various components that make up a robot gantry. We will also discuss the operation and programming of robot gantries and the applications in which they are commonly used. Furthermore, we will provide insights into the advantages and limitations of robot gantries, factors to consider when selecting and integrating a robot gantry, and future development areas. By the end of this article, readers will have a thorough understanding of robot gantries and their potential applications in industrial automation.

Components of Robot Gantry

Gantry robot systems consist of several components that work together to achieve precise and accurate movements. Here are the primary components of a robot gantry:

Gantry Structure

The gantry structure is the framework that supports the robot arm and the end effector module. It consists of two or more parallel beams that move along the X and Y axes and a vertical column that moves along the Z-axis. The structure must be rigid and stable to ensure accuracy and repeatability in the robot's movements.

The gantry structure can be made of different materials, including aluminum, steel, and carbon fiber, depending on the application requirements. The material used must be strong enough to support the weight of the robot arm and the end effector while also being lightweight to reduce the overall weight of the gantry.

Robot Arm

The robot arm is part of the gantry that holds the end effector and moves along the X, Y, and Z axes. The robot arm's design and specifications depend on the application requirements, such as the reach, payload capacity, and speed.

The robot arm can be equipped with different types of end effectors, such as grippers, suction cups, and welding guns, to perform specific tasks.

End Effector

The end effector is the tool or device that is attached to the robot arm to perform a specific task. The end effector can be a gripper, a suction cup, a welding gun, a cutting tool, or any other device that can manipulate the part or material being processed.

The end effector must be designed to match the application requirements, such as the shape and size of the part, the weight, and the material being processed. The end effector's design can also impact the overall accuracy and repeatability of the robot's movements.

Suggested reading: What are End Effectors in Robotics? Types of End Effectors, Applications, Future

Drive System

The drive system consists of motors and actuators that control the movement of the gantry structure and the robot arm. Depending on the application requirements, the drive system can be either hydraulic, pneumatic, or electric.

The drive system's specifications depend on the application requirements, such as speed, torque, and precision. The drive system must also be designed to work with the control system to achieve accurate and precise movements.

Control System

The control system is the brain of the robot gantry, responsible for controlling the movement of the gantry structure and the robot arm.

The control system's software must be programmed to match the application requirements, such as the motion profile, the acceleration and deceleration rates, and the path planning. The control system must also integrate with other sensors and equipment to achieve accurate and precise movements.

Overall, the design and specifications of each component of a robot gantry must be carefully considered to achieve accurate and precise movements, ensuring the gantry's reliability and efficiency in performing its intended task.

Types of Robot Gantry

Robot gantries come in various shapes and sizes, and each type is designed to perform specific tasks. Here are the main types of robot gantry:

Cartesian Gantry

Cartesian gantries, also known as linear robot gantries, are the most commonly used type of robot gantry. They consist of two or more linear axes that move in a straight line along the X, Y, and Z axes. The robot arm is mounted on a carriage that moves along the gantry structure, allowing it to reach different points within the work envelope.

Cartesian gantries are known for their high accuracy and repeatability, making them ideal for applications that require precise positioning. They are often used in Computer Numerical Control (CNC) machining, 3D printing, and pick-and-place operations.

Articulated Gantry

Articulated gantries consist of multiple segments that are connected by joints or links. Each joint can rotate around its axis, giving the robot a greater degree of freedom and flexibility than a Cartesian robot gantry. Articulated gantries are commonly used in applications that require a high level of dexterity, such as pick-and-place applications, welding, and painting.

Articulated gantries can reach any point within their workspace by bending their joints, and they are often used in applications that require complex movements. They are also used in collaborative robots or cobots that can work safely alongside human operators.

Parallel Gantry

Parallel gantries, also known as parallel manipulators or delta robots, consist of a series of parallel links that are connected to a fixed base and a moving platform. The robot arm is mounted on the moving platform, and the links are driven by a series of actuators that control the movement of the platform.

Parallel gantries are known for their high payload capacity and stiffness, making them suitable for heavy-duty applications such as material handling and assembly. They are often used in the food and beverage industry for packaging and palletizing operations, where speed and accuracy are critical.

Hybrid Gantry

Hybrid gantries combine the features of two or more gantry system configurations to create a customized solution for specific applications. For example, a hybrid gantry may combine the high accuracy of a cartesian gantry with the flexibility of an articulated gantry, or the high payload capacity of a parallel gantry with the precision of a Cartesian gantry.

Hybrid gantries are often used in applications that require a unique combination of features that cannot be achieved with a single gantry type.


Example of a high-performance hybrid gantry by Fanuc with a cartesian robot as a linear actuator and an articulated robot as the machine tool

Each type of robot gantry has its unique features and benefits, depending on the application requirements. Cartesian gantries are known for their high accuracy and repeatability, while articulated gantries are more flexible and can work in confined spaces. Parallel gantries have a high payload capacity and stiffness, while hybrid gantries offer a customized solution for specific applications.

When selecting a robot gantry, it's essential to consider the specific application requirements to determine which type of gantry is best suited for the task. Factors such as the size and weight of the parts, the speed and accuracy of the operation, and the workspace limitations must be taken into account.

Suggested reading: 7 Types of Industrial Robots: Advantages, Disadvantages, Applications, and More

Applications of Robot Gantry

Robot gantries are widely used in various industries, including manufacturing, automotive, aerospace, and logistics, where precise and repetitive movements are required. Here are some typical applications of robot gantries:

Material Handling

Robot gantries are widely used in material handling applications, where they can move heavy and bulky materials with high precision and speed. Material handling applications include palletizing, depalletizing, and loading and unloading of products.

In a palletizing application, the robot gantry can pick up boxes or products from a conveyor and place them onto a pallet in a specific pattern. In a depalletizing application, the robot gantry can pick up and place products from a pallet onto a conveyor.

Welding

Robot gantries are widely used in welding applications, where they can perform repetitive welding tasks with high precision and accuracy. Welding applications include spot welding, arc welding, and laser welding.

In a spot welding application, the robot gantry can pick up a welding gun and perform spot welds on a workpiece in a specific pattern. In an arc welding application, the robot gantry can pick up a welding torch and perform welds on a workpiece while moving along a specific path. In a laser welding application, the robot gantry can pick up a laser and perform welds on a workpiece with high precision.

Painting

Robot gantries are widely used in painting applications, where they can paint complex shapes and surfaces. Painting applications include automotive painting, aircraft painting, and industrial painting.

In an automotive painting application, the robot gantry can pick up a spray gun and apply paint to a car body while moving along a specific path. In an aircraft painting application, the robot gantry can pick up a spray gun and apply paint to an aircraft body. The robot gantry can pick up a spray gun and apply paint to large parts or structures in an industrial painting application.

Inspection and Testing

Robot gantries are widely used in inspection and testing applications, where they can perform accurate and repetitive measurements and tests. Inspection and testing applications include quality control, non-destructive testing, and metrology.

In a quality control application, the robot gantry can pick up a sensor and perform measurements on a workpiece to ensure it meets the required specifications. In a non-destructive testing application, the robot gantry can pick up a sensor and perform tests on a workpiece to detect any defects or flaws. In a metrology application, the robot gantry can pick up a sensor and perform precise measurements on a workpiece to determine its dimensions and tolerances.

Advantages and Disadvantages of Robot Gantry

Robot gantries offer several advantages and disadvantages compared to other types of robots or traditional automation solutions. Here are some of the key advantages of robot gantries:

  1. High Precision: Robot gantries can achieve high levels of precision and accuracy in performing complex and repetitive tasks, thanks to their multi-axis movement and advanced control systems.

  2. Flexibility: Robot gantries can be customized and adapted to various applications and work environments thanks to their modular design and programming flexibility.

  3. Speed: Robot gantries can perform tasks at high speeds, which improves overall productivity and reduces cycle times.

  4. Safety: Robot gantries can improve workplace safety by reducing the need for manual labor and minimizing the risk of human error and accidents.

  5. Scalability: Robot gantries can be scaled up or down depending on the production needs, which allows for greater flexibility and cost-effectiveness.

Here are some disadvantages of robot gantries:

  1. High Cost: Robot gantries can be expensive to purchase and install, as well as to maintain and repair over time, which may not be feasible for small or medium-sized businesses.

  2. Complex Programming: Robot gantries require advanced programming skills and expertise to operate and maintain, which may limit their accessibility and adoption.

  3. Space Requirements: Robot gantries require a significant amount of floor space to operate, which may not be feasible for small or crowded workspaces.

  4. Maintenance and Downtime: Robot gantries require regular maintenance and may experience downtime or malfunctions, which can affect overall productivity and increase maintenance costs.

  5. Integration with Existing Systems: Robot gantries may require integration with other automation systems or equipment, which can be challenging and require additional resources and expertise.

Overall, robot gantries offer a range of advantages and disadvantages depending on the application and the production needs. While they can provide high precision, flexibility, and speed, they can also be costly and require advanced programming and maintenance skills. It's essential to carefully evaluate the benefits and challenges of robot gantries before deciding to implement them in a production environment.

Selection and Integration of Robot Gantry

Selecting and integrating a robot gantry into a production environment requires careful consideration and evaluation of various factors. Here are some key factors to consider when selecting and integrating a robot gantry:

  1. Application and Environment: The specific application and environment play a significant role in selecting and integrating a robot gantry. It's essential to consider factors such as the size and weight of the products, the required precision and speed, and the available floor space and resources.

  2. Budget and Cost: Robot gantries can be expensive to purchase and install, as well as to maintain and repair over time. It's essential to consider the budget and cost of ownership when selecting and integrating a robot gantry.

  3. Compatibility and Integration: Robot gantries may need to integrate with other automation systems or equipment in the production environment. It's essential to consider the compatibility and integration requirements when selecting and integrating a robot gantry.

  4. Training and Support: Proper training and support are essential for successfully integrating a robot gantry into a production environment. It's essential to have access to resources and support from the manufacturer or other experts to ensure optimal performance and efficiency.

Future Prospects of Robot Gantry

The future of robot gantries looks promising, as technology continues to advance and the demand for automation and efficiency increases. Here are some potential future prospects for robot gantries:

  1. Increased Flexibility: Advances in technology and programming may allow for even greater customization and flexibility in robot gantries, allowing them to adapt to a wider range of applications and environments.

  2. Improved Safety and Collaboration: Future developments in sensor technology and control systems may improve the safety of robot gantries and allow for greater collaboration with human workers.

  3. Integration with Artificial Intelligence: Robot gantries may be integrated with artificial intelligence and machine learning technologies to improve their performance, accuracy, and efficiency.

  4. Expansion into New Industries: As technology advances and new industries emerge, the applications of robot gantries may continue to expand, providing new opportunities for automation and efficiency.

Conclusion

Robot gantries have become valuable in many manufacturing and automation systems, providing high precision, flexibility, and safety while performing tasks at incredible speeds. As technology advances and the demand for automation increases, the applications of robot gantries continue to expand, and their benefits are becoming more accessible and affordable to businesses of all sizes.

However, it's essential to carefully evaluate the advantages and disadvantages of robot gantries before implementing them in a production environment to ensure they are suitable and cost-effective solutions.
