Robots in the Manufacturing Industry: Types and Applications

author avatar

04 May, 2023

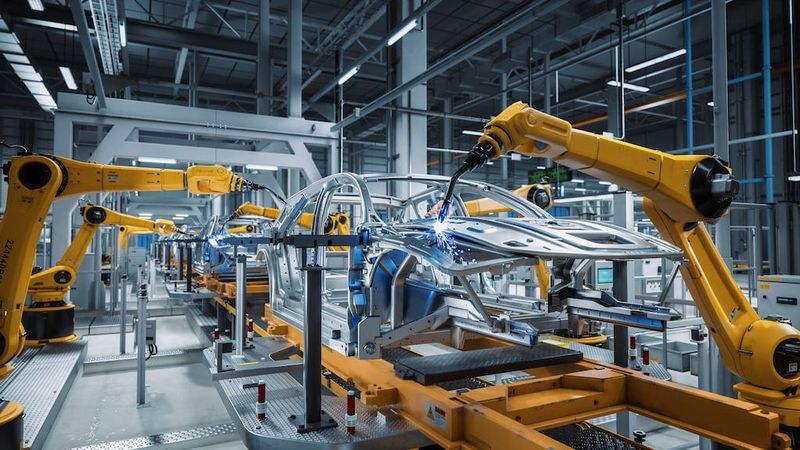

Automated welding using industrial robots

Automated welding using industrial robots

Discover How Industrial Robots in Various Shapes, Sizes, and Designs are Tackling Complex Challenges, Enhancing Efficiency, and Revolutionizing the Manufacturing Industry for a Safer, Smarter Future


Manufacturing robots have become increasingly important in the era of Industry 4.0. As the industrial landscape undergoes a digital transformation, these robots are at the forefront, offering various types and applications of robotic automation that cater to different manufacturing needs in the assembly line. This article aims to provide readers with a comprehensive understanding of manufacturing robots, their types, applications, and the role they play in Industry 4.0.

From the early beginnings of robotics in manufacturing to the development of collaborative robots (cobots) and mobile robots, this article delves into the technical depth of each type and their unique features. With the rapid growth and advancements in robotics technologies, such as artificial intelligence (AI) and machine learning, we explore the potential impact of these technologies on the future of manufacturing. The integration of robotics with other Industry 4.0 technologies, such as the Internet of Things (IoT) and big data, is also discussed, shedding light on the potential benefits and challenges of this integration.

This article serves as a comprehensive guide for those interested in understanding the intricacies of manufacturing robots and their role in the modern industrial landscape. By the end of this article, readers will have a solid foundation in the types, applications, and future trends of manufacturing robots in Industry 4.0.

History of Robots in Manufacturing

The history of robots in manufacturing can be traced back to the early 1960s. The first industrial robot, the Unimate, was installed at a General Motors plant in 1961. Weighing over two tons and featuring a 6-foot hydraulic arm, the Unimate was designed for die-casting operations and spot welding of car body parts. It marked the beginning of a new era in manufacturing, paving the way for more sophisticated and versatile industrial robots.

Over the years, innovations and improvements in technology have led to the development of more advanced robots, capable of performing a wide array of tasks in manufacturing. In the 1970s, the introduction of the Programmable Universal Machine for Assembly (PUMA) robot expanded the capabilities of industrial robots beyond simple pick-and-place operations. With six degrees of freedom and a more flexible arm, PUMA robots were able to perform complex tasks such as assembly, painting, and even surgery.

During the 1980s, industrial robots saw significant advancements, particularly in terms of control systems and programming languages. This period saw the development of the first computer-aided design and manufacturing (CAD/CAM) systems, which enabled engineers to design and program robots using advanced graphical interfaces. Robots became more accurate and precise, with better repeatability and a greater range of motion. The increased precision allowed robots to be used in applications such as semiconductor manufacturing, where extremely high accuracy is required.

In the 1990s, the emergence of new sensor technologies, such as vision systems and force-torque sensors, further expanded the capabilities of industrial robots. These sensors allowed robots to "see" their environment and respond to external forces, enabling them to perform tasks that require adaptability and flexibility, such as bin picking and material handling. During this time, robotics research also began to focus on the development of collaborative robots or "cobots," which are designed to work alongside humans in shared workspaces.

The 21st century has witnessed significant advancements in robotics, driven by the rapid growth of AI and machine learning technologies. These technologies have enabled robots to learn and adapt to new tasks autonomously, without the need for explicit programming. As a result, robots have become increasingly versatile and capable of performing a wide range of tasks in various industries, from automotive and electronics manufacturing to food processing and pharmaceuticals providing robotic automation in the assembly lines.

Today, robots have become an integral part of modern manufacturing, offering improved efficiency, productivity, and flexibility. As the manufacturing landscape continues to evolve in the age of Industry 4.0, robots will play an even more critical role in shaping the future of the industry.

Industry 4.0 and the Role of Robotics

Industry 4.0, also known as the Fourth Industrial Revolution, is characterized by the integration of digital technologies, such as the Internet of Things (IoT), artificial intelligence (AI), and big data analytics, into manufacturing processes. This integration has significantly transformed the way industries operate, leading to increased efficiency, flexibility, and productivity. Robotics plays a pivotal role in this transformation, as it forms the backbone of automation and smart manufacturing.

One of the key aspects of Industry 4.0 is the concept of the "smart factory," where machines, systems, and processes are interconnected and communicate with each other. Robots are integral to the realization of smart factories, as they enable seamless automation of complex tasks and facilitate real-time data exchange between different production stages. This interconnectivity allows for better monitoring and control of manufacturing processes, resulting in reduced downtime, improved quality, and increased overall efficiency.

The integration of AI and machine learning technologies has further enhanced the capabilities of manufacturing robots. These technologies allow robots to learn from experience, adapt to new tasks using automated systems, and optimize their performance over time. For example, machine learning algorithms can be used to analyze sensor data from robots, identify patterns, and predict potential maintenance issues before they occur, thereby minimizing downtime and maximizing productivity.

Another significant advancement in robotics that has contributed to Industry 4.0 is the development of collaborative robots or "cobots." Unlike traditional industrial robots, which are designed to operate in isolation from humans, cobots are designed to work alongside human workers in shared workspaces. Equipped with advanced safety features and sensors, cobots can assist humans in tasks that require precision, strength, or endurance, while also ensuring worker safety. This collaboration between humans and robots results in increased efficiency and productivity in manufacturing processes.

Robotics is also playing a crucial role in addressing labor shortages and skill gaps in the manufacturing sector. As industries continue to evolve and adopt new technologies, the demand for skilled workers is increasing. Robots can be used to perform repetitive, labor-intensive tasks, freeing up human workers to focus on higher-value, more complex tasks that require critical thinking and problem-solving skills.

Robotics is an essential driving force in the evolution of Industry 4.0, contributing to the digital transformation of manufacturing processes and enabling the creation of smart factories. With advancements in AI, machine learning, and cobot technologies, robots will continue to play a vital role in shaping the future of manufacturing and addressing the challenges faced by the industry.

Types of Manufacturing Robots

Manufacturing robots come in various types and configurations, each designed to perform specific tasks and applications. Understanding the different types of manufacturing robots and their unique features can help businesses choose the right robot for their specific needs. In this section, we will explore some of the most common types of manufacturing robots and their applications.

Articulated Robots

Articulated robots are among the most versatile and widely used types of industrial robots in manufacturing. These robots feature multiple joints, or axes of rotation, which allow them to move in a highly flexible manner. The most common configuration of articulated robots is the 6-axis robot, which provides six degrees of freedom. This allows the robot to move in any direction and reach any point within its workspace, making it suitable for a wide range of tasks.

Mitsubishi articulated robotic arm with gripperArticulated robot

Articulated robots are known for their exceptional dexterity and precision. They can be used in applications such as assembly, painting, welding, and material handling. In the automotive industry, for example, articulated robots are commonly used for tasks like spot welding, where they need to reach various points on a car body with high precision.

The payload capacity of articulated robots varies, depending on the size and configuration of the robot. Some articulated robots are designed to handle small payloads, such as small electronic components, while others can handle much larger payloads, such as entire car bodies. The selection of an articulated robot depends on the specific requirements of the task, such as the size, weight, and complexity of the objects being manipulated.

Articulated robots can also be integrated with various end-effectors, such as grippers, welding torches, or spray guns, to perform specific tasks. The choice of end-effector depends on the application and the type of material being handled. For example, vacuum grippers are commonly used for picking up flat objects, while magnetic grippers are suitable for handling ferrous materials.

In addition to their flexibility and precision, articulated robots offer several other advantages, such as high repeatability and speed. These attributes make them well-suited for a wide range of applications in various industries, from automotive and aerospace to electronics and pharmaceuticals. As advancements in robotics technology continue to drive improvements in the performance and capabilities of articulated robots, their adoption in manufacturing processes is expected to grow further.

Suggested read: What are Articulated Robots? Anatomy, Control Systems, Advantages, Selection Criteria, and Applications

SCARA Robots

SCARA, an acronym for Selective Compliance Assembly Robot Arm, is a type of robot specifically designed for high-speed assembly and material handling applications. SCARA robots are known for their speed, precision, and ability to perform tasks within a limited workspace, making them an excellent choice for industries such as electronics, automotive, and consumer goods manufacturing.

SACRA robotic arm with suction cupSACRA robot

The unique design of SCARA robots features a horizontal arm with two parallel joints, providing both vertical and horizontal motion. This configuration allows the robot to move in a planar workspace, enabling it to perform tasks such as pick-and-place, assembly, and packaging efficiently. The SCARA robot's arm is selectively compliant in the horizontal plane, providing rigidity in the vertical direction. This design characteristic ensures accurate and precise positioning while also allowing some flexibility in the horizontal plane, which is beneficial for tasks like assembly.

One of the main advantages of SCARA robots is their high speed and accuracy. They can achieve positioning accuracies in the range of 0.01 to 0.1 millimeters, making them ideal for applications requiring precise placement of components, such as printed circuit board assembly or small parts assembly. Additionally, their fast cycle times enable them to perform tasks at high speeds, resulting in increased productivity.

SCARA robots are typically more compact than other types of robots, such as articulated or cartesian robots, making them suitable for applications with limited space. Their compact design also allows for easy integration into existing production lines, as they can be mounted on a table or suspended from a ceiling, depending on the specific requirements of the application.

The payload capacity of SCARA robots varies, but they are generally designed to handle relatively lightweight objects. This makes them suitable for tasks such as moving small electronic components or assembling lightweight parts. However, for applications requiring the handling of heavier objects, other types of robots, such as articulated or cartesian robots, may be more suitable.

SCARA robots are a versatile and efficient solution for high-speed, high-precision assembly and material handling applications. Their unique design, combined with their speed, accuracy, and compact form factor, make them well-suited for industries such as electronics, automotive, and consumer goods manufacturing.

Delta Robots

Delta robots are a type of parallel robot known for their speed, precision, and lightweight design. They are particularly suited for high-speed pick-and-place applications, where rapid movement and accurate positioning are critical. Industries that commonly use delta robots include food and beverage, pharmaceutical, and electronics manufacturing.

The unique design of delta robots consists of three parallel arms connected to a triangular base, which in turn is attached to a fixed platform. The arms are driven by linear actuators or motors, allowing the robot's end-effector to move within a dome-shaped workspace. This design results in a lightweight and compact robot with minimal moving parts, which contributes to its high speed and precision.

Delta Robot picking up candyDelta robot

One of the key advantages of delta robots is their ability to perform tasks at high speeds, often reaching several hundred picks per minute. This high speed makes delta robots ideal for applications such as packaging, sorting, or transferring small items between conveyor belts. The speed of delta robots is primarily attributed to their lightweight design and minimal inertia, allowing for rapid acceleration and deceleration.

In addition to their speed, delta robots also offer high levels of precision and accuracy. They can achieve positioning accuracies in the range of 0.1 to 0.3 millimeters, making them suitable for tasks that require precise placement of components, such as electronics assembly or pharmaceutical pill sorting. The parallel kinematics of delta robots contribute to this accuracy, as any errors in individual actuators are averaged out over the three arms.

The workspace of delta robots is typically smaller than that of other robot types, such as articulated or SCARA robots, but their design allows for a large vertical range of motion. This makes them well-suited for applications where items need to be picked from a conveyor belt and placed in a container.

Delta robots are typically designed for lightweight payloads, as their primary focus is on speed and precision. For heavier payload applications, other types of robots, such as articulated or cartesian robots, may be more appropriate. However, for tasks involving small, lightweight objects, delta robots offer an efficient and high-performance solution.

Delta robots are a specialized type of parallel robot with unique design characteristics that make them ideal for high-speed, high-precision pick-and-place applications. Their lightweight design, minimal moving parts, and parallel kinematics contribute to their speed, precision, and accuracy, making them a valuable tool in industries such as food and beverage, pharmaceutical, and electronics manufacturing.

Suggested read: Types of Industrial Robots: Advantages, Disadvantages, Applications, and More

Cartesian Robots

Cartesian robots, also known as gantry or linear robots, are a type of robot that operates within a three-dimensional Cartesian coordinate system. This design provides a straightforward and easily understood framework for robot movement, making cartesian robots ideal for a wide range of manufacturing applications, including assembly, material handling, and machining.

Cartesian robots are characterized by their use of linear actuators or motors to move along each of the three Cartesian axes: X, Y, and Z. These axes are typically orthogonal, meaning they form right angles with one another. By controlling the movement of each axis independently, cartesian robots can achieve precise positioning and motion within a defined workspace.

A cartesian 3D-printer makes a humanoid head from pink plasticCartesian robot

One of the primary advantages of cartesian robots is their modularity and scalability. Because the components of a cartesian robot can be easily assembled and disassembled, they can be customized to fit the specific requirements of a given application. The size and travel range of each axis can be adjusted to create a workspace tailored to the needs of the manufacturing process. This scalability makes cartesian robots a popular choice for industries with varying production requirements, such as automotive and aerospace manufacturing.

Cartesian robots are known for their high levels of precision and accuracy. With positioning accuracies typically ranging from 0.01 to 0.1 millimeters, cartesian robots can perform tasks that require precise control, such as CNC machining, dispensing, or inspection. The linear nature of cartesian robots' motion allows for consistent and repeatable movements, contributing to their accuracy.

The rigidity and stability of cartesian robots make them well-suited for applications involving heavy payloads or high force requirements. Unlike other types of robots, such as articulated or delta robots, cartesian robots can support heavy loads without sacrificing precision. This is due to their robust frame and the use of linear guides and bearings, which provide the necessary support for heavy-duty applications.

Cartesian robots are also known for their relatively low cost when compared to other types of robots, such as articulated or SCARA robots. This is due in part to their simple and modular design, which allows for reduced manufacturing costs and ease of maintenance. The cost-effectiveness of cartesian robots makes them an attractive option for businesses seeking to implement robotics solutions on a budget.

Cartesian robots are a versatile and cost-effective type of robot that operate within a Cartesian coordinate system. Their modularity, scalability, and high levels of precision make them suitable for a wide range of manufacturing applications, from assembly and material handling to machining and inspection. With their ability to support heavy payloads and maintain accuracy, cartesian robots are a valuable tool in industries such as automotive, aerospace, and electronics manufacturing.

Polar Robots

Polar robots, also known as spherical or radial robots, are a type of industrial robot that operates within a spherical coordinate system. With a unique design consisting of a rotating base and an extendable arm, polar robots offer a wide range of motion and versatility, making them suitable for various manufacturing applications such as welding, painting, and material handling.

The polar robot's design is characterized by three main components: a base that rotates around a vertical axis, an arm that extends and retracts radially, and a wrist joint that provides additional motion and flexibility. This configuration allows polar robots to cover a large workspace in the shape of a sphere or a hemisphere, depending on the range of motion of the arm and wrist joint.

One of the main advantages of polar robots is their ability to reach around obstacles within their workspace. Due to the rotational movement of the base and the flexibility of the arm, polar robots can access hard-to-reach areas and perform tasks in confined spaces. This feature makes them particularly suitable for applications such as welding or painting, where precision and accessibility are crucial.

Polar robots are known for their high-speed operation and rapid acceleration, which can be attributed to their unique design and lightweight construction. The radial arm's extension and retraction, combined with the rotating base, allow polar robots to achieve speeds of up to 5 meters per second. This makes them ideal for applications that require fast cycle times, such as assembly or material handling.

The accuracy and repeatability of polar robots are generally comparable to other types of robots, such as SCARA and cartesian robots. Typical positioning accuracies for polar robots range from 0.1 to 0.5 millimeters, depending on the specific model and configuration. The combination of high speed and accuracy makes polar robots a valuable asset in industries such as automotive, aerospace, and electronics manufacturing.

Another benefit of polar robots is their relatively small footprint. The rotating base and radial arm design allow polar robots to be mounted on a small, compact platform, making them an ideal choice for facilities with limited floor space. Additionally, polar robots can be mounted on the ceiling or the wall, further expanding their workspace and providing additional flexibility in terms of installation and integration.

Polar robots are a versatile and efficient type of industrial robot that operates within a spherical coordinate system. Their unique design and wide range of motion enable them to access hard-to-reach areas and perform tasks at high speeds with precision and accuracy. With a relatively small footprint and the ability to be mounted on various surfaces, polar robots are an excellent choice for industries such as automotive, aerospace, and electronics manufacturing, where space is often at a premium.

Collaborative Robots (Cobots)

Collaborative robots, commonly known as cobots, are a type of industrial robot designed to work safely alongside humans in various manufacturing and assembly environments. Cobots are equipped with advanced safety features, user-friendly interfaces, and highly adaptable configurations, making them a valuable asset for companies looking to enhance their production capabilities while maintaining a safe and efficient workplace.

One of the defining characteristics of cobots is their built-in safety features, which enable them to work closely with human operators without posing any significant risk. Cobots are equipped with force-limited joints, which prevent them from exerting excessive force on a human worker in case of accidental contact. Additionally, cobots are designed to operate at lower speeds when working in close proximity to humans, reducing the risk of injury.

Industrial cobot working with humansCobot working with humans

The use of advanced sensors and vision systems in cobots allows them to monitor their surroundings and adjust their movements accordingly. This enables cobots to detect obstacles, including human workers, and adapt their motion paths to avoid collisions. Some cobots are also equipped with features such as hand-guidance, allowing human operators to teach the robot new tasks by manually guiding its movements.

Cobots are designed with user-friendly interfaces, making them accessible to operators with minimal programming experience. This ease of use allows companies to quickly integrate cobots into their existing workflows without the need for extensive training or specialized expertise. Many cobots offer intuitive programming methods, such as graphical interfaces, allowing users to create and modify tasks using simple drag-and-drop techniques.

Another key advantage of cobots is their adaptability to a wide range of manufacturing tasks. Cobots can be fitted with various end effectors, such as grippers or welding torches, allowing them to perform a multitude of tasks, including assembly, pick-and-place, and machine tending. Their modular design enables companies to quickly reconfigure cobots for different tasks or production lines, increasing their overall flexibility and efficiency.

Cobots are typically designed with a smaller footprint compared to traditional industrial robots, making them ideal for facilities with limited floor space or complex layouts. Their compact size and lightweight construction also enable cobots to be mounted on mobile platforms or integrated into existing workstations with minimal disruption.

Cobots reach similar performance levels to other types of industrial robots in terms of precision and repeatability. Depending on the type and setup, typical cobot positioning accuracies range from 0.1 to 0.5 millimeters. While cobots may not be as fast as some traditional robots, their emphasis on safety and collaboration frequently outweighs the need for maximum speed.

Collaborative robots, or cobots, are an innovative type of industrial robot designed to work safely alongside humans in various manufacturing environments. Their built-in safety features, user-friendly interfaces, adaptability, and compact design make them an ideal choice for companies looking to enhance their production capabilities while maintaining a safe and efficient workplace. Cobots provide a versatile solution for a wide range of tasks, from assembly and pick-and-place to machine tending, and can be easily integrated into existing workflows with minimal disruption.

Suggested read: Cobots Are Collaborators. AI Will Make Them Partners

Mobile Robots

Mobile robots are a class of autonomous robots designed to move and navigate through various environments, providing a flexible solution for a range of manufacturing tasks. These robots are equipped with advanced navigation and localization systems, enabling them to adapt to changing environments and dynamically adjust their paths. Mobile robots have become increasingly popular in manufacturing settings due to their ability to improve productivity, streamline workflows, and reduce operational costs.

A key feature of mobile robots is their ability to navigate through complex environments using advanced localization and mapping techniques. Many mobile robots employ Simultaneous Localization and Mapping (SLAM) algorithms, which enable them to create maps of their surroundings while simultaneously determining their position within the environment. This capability allows mobile robots to move autonomously without the need for pre-defined paths or fixed infrastructure.

In addition to SLAM, mobile robots often use a combination of sensors, such as LiDAR, cameras, and ultrasonic sensors, to gather information about their surroundings. These sensors enable mobile robots to detect obstacles and avoid collisions while navigating through their environment. Advanced sensor fusion techniques, which combine data from multiple sensors, allow mobile robots to make more informed decisions and improve their overall navigation accuracy.

Mobile robots are well-suited for a variety of tasks in manufacturing environments, including material handling, palletizing,  transport, and inspection. Their ability to autonomously navigate through complex environments makes them ideal for transporting raw materials, work-in-progress, and finished goods between different stages of the production process. Mobile robots can also perform inspection tasks, such as monitoring equipment for signs of wear or malfunction, ensuring a more proactive approach to maintenance and reducing downtime.

One of the primary advantages of mobile robots is their ability to streamline workflows and improve overall efficiency. By automating tasks such as material transport and inspection, mobile robots can free up human operators to focus on higher-value tasks, leading to increased productivity and reduced labor costs. Additionally, mobile robots can operate around the clock, further enhancing their productivity and allowing companies to maximize the utilization of their resources.

Mobile robots come in various configurations and designs, depending on their specific application and intended use. Some common types of mobile robots include Automated Guided Vehicles (AGVs), which follow pre-defined paths using markers or wires embedded in the floor, and Autonomous Mobile Robots (AMRs), which use advanced navigation algorithms to move freely through their environment. Mobile manipulators, which combine the mobility of an AMR with the dexterity of a robotic arm, can perform more complex tasks, such as pick-and-place or assembly operations.

Mobile robots are a versatile and flexible solution for various manufacturing tasks, offering significant benefits in terms of productivity, efficiency, and cost reduction. Their advanced navigation and localization capabilities enable them to adapt to changing environments and perform tasks autonomously, while their ability to streamline workflows and free up human operators for higher-value tasks makes them an invaluable asset in modern manufacturing facilities. As the technology continues to advance, the adoption of mobile robots is expected to grow, further transforming the manufacturing landscape.

Robotics Applications in Key Industries

Robots have become an integral part of modern manufacturing processes across various industries. By automating repetitive tasks and improving overall efficiency, robots have significantly impacted the way products are made and assembled. This section will focus on the applications of robotics in key industries, starting with automotive manufacturing.

Automotive Manufacturing

The automotive industry has been at the forefront of adopting robotics technology in its manufacturing processes. From welding and painting to assembly and inspection, robots play a crucial role in producing vehicles with precision, accuracy, and speed.

In the welding process, robots are utilized for their ability to handle the high temperatures and precision required for joining metal components. These robots are equipped with advanced sensors and control systems, ensuring consistent weld quality and minimizing defects. For example, the average welding cycle time for a car body is reduced to 85 seconds with the help of robots, resulting in substantial productivity improvements.

Robots welding in car factoryIndustrial robots welding in car factory

Robots are also used in the painting process, where they provide several benefits, including reduced paint waste and improved finish quality. By employing precise movements and advanced control algorithms, robotic paint systems can achieve uniform coverage with minimal overspray. A typical paint shop can achieve up to 50% reduction in paint waste by using robots, significantly reducing material costs and environmental impact.

In the assembly process, robots are used to perform tasks such as installing engines, attaching wheels, and mounting doors. These tasks require a high degree of accuracy and repeatability, which robots can provide. Moreover, robots can handle heavy components, reducing the risk of injuries and fatigue among human workers. Another area where robots are employed in automotive manufacturing is quality inspection. Vision-guided robots equipped with high-resolution cameras can inspect components and assemblies for defects, ensuring high quality and minimizing the risk of recalls. These robots can perform inspections at a speed and accuracy level that surpasses human capabilities, leading to improved overall product quality.

The automotive industry has been a pioneer in adopting robotics technology for various manufacturing processes. Robots have significantly improved productivity, efficiency, and product quality in automotive manufacturing, setting a benchmark for other industries to follow. As technology continues to advance, it is expected that robots will play an even more critical role in the future of automotive manufacturing.

Electronics Manufacturing

Electronics manufacturing is another industry where robotics plays a significant role in enhancing productivity, quality, and efficiency. With the increasing demand for electronic devices, manufacturers have turned to robotics for various tasks, such as component placement, soldering, and assembly.

One of the primary applications of robotics in electronics manufacturing is component placement. High-speed pick-and-place robots are used to accurately place tiny electronic components, such as resistors, capacitors, and integrated circuits, onto printed circuit boards (PCBs) at rapid speeds. These robots can handle thousands of components per hour, far surpassing the capabilities of human workers. For example, a typical pick-and-place robot can place up to 30,000 components per hour with an accuracy of ±50 micrometers, ensuring high throughput and precision in the production process.

Robots soldering electronics componentsRobots soldering electronics components

Soldering is another critical process in electronics manufacturing where robots are widely used. Robotic soldering systems offer several advantages over manual soldering, including improved consistency, reduced defects, and increased productivity. These robots use advanced control systems and sensors to maintain a consistent soldering temperature and apply the appropriate amount of solder to each joint, resulting in higher quality and more reliable electronic devices.

In the assembly process, robots are employed to handle delicate components and perform precise tasks such as screwing and adhesive application. These tasks often require a high degree of accuracy and repeatability, which robots can provide. Furthermore, robots can work around the clock without fatigue, allowing for continuous production and faster turnaround times. For instance, a study found that using robots in electronic assembly tasks can improve productivity by up to 25% compared to manual assembly.

Robots are also utilized in quality control and inspection processes in electronics manufacturing. Vision-guided robots can inspect PCBs and electronic components for defects and misalignments, ensuring high product quality and reducing the risk of device failure. These inspection robots can process large volumes of components at a much faster rate than human workers, leading to improved overall production efficiency.

The electronics manufacturing industry has greatly benefited from the adoption of robotics in various processes. By automating tasks such as component placement, soldering, and assembly, robots have significantly improved productivity, product quality, and efficiency in this industry. As technology continues to evolve, it is expected that robotics will play an even more critical role in the future of electronics manufacturing.

Aerospace Manufacturing

Aerospace manufacturing involves the production of aircraft, spacecraft, and related components. The industry's stringent quality and safety requirements have led to the adoption of robotics to ensure precision, repeatability, and reliability in production processes.

One essential application of robotics in aerospace manufacturing is drilling and fastening. Drilling holes and installing fasteners in aircraft structures require a high level of accuracy to ensure structural integrity and proper alignment. Robotic drilling systems, such as automated guided drilling machines, can deliver precise hole placement within tolerances of ±0.001 inches, which is crucial for maintaining aircraft safety and performance. By automating this process, manufacturers can significantly reduce production time and costs, while maintaining the high quality required in the aerospace industry.

Composite material layup is another area where robotics are employed in aerospace manufacturing. Composite materials, such as carbon fiber-reinforced polymers, are increasingly used in aircraft production due to their high strength-to-weight ratio and corrosion resistance. Robotic systems can precisely apply composite material layers to molds or mandrels, ensuring uniform thickness and optimal material usage. For instance, Automated Fiber Placement (AFP) machines can place composite tape layers with a positioning accuracy of ±0.010 inches, enabling the production of complex, high-performance composite structures.

Painting and surface finishing are additional processes in aerospace manufacturing where robots play a significant role. These tasks require consistent, high-quality finishes to maintain the appearance and corrosion resistance of aircraft surfaces. Robotic painting systems can apply paint and coatings uniformly and efficiently, minimizing waste and reducing environmental impact. For example, a robotic painting system can cover up to 95% of an aircraft's surface area with a coating thickness tolerance of ±10 micrometers, ensuring a consistent and durable finish.

Metal and Plastic Manufacturing

Metal and plastic manufacturing are crucial to many industries, and robotics play an essential role in streamlining production processes, enhancing precision, and reducing labor costs.

In metal manufacturing, robotics are widely used for welding applications. High-quality welds are critical for the structural integrity of various components, particularly in industries with strict safety requirements, such as automotive and aerospace. Robotic welding systems can maintain consistent weld quality by controlling parameters such as weld speed, heat input, and electrode placement. For instance, robotic Gas Metal Arc Welding (GMAW) systems can achieve welding speeds of up to 100 inches per minute with a positional accuracy of ±0.005 inches, ensuring a high-quality weld while reducing production time.

Robotic systems are also employed in metal cutting and machining processes, where precision and repeatability are essential. Examples include laser cutting, waterjet cutting, and milling operations. Robotic laser cutting systems can achieve cutting speeds of up to 1,000 inches per minute with a positional accuracy of ±0.001 inches, resulting in precise and consistent part production. Additionally, robotics can be used in complex milling operations where 5-axis or 6-axis motion is required, enabling manufacturers to produce intricate parts with tight tolerances.

In plastic manufacturing, robotics are commonly used in injection molding processes. Injection molding is a widely used technique for producing plastic components, and the accuracy and repeatability of robotic systems are vital to ensure consistent quality. Robotic systems can handle tasks such as part extraction, insert loading, and post-molding operations like trimming and assembly. For instance, a robotic part extraction system can achieve cycle times as low as 6 seconds with a positioning accuracy of ±0.010 inches, ensuring efficient and precise handling of molded components.

Robotic arms holding plastic bottlesRobots working in plastic bottle manufacturing

Another application of robotics in plastic manufacturing is in blow molding processes, where plastic containers and bottles are produced. Robotic trimming systems can remove excess plastic and ensure a clean, uniform finish on the final product. For example, a robotic trimming system can achieve a cycle time of less than 10 seconds with a cutting accuracy of ±0.005 inches, resulting in a high-quality finished product with minimal waste.

Overall, robotics in metal and plastic manufacturing enhance efficiency, precision, and quality, contributing significantly to various industries' productivity and competitiveness.


Robots have become indispensable tools in various industries due to their ability to streamline processes, improve efficiency, and deliver consistent, high-quality results. Their applications are wide-ranging, from Cartesian and polar robots to collaborative robots (cobots) and mobile robots. These different types of robots each offer unique advantages in specific applications and environments. Robots have been successfully integrated into key industries such as automotive, electronics, aerospace, and metal and plastic manufacturing, demonstrating their value in modern production processes.

Frequently Asked Questions (FAQs)

1. What is a Cartesian robot?

 A Cartesian robot is a type of industrial robot that moves along three linear axes (X, Y, and Z) to position its end effector. Cartesian robots are known for their simple structure, high payload capacity, and precise positioning capabilities. They are commonly used in applications such as pick and place, assembly, and dispensing.

2. How do collaborative robots (cobots) differ from traditional industrial robots?

Collaborative robots, or cobots, are designed to work alongside humans in a shared workspace safely. They are equipped with advanced safety features, such as force and torque sensing, as well as vision systems for object detection. Cobots are typically more lightweight and flexible compared to traditional industrial robots, making them suitable for a variety of applications and easy to redeploy.

3.What are some common applications of robots in automotive manufacturing?

In automotive manufacturing, robots are used for various tasks such as welding, painting, assembly, and material handling. They help improve production speed, maintain consistent quality, and reduce labor costs, making them invaluable assets in automotive production lines.

4. How are robots utilized in electronics manufacturing?

 In electronics manufacturing, robots are employed for tasks such as component placement, soldering, and inspection. They offer high precision and repeatability, which are essential for assembling and inspecting small, intricate electronic components.

5. What are some benefits of using robots in metal and plastic manufacturing?

 Robots provide numerous benefits in metal and plastic manufacturing, including improved efficiency, precision, and quality. They can perform tasks such as welding, cutting, machining, and molding with a high degree of accuracy and repeatability, ensuring consistent production of high-quality parts.
