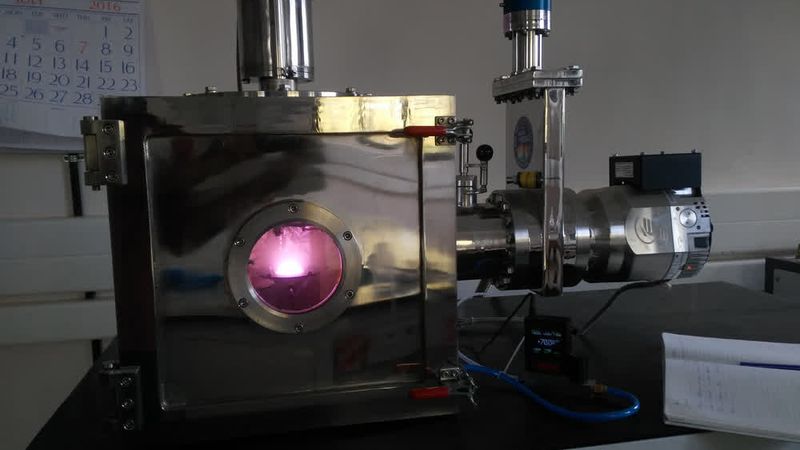

Physical Vapor Deposition (PVD) Coating

The development of PVD coating reflects the success of modern engineering, revolutionizing the way surfaces are enhanced for performance and durability. This comprehensive guide will deeply dive into the principles, advancements, and their profound impact on the various engineering fields.

author avatar

24 Jun, 2024. 17 min read

Introduction

Physical Vapor Deposition (PVD) coating is a thin film deposition technique used in engineering to enhance surface properties of materials. It entails applying a thin layer of material onto a base material, called a substrate, within a meticulously controlled vacuum environment.

Physical Vapor Deposition (PVD) is utilized in various industries such as automotive, aerospace, electronics, and medical fields. It is essential to understand what makes PVD an instrumental technology in the above various industries, as we explore in the following article.

Understanding the Fundamentals of Physical Vapor Deposition (PVD)

PVD coating involves depositing a thin film of material onto a substrate using one of three different processes that rely on atomic interactions and energy transfer within a vacuum, creating durable coatings with enhanced mechanical and chemical properties.

The Sputtering technique used in Physical Vapor Deposition applications entails bombarding a target material with ions to release atoms that deposit onto the substrate. This method results in a highly uniform coating, even on complex shapes, and precise control over film composition. However, sputtering can be slower than other methods and may require higher temperatures [1].

Evaporation is another method of application. This technique uses heat or electron beams to vaporize the coating material for condensation onto the receiving material. Evaporation results in high-purity coatings and strong adhesion, but unlike sputtering, achieving a uniform application on complex or intricate surfaces is challenging [2].

Ion plating combines ion bombardment with evaporation for improved adhesion, providing excellent adhesion, coating density, and wear resistance. Limitations to this method include the complexity of the equipment requirements and the higher costs involved [3].

Whether sputtering, evaporation, or ion plating methods are used, PVD techniques have several advantages over conventional coating methods [4]. Here are just a few:

  • Superior adhesion
  • Resistance to wear and corrosion
  • Enhanced hardness
  • Precise control over coating thickness ensures uniform layers
  • Compatibility with a wide range of materials and substrates
  • Environmentally friendly process with minimal waste production

The choice of materials and substrates significantly influences coating properties, and various combinations are tailored for specific applications. Common coating materials include titanium nitride (TiN), chromium nitride (CrN), and diamond-like carbon (DLC). Each has its advantages and disadvantages.

  • TiN offers exceptional hardness and wear resistance, which is ideal for cutting tools.
  • CrN provides the best corrosion protection, making it the best option for automotive components.
  • DLC coatings combine low friction and high hardness, which is beneficial for medical implants [5].

Substrates, including metals such as steel and aluminum, ceramics, and plastics, can offer various options to meet diverse engineering needs. The surface characteristics of the substrates used will also impact coating adhesion, hardness, and chemical resistance, affecting the desired performance and longevity of the final result.

Recommended Readings: What is e-beam evaporation and how does it compare to other PVD methods?

How Physical Vapor Deposition (PVD) Works?

Here's a step-by-step look at the coating process:

  1. Preparation: The substrate undergoes thorough cleaning to remove any contaminants and to ensure a uniform surface. This is crucial in obtaining a strong adhesion. The cleaned substrate is then placed in a vacuum chamber, where the coating process will occur.
  2. Evacuation: The chamber is evacuated to create a low-pressure environment. This eliminates any gas molecules that could interfere with the coating process. Depending on the substrate material and desired coating properties, the substrate may be heated to improve adhesion and promote film growth.
  3. Deposition: This step involves depositing the coating onto the target material using sputtering, evaporation, or ion plating. As atoms or molecules from the source material condense onto the substrate, they form a thin film layer with controlled thickness.
  4. Cooling: After deposition, the coated substrate can cool down gradually to room temperature before being removed from the vacuum chamber.

Several parameters influence the coating quality and performance of the final materials:

  1. The deposition rate will determine the thickness of the coating and can affect its overall uniformity [6].
  2. The temperature of the substrate influences coating adhesion and the formation of crystal structures which in turn impacts the item’s mechanical properties such as hardness and wear resistance. Generally, higher substrate temperatures and optimized deposition rates promote bonding between the two surfaces, enhancing the adhesion.
  3. The pressure of the vacuum chamber is also a factor. Varying the pressure will vary the density of the vapor cloud and affect the rate of material transport to the substrate. This affects the coating uniformity and microstructure in the final result.

Advancements in Physical Vapor Deposition Coating Technology

Recent technological advancements have led to significant improvements in both coating performance and durability. Two of the most notable innovations include High-Power Impulse Magnetron Sputtering (HiPIMS) and Cathodic Arc Deposition.

HiPIMS

HiPIMS enhances conventional magnetron sputtering by delivering short, high-power pulses of energy to the target material. This process generates a highly ionized plasma, leading to denser and more adherent coatings with improved mechanical properties. For example, a study showed that HiPIMS-deposited TiN coatings exhibited a significant increase in hardness compared to conventional sputtering methods. Using this technique led to significantly enhancing wear resistance in cutting tools [10][14].

Cathodic Arc Deposition

Cathodic arc deposition employs an electric arc discharge to turn the coating material into vapor, creating a cloud or stream of ionized gas that settles onto the substrate where it condenses and forms a thin film coating. Recent advancements in this technique have focused on controlling the arc parameters to tailor coating properties. For instance, research by Zhang et al. (2022) manipulated the arc current and duration of pulses to deposit TiAlN coatings with increased hardness and adhesion. This technique led to an extended tool life in machine engineering applications [13].

These innovative developments are based on the scientific principles of plasma physics and the kinetics of thin film deposition. HiPIMS improves coating quality by boosting ionization levels and ion energy, leading to denser coatings and improving how well the coatings adhere to the receiving surface. Similarly, cathodic arc deposition adjusts arc parameters to manage plasma properties and the way films grow. This leads to custom coatings with enhanced performance.

Looking ahead, these improvements open the door to even more innovations in coating technology. This could include new ways of depositing coatings, better materials, and coatings with multifunctional properties. By leveraging knowledge about plasma science and materials engineering, future advancements are likely to tackle new challenges in fields like automotive, aerospace, and electronics and lead to continued progress in coating performance, durability, and functionality.

Suggested Readings: Thin Film Deposition: Everything You Need to Know

Nanostructured Coatings: Pushing the Boundaries

Nanostructured coatings are thin films deposited onto surfaces using techniques such as physical vapor deposition. These coatings possess a tailored nanoscale structure, which gives them a handful of unique properties, including enhanced hardness, which is the result of precise control of deposition parameters and post-deposition treatments. This makes these coatings ideal for applications where wear resistance is of utmost importance. Nanostructured coatings also have improved toughness, reducing the risk of fracture or the separation of layers. A third benefit of nano-structuring is enhanced thermal stability. Nano-structuring helps to disperse heat-related strains better, leading to coatings that can endure higher temperatures without breaking down [7].

Challenges and Opportunities

Developing and applying nanostructured coatings present both challenges and opportunities. One of the difficulties is the precise control over deposition parameters needed to achieve the desired result. In nanostructuring, the temperature, pressure, and substrate preparation must be meticulously controlled, which can pose a challenge. Optimizing the deposition conditions can also prove difficult. Using this technique means balancing the film composition, deposition rate, and substrate temperature to maximize performance.

PropertiesConventional
Nanostructured Coatings
Hardness
2000-4000 HV
3000-6000 HV
Wear Resistance
Moderate to High
High
Thermal Stability
Limited
Enhanced

This table provides a comparative overview of critical properties between conventional and nanostructured coatings. Nanostructured coatings typically exhibit higher hardness, improved wear resistance, and enhanced thermal stability than their traditional counterparts. These coatings offer a great opportunity to improve surface qualities for various uses. However, making them and applying them well requires careful thought about how they're made and controlling their formation.

Applications in Engineering

Aerospace

Turbo-jet engine of the plane. PVD CoatingTurbo-jet engine of the plane

In the aerospace industry, PVD plays a crucial role in enhancing the performance and durability of various components used in the construction of aircraft and spacecraft.

For instance, coatings like titanium nitride (TiN), titanium aluminum nitride (TiAlN), and chromium nitride (CrN) are applied to critical parts such as turbine blades and engine components. These coatings are usually between 1 to 5 micrometers thick.

The individual components used in aerospace engineering are exposed to numerous harsh environmental conditions, so the superior quality of PVD coatings provide significant benefits in aerospace applications, which include:

  • Enhanced Wear Resistance: By forming a protective layer over components, PVD coatings shield them from any abrasion or erosion encountered during high-speed flights. This helps to ensure prolonged wear resistance.
  • Corrosive resistance: These coatings act as a protectant against corrosion, preventing degradation and improving resistance.
  • Thermal resistance: For components that are used at high temperatures, PVD finshes enhance the ability to withstand thermal stressors.
  • Cost savings: Because of their durability, PVD-coated components require less frequent replacement and maintenance, which can be a huge long-term cost-saver for companies in the aerospace industry.

One specific example of this is the use of titanium aluminum nitride coatings on airplane turbine blades. This increases their thermal and mechanical properties so they can withstand high temperatures and the environmental stresses encountered during flight.

Untreated turbine blades have an average service life of 2000 flight hours, which doubles to an average of 4000 flight hours when using Physical Vapor Deposition coatings. This can specifically be attributed to the increased hardness and thermal stability of the coatings, which reduces oxidation and corrosion at high temperatures.

Automotive

Similarly, in the automotive industry, a PVD finish is widely used to enhance the performance and longevity of engine and transmission components. Titanium nitride (TiN), chromium nitride (CrN), and diamond-like carbon (DLC) are often applied to piston rings, valve train parts, and transmission gears with a thickness of 0.5 to 3 micrometers. Using this type of PVD finish has several benefits:

  • Increased engine efficiency: The reduced friction can lead to improved engine and fuel efficiency as well as lower emissions.
  • Enhanced durability: Strengthening individual components translates into an extended lifespan and reduced maintenance requirements.
  • Improved aesthetics: Automotive brands appreciate the aesthetics of materials with a PVD finish, which provides a visual appeal and enhances the brand’s distinctiveness.

For example, using diamond-like carbon (DLC) coatings on piston rings reduces the friction between the piston rings and cylinder walls. Without a DLC coating, components would have a friction coefficient 0.12, but using a DLC coating reduces the friction coefficient to 0.05. This translates into an increased fuel efficiency of up to 5%, which is a significant amount [11].

Electronic

One notable example of PVD use in electronic engineering is in producing semiconductor devices. PVD is often used in the fabrication process to deposit thin layers of metals (such as aluminium, titanium, titanium nitride, copper, or tungsten), dielectrics, and other materials onto semiconductor substrates to create various components and structures. The advantage of using PVD technology in electronic engineering is that it allows for more precise deposition of thin films compared to other options.

Metal interconnects that connect different components within integrated circuits (ICs) use PVD technology, as do gate electrodes and Thin-Film Transistors (TFTs), which are essential components in liquid crystal displays (LCDs), organic light-emitting diodes (OLEDs), and other flat-panel display technologies. PVD techniques also deposit metal layers like nickel or gold to create ohmic contacts in semiconductor devices.

Suggested Readings: How are Semiconductors Made? A Comprehensive Guide to Semiconductor Manufacturing

Suggested Readings: Ultra-Precise Deposition for the Fabrication of Next-Generation MicroLED and QD-LED Displays

Biomedical

Hip replacement implant installed in the pelvis bone. PVD CoatingHip replacement bone installed in the pelvic bone

The advantages of physical vapor deposition in biomedical applications are also significant.

  • Improved Biocompatibility: These coatings facilitate better integration of implants with the human body, reducing the risk of rejection and promoting faster healing.
  • Reduced Wear: Coated medical devices experience less wear when exposed to bodily fluids, ensuring long-term functionality and reliability.
  • Enhanced Infection Control: Certain PVD finishes exhibit antibacterial properties, minimizing the risk of post-surgical infections and complications.
  • Long-lasting Performance: PVD-finished implants offer durable performance, enhancing patient outcomes and reducing the need for frequent replacements.

Titanium nitride (TiN) coatings have emerged as a groundbreaking solution in the realm of orthopedic implants, particularly for hip and knee prostheses, and have led to remarkable improvements in patient outcomes. TiN coatings contribute significantly to patient satisfaction, reduced healthcare costs, and improved clinical outcomes in orthopedic practice.

The use of these coatings promotes osseointegration, the process by which bone tissue grows and bonds with the implant surface. This enhanced osseointegration facilitates long-term stability and fixation of the implant within the bone, reducing the risk of loosening or implant migration. Whereas untreated implants usually have an average lifespan of 10 to 15 years, studies show this extends to 20 to 25 years when using PVD-finished implants. Patients implanted with TiN-coated hip and knee prostheses experience reduced risk of implant failure, according to clinical data and research studies [12].

Case Study: Application in Aerospace Turbine Blades

In aerospace engineering, turbine blades are subjected to extreme conditions, each of which presents unique challenges. The high temperatures that Turbine blades operate in often exceed 1000°C due to combustion processes, and this can lead to thermal degradation and oxidation. Dealing with corrosion is also a challenge for these components, as exposure to hot gases containing sulfur, carbon, and other elements can lead to oxidation and corrosion on the blade surfaces. In addition, turbine blades need to resist the mechanical stress of high rotational speeds and aerodynamic forces, which leads to general overall wear.

How Does Physical Vapor Deposition Coating Address These Challenges?

PVD coatings significantly bolster the efficiency and longevity of turbine blades. Here's how.

  • Thermal Barrier Coatings (TBCs): The coatings are applied as TBCs on turbine blades. The coatings then serve to function as thermal insulators, reducing the heat transfer to the substrate and providing protection against thermal stressors. Yttria-stabilized zirconia (YSZ) is a common coating used as a TBC in aerospace applications.
  • Oxidation and Corrosion Resistance: Physical Vapor Deposition coatings offer excellent oxidation and corrosion resistance, protecting turbine blades from degradation in harsh environments. In particular, aluminum-chromium (AlCrN) coatings are commonly used since they combine the exceptional corrosion resistance of chromium with the beneficial properties of aluminum. Chromium nitride (CrN) is also commonly used as coatings for this purpose because its chemical composition and microstructure helps to form a dense and adherent layer on the surface of turbine blades, making it particularly useful in the field of aerospace engineering.
  • Improved Surface Hardness: PVD coatings increase the surface hardness of turbine blades. This enhances their resistance to mechanical wear and extending their service life.

One striking example of how PVD finishes are changing the aerospace industry by optimizing the performance of turbine blades is General Electric’s use of Thermal Barrier Coatings (TBCs) in the GE9X engine, which is used to power Boeing’s 777X wide-body jets. Researchers estimate that pairing the progress of these new extremely heat-resistant materials with suitable coatings and manufacturing methods could boost gas turbine efficiency by as much as 7%, which would mark a significant reduction in wasted energy and carbon emissions. Expanding this across all existing infrastructure nationwide, could result in a net value of $100 billion and cut CO2 emissions by 23 million metric tons, equivalent to emissions from 5 million cars. These estimates show the profound impact PVD technology can have. Let’s explore further the specifics of how this works in the case of the GE9x engine.

The (TBCs) applied to GE9X turbine blades are engineered to endure temperatures of up to 1400°C. This remarkable resistance to high temperatures helps with thermal fatigue, a critical factor affecting the lifespan and performance of turbine blades. In fact, studies have shown that the use of TBCs can extend the operational life of turbine blades by as much as 25%. This translates into significant improvements in engine reliability and reduced maintenance costs.

Physical Vapor Deposition coatings also safeguard GE9X turbine blades against oxidation and corrosive hot gasses such as sulfur and carbon. Performance tests show this can lead to a resistance improvement of up to 50% compared to untreated components. By ensuring prolonged blade performance by protecting against corrosion, these coatings effectively mitigate the risk of premature component failure.

The third key advantage of PVD coatings is their ability to enhance the mechanical properties of turbine blades, particularly surface hardness. By increasing surface hardness, PVD coatings effectively slow the rate of wear, thereby enhancing turbine blade durability and extending their operational life. Studies indicate that turbine blades treated with PVD coatings experience up to 30% less wear compared to untreated blades, once again demonstrating the significant impact of PVD coatings on improving component performance, longevity, and reliability.

The case of General Electric’s GE9X engine serves as a compelling testament to the ability of PVD-coated components to increase the capabilities and performance standards of turbine blades in modern aircraft engines [8][15].

Technical Challenges and Limitations of PVD Finishing Technology

PVD technology, while highly beneficial, is not without its challenges and limitations. Some of the key technical challenges include:

Coating Adhesion: Ensuring a strong bond between the substrate and the PVD finish is essential to maintain coating strength and durability. If the adhesion is weak, it can cause the coating to peel off prematurely, failing [9].

Residual stress: Residual stress can occur as a result of variations in thermal expansion coefficients between the coating and substrate materials during the deposition process. This stress can cause the coating to warp, crack, and eventually lose its mechanical strength.

Defects: Coatings may experience various defects such as pinholes, cracks, and porosity, which can compromise their performance and reliability.

Scientific Principles and Best Practices for Overcoming Challenges

Addressing these challenges requires a thorough understanding of the scientific principles underlying the PVD finishing process and applying effective strategies to ensure an optimum outcome.

Adjusting process parameters, such as substrate temperature and deposition rate, is vital to achieve the desired coating properties and reduce defects. Controlling these parameters, can minimize residual stress and improve coating adhesion. Additionally, preparing the surface of the receiving material properly is crucial. Techniques like surface cleaning and roughening along with pre-treatment using adhesion-promoting layers will help improve bonding between the coating and the substrate. Finally, it is crucial to implement the proper stress management techniques. These include substrate biasing and post-deposition annealing which can alleviate residual stress in PVD coatings, making them more mechanically stable and reliable over the long term.

Recommendations for Sustainable and Environmentally Friendly Practices

To ensure sustainable and environmentally friendly PVD coating practices, several recommendations can be implemented.

  1. Use of Non-Toxic Materials: Opt for environmentally friendly coating materials that are free from hazardous substances and comply with regulatory standards. Water-based coatings, for instance, offer a solvent-free option, reducing volatile organic compound (VOC) emissions and minimizing environmental pollution. Similarly, non-toxic metal alloys can provide effective coating solutions without posing risks to human health or the ecosystem. By prioritizing the use of non-toxic materials, PVD coating processes can contribute to sustainable manufacturing practices and reduce their environmental footprint.
  2. Energy-Efficient Processes: Use energy-efficient deposition processes, such as high-vacuum PVD techniques, to minimize energy consumption and reduce carbon emissions. Use modern machinery with energy-saving features and adjust the settings properly to maximize the efficiency of the processes.
  3. Use Reduction and Recycling: Develop a plan to reduce wasting materials, recycle when possible, and to limit the production of harmful materials. Promote the recycling of coating materials and process by-products. Look for ways to reclaim and reuse leftover coating materials in order to minimize environmental impact. For instance, consider reclaiming unused coating powders or residues from the deposition chamber for subsequent reuse or recycling. Develop protocols for safely handling and processing by-products to ensure compliance with environmental regulations.
  4. Resource Optimization and Waste Reduction: Optimize resource utilization to minimize waste generation and maximize efficiency. Implement measures to control material consumption, such as precise material metering and application techniques, and ensure all personnel are trained on best practices for material handling and equipment operation to reduce the likelihood of spills, leaks, or other forms of waste. Be sure to regularly review waste generation metrics and performance indicators to track progress and identify areas for further optimization.

By addressing technical challenges, implementing best practices, and embracing sustainable principles, PVD finishing technology can continue to grow as a versatile and environmentally friendly surface engineering solution for various industrial needs.

Conclusion

In summary, this comprehensive guide on Physical Vapor Deposition (PVD) techniques underscores the importance of understanding the scientific principles underlying this technology. By exploring the fundamentals of PVD applications, including their various processes and advantages over conventional methods, engineers can gain insights into how to optimize coating quality and performance. Key technical points to consider include the significance of parameters like deposition rate, substrate temperature, and chamber pressure and the influence of these parameters on coating properties such as adhesion, hardness, and wear resistance.

Significant advancements in PVD technology, such as High-Power Impulse Magnetron Sputtering (HiPIMS) and Cathodic Arc Deposition, have led to remarkable improvements in coating performance and durability and corresponding benefits in their application in the fields of aerospace, automotive, and medical engineering. For example, the case of General Electric’s PVD-coated turbine blades in aerospace applications shows how PVD coatings extend operational life and reduce maintenance costs, and in the automotive industry, a key benefit is increased engine efficiency.

Looking ahead, the future of PVD in engineering appears promising, as ongoing research and innovations will continue to drive further developments. Researchers will undoubtedly leverage their increasing knowledge in the fields of plasma physics and materials engineering to address new challenges and find new applications for this remarkable technology.

FAQs

What is PVD coating and how does it work?

PVD stands for Physical Vapor Deposition, a process whereby a thin film is deposited onto a receiving surface (called a substrate) in a vacuum environment. During the application of a PVD finish, the material is vaporized from a solid source and then condensed onto the substrate to form a thin, uniform coating layer.

How can I optimize the PVD application process parameters?

Optimize parameters such as substrate temperature, deposition rate, and gas composition to achieve the desired coating properties. Adjusting these parameters can minimize defects, control residual stress, and enhance coating adhesion.

What are some common defects in PVD finishes and coatings and how can they be addressed?

Common defects of PVD finishes and coatings include pinholes, cracks, and porosity. Proper preparation of the substrate, optimization of the process parameters, and stress management techniques such as post-deposition annealing can help mitigate these defects and improve the quality of the finished product.

How can I troubleshoot adhesion issues?

Adhesion issues can arise due to improper substrate preparation or inadequate control of process parameters. First, be sure to perform a thorough cleaning and surface roughening of the substrate before applying the coating material. In addition, optimize the deposition parameters to promote a strong adhesion between the coating and the substrate.

What are the considerations for selecting coating materials?

The type of material the object is made of, what it'll be used for, and the environment it'll be in affect which type of coating material to choose. Consider coating properties such as how well the material resists corrosion and how stable it is in extreme heat to make sure the material is compatible with what's needed for the job.

How can I ensure environmental sustainability?

To ensure environmental sustainability in PVD finishing and coating practices, implement waste reduction strategies to minimize hazardous waste generation. Explore opportunities for recycling and reusing coating materials and process by-products. Additionally, consider using energy-efficient equipment and non-toxic coating materials to minimize environmental impact and promote sustainability in your PVD finishing and coating operations.
