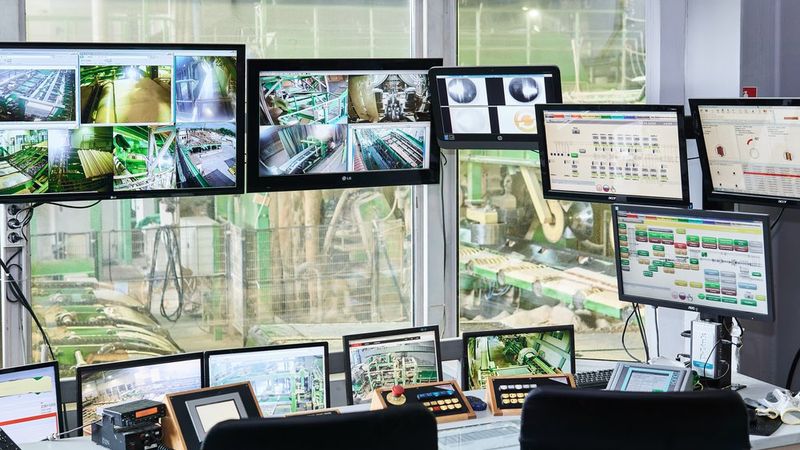

Introduction to ICS SCADA

Industrial Control Systems (ICS) and Supervisory Control and Data Acquisition (SCADA) are integral components of modern industrial automation. ICS SCADA systems are crucial in managing and controlling industrial processes, ensuring efficiency, safety, and reliability.

ICS SCADA systems are the backbone of modern industrial processes. They provide the necessary control and monitoring capabilities that industries need to maintain their operations, ensure safety, and improve productivity. As operational technology continues to advance, these systems will continue to evolve, offering even more capabilities and benefits for industrial automation. Now, let’s learn about each of these systems in great detail, including their applications in the automation domain and know about cybersecurity concerns governing ICS SCADA systems from safe operations.

Understanding Industrial Control Systems (ICS)

The primary function of an ICS is to manage, control, and monitor industrial processes. This includes everything from controlling the temperature in a manufacturing plant to managing the flow of water through a dam. By automating these processes, ICS help to increase efficiency, reduce errors, and improve the overall safety of industrial operations. Let’s dive deeper.

Definition and Function of ICS

Definition

Industrial Control Systems (ICS) are a type of control system that is used to monitor and control industrial processes. They are typically used in industries such as manufacturing, energy, water treatment, and transportation. [1]

Functions

The main function of an ICS is to manage, control, and monitor industrial processes. This is achieved by collecting data from sensors, processing this data to make decisions, and then sending commands to actuators to carry out these decisions. For example, in a manufacturing plant, an ICS might monitor the temperature of a furnace. If the temperature gets too high, the ICS networks would send a command to a cooling system to lower the temperature.

Types

There are several different types of ICS, each designed to support specific types of industrial processes. These include Distributed Control Systems (DCS), which are used to control complex, geographically distributed industrial processes; Programmable Logic Controllers (PLC), which are used to control manufacturing processes; and Supervisory Control and Data Acquisition (SCADA) systems, which are used to control infrastructure processes such as water treatment and power distribution.

Components of ICS

Industrial Control Systems (ICS) are composed of several key components, each playing a crucial role in the overall functioning of the system. These components work together to monitor, control, and manage industrial processes, ensuring efficiency, safety, and reliability.

Controller

One of the primary components of an ICS is the controller. The controller is essentially the brain of the ICS. It processes data from sensors, makes decisions based on this data, and sends commands to actuators to carry out these decisions. Controllers can come in various forms, including Programmable Logic Controllers (PLCs), Distributed Control Systems (DCS), and Remote Terminal Units (RTUs). For instance, in a manufacturing plant, a PLC might be used to control the assembly line, ensuring that each step of the process is carried out correctly and efficiently.

Program Logic Controllers Program Logic Controllers

Sensors

Sensors are another key component of an ICS. They monitor conditions within the system, such as temperature, pressure, or flow rate, and send this data to the controller. Sensors can be as simple as a temperature sensor in a furnace or as complex as a multisensor system monitoring multiple parameters in a nuclear power plant. For example, in a water treatment plant, sensors might monitor the pH level of the water, the level of certain chemicals, and the water flow rate.

Actuators

Actuators are the components that carry out the commands from the controller. They can take many forms, including motors, pumps, valves, and relays. For example, if a sensor in a manufacturing plant detects that a machine is overheating, the controller might send a command to an actuator to turn on a cooling system.

Networks

Networks are the communication backbone of an ICS. They enable communication between the controllers, sensors, and actuators. Networks can be wired or wireless and can use various protocols, including Ethernet, Modbus, and Profibus. The choice of network and protocol can depend on several factors, including the size of the system, the distance between components, and the speed of communication required.

Human-Machine Interfaces (HMIs)

Finally, Human-Machine Interfaces (HMIs) allow human operators to interact with the ICS. They provide a visual representation of the system, display data from the sensors, and allow operators to control the system. For example, an HMI in a power plant might display the status of the generators, the electricity output, and any alarms or warnings. The operator could use the HMI to start or stop generators, adjust output levels, or respond to alarms.

Recommended Reading: HMI Technologies: The Ultimate Guide to Human-Machine Interface Innovations

ICS Architecture

The architecture [2] of an Industrial Control System (ICS) is a layered structure that organizes the various components of the system and defines their interactions. This architecture is crucial for the efficient operation of the ICS, as it ensures that data flows smoothly from one component to another and that the system can respond quickly and accurately to changes in the industrial process it is controlling.

Process Control Layer

At the top of the ICS architecture is the process control layer. This layer includes the controllers and Human-Machine Interfaces (HMIs). The controllers are the brains of the operation, processing data from sensors, making decisions based on this data, and sending commands to actuators to carry out these decisions. The HMIs allow human operators to interact with the system, providing a visual representation of the system, displaying data from the sensors, and allowing operators to control the system.

Field Control Layer

Below the process control layer is the field control layer. This layer includes the sensors and actuators. The sensors monitor conditions within the system, such as temperature or pressure, and send this data to the controller. The actuators carry out the commands from the controller, such as opening a valve or starting a motor.

Process Layer

At the bottom of the ICS architecture is the process layer. This is the actual industrial process that the ICS is controlling. It could be anything from a manufacturing process in a factory to the flow of water through a dam.

The layers in the ICS architecture are not isolated from each other. They interact closely to ensure the smooth operation of the system. For example, the process control layer relies on data from the field control layer to make decisions. Similarly, the field control layer relies on commands from the process control layer to carry out actions. This interaction between layers is facilitated by the network, which enables communication between the various components of the system.

Supervisory Control and Data Acquisition (SCADA)

SCADA systems are known for their ability to monitor and control large-scale processes over long distances. They provide a high level of automation, reducing the need for human intervention in the process. This not only increases efficiency but also improves safety, as operators can monitor and control the process from a safe location, away from potentially hazardous field conditions. Let’s dive deeper.

Definition and Function of SCADA

Definition

Supervisory Control and Data Acquisition (SCADA) is a control system architecture that uses computers, networked data communications, and graphical user interfaces for high-level process supervisory management [3]. It also uses other peripheral devices like programmable logic controllers and discrete PID controllers to interface with process plant or machinery.

Function

The operator interfaces which enable monitoring and the issuing of process commands, like controller set point changes, are handled through the SCADA supervisory computer system. However, the real-time control logic or controller calculations are performed by networked modules which connect to the field sensors and actuators.

The SCADA concept was developed as a universal means of remote access to a variety of local control modules, which could be from different manufacturers allowing access through standard automation protocols. In practice, large SCADA systems have grown to become very similar to distributed control systems in function, but using multiple means of interfacing with the plant. They can control large-scale processes that can include multiple sites, and work over large distances as well as small distance.

Recommended Reading: What is SCADA: Understanding the Backbone of Industrial Automation

Components of SCADA

A Supervisory Control and Data Acquisition (SCADA) system is composed of several key components that work together to monitor and control industrial processes. These components include a Human-Machine Interface (HMI), a supervisory system, Remote Terminal Units (RTUs), Programmable Logic Controllers (PLCs), and a communication infrastructure.

Human-Machine Interface (HMI)

The Human-Machine Interface (HMI) is a crucial component of a SCADA system. It provides a visual representation of the system, allowing operators to monitor and control the process. The HMI displays data from the sensors, presents alarms and operational messages, and allows operators to input commands. For example, in a water treatment plant, the HMI might display the water flow rate, the level of certain chemicals, and any alarms or warnings. The operator could use the HMI to adjust the flow rate or respond to alarms. [4]

An engineer working in industrial setting, using HMI of SCADA system to control production process.An engineer working in industrial setting, using HMI of SCADA system to control production process

Supervisory System

The supervisory system is the central component of a SCADA system. It gathers data from the RTUs and PLCs, processes this data, and sends control commands to the field. The supervisory system is typically a high-performance server with specialized software that provides advanced data processing and control capabilities. For instance, in an oil pipeline, the supervisory system might process data from pressure sensors along the pipeline, detect any abnormal conditions, and send commands to adjust the operation of the pumps.

Remote Terminal Units (RTUs)

Remote Terminal Units (RTUs) and Programmable Logic Controllers (PLCs) are the field devices in a SCADA system. They interface with the process equipment, such as sensors and actuators, to monitor and control the process. RTUs and PLCs are rugged devices designed to operate in harsh industrial environments. They can handle a wide range of input and output signals and provide local control capabilities. For example, in a power grid, RTUs might be installed at substations to monitor the voltage and current and control the circuit breakers.

Communication Infrastructure

The communication infrastructure is the backbone of a SCADA system. It enables communication between the supervisory system, the RTUs and PLCs, and the HMI. The communication infrastructure can include wired networks, wireless networks, and various communication protocols. The choice of communication infrastructure depends on several factors, including the size and geographical dispersion of the system, the amount of data to be transmitted, and the required speed and reliability of communication. For instance, a large power grid might use a combination of fiber optic networks for high-speed data transmission and wireless networks for remote monitoring of substations.

SCADA Architecture

The architecture of SCADA system is a hierarchical structure that organizes the various components of the system and defines their interactions as follows.

Supervisory Level

At the top of the SCADA architecture is the supervisory level. This level includes the supervisory system and the Human-Machine Interface (HMI). The supervisory system is the central component of the SCADA system, gathering data from the field devices, processing this data, and sending control commands to the field. The HMI provides a visual representation of the system, allowing operators to monitor and control the process.

Field Level

Below the supervisory level is the field level. This level includes the Remote Terminal Units (RTUs) and Programmable Logic Controllers (PLCs). The RTUs and PLCs interface with the process equipment, such as sensors and actuators, to monitor and control the process. They provide local control capabilities and can handle a wide range of input and output signals.

Process Level

At the bottom of the SCADA architecture is the process level. This is the actual industrial process that the SCADA system is controlling. It could be anything from a water treatment process to an oil pipeline.

The layers in the SCADA architecture are not isolated from each other. They interact closely to ensure the smooth operation of the system. For example, the supervisory level relies on data from the field level to make decisions. Similarly, the field level relies on commands from the supervisory level to carry out actions. This interaction between layers is facilitated by the communication infrastructure, which enables communication between the various components of the system.

Recommended Reading: PLC and SCADA: Understanding the Differences in Industrial Automation Systems

ICS SCADA in Industrial Automation

Industrial Control Systems (ICS) and Supervisory Control and Data Acquisition (SCADA) systems play a pivotal role in industrial automation. They are used to control and monitor infrastructure and industrial processes, particularly in industries where processes are geographically dispersed. These systems are integral to the operation of various sectors, including water and wastewater treatment, oil and gas pipelines, electrical power grids, and manufacturing.

ICS and SCADA systems provide a high level of automation, reducing the need for human intervention in the process. This not only increases efficiency but also improves safety, as operators can monitor and control the process from a safe location, away from potentially hazardous field conditions. For instance, in an oil refinery, a SCADA system can monitor the pressure and temperature in the various parts of the refinery, detect any abnormal conditions, and automatically adjust the operation of the pumps and valves to prevent accidents.

These systems also provide a wealth of data that can be used for process optimization, predictive maintenance, and decision-making. For example, by analyzing the data from a SCADA system, a water treatment plant can optimize its chemical usage, predict when equipment might fail and need maintenance, and make informed decisions about when to increase or decrease production.

Role of ICS SCADA in Industrial Automation

The role of ICS and SCADA systems in industrial automation is multifaceted [4]. They provide control, monitoring, data acquisition, and automation capabilities that are essential for the efficient and safe operation of industrial processes. Let’s understand these functions better.

Control

Control is a key function of ICS and SCADA systems. They control the operation of field devices, such as pumps, valves, and motors, based on the data they receive from sensors and the control logic programmed into them. For instance, in a manufacturing plant, a SCADA system might control the speed of a conveyor belt based on the number of products on the belt and the production target for the day.

Monitoring

Monitoring is another important function of these systems. They continuously monitor the conditions in the process, such as temperature, pressure, flow rate, and chemical concentration, and display this information on the Human-Machine Interface (HMI). This allows operators to keep a close eye on the process and quickly detect any abnormal conditions. For example, in a power grid, a SCADA system might monitor the voltage and current in the various parts of the grid and alert operators if they deviate from the normal range.

HMI SCADA SystemEngineers monitoring the power plant of Petropavlovsk, Kazakhstan grid through sensors through HMI on SCADA system

Data acquisition

Data acquisition is a crucial function of ICS and SCADA systems. They collect data from a wide range of sensors and store this data for analysis and decision-making. This data can provide valuable insights into the operation of the process, helping to identify trends, detect anomalies, and optimize performance. For instance, by analyzing the data from a SCADA system, an oil pipeline operator can identify sections of the pipeline that are prone to leaks and take preventive action.

Automation

Automation is perhaps the most significant role of ICS and SCADA systems in industrial automation. By automating routine tasks, these systems can increase efficiency, reduce errors, and free up human operators to focus on more complex tasks. For example, in a water treatment plant, a SCADA system might automatically adjust the dosage of chemicals based on the water quality, eliminating the need for manual adjustment and ensuring consistent water quality.

Recommended Reading: The Four Automation Types You Need to Know

Benefits of ICS SCADA in Industrial Automation

Industrial Control Systems (ICS) and Supervisory Control and Data Acquisition (SCADA) systems bring numerous benefits to industrial automation. These benefits span across various aspects of industrial operations, including efficiency, safety, data analysis, and decision-making.

Efficiency

Efficiency is one of the primary benefits of ICS and SCADA systems in industrial automation. By automating routine tasks, these systems can significantly increase the speed and accuracy of industrial processes. For instance, in a manufacturing plant, a SCADA system might control the operation of a production line, ensuring that each step in the process is carried out at the right time and in the right order. This can greatly increase the throughput of the production line and reduce the amount of waste.

Safety

Safety is another major benefit of these systems. By monitoring the conditions in the process and controlling the operation of field devices, ICS and SCADA systems can help to prevent accidents and ensure the safety of workers. For example, in a chemical plant, a SCADA system might monitor the pressure in a reactor and automatically shut down the reactor if the pressure exceeds a safe limit.

Data analysis

Data analysis is a crucial benefit of ICS and SCADA systems. These systems collect a wealth of data from the process, which can be analyzed to gain insights into the operation of the process and identify opportunities for improvement. For instance, by analyzing the data from a SCADA system, a water utility can identify patterns in water usage and optimize its water distribution strategy.

Decision-making

Decision-making is greatly enhanced by the use of ICS and SCADA systems in industrial automation. The data collected by these systems can provide a solid basis for decision-making, helping to eliminate guesswork and intuition. For example, in an oil refinery, a SCADA system might collect data on the quality of the crude oil and the performance of the refining process, enabling the refinery manager to make informed decisions about the operation of the refinery.

Security Concerns in ICS SCADA

Industrial Control Systems (ICS) and Supervisory Control and Data Acquisition (SCADA) systems, while integral to industrial automation, are not without their security concerns. These systems control critical infrastructure and industrial processes, making them attractive targets for cybercriminals and state-sponsored hackers [5]. The interconnected nature of these systems, combined with their increasing connectivity to the internet, has amplified their vulnerability to cyber threats.

Unauthorized Access

One of the primary security concerns in ICS and SCADA systems is their susceptibility to unauthorized access. Many of these systems were designed at a time when security was not a primary concern, and as a result, they lack the robust information security features found in modern information technology systems. This makes them vulnerable to attacks that can lead to unauthorized access, allowing threat actors to manipulate the system and disrupt the industrial process.

Data Breaches

Another major IT security concern is the potential for data breaches. ICS and SCADA systems collect and store a wealth of sensitive data, including operational data, proprietary information, and personal data. If this data is not adequately protected, it can be stolen by attackers, leading to significant financial and reputational damage.

Physical Damage

The potential for physical damage is also a significant security concern in ICS and SCADA systems. Unlike traditional IT systems, where the impact of a cyber attack surface is typically limited to data loss or disruption of services, a successful attack on an ICS or SCADA system can result in physical damage to equipment, environmental harm, and even loss of life. For instance, a cyber attack on a power grid could cause a blackout, while an attack on a chemical plant could lead to a hazardous material leak.

Common Security Threats in ICS SCADA

ICS and SCADA systems face a variety of network security threats, ranging from targeted attacks by sophisticated hackers to unintentional threats caused by human error or system malfunctions.

Malware

Malware is one of the most common security threats to ICS and SCADA systems. This includes viruses, worms, and ransomware that can infect the system, disrupt its operation, and steal sensitive data. For instance, the Stuxnet worm, discovered in 2010, specifically targeted SCADA systems controlling centrifuges in nuclear facilities.

Malicious Employees

Another common security risk is the insider threat. This can come from disgruntled employees, contractors, or anyone else with legitimate access to the system who uses that access for malicious purposes. Insider threats can be particularly damaging, as they can bypass many of the security controls in place.

Phishing Attacks

Phishing attacks are also a significant threat to ICS and SCADA systems. These attacks typically involve sending deceptive emails to system operators in an attempt to trick them into revealing their login credentials or clicking on a malicious link.

DoS attacks

Finally, denial-of-service (DoS) attacks are a common threat to ICS and SCADA systems. In a DoS attack, the attacker floods the system with traffic or requests, overwhelming it and causing the operating system it to become unresponsive. This can disrupt the operation of the industrial process and potentially lead to physical damage.

Best Practices for ICS SCADA Security

Securing Industrial Control Systems (ICS) and Supervisory Control and Data Acquisition (SCADA) systems is a complex task that requires a comprehensive approach. There are several best practices that can help to enhance the security of these systems and protect them from cyber threats.

Implement Layered Defence

One of the fundamental practices is to implement a layered defense strategy, also known as defense in depth. This involves deploying multiple layers of security controls throughout the ICS or SCADA system, so that if one layer is breached, the attacker still has to overcome additional layers to gain access to the system. For instance, a layered defense strategy might include firewalls to protect the control network perimeter, intrusion detection systems to monitor for suspicious activity, and encryption to protect data in transit.

Regular Patching and Update

Another key practice is to regularly patch and update the system. Many cyber attacks exploit known vulnerabilities in software, and keeping the system up to date with the latest patches can help to close these vulnerabilities. However, given the critical nature of ICS and SCADA systems, it's important to test patches in a controlled environment before deploying them to the live system, to ensure they don't disrupt the operation of the system.

Limited Access Control

Access control is another crucial practice for ICS and SCADA security. This involves ensuring that only authorized individuals have access to the system, and that they only have access to the parts of the system that they need to do their job. This can be achieved through measures such as strong password policies, two-factor authentication, and role-based access control.

Monitoring and Incident Response

Monitoring and incident response are also critical for ICS and SCADA security. This involves continuously monitoring the system for signs of a cyber attack, and having a plan in place to respond quickly and effectively if an attack is detected. This can help to minimize the impact of an attack and ensure the system can quickly return to normal operation.

Training and Awareness

Finally, training and awareness are key to securing ICS and SCADA systems. Many cyber attacks succeed because of human error, such as clicking on a phishing link or using weak passwords. Regular training can help to ensure that all staff, from operators to managers, understand the cyber threats facing the system and know how to protect against them.

Conclusion

Industrial Control Systems (ICS) and Supervisory Control and Data Acquisition (SCADA) systems are integral to industrial automation, providing control, monitoring, data acquisition, and automation capabilities that are essential for the efficient and safe operation of industrial processes. They bring numerous benefits, including increased efficiency, improved safety, enhanced data analysis, and better decision-making. However, these systems also present significant security concerns, facing a variety of security threats, from malware and insider threats to phishing and DoS attacks. Securing these systems requires a comprehensive approach that includes a layered defense strategy, regular patching and updating, strong access control, continuous monitoring and incident response, and regular training and awareness.

FAQs

Q: What are the security concerns in ICS and SCADA systems?

A: ICS and SCADA systems face several security concerns, including their susceptibility to unauthorized access, the potential for data breaches, and the potential for physical damage. These systems control critical infrastructure and industrial processes, making them attractive targets for cybercriminals and state-sponsored hackers.

Q: What are the best practices for ICS and SCADA security?

A: Securing ICS and SCADA systems requires a comprehensive approach that includes a layered defense strategy, regular patching and updating, strong access control, continuous monitoring and incident response, and regular training and awareness. By following these best practices, organizations can significantly enhance the security of their ICS and SCADA systems and protect their critical infrastructure from cyber threats.

Q: What is the difference between OT, SCADA and ICS?

OT (operational technology) broadly refers to any hardware or software that monitors and controls physical devices. SCADA is a specific type of OT software that collects data from sensors and sends control commands to field devices. ICS is a wider term encompassing the full set of OT, including SCADA software as well as PLCs, HMIs, and networking hardware used to automate industrial processes.
