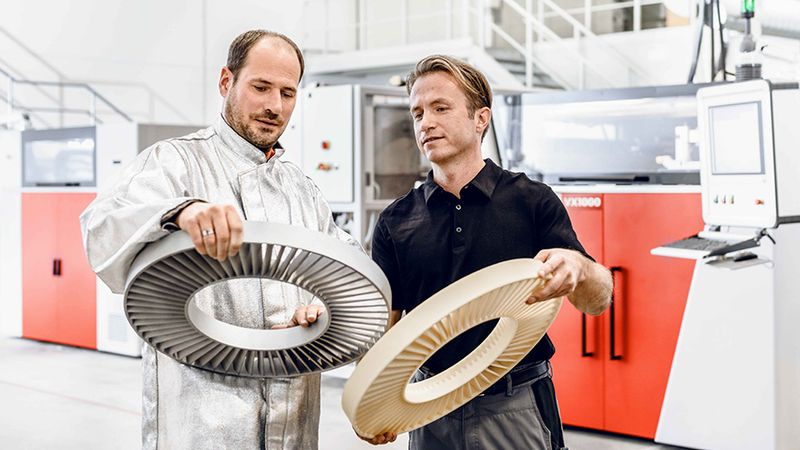

How classic foundries remain competitive advantages

author avatar
How classic foundries remain competitive advantages

The direct, additive production of metals is gaining more and more market share but with binder jetting 3D printing process, foundries can stay competitive

How classic foundries remain competitive advantage

3D printing offer solutions as a cost-effective, future-oriented alternative for foundries. Aircraft manufacturers, automotive OEMs or designers: when rapid production of small batches of complex parts is required, more and more companies are turning to 3D metal printing. Does this herald the end of the classic foundry industry? Not at all! Foundries have been using 3D printing – the technology of the future – to print casting patterns and molds for decades, to remain competitive on the long term.

Sales of industrial 3D metal printers have increased exponentially in recent years. Automotive OEMs, aircraft manufacturers and designers all recognise the potential of the manufacturing technology, which enables wafer-thin layers of metal powder to be bonded into components by radiation energy from lasers.

The main advantages: Greater design freedom and component densities of more than 99 percent. Designers can print lightweight components with crazy geometries, something that was formerly difficult to produce using traditional metal casting.

But components produced using an industrial 3D printer don’t just have exciting, futuristic designs – they also lead to huge cost savings, because, not only do they optimize the topology, they also enable massive weight reductions and require fewer components and functional enhancements. An example from the aviation industry: if the Airbus A380 aircraft is made just 74.2 kilograms lighter by installing 3D-printed components, such as seat belt buckles with honeycomb cut-outs, over an aircraft life of 30 years, this represents a reduction in fuel costs of around 6.7 million US dollars.

A savings potential that makes it easy to understand why manufacturers are setting their sights on 3D printing. And foundries? Many think that casting topologically optimized parts is too costly and time-consuming. Customers also generally regard the foundry industry as inflexible and not very innovative, and also sluggish because of long delivery times. This means many foundries are facing an uncertain future. Does this herald the end of classic metal casting?

3D metal printing is still a harmless competitor

3D metal printing, such as direct metal laser sintering (DMLS), currently only competes with foundries in a relatively small segment. The build spaces of DMLS systems are ideally suited to smaller components. And 3D-printed components for aerospace require time-consuming certification, which metal casting has had for decades already. Direct 3D metal printing is also relatively expensive. This is not only due to the high cost of metal powder, but also the high cost of 3D printers and the comparatively slow building speeds.

Components from printers using metal powder usually require manual post-processing after printing. This means support structures and base plates have to be removed. Furthermore, a sintering oven or hot isostatic pressing (HIP) is required to achieve high component density and sufficient resistance. The bottom line is that the average prices of 3D-printed metal components are around 300 Euro per kilogram for aluminum, 400 Euro for stainless steel and up to 1,300 Euro per kilogram for special alloys. As a direct comparison, the price of pure cast steel is around 6.50 to 32 Euro per kilogram.

But what happens when 3D technology develops further, build spaces get bigger, materials cheaper, post-processing automated and technologies are suitable even for series production at some stage? Will classic foundries be on the way out at that point?

Beat your opponent at its own game

That won’t be the case. Foundries may also be able to manufacture components with complex geometries cost-effectively in small series, thus ensuring their future competitiveness. Provided, they can build complex molds faster and more cost-effectively – without the need for expensive special tools. Which is where 3D printers come into play, as they print using binder jetting to quickly generate sand molds, toolingless! For example, the industrial 3d printer VX4000, which has a build envelope of 4,000 x 2,000 x 1,000 mm, is the world’s biggest 3D printing system for the production of sand molds and cores. The system can be used for the rapid automated production of 3D sand casting molds using the binder-jetting 3D printing procedure, which prints huge volumes economically due to its significantly higher build rates. The industrial platform can produce either many small series or individual, large-volume components.

Binder jetting: here's how it's done

A recoater spreads a 300 micrometre-quartz sand layer on a build platform. The mobile print head then uses commonly used foundry binder to bond the grains of sand in the areas where the sand mold should be created. The construction plan needs to be available in the form of a CAD file. The build platform is then lowered by each layer and the process is repeated until the sand mold is ready. Once the system operators have removed the excess sand from the mold by means of compressed air, it is ready for casting. Without any time-consuming, expensive post-processing, unlike components from 3D metal printers.

Printed sand casting molds behave like classical molds and are sufficiently stable to withstand the harsh demands of metal casting. The binder leads to bending strengths of between 220 and 500 N/cm² of the sand parts – the resistance of conventionally manufactured sand cores.

Another major advantage of casting: a much wider variety of materials, means light alloys such as magnesium, can also be cast. Using 3D printing-supported metal casting means any alloys can be implemented; in contrast to metal printing, which is currently still restricted to few special alloys.

3D printed casting molds: new design freedom and huge time savings

The advantages of 3D printed casting molds are obvious: compared to conventional production, it does not require CNC milling or any other special tooling, which can drive up the prices for metal casting. In addition, just as with 3D metal printing, there are fewer restrictions in terms of design. Designers can implement even the most delicate interior geometries with a resolution of up to 600 dpi and do not have to think about demolding chamfers, separators or indentations. Unlike 3D metal printing, no printed support structures are needed, which waste material. This saves time and optimizes the system's box utilization. The materials used in 3D printing are already in use in foundries for decades and can be easily combined into hybrid parts (printed and conventionally produced sand parts).

Another argument in favor of 3D printing of molds: time savings. Foundries report that they achieve unprecedented time savings when manufacturing complex sand casting molds. In addition, metal casting in industries such as aerospace is a qualified and certified process, unlike metal 3D printing. Metal casting is thus a proven manufacturing method that already provides a high level of customer satisfaction, because components of almost any size can be economically manufactured as one component.

A liter of printed sand only costs 9 Euro

Binder Jetting is faster and cheaper than most other 3D-printing processes. Because the print head of a VX4000 has more than 25,000 individually controllable nozzles and a print head width of 1,100 millimeters, the printer has build rates of up to 120 liters per hour. In contrast, printers that operate using selective laser melting (SLM) and work with only one laser on a point by point basis, are much slower. Their build rates are approximately 0.1 liters per hour.

The Binder Jetting-procedure is also cheaper. Depending on the complexity and the desired delivery time of the components, the average price for one liter of printed sand lies at around nine euros. One liter of printed steel, on the other hand, costs around 3,100 Euro. In many applications, such as aerospace components, it is now possible to build almost any size and quantity economically using Binder Jetting in combination with metal casting: For example, pumps, drive wheels, exhaust manifolds, housings, frames, large structural components etc. are already being produced using rapid casting. Rapid casting also impressively handles a wide variety of materials – even lightweight alloys such as magnesium can be processed.

Foundries should begin modernizing as soon as possible

Metal-3D printing will definitely become increasingly important in the coming years, since printers will become increasingly powerful and investment costs will fall. By 2020, experts are predicting price reductions of up to 60 percent for entry-level systems.

In that case, additive direct processing of metal powders may actually take a significantly higher share of the foundry’s market, especially for small and medium-sized components. However, it will not completely replace serial casting processes. But it will obtain a significant share of the market. Foundries should therefore modernize their production sooner rather than later.

With today’s economical tool-free casting molds, it is already possible to reproduce any part size. That means customers have a wide variety of materials available – with certified processes. Which begs the question of how quickly 3D printers using metal can catch up.
