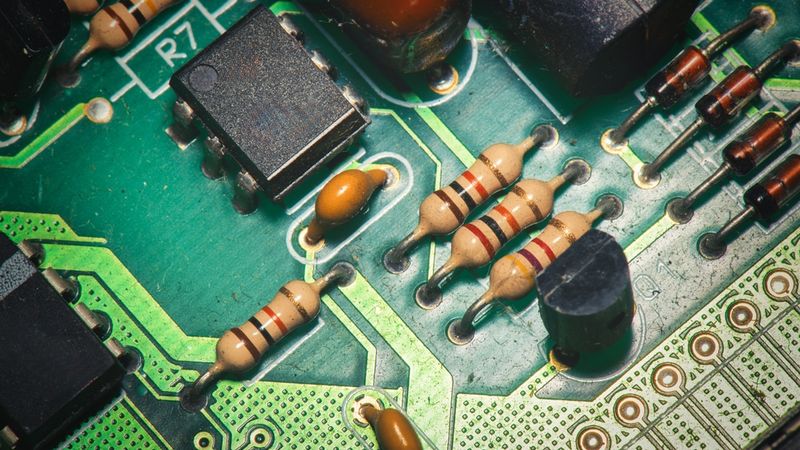

What Does a Resistor Do? Theory, Types, and Practical Uses for Digital and Hardware Engineers

Key Takeaways

• Resistors regulate current and voltage according to Ohm’s law (V = I·R), enabling predictable behavior across digital and analog circuits.

• Core functions include current limiting, voltage division, biasing, pull-ups, termination, and impedance matching.

• Resistor technologies vary widely, including carbon, film, wire-wound, metal foil, potentiometers, thermistors, and LDRs, each offering different tolerances, noise levels, and stability characteristics.

• Proper selection requires considering resistance, power rating, tolerance, temperature coefficient (TCR), noise, and package size.

• Modern electronics rely heavily on precise resistor arrays, high-frequency termination, low-noise components, and resistive sensors that bridge physical phenomena with digital systems.

Introduction

Resistors are the backbone of electronics. While their simplicity is apparent, their role involves subtle physics and critical design considerations. In digital circuits, resistors establish defined logic levels and protect microcontrollers from damage. In analog systems, they shape signal levels, bias amplifiers, and sense currents. Without them, circuits could overheat, transistors would be improperly biased, and sensor interfaces would become unreliable.

The question “What does a resistor do?” is addressed by combining theoretical principles with practical applications. The discussion begins with the physical principles of resistance, derives key equations, and outlines relevant units. Different resistor technologies are examined, along with methods for interpreting color codes and selecting appropriate values. Practical applications, including current limiting, voltage division, and biasing, are illustrated with examples and calculations to facilitate effective implementation in electronic circuits.

Fundamentals of Electrical Resistance

Understanding how resistors work begins with the basic principles of resistance, how it is measured, and how it behaves under different conditions. This foundation is essential for analyzing circuits, selecting components, and ensuring reliable operation.

Understanding Resistance and Ohm’s Law

A resistor is a passive, two‑terminal component whose primary role is to oppose the flow of electric charge. This opposition is quantified by the resistance R, measured in ohms (Ω). The relationship between voltage (V), current (I), and resistance (R) is expressed by Ohm’s law:

V = I × R

In other forms, I = V/R and R = V/I. Ohm’s law tells us that for a given resistor value, the voltage across it is proportional to the current through it. This fundamental linearity makes resistors predictable and indispensable in circuit analysis.

Physical Basis: Resistivity and Conductivity

Resistance occurs because electrons moving through a material lose energy due to collisions with atoms. The property that quantifies a material’s inherent opposition to electron flow is resistivity (ρ). For a uniform conductor of length L and cross-sectional area A, resistance is given by:

R = ρ(L/A)

Materials with low resistivity (e.g., copper, silver) are good conductors, while those with high resistivity (e.g., carbon, nichrome) are commonly used for resistors. Engineers adjust both material properties and geometric dimensions to achieve desired resistance values. Thin, long conductors produce higher resistance, whereas thick, short conductors yield lower resistance.

Power Dissipation

When electric current flows through a resistor, some electrical energy is converted into heat. This heating effect is called power dissipation. The amount of power a resistor dissipates can be calculated using any of the following equivalent formulas:

P = V × I

P = I^2 × R

P = V^2 / R

• Use P = V × I when the voltage across the resistor and the current through it are known.



• Use P = I^2 × R when current and resistance are known.



• Use P = V^2 / R when voltage and resistance are known.

Resistors must be selected with a power rating high enough to safely handle the heat they generate. Typical small (through-hole) resistors range from 0.125 W to 1 W, while dedicated power resistors can handle tens or even hundreds of watts.

Temperature Coefficient and Stability

Real resistors change value with temperature. The temperature coefficient of resistance (TCR) quantifies the change in resistance per degree Celsius, usually expressed in parts per million per °C. Precision metal foil resistors can have TCR as low as ±1 ppm/°C, whereas carbon composition resistors may exhibit much higher variation.

In high-precision circuits or temperature-sensitive applications, selecting resistors with appropriate TCR values is critical. Additionally, matched resistor ratios should have similar TCRs to maintain accurate voltage division.

Types of Resistors

Resistor technologies vary widely in construction, precision, noise performance, and power handling. Understanding these differences is essential for selecting the right component for each application. The following sections outline the major resistor categories, starting with the most commonly used: fixed resistors.

Fixed resistors provide a constant resistance value and are available in several construction types, each with distinct performance characteristics:

Fixed resistors are manufactured in standardized values defined by the E-series (E6, E12, E24, E96, E192, etc.). These series use logarithmic spacing to ensure reliable coverage of each decade, enabling designers to select values that fall within required tolerance bands.

Recommended reading: Understanding Circuit Board Components: A Comprehensive Guide

Surface Mount vs. Through‑Hole

Surface-mount device (SMD) resistors dominate modern electronics due to their small size, low parasitics, and compatibility with automated pick-and-place assembly. Common package codes—such as 0402, 0603, and 0805—refer to the component’s length and width in hundredths of an inch. Their compact footprint allows dense routing and high-speed signal integrity, making them the preferred choice for most production designs.

Through-hole resistors, by contrast, remain valuable in scenarios where mechanical strength, ease of handling, or high power dissipation is required. They are widely used in PCBA prototyping, where components may be inserted, removed, or reconfigured repeatedly. Their larger size also makes them ideal for early testing, debugging, and breadboard-based development before transitioning to an SMD-optimized layout for final manufacturing.

In practice, engineers often begin with through-hole components during initial prototyping and migrate to SMD versions once the design is validated and ready for automated assembly.

Variable Resistors

Variable resistors provide an adjustable resistance value, making them essential for tuning, calibration, and user-controlled settings in electronic circuits. The main categories include:

Potentiometers:
Three-terminal devices with a movable wiper that divides the total resistance. The resistance between the wiper and either end terminal is adjustable. Common uses include volume controls, analog gain settings, user interfaces, and adjustable reference levels.

Rheostats:
Two-terminal adjustable resistors are designed to handle higher currents. They are typically used for controlling current or power in applications such as motor speed control, lighting dimming, and industrial equipment.

Trimmers (Trim Pots):
Compact potentiometers are intended for infrequent adjustments during factory calibration or field servicing. They are commonly used to fine-tune reference voltages, sensor offsets, and timing circuits.

Digital Potentiometers (Digipots):
Electronically controlled resistors that provide digitally adjustable resistance through interfaces such as I²C or SPI. Digipots use integrated resistor ladders and switching networks, often with 8-bit resolution (256 steps) or higher. They are widely used for programmable gain control, automatic offset trimming, adaptive filtering, and microcontroller-based calibration.

Special Resistive Devices

Some resistive components are designed to vary their resistance in response to environmental or electrical stimuli, enabling sensing, protection, and compensation functions in electronic systems.

Thermistors:
 Temperature-dependent resistors are available in two main types:

• NTC (Negative Temperature Coefficient): Resistance decreases as temperature rises. Commonly used for temperature sensing, inrush-current limiting, and thermal monitoring.



• PTC (Positive Temperature Coefficient): Resistance increases with temperature. Used for over-current protection, resettable fuses, and self-regulating heaters.

Photoresistors (Light-Dependent Resistors, LDRs):
Semiconductor devices whose resistance decreases with increasing light intensity. These are used in ambient-light sensing, automatic lighting systems, and camera exposure control.

Varistors (MOVs):
Voltage-dependent resistors rapidly drop in resistance when the voltage exceeds a defined threshold. Metal-oxide varistors (MOVs) are widely used for surge protection and transient suppression in power supplies and AC mains interfaces.

Resistor Networks:
Packages containing multiple resistors—either isolated or sharing a common terminal. Networks often provide matched tolerances and temperature tracking, making them ideal for digital pull-up arrays, DAC/ADC interfacing, and precision analog circuits such as Wheatstone bridges.

Resistor Markings, Values, and Calculations

Understanding resistor markings and standard values is essential for selecting components, verifying PCBA assemblies, and performing accurate circuit calculations. This section explains how to interpret marking codes, how preferred value series are structured, and how to compute equivalent resistance and power requirements in practical designs.

Reading Resistor Values

Resistors communicate their values through standardized marking systems, which differ between through-hole and surface-mount formats.

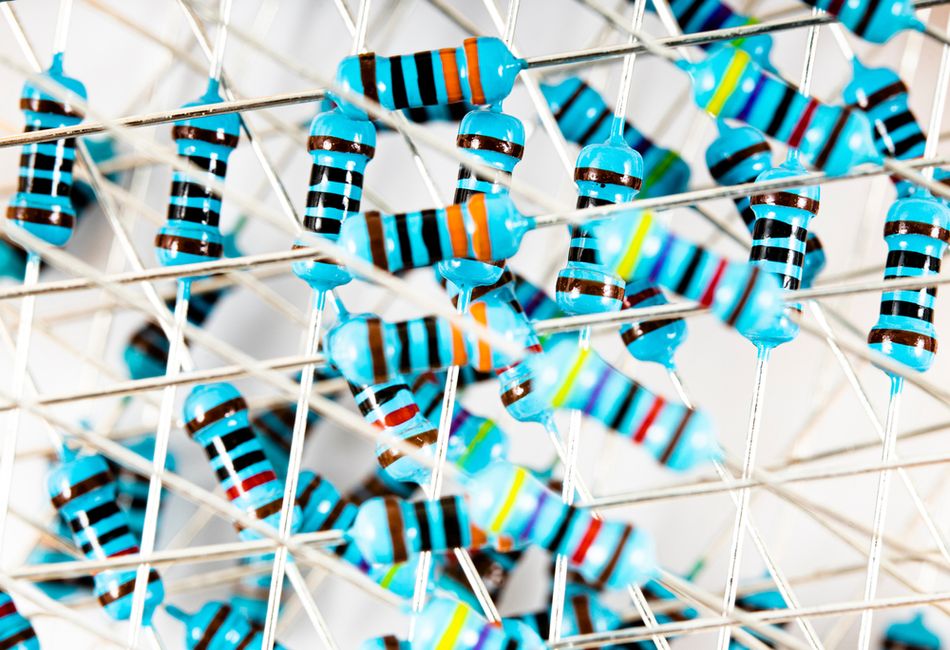

Through-Hole Colour Bands: Most through-hole resistors use a colour-band system to indicate resistance and tolerance. The four-band codes:

• Band 1: First significant digit

• Band 2: Second significant digit

• Band 3: Multiplier

• Band 4: Tolerance

Five-band and six-band codes also exist for precision resistors, adding a third significant digit and, in some cases, a temperature coefficient band.

SMD Resistor Markings
Surface-mount resistors use compact numeric or alphanumeric codes to indicate their value:

• Three-digit codes (e.g., 103)

• First two digits: significant figures



• Third digit: multiplier



• Example: 103 = 10 × 10^3 = 10 kΩ

• Four-digit codes (e.g., 1002)

• Used for tighter-tolerance or higher-precision parts



• First three digits: significant figures



• Fourth digit: multiplier



• Example: 1002 = 100 × 10^2 = 10 kΩ

• EIA-96 alphanumeric codes

• Used on ±1% precision resistors



• Format: two-digit base code + letter multiplier



• A lookup table converts the base code to its resistance value.
   Even though calculators make decoding easy, knowing the logic behind each system helps during design reviews and assembly checks.

Recommended reading: Resistor Chart: Comprehensive Guide to Resistor Values, E-Series, and Color Codes

Power Rating Calculations

When selecting a resistor, always verify its expected power dissipation.

If you need to drop 5 V across a resistor carrying 20 mA:

P = V × I
 P = 5 V × 0.02 A
 P = 0.1 W

Choose a resistor with at least 2× safety margin, so a 0.25 W part is suitable. Also consider worst-case conditions, transient loads, and ambient temperature when finalizing the rating.

Practical Applications of Resistors

Resistors are ubiquitous in electronic circuits, performing essential functions from protecting components to shaping signals. Understanding how resistors are applied in practical scenarios is critical for designing reliable and efficient circuits. The following subsections cover the most common applications.

Current Limiting

Resistors are often used to limit current to safe levels. For example, placing a resistor in series with an LED prevents excessive current that could damage the LED.

Example: An LED has a forward voltage of 2 V, supplied from 5 V, and the desired current is 10 mA. The required resistor is:

R = (V_source − V_LED) / I
 R = (5 − 2) / 0.01
 R = 300 Ω

Current-limiting resistors are also essential for microcontroller I/O pins, which can typically source or sink only a few milliamps.

Voltage Dividers

A voltage divider uses two or more resistors in series to produce a fraction of an input voltage. The output voltage at the junction is:

V_out = V_in × (R2 / (R1 + R2))

Example: Connecting 200 Ω and 400 Ω resistors across 6 V produces 4 V at the midpoint.

When designing voltage dividers, consider loading effects: if the divider feeds a low-impedance load, the effective resistance changes, altering the output. Use buffer amplifiers or select resistor values significantly lower than the load to minimize this effect.

Pull-Up and Pull-Down Resistors

Digital inputs must never be left floating.

• Pull-up resistor: Connects an input to a high voltage (logic ‘1’) when no active driver is present.



• Pull-down resistor: Connects an input to ground (logic ‘0’).

Common applications include push-buttons, switches, and open-collector outputs. Typical resistor values range from 4.7 kΩ to 100 kΩ, high enough not to interfere with active drivers but low enough to pull the input quickly.

Biasing and Feedback

Biasing resistors set operating points for transistors and op-amps. For example, in a common-emitter amplifier, base bias resistors establish proper transistor operation.

Feedback resistors in op-amp circuits determine gain. In a non-inverting amplifier:

A_v = 1 + (R_f / R_g)

Accurate resistor ratios are critical for precise gain, and matched-tolerance networks improve ratio accuracy in high-precision applications.

Impedance Matching and Termination

At high frequencies, mismatched impedances can cause reflections and degrade signal integrity. Resistors are used to:

• Match transmission line impedance



• Terminate coaxial cables or PCB traces

Example: A 50 Ω resistor terminating a coaxial cable prevents reflections. Differential pairs often use resistors equal to the characteristic impedance of the line, ensuring clean high-speed signals.

Current Sensing

Shunt resistors allow current measurement by producing a small voltage drop across a known resistance:

I = V / R

Low-value, precision resistors (often four-terminal/Kelvin type) minimize measurement error. Applications include battery management, motor control, and real-time current monitoring in microcontroller circuits.

Filtering and Timing

Resistors combine with capacitors and inductors to form RC and RL networks for filtering and timing.

Low-pass RC filter cutoff frequency:

f_c = 1 / (2 * π * R * C)

Applications include smoothing power rails, debouncing switches, and analog sensor interfacing. Resistors also set time constants in oscillator circuits, such as 555 timer-based designs or microcontroller reset circuits.

Selecting Resistors: Practical Considerations

Choosing the right resistor for a circuit involves balancing multiple factors, including resistance value, tolerance, power rating, thermal stability, noise, packaging, and reliability. Each consideration impacts circuit performance and long-term reliability.

Choosing the Right Value

The required resistance is typically determined using Ohm’s law or network equations:

R = V / I

Select the nearest standard value from the appropriate E-series, accounting for tolerance.

• Digital circuits: Often tolerate wide variations; ±5% resistors are usually sufficient.



• Analog circuits: Precision matters; ±1% or better may be required, especially for voltage dividers, amplifiers, and sensor interfaces.

When exact values are unavailable, combine series or parallel resistors to achieve the desired resistance.

Tolerance and Precision

Tolerance defines the allowable deviation from the nominal resistance. Example: a 10 kΩ ±5% resistor may vary between 9.5 kΩ and 10.5 kΩ.

• Critical applications: Use tighter tolerances to ensure accurate ratios, such as in instrumentation amplifiers or precision voltage dividers.



• Resistor networks: Offer matched ratios between resistors, improving ratio accuracy at a lower cost than individual high-precision components.

Power Rating and Derating

Ensure the resistor can safely dissipate the expected power. Power is calculated using:

P = V × I = I^2 × R = V^2 / R

• Apply a safety margin, typically 50% or more.



• Large resistors dissipate heat more effectively but occupy more PCB space.



• In high-power applications, consider heat sinking, PCB thermal coupling, and airflow.

Proper derating prevents overheating and extends component lifetime.

Temperature Coefficient and Environment

The temperature coefficient of resistance (TCR) quantifies how resistance changes with temperature.

• For high-precision circuits, match TCRs among resistors to maintain stable ratios.



• High-temperature environments require resistors rated for the ambient conditions.



• Metal oxide film and wire-wound resistors often withstand higher temperatures than carbon or metal film types.

Noise Performance

Resistors generate thermal noise (Johnson–Nyquist noise) and, in some types, excess noise.

• Thermal noise voltage: V_n = √(4 × k × T × R × B)



  • k = Boltzmann’s constant (1.38 × 10^-23 J/K)



  • T = absolute temperature (K)



  • R = resistance (Ω)



  • B = bandwidth (Hz)



• Excess noise occurs when current flows through certain resistor types and is frequency-dependent.



• Low-noise resistors: metal film, wire-wound, bulk metal.



• High-noise resistors: carbon composition.



• In low-noise amplifier circuits, choose low-noise types and keep resistance as low as feasible.

Packaging and Footprint

SMD resistors come in standard sizes (0201, 0402, 0603, 0805, 1206).

• Smaller packages save PCB space but have lower power ratings and may be difficult to solder manually.



• High-voltage applications require larger footprints to maintain creepage and clearance distances.



• Select packaging that balances thermal, electrical, and assembly requirements.

Reliability and Failure Modes

Resistors can fail open or short, due to:

• Excessive power



• Mechanical stress



• Environmental factors



• Carbon composition resistors age and drift over time.



• Film resistors are more stable.



• Use stress-relief techniques: leave slack in leads, avoid PCB flexing, and derate power to improve reliability.

Advanced Topics

Integrated Resistor Networks and Arrays

Resistor networks package multiple resistors together with matched ratios and tight tracking over temperature and time.

• Save space in digital circuits needing multiple pull-ups, terminations, or ladder DACs.



• Common configurations: SIP, DIP, and SMD arrays.

Recommended reading: SMD Resistor Sizes: A Comprehensive Guide for Engineers

Resistor Ladder Networks

R–2R ladder networks are essential for DACs and ADCs.

• Formed using resistors of value R and 2R to convert digital bits to analog voltages.



• Accurate resistor values with matched tolerances are critical for linearity.

Temperature Sensing with Thermistors

NTC thermistors have an exponential resistance-temperature relationship.

• Applications: temperature measurement, compensation, and inrush current limiting.



• Design requires converting resistance to temperature via the Steinhart–Hart equation or lookup tables.



• Self-heating can introduce errors; select an appropriate dissipation constant (mW/°C) and limit measurement current.

Light Sensing and Photoresistors

Photoresistors (LDRs) change resistance with light intensity.

• Common in automatic night lights and ambient light sensing.



• Slow response time limits high-speed applications; use photodiodes or phototransistors for faster sensing.

Voltage-Controlled Resistors and Active Devices

Some semiconductor devices behave as voltage-controlled resistors (VCRs).

• Field-effect transistors (FETs) can operate in the ohmic region as VCRs.



• Enable variable-gain amplifiers, filters, and modulators.



• Nonlinearity and limited dynamic range require careful design.

Surface-Mount Design Considerations

At high frequencies, resistor placement affects parasitic inductance and capacitance.

• Use short traces, proper orientation, and ground planes to minimize parasitics.



• High-frequency designs may require specialized low-inductance resistors.

Resistor Noise Reduction Techniques

• Choose low-noise resistor types (metal film, wire-wound, bulk metal).



• Keep resistance low to reduce thermal noise, while monitoring power dissipation.



• Use shielding and proper grounding to prevent coupling.



• In differential circuits, matched resistors reduce common-mode noise and improve CMRR (common-mode rejection ratio).

Conclusion

Resistors are foundational components that ensure the safe, precise, and reliable operation of electronic circuits. Answering the question “what does a resistor do?” extends far beyond simply “resisting current.” Resistors perform a wide range of functions: limiting current, dividing voltages, setting bias points, matching impedances, sensing currents, filtering signals, and protecting components in both digital and analog systems.

A thorough understanding requires mastery of both theory and practice. On the theoretical side, engineers must grasp Ohm’s law, power dissipation, series and parallel combinations, and temperature effects. Practically, considerations such as tolerance, power rating, noise, packaging, and reliability dictate proper component selection and effective implementation.

Looking forward, resistor technology will continue to evolve to meet the demands of modern electronics. As circuits shrink and operate at higher frequencies, components with lower parasitics, tighter tolerances, and improved thermal stability will become increasingly important. Integrated resistor networks and arrays will see wider adoption in mixed-signal ICs, while resistive sensors such as thermistors and photoresistors will remain indispensable for interfacing electronics with the physical environment.

For engineers, advancing practical skills is the next step: calculating complex resistor networks, selecting components with appropriate specifications, and experimenting through simulations to observe how resistor choices influence overall system behavior. Mastery of these principles ensures that resistors are not merely passive components but powerful tools for shaping circuit performance and reliability.

FAQ

1. Why do resistors get hot?
 When current flows through a resistor, electrical energy is converted into heat. The power dissipated can be calculated as:

P = I^2 × R
 or
 P = V^2 / R

If the power exceeds the resistor’s rated capacity, it will overheat and may fail. Proper selection of power rating prevents damage.

2. How do I choose a pull-up resistor value?
 Consider the logic family and desired signal rise time:

• TTL and 3.3 V CMOS: 4.7 kΩ to 10 kΩ are common values.



• Higher resistance: reduces current draw but increases susceptibility to noise.



• Lower resistance: strengthens pull-up, improves noise immunity, but increases current consumption.

Choose a value that balances speed, noise immunity, and power efficiency.

3. Can I put resistors in parallel to get a specific value?
 Yes. The equivalent resistance of two resistors in parallel is:

R_eq = (R1 × R2) / (R1 + R2)

Parallel resistors can achieve non-standard resistance values or increase power handling, as the current splits between the resistors. Ensure resistors have similar tolerance and temperature coefficients to maintain accuracy.

4. What is the difference between potentiometers and rheostats?

• Potentiometer: Three-terminal variable resistor, primarily used as a voltage divider.



• Rheostat: Two-terminal variable resistor, used to adjust current in a circuit.

Both have a wiper moving along a resistive element to vary resistance, but their terminal configuration and typical applications differ.

5. Why is tolerance important?
 Tolerance indicates how much the actual resistance can deviate from the nominal value.

• Example: a 10 kΩ ±5% resistor may range from 9.5 kΩ to 10.5 kΩ.



• In circuits where resistor ratios matter (e.g., voltage dividers, op-amp gains), poor tolerance can affect output accuracy.



• Higher-precision resistors cost more but provide tighter tolerance and better performance in critical applications.

6. How do I minimise resistor noise in a precision amplifier?

• Use low-noise resistor types: metal film, wire-wound, or bulk metal.



• Keep resistance values as low as practical to reduce thermal noise.



• Maintain good PCB layout: short traces, proper shielding, and grounding.



• Choose resistors with low excess noise and stable temperature coefficients.

7. Can I replace a burnt resistor with any resistor of the same value?
 Not always. Consider:

• Resistance value: must match circuit requirements.



• Power rating: an insufficient rating may cause repeated failure.



• Tolerance and TCR: ensure proper circuit accuracy and thermal stability.



• Physical size and package: must fit the PCB and thermal environment.

Replacing with a resistor of the same nominal value but incorrect specifications can compromise performance or cause immediate failure.

References

1. M. Sufyan, “What is a resistor in a circuit? Theory, types and practical applications,” *Wevolver*, Sep. 9, 2025. [Online]. Available: https://www.wevolver.com/article/what-is-a-resistor-in-a-circuit-theory-types-and-practical-applications [Accessed: Nov. 20, 2025].

2. Building Better Circuits: The Technical Side of PCB Prototyping,” NextPCB‑blog, Sep. 08, 2025. [Online]. Available: https://www.nextpcb.com/blog/technical-side-of-pcb-prototyping  [Accessed: Nov. 21, 2025].

3. Electronics Tutorials, "Resistors." [Online]. Available: https://www.electronics-tutorials.ws/resistor/res_1.html  [Accessed: Nov. 21, 2025].

4. All About Circuits, "Wirewound Resistors." [Online]. Available: https://www.allaboutcircuits.com/textbook/direct-current/chpt-2/resistors/  [Accessed: Nov. 21, 2025].

5. “Fundamentals of Surface Mount Technology: What is SMT?”, NextPCB blog. [Online]. Available: https://www.nextpcb.com/blog/what-is-smt [Accessed: Nov. 26, 2025].
