Thin Film Deposition Technologies: Transforming Electronics, Energy, and Aerospace

Introduction

Thin film deposition is a foundational technology in today’s high-tech industries, enabling precise, atomic-level application of materials onto various substrates. This process is essential for creating the high-performance components that power advancements in electronics, renewable energy, aerospace, and biotechnology.

Core techniques in thin film deposition, including Chemical Vapor Deposition (CVD), Physical Vapor Deposition (PVD), and Atomic Layer Deposition (ALD), each offer unique benefits tailored to different applications. For instance, CVD is instrumental in producing high-purity films for solar cells and sensors, while PVD is widely used to deposit metals and conductive materials critical to microelectronics. Known for its exactness, ALD is crucial in semiconductor manufacturing, where even minimal imperfections can disrupt device functionality.

Together, these methods enable the creation of specialized materials with enhanced properties—such as adhesion, corrosion resistance, and conductivity—fueling innovation across diverse technology sectors. As sustainability becomes a growing priority, recent advancements also integrate AI-driven optimization to reduce energy consumption, enhance precision, and minimize material waste, underscoring thin film deposition's vital role in sustainable technological progress.

Recommended reading: Thin Film Deposition: Everything You Need to Know

Unveiling the Layers: Essential Concepts in Thin Film Deposition

Thin film deposition relies on a detailed understanding of material science and, in some cases, quantum mechanics to achieve precise control over film properties. These provide insight into their transformative impact across industries.

Understanding the Technical Fundamentals

Thin film deposition relies on a detailed understanding of material science and, in some cases, quantum mechanics to achieve precise control over film properties. Factors like electron configuration and quantum tunneling influence the interactions of atoms and molecules on a substrate surface, which determine film adhesion, thickness, and conductivity. In semiconductor applications, even minor flaws from inconsistent film thickness can compromise device integrity, making these atomic-scale interactions essential to the deposition process.

Environmental conditions—vacuum pressure, temperature, and deposition rate—further shape the film's properties. For example, controlling the deposition rate affects how well atoms adhere to the surface and the film uniformity. In applications like microelectronics or renewable energy, achieving uniformity and stability is essential to ensure high-quality thin films that meet stringent industry standards.

Techniques and Technologies at Play

In thin film deposition, several advanced techniques—Chemical Vapor Deposition (CVD), Physical Vapor Deposition (PVD), Atomic Layer Deposition (ALD), and epitaxy—are instrumental in achieving precise control over film properties, such as thickness, uniformity, and adhesion. Each technique has distinct operational parameters and applications, making it suited to specific industries and performance requirements. Here’s a closer look at these technologies, their methods, and examples of where they’re commonly applied:

Chemical Vapor Deposition (CVD)

Chemical Vapor Deposition (CVD) is a widely employed technique for creating thin films, especially in semiconductor and fiber optic manufacturing. The process involves introducing gaseous precursors into a reaction chamber, where they react on a substrate's surface to form a solid layer of material. CVD is particularly effective for producing high-purity films of silicon dioxide (SiO₂) and silicon nitride (Si₃N₄), both of which are essential for microelectronics and semiconductors. For instance, SiO₂ serves as an insulator in microchips, offering exceptional electrical conductivity control.

Traditionally, CVD operates at high temperatures, typically between 600°C and 800°C. However, advancements have enabled certain applications to occur at lower temperatures, making the technique more versatile and suitable for temperature-sensitive materials like polymers. The introduction of a reactive gas within the process promotes efficient reactions, while the gas phase nature of the technique ensures uniform deposition.

CVD’s ability to achieve precise thickness and material purity sets it apart from other methods, such as electroplating or ion beam techniques, which may not deliver the same level of uniformity. Additionally, the process is critical for fiber optics and advanced electronic components, where consistent film quality is necessary for performance reliability.

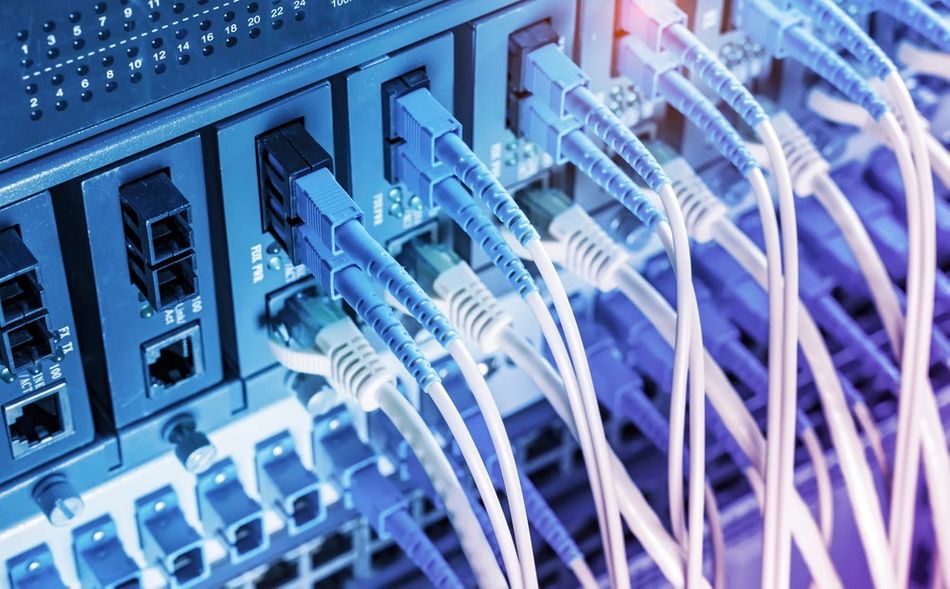

Fiber Optic Cables Connected to Optic Ports

Physical Vapor Deposition (PVD)
PVD methods, including sputtering, thermal evaporation, and pulsed laser deposition, are highly effective for depositing metals, alloys, and ceramics, particularly for wear-resistant and optical coatings. These methods typically operate within a vacuum chamber, often under ultra-high vacuum (UHV) conditions, to ensure high purity and precision.

For instance, magnetron sputtering, a widely used PVD process, involves creating a plasma field to bombard a target material—such as titanium, aluminum, or other alloys—causing atoms to be ejected and deposited as a thin film on the substrate. Another PVD technique, electron beam evaporation, uses high-energy electron beams to vaporize the target material, forming a uniform film layer. These approaches are ideal for producing hard, durable coatings for cutting tools, anti-reflective layers for lenses, and solar panel surfaces.

PVD's versatility and ability to create pure, high-performance metal films make it indispensable in industries like electronics and aerospace. For example, aerospace applications require coatings that can endure extreme temperatures and stresses, while electronics demand ultra-thin, precise layers for components like microchips and sensors. The adaptability of modern deposition systems ensures PVD remains a cornerstone technology for advanced material engineering.

Recommended reading: Magnetron Sputtering: A Versatile Thin Flim Deposition Technique

Atomic Layer Deposition (ALD)
Atomic Layer Deposition (ALD) is renowned for its atomic-level precision, making it indispensable in applications requiring exact control over thin film coating and composition. This precision is particularly critical in semiconductor manufacturing, where thin layers must be uniform and defect-free to ensure optimal device performance. ALD operates within a deposition chamber at moderate temperatures, utilizing sequential, self-limiting chemical reactions in the gas phase to achieve its characteristic accuracy.

For instance, ALD is often employed to deposit ultra-thin films of aluminum oxide (Al₂O₃) or hafnium oxide (HfO₂), materials that serve as insulating or dielectric layers in microelectronics and transistors. The process ensures even coverage, addressing potential diffusion issues that could compromise the integrity of the layer. This precision is particularly advantageous for devices like high-density memory chips, where inconsistent thickness can significantly impact electrical conductivity and overall performance.

Compared to other techniques such as sputter deposition or electroplating, ALD excels in achieving unparalleled uniformity at the atomic scale. Its ability to deposit highly controlled layers enables the production of cutting-edge technologies, including advanced sensors and high-performance transistors, where even the smallest deviations in film properties can lead to critical failures.

Epitaxy
Epitaxy is a specialized deposition technique designed to grow a crystalline layer that aligns with the lattice structure of the substrate. This process is crucial in applications requiring precise crystal uniformity, such as solid-state devices, LEDs, laser diodes, and photovoltaic cells. The epitaxial growth enables the formation of solid films with high-quality structures and minimal defects, which are vital for achieving superior performance and reliability.

The CVD process and vacuum deposition methods are frequently employed in epitaxial techniques, ensuring the controlled deposition of materials like gallium arsenide (GaAs) and silicon. For instance, molecular beam epitaxy (MBE) operates under ultra-high vacuum conditions, offering the capability to build layers at the micron or even nanometer scale with unmatched precision. This makes MBE particularly suitable for high-performance photonic devices, where strict requirements for crystal structure and optical properties are critical.

In addition to traditional chemical deposition methods, epitaxy often involves advanced integration with electrodes, enhancing electrical conductivity and functionality. These precisely deposited layers contribute to the development of next-generation semiconductors and optoelectronic components, ensuring optimal performance in demanding technological applications.

ensuring optimal performance in demanding technological applications.

Recommended reading: What is e-beam evaporation and how does it compare to other PVD methods?

Recent Innovations in Thin Film Deposition

Thin film deposition technology continues to evolve rapidly, bringing about significant innovations in precision, efficiency, material capabilities, sustainability, and functional versatility. These advancements support the growing demands of high-performance industries, from microelectronics to renewable energy. Some of these are:

Precision and Process Efficiency through AI Integration

The integration of artificial intelligence (AI) and machine learning (ML) into thin film deposition has revolutionized production, enabling real-time control over parameters such as temperature, pressure, and gas flow. By fine-tuning these conditions, AI minimizes defects and maximizes material utilization, which is especially critical in semiconductor manufacturing.

For instance, neural networks can predict subtle variances in deposition quality, adjusting settings on the fly to maintain consistency. Additionally, predictive maintenance algorithms help anticipate and prevent equipment failures, reducing downtime and boosting operational efficiency. In microelectronics, AI advancements support the production of miniaturized transistors with exacting precision, essential for the development of high-performance electronic devices.

Hardware and Material Advances: Achieving Higher Purity and Custom Properties

Recent improvements in deposition equipment and source materials are enabling higher purity levels and customization for thin film applications. For example, advanced precursor delivery systems in PVD ensure consistency, vital for high-specification devices in microelectronics. In the solar energy sector, oxide and nitride coatings are tailored to provide improved corrosion resistance and better energy efficiency.

Similarly, plasma-enhanced CVD (PECVD) is optimized for low-temperature environments, crucial for flexible and wearable electronics that require thermal sensitivity. These innovations highlight how customized coatings drive industry-specific applications in fields like aerospace and biotechnology.

Sustainability-Driven Innovations

In response to environmental demands, the thin film deposition industry has developed sustainable approaches that reduce emissions and lower energy consumption. Techniques like low-pressure deposition in PECVD and ALD help minimize energy usage while limiting harmful by-products. Recycling valuable target materials and reusing precursor gases are also becoming standard practices. Additionally, AI-driven energy management systems optimize power consumption, reducing the environmental footprint of the deposition process. These advancements are especially important in industries such as solar cell manufacturing, where sustainability is a core concern.

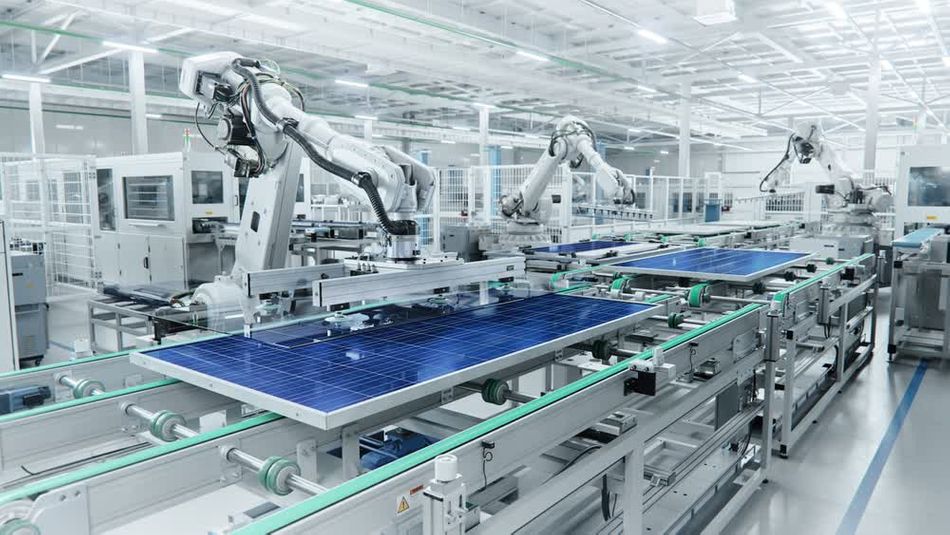

Solar Cell Manufacturing

Enhanced Functionality through Multi-Layering and Hybrid Materials

In thin film deposition, precise engineering is crucial to meeting functional requirements in advanced technologies. Techniques like doping—the introduction of controlled impurities—enhance properties such as conductivity and light emission. This has significantly improved the efficiency of solar cells, advancing renewable energy technologies.

Multi-layering and hybrid materials further expand functionality, creating composite films with unique characteristics. For instance, anti-reflective coatings in solar panels increase light absorption, while hybrid materials combining organic and inorganic elements enable flexible, durable films for wearable electronics and biocompatible devices.

These advances in thin film engineering drive progress across fields such as aerospace, consumer electronics, and biotechnology.

Challenges in Thin Films Deposition

While thin film deposition techniques offer remarkable precision and versatility, certain challenges persist, affecting the quality and scalability of films.

Maintaining Uniformity Across Large Areas

Ensuring uniform thickness and composition across extensive surfaces is a common challenge, especially in large-scale manufacturing. Techniques such as Atomic Layer Deposition (ALD) excel in uniformity but often face scalability issues when applied to larger substrates, as process time and resource demands increase. Maintaining uniform films is particularly challenging in industries like display technology, where even minor inconsistencies can impact image clarity and performance.

Managing Temperature Sensitivities

High temperatures are often required for deposition processes like Chemical Vapor Deposition (CVD), which limits their application on heat-sensitive substrates. For instance, organic electronics and biocompatible materials—often used in flexible devices—are highly sensitive to temperature and may require alternative deposition techniques or low-temperature modifications of existing methods.

Addressing Environmental and Health Concerns

Many deposition methods rely on toxic precursors or generate by-products that require careful management to avoid health and environmental impacts. The industry faces the challenge of balancing performance with sustainability, as thin film deposition often requires energy-intensive methods or hazardous chemicals. Developing more sustainable methods, such as plasma-enhanced and low-temperature CVD, is becoming increasingly crucial to meet environmental regulations and reduce resource consumption.

Solutions and Strategies to Overcome Challenges

Innovations in thin film deposition address industry challenges in uniformity, contamination control, sustainability, and operational efficiency.

Automation and Process Control

Advancements in automation and real-time monitoring are enhancing reliability and precision across industries. For example, in semiconductor manufacturing, automated quality control systems monitor film thickness, composition, and defect rates, significantly improving chip yield and performance. AI-driven algorithms, like neural networks and decision trees, predict optimal process parameters, reducing variation and minimizing waste. Such predictive maintenance lowers downtime and operational costs, driving efficiency across sectors.

Solutions for Uniformity

Uniformity is critical, particularly for applications like solar panels and display technologies where consistent film thickness directly impacts performance. Techniques such as rotary targets in sputtering and pulsed deposition ensure even coatings, enhancing device efficiency. Additionally, AI-driven spatial control systems adjust parameters dynamically, achieving uniform deposition across complex substrate geometries.

Contamination Control in High-Purity Applications

For industries requiring ultra-clean environments, such as pharmaceuticals and medical devices, contamination control is essential. Advances in cleanroom technology—including enhanced HEPA filtration and automated cleaning protocols—reduce particle contamination, improving the reliability and purity of deposition processes. Purification methods for precursor materials further minimize impurities, aligning with stringent industry standards.

Sustainability and Eco-Friendly Innovations

In response to environmental concerns, thin film deposition processes are increasingly adopting eco-friendly practices. Low-energy techniques, such as plasma-enhanced CVD (PECVD), and closed-loop recycling systems that recapture precursor gases, significantly reduce emissions and resource usage. AI optimizations play a key role here by forecasting material needs and detecting inefficiencies, reducing both waste and cost. For instance, machine learning models in real-time analytics adjust precursor flow to reduce excess, making the process more sustainable and economically viable.

By integrating these solutions, thin film deposition technology not only improves functionality and reliability but also advances sustainability goals—an essential step in adapting to today’s environmental and economic demands.

Conclusion

Thin film deposition stands as a cornerstone of modern technology, underpinning advancements across industries from semiconductors and renewable energy to biotechnology. The precision engineering of these films has enabled the creation of high-performance devices and components tailored to specific applications. Techniques like Chemical Vapor Deposition (CVD), Physical Vapor Deposition (PVD), and Atomic Layer Deposition (ALD) continue to evolve, meeting the growing demands for functionality, efficiency, and miniaturization in various sectors.

Future directions point toward increased integration of AI and machine learning, transforming how thin film processes are optimized in real-time. Predictive models for maintenance, adaptive control systems, and defect detection algorithms are beginning to revolutionize deposition quality and efficiency, reducing operational costs and enhancing product reliability. Moreover, sustainability considerations—such as minimizing material waste, lowering energy consumption, and refining purification processes—are shaping innovations in thin film technology, addressing both economic and environmental impacts.

As thin film deposition techniques advance, they will remain instrumental in driving technological progress, unlocking new potentials across sectors, and contributing to a more sustainable, high-performance future.

FAQs on Thin Film Deposition Techniques

What industries most benefit from advanced thin film deposition techniques?
Industries such as electronics, aerospace, and renewable energy significantly benefit from advanced thin film deposition techniques. For instance, in the semiconductor industry, these methods are crucial for creating high-performance integrated circuits and memory storage devices. In the renewable energy sector, enhanced thin films have led to more efficient solar panels, directly influencing the sustainability and cost-effectiveness of solar power solutions.

How do different deposition methods impact the properties of the final product?
The choice of deposition methods, such as Chemical Vapor Deposition (CVD), Physical Vapor Deposition (PVD), or Atomic Layer Deposition (ALD), crucially influences the physical and chemical properties of the thin films. For example, ALD is renowned for its precision in thickness and composition control, making it ideal for applications requiring exact barrier layers in electronics. PVD methods are often chosen for their capability to deposit pure metal layers that are essential for reflective coatings in optical applications.

What are some common troubleshooting tips for deposition process anomalies?
Effective troubleshooting in deposition processes involves a deep understanding of the equipment and the materials used. For instance, if issues with film uniformity arise, recalibrating the substrate rotation speed and checking for uniform gas flow can often resolve these issues. For contamination issues, maintaining strict cleanroom standards and regular checks on material purity can drastically reduce defects, ensuring the production of high-quality films.
