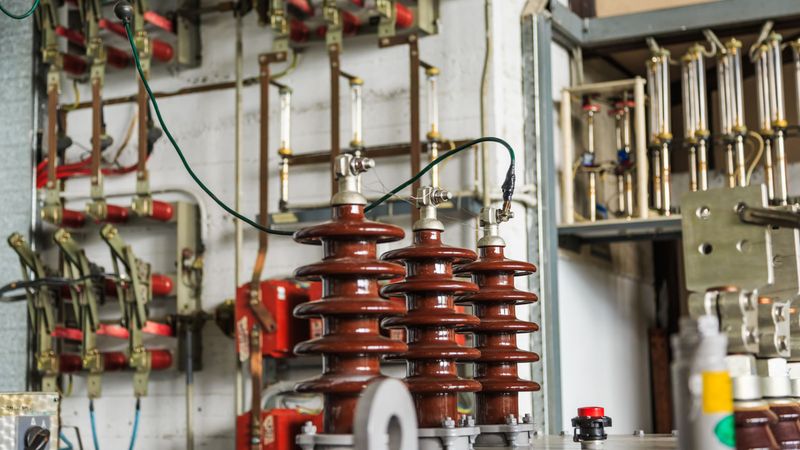

Hipot Electrical Testing of an Oil-immersed Transformer

Hipot Electrical Testing of an Oil-immersed Transformer

This article explores the fundamentals, advantages, and practical uses of Hipot testing, emphasizing its role in electrical safety and reliability, alongside recent advancements and the challenges faced by engineers.


Electrical safety and reliability are primary concerns across a wide range of industries. From delicate medical devices to robust power transmission equipment, ensuring components can withstand potential voltage spikes is crucial for both user safety and operational efficiency.

The Hipot test, also known as the high-potential test or dielectric withstand test, serves as a vital tool in achieving these objectives. By subjecting electrical insulation to controlled high voltages, Hipot test exposes weaknesses that could lead to catastrophic failures during normal operation. By identifying potential insulation issues, hipot test plays a vital role in maintaining electrical safety and reliability, thereby safeguarding both users and equipment.

Basics of Hipot Testing

What is Hipot Testing?

Hipot testing is a critical method developed to assess the dielectric strength of electrical insulation in various components and systems. [1] Originating from the need to ensure safety in increasingly complex electrical systems, hipot testing is now standard practice in industries ranging from consumer electronics to aerospace engineering.

Test box for injecting High Voltage into Electrical Equipment for Insulation Resistance TestTest box for injecting High Voltage into Electrical Equipment for Insulation Resistance Test

The primary purpose of hipot testing is to verify that insulation can withstand high-voltage conditions without breaking down. This test is essential in preventing potential electrical hazards such as shocks, fires, or equipment failures. By applying a high voltage between a product's conductive elements and its insulating material, engineers can detect excessive leakage current, indicating compromised insulation. DUT (Device Under Test) refers to the electrical component being subjected to the high voltage in a Hipot test. Capacitors can be DUTs during Hipot testing.

Diagram of a Hipot (High Potential) TestDiagram of a Hipot (High Potential) Test

The fundamental principles of hipot testing involve key electrical parameters: the applied voltage and the allowable leakage current. Typically, the voltage applied can range from hundreds to thousands of volts, depending on the insulation rating, while the leakage current is measured in microamperes (µA). These parameters are chosen to simulate real-world operating conditions, ensuring the product's safety and reliability under normal and fault conditions.

In practice, different types of hipot tests are employed based on the specific requirements of the component or system:

  • AC Hipot Test: Utilizes alternating current to test the insulation's ability to withstand high voltage over a period. The reversing polarity of AC makes this test comprehensive, as it stresses the insulation in both directions.

  • DC Hipot Test: Applies direct current, making it suitable for components with high capacitance. This test provides a steady-state leakage current measurement, offering a clear indication of insulation quality.

  • Insulation Resistance Test: Measures the resistance of the insulation by applying a lower voltage. Often used as a preliminary test, it helps identify gross insulation failures before more rigorous testing.

  • Dielectric Breakdown Test: Increases the voltage until the insulation fails, determining the maximum voltage the insulation can withstand. This test is typically destructive but provides critical information about the insulation's limits.

Hipot testing is crucial in industries where safety and reliability are paramount. For example, in the aerospace industry, it ensures that the insulation in aircraft wiring can withstand extreme conditions, thereby preventing catastrophic failures. Similarly, in the manufacturing of consumer electronics, hipot testing is crucial to ensure that devices are safe for everyday use, protecting both the users and the equipment.

Hipot testing enhances the safety and performance of electrical products by ensuring they meet stringent industry standards and can withstand the rigors of their intended applications.

Importance of Hipot Testing in Engineering

Hipot testing is indispensable for ensuring electrical safety and reliability across various industries. High voltage testing is the core function of a Hipot tester - applying a controlled high voltage to the DUT, exceeding its normal operating voltage. This preventive measure is essential for safeguarding both users and equipment.

High Voltage Circuit Breaker in a Power Substation to prevent Electrical Insulation breakdownHigh Voltage Circuit Breaker in a Power Substation to prevent Electrical Insulation breakdown

Electrical insulation breakdowns are a significant risk mitigated by hipot testing. For example, insulation can degrade over time due to environmental factors such as humidity and temperature fluctuations. If not detected, this degradation can lead to catastrophic failures, including electrical shocks and fires. Hipot testing can be performed on various components within switchgear, or circuit breakers to ensure their insulation withstands potential voltage spikes. By performing these tests, engineers can detect and address these issues early, ensuring the continued safety and functionality of the equipment.

Electrical shocks are another critical risk addressed by hipot testing. In scenarios where insulation fails, conductive parts that should be isolated may become live, posing severe risks to users. Hipot testing simulates high-stress conditions, exposing potential faults that could result in such hazardous situations. By identifying these faults, engineers can implement corrective measures to enhance the overall safety of the device.

Several industries rely heavily on hipot testing to maintain safety and performance standards:

  • Aerospace: In the aerospace industry, electrical systems must operate reliably under extreme conditions. Hipot testing ensures that the insulation in wiring and components can withstand high altitudes and varying temperatures, preventing in-flight electrical failures that could compromise safety.

  • Automotive: Modern vehicles incorporate complex electrical systems that control everything from engine performance to safety features like airbags. Hipot testing is crucial in verifying the integrity of these systems, ensuring they function correctly under all operating conditions.

  • Consumer Electronics: Devices such as smartphones, laptops, and household appliances are ubiquitous in daily life. Hipot testing helps manufacturers ensure that these products are safe for consumer use by verifying the quality of their insulation and preventing electrical hazards.

By integrating hipot testing into the design and manufacturing processes, engineers can significantly enhance the safety, reliability, and longevity of electrical products. This testing is not just a regulatory requirement but a critical component of quality assurance that protects both users and technology from potential electrical engineering failures.

Recommended Reading: Electrical Testing: Comprehensive Guide for Engineering Professionals

Recent Advancements in Hipot Testing Technology

Innovations in Testing Equipment

Hipot testing technology has evolved significantly from its origins, addressing various challenges that engineers face with traditional equipment. Historically, early hipot testers were limited in sensitivity and lacked automation, which often resulted in human error and lower testing efficiency. These constraints highlighted the need for more advanced and reliable testing solutions.

AC/DC Hipot Testing MachineAC/DC Hipot Testing Machine

Modern hipot testers have transformed these processes by integrating automated testing capabilities. Automated systems reduce human error and significantly increase testing throughput. For instance, the HipotULTRA® series features automated test sequences, data logging, and enhanced user interfaces, providing engineers with precise control and comprehensive test reports. [2] This automation allows for consistent and repeatable testing, essential for maintaining high safety standards.

Advancements in sensitivity and voltage range have also been pivotal. Traditional hipot testers could only detect leakage currents in the range of 0.1 mA to 20 mA, which was insufficient for high-precision applications. Contemporary devices, like the Slaughter 260 series, measure leakage currents as low as 0.1 µA and can apply test voltages up to 20 kV. These capabilities are crucial for testing a wide range of components, from low-power consumer electronics to high-voltage industrial equipment, ensuring thorough insulation assessment.

Moreover, modern hipot testers are equipped with real-time monitoring and diagnostic tools, addressing the lack of dynamic feedback in older models. These features enable engineers to visualize insulation performance dynamically, making it easier to identify and address potential issues. For example, the Vitrek V7X series offers real-time graphs of voltage and current, which aids in the quick diagnosis of insulation faults, enhancing the reliability of the test outcomes. [3]

The table below compares traditional and modern hipot testing equipment, highlighting the key technical specifications and advancements:

Traditional Hipot Testers
Modern Hipot Testers
Low mA range (e.g., 0.1 mA to to 20 mA)
High µA range (e.g., 0.1 µA to 10 µA)
Voltage Range
Limited (e.g., up to 5 kV)
Wider (e.g., 1 kV to 20 kV or higher)
Automated Testing
Manual test setup and executionFully automated test sequences with programmable parameters
Data Logging
Limited or none
Comprehensive digital logging
User Interface
Basic controls
User-friendly digital interfaces with touchscreens
Real-Time Monitoring
Basic or limited monitoring
Real-time monitoring of voltage, current, and test parameters
Bulky and heavy
More compact and portable options are available

These advancements not only improve the accuracy and efficiency of hipot testing but also enhance the overall safety and reliability of electrical products. Some advanced Hipot testers can perform tests with both AC/DC voltage. By leveraging modern hipot testing equipment, engineers can ensure that their products meet the highest standards of electrical insulation and safety.

Enhanced Testing Techniques

Modern hipot testing has significantly evolved with the introduction of enhanced testing techniques such as real-time monitoring and advanced data analysis. These advancements have been driven by the need for more precise, reliable, and efficient testing processes.

Real-Time Monitoring: One of the key innovations in hipot testing is real-time monitoring, which allows engineers to observe the insulation performance dynamically as the test is conducted. Real-time monitoring utilizes high-speed data acquisition systems to continuously capture and display critical parameters such as voltage, current, and leakage. This immediate feedback helps in identifying insulation weaknesses or faults promptly, reducing the risk of undetected failures. Some Hipot testers have built-in analyzers that can measure leakage current, capacitance, and other parameters during the test, providing a more comprehensive picture of the DUT's health.

Advanced Data Analysis: Alongside real-time monitoring, advanced data analysis techniques have revolutionized hipot testing. Modern hipot testers employ sophisticated algorithms and software to analyze test data with high precision. These algorithms can detect subtle patterns and anomalies in the data that might indicate insulation degradation or potential failure points. Techniques such as trend analysis, predictive modeling, and machine learning are now commonly used to enhance the diagnostic capabilities of hipot tests.

The integration of these techniques has brought several key benefits:

  • Increased Accuracy: Real-time monitoring and advanced data analysis improve the accuracy of hipot testing by providing precise and immediate feedback on the insulation's performance.

  • Enhanced Reliability: By detecting potential issues early, these techniques enhance the reliability of electrical components, ensuring they meet safety standards.

  • Efficiency in Testing: Automated data analysis and real-time monitoring streamline the testing process, reducing the time required to conduct thorough hipot tests.

  • Predictive Maintenance: Advanced data analysis enables predictive maintenance by identifying trends that indicate impending insulation failures, allowing for proactive maintenance and reducing downtime.

  • Comprehensive Reporting: Modern systems can generate detailed reports that provide a comprehensive overview of the test results, facilitating better decision-making and quality control.

By leveraging these enhanced testing techniques, engineers can ensure a higher level of safety and performance in electrical components, meeting the stringent demands of today’s technological landscape.

Practical Applications in Engineering Projects

Hipot Testing in Manufacturing Processes

Hipot testing is crucial in manufacturing processes to ensure electrical products meet safety and quality standards. It is integrated into workflows to guarantee the insulation integrity of components and assemblies.

Hipot Testing in Manufacturing ProcessesHipot Testing in Manufacturing ProcessesHipot Testing in Manufacturing Processes

In industries like PCB (Printed Circuit Board) manufacturing and cable assembly, hipot testing is standard practice due to the high reliability required.

  1. Design Phase Integration: Engineers incorporate test points and accessible areas for hipot testing during the design phase, facilitating efficient testing without product damage.

  2. Initial Quality Checks: Prototypes undergo initial hipot tests to identify insulation issues early, allowing for design and process refinements before full-scale production.

  3. Automated Testing Systems: Modern facilities use automated hipot testing systems in production lines for rapid, consistent testing, minimizing human error and boosting throughput. For instance, automated testers in PCB manufacturing quickly apply high voltage to test dielectric strength.

  4. Routine Testing During Production: Hipot tests are conducted at various production stages. In cable assembly, each cable undergoes hipot testing to verify insulation can withstand operational voltages, preventing field failures.

  5. Final Quality Assurance: Finished products undergo final hipot testing to ensure they meet safety standards and perform reliably under specified conditions.

  6. Data Logging and Analysis: Modern hipot testers log detailed test results for analysis, identifying trends to improve manufacturing processes and product quality.

  7. Compliance with Standards: Hipot testing ensures compliance with industry standards and regulations, critical for market acceptance and certification.

In PCB manufacturing, integrating hipot testing prevents short circuits and insulation breakdowns. In cable assembly, it ensures cables handle required voltages without electrical leakage. VLF (Very Low Frequency) is a specific type of AC Hipot test that utilizes a very low frequency (typically 0.1 Hz or less). This is particularly useful for testing high-voltage cables as it minimizes cable stress.

Ensuring Compliance with Safety Standards

Hipot testing plays a crucial role in ensuring that electrical products comply with stringent regulatory and safety standards, such as those set by Underwriters Laboratories (UL) and the International Electrotechnical Commission (IEC). [4] These standards are designed to protect consumers and industries by ensuring the safety and reliability of electrical devices.

PCB Assembly undergoing Flying Probe TestPCB Assembly undergoing Flying Probe Test

UL Standards: Underwriters Laboratories is a globally recognized safety certification organization. Products that earn UL certification have undergone rigorous testing to meet specific safety standards. For example, UL 60950-1 specifies the safety requirements for information technology equipment, including insulation resistance and dielectric strength. Hipot testing is used to verify that the insulation can withstand high voltage without breaking down, ensuring the product's safe operation.

IEC Standards: The International Electrotechnical Commission develops international standards for all electrical, electronic, and related technologies. IEC 60601-1, for instance, is a standard for medical electrical equipment that includes requirements for electrical safety. [5] Hipot testing ensures that medical devices can operate safely under high-voltage conditions, preventing potential hazards such as electric shock to patients and operators.

Technical Requirements for Compliance: Compliance with these standards typically involves specific technical requirements for hipot testing. These include:

  • Voltage Levels: The test voltage applied is usually significantly higher than the normal operating voltage to ensure the robustness of insulation.

  • Leakage Current: The allowable leakage current is defined, and any excess indicates insufficient insulation.

  • Test Duration: The duration for which the high voltage is applied is specified to ensure the insulation can sustain stress over a period.

Consequences of Non-Compliance: Failing to comply with these standards can have severe consequences. Non-compliant products may pose safety hazards, leading to electrical shocks, fires, and equipment failures. Additionally, non-compliance can result in legal liabilities, financial penalties, and damage to the manufacturer's reputation. Regulatory bodies may also recall non-compliant products from the market, causing significant financial losses and operational disruptions.

Importance of Regular Testing: Regular hipot testing is essential to maintain compliance with safety standards. Over time, factors such as environmental conditions and material aging can degrade insulation. Regular testing helps identify these issues early, ensuring ongoing compliance and preventing potential failures. Implementing a routine hipot testing schedule as part of a comprehensive maintenance program is vital for ensuring long-term product safety and reliability.

Recommended Reading: Mastering PCB Testing: Techniques, Methods, and Best Practices Unveiled

Addressing Challenges and Considerations

Common Challenges in Hipot Testing

Hipot testing, while essential for ensuring electrical safety, presents several technical challenges. Addressing these effectively is crucial for maintaining test accuracy and reliability.

Equipment Calibration: One of the most significant challenges is maintaining accurate calibration of the testing equipment. Inaccurate calibration can lead to false readings, either indicating failures where there are none or missing critical insulation faults.

Solutions and Best Practices:

  • Regular Calibration: Establish a routine calibration schedule using standard reference materials to ensure consistency.

  • Professional Calibration Services: Utilize professional calibration services to verify the accuracy of hipot testers.

  • Calibration Records: Keep detailed records of all calibration activities to track the performance and maintenance of the equipment.

Environmental Factors: Environmental conditions such as temperature, humidity, and dust can affect hipot testing results. Insulation properties can change with temperature fluctuations, and high humidity levels can increase leakage currents.

Solutions and Best Practices:

  • Controlled Environment: Conduct tests in a controlled environment where temperature and humidity are regulated.

  • Environmental Monitoring: Use sensors to monitor environmental conditions continuously during testing.

  • Clean Testing Area: Ensure the testing area is free from dust and contaminants that could interfere with test results.

Operator Training: The proficiency of the operator conducting the tests can significantly impact the accuracy and reliability of the results. Inadequate training can lead to improper test setups and incorrect interpretations of data.

Solutions and Best Practices:

  • Comprehensive Training Programs: Implement thorough training programs for operators, covering all aspects of hipot testing.

  • Certification: Encourage or require operators to obtain certification in electrical testing.

  • Ongoing Education: Provide opportunities for continuous education and updates on the latest testing techniques and standards.

Practical Tips for Improving Test Accuracy and Reliability:

  • Pre-Test Inspections: Conduct thorough inspections of both the equipment and the test setup before initiating hipot tests.

  • Standardized Procedures: Develop and adhere to standardized testing procedures to minimize variability.

  • Use of High-Quality Test Leads and Probes: Ensure that all test leads and probes are of high quality and in good condition to prevent measurement errors.

  • Regular Maintenance: Schedule regular maintenance for testing equipment, i.e. transformers, and electric motors to prevent malfunctions and ensure long-term reliability.

  • Data Logging and Analysis: Utilize data logging features to capture and analyze test results for identifying patterns and potential issues.

Key Considerations for Effective Testing

Conducting effective hipot tests requires careful attention to several key considerations, ensuring accurate and reliable results.

Engineer using Insulation Tester to measure Insulation ResistanceEngineer using Insulation Tester to measure Insulation Resistance

Test Environment: The environment where testing is conducted plays a significant role in the accuracy of hipot tests. Environmental factors such as temperature, humidity, and cleanliness must be controlled to prevent interference with test results. Ideally, tests should be performed in a climate-controlled, dust-free environment to maintain consistent conditions.

Operator Training: The skill and knowledge of the operator are critical for the success of hipot testing. Proper training ensures that operators can correctly set up and execute tests, interpret results accurately, and troubleshoot any issues that arise during testing. Regular training programs and certifications help maintain high standards of competency among testing personnel.

Regular Maintenance and Calibration: Maintaining and calibrating testing equipment regularly is essential for ensuring the accuracy and reliability of hipot tests. Equipment should be calibrated according to the manufacturer's specifications, and maintenance schedules should be strictly followed to prevent equipment malfunctions. Detailed records of all maintenance and calibration activities should be kept to ensure traceability and compliance with industry standards.

Technical Guidelines for Maintenance and Calibration:

  • Calibration Frequency: Calibrate testing equipment at intervals recommended by the manufacturer or based on usage frequency.

  • Calibration Procedures: Follow standardized procedures for calibration, using traceable reference materials.

  • Maintenance Checks: Conduct regular inspections of test leads, connectors, and probes to ensure they are in good condition.

  • Documentation: Maintain comprehensive records of calibration and maintenance activities, including dates, procedures followed, and personnel involved.

Summary of Key Considerations and Best Practices:

Test Environment
Conduct tests in a climate-controlled, dust-free environment.
Operator Training
Implement regular training programs and certifications.
Equipment Calibration
Calibrate according to manufacturer specifications.
Maintenance Checks
Maintenance Checks
Keep detailed records of all maintenance and calibration activities.

Recommended Reading: Flying Probe Test: An Extensive Guide to the Technology and Applications


Hipot testing remains essential in safeguarding electrical products from failures, ensuring their security in various industries, and preserving electrical system integrity. Understanding the different types of Hipot tests, AC voltage, and DC voltage, allows engineers to tailor the evaluation to the specific material and application.  The evolution of Hipot testers from traditional, manual models to modern, automated instruments with advanced features has significantly improved efficiency, data analysis, and fault detection. Future hipot electrical safety testing technology may use AI and machine learning to improve data analysis and predictive maintenance capabilities. Advances in materials science could also lead to more robust and efficient insulation materials, further improving the effectiveness of hipot testing.

Frequently Asked Questions (FAQs)

Q. What is hipot testing and why is it important?

A. Hipot testing, short for high potential testing, is a method used to verify the electrical insulation of products by applying high voltage to ensure there are no insulation breakdowns. It is important because it ensures the safety and reliability of electrical components, preventing potential hazards such as electric shocks and fires.

Q. What are the different types of hipot tests?

A. The main types of hipot tests are:

  • AC Hipot Test: AC hipot tester uses alternating current to test insulation, providing a comprehensive assessment due to the reversing polarity.

  • DC Hipot Test: Uses direct current, suitable for testing components with high capacitance, providing steady state leakage current measurement.

  • Insulation Resistance Test: Measures the resistance of the insulation by applying a lower voltage, often used as a preliminary test.

  • Dielectric Breakdown Test: Involves increasing the voltage until the insulation fails, determining the maximum voltage the insulation can withstand.

Q. What are the factors considered during hipot testing?

A. Creepage distance is mainly considered during Hipot testing as it can impact leakage current. Similarly, DUT specifications, insulation quality, over-voltage, or partial discharge conditions are considered crucial while conducting a Hipot test. Parameters such as ground bond, ground continuity, earth ground, current limits, and power supply are also kept in mind.

Q. What are the common challenges in hipot testing?

A. Common challenges in hipot testing include maintaining accurate equipment calibration, controlling environmental factors like temperature and humidity, and ensuring operator proficiency. Overcoming these challenges involves regular maintenance, proper training, and creating controlled testing environments.

Q. How does real-time monitoring enhance hipot testing?

A. Real-time monitoring enhances hipot testing by providing immediate feedback on critical parameters such as voltage, current, and leakage. This allows for the dynamic observation of insulation performance, helping identify weaknesses or faults promptly and reducing the risk of undetected failures.
