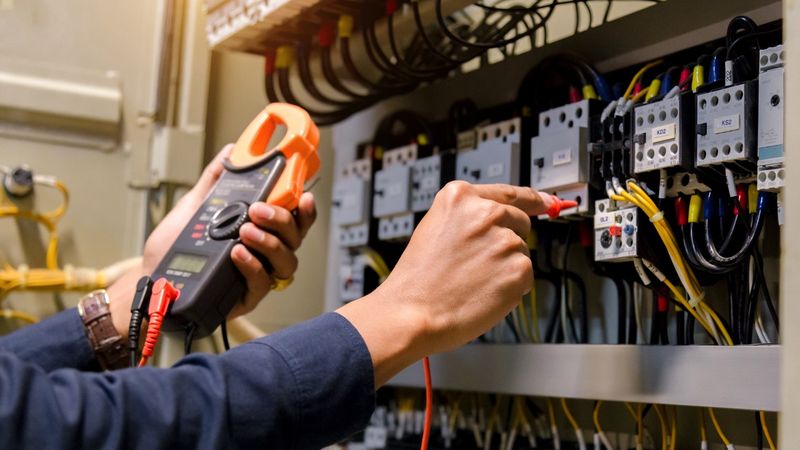

Electrical Testing: Comprehensive Guide for Engineering Professionals

A guide that elaborates the types and applications of electrical testing, evolution of testing methods, technological advancements and the challenges associated with electrical testing with the growing industrial demands.


Electrical testing is a cornerstone of engineering practice which ensures safe and effective operation of electrical systems and components. The electrical testing process involves applying electrical signals to a system to evaluate its performance under various conditions, which is crucial in industries where electrical failures can lead to catastrophic outcomes. For instance, in healthcare, a failure in electrical testing could compromise critical medical devices, while in transportation, it could result in system malfunctions leading to safety hazards.

Over the years, electrical testing has significantly evolved alongside advancements in technology and materials. These advancements have not only improved the accuracy of testing results but have also enhanced the ability to predict potential failures before they occur.  This article focuses on modern methodologies and technological innovations in electrical testing, from foundational concepts to the integration of cutting-edge technologies like IoT and AI.

Exploring the Core Principles of Electrical Testing

Electrical testing is quite versatile in terms of application and principles. For instance, there are various types of electrical testing, and it has undergone several innovations along the way. Moreover, electrical testing is heavily regulated by international standards, which dictate rigorous compliance to ensure the reliability and safety of electrical installations worldwide. Also, electrical testing has various applications in the industry and research and development, and it faces several challenges in real world applications.

Electrical Testing Methods

There are three critical electrical testing methods i.e,

  • Continuity Testing

  • Insulation Resistance Testing

  • Earth Testing

Each technique is essential for diagnosing system health and ensuring compliance with electrical safety standards.

Continuity Testing

Continuity testing checks for a complete path for current flow in an electrical circuit, typically using a multimeter or continuity tester.  It is essential for confirming secure connections and proper component integration within circuits. It is crucial in maintenance routines to prevent failures that could lead to system downtime or hazardous conditions.

Continuity tests were developed in the early stages of electrical engineering, as a quick method to verify the integrity of wiring and connections in telegraph systems.

Typically, these tests involve basic and low-cost electrical equipment like bulbs, and multimeters. In a typical continuity test, the two terminals provide voltage to the conductor. If there is any resistance in the current flow, it’s possibly an open circuit. The interruption in flow also indicates a potentially damaged or broken conductor in the circuit. Usually, multimeters are equipped with buzzers that indicate continuity in a circuit.

Continuity testing of an electrical fuse using a digital multimeterFig 1: Continuity testing of an electrical fuse using a digital multimeter

Continuity testing is a common part of electrical diagnostics. For instance, it is used to check cold soldering where a connection may appear connected but it’s not. Likewise, it helps identify broken power cords, and possibly damaged components in a PCB.

Suggested Reading: Mastering PCB Testing: Techniques, Methods, and Best Practices Unveiled

Insulation Resistance Testing

Insulation Resistance (IR) testing is one of the reliable and earlier techniques employed to assess the reliability of cables, windings, and electrical installations. It ensures that the insulation and quality is intact. It's commonly conducted on various cables and wires, often serving as a customer acceptance or production test with specified minimum insulation resistance per unit length.

The testing procedure involves a three-terminal device, typically a high-resistance ohmmeter, also known as a Megaohmmeter, or a megger. It determines how effectively the dielectric or insulation restricts the current flow.

There are four main types of insulation resistance testing:

  • Spot Reading Test - Operated for a short time, generally 60 seconds.

  • Time Resistance Method - Provides conclusive resistance data for a longer duration of time.

  • Dielectric Absorption Ratio - Calculates the ratio of two time resistances.

Insulation resistance testing is critical for preventing current leakages, and detection of wear and degradation in cables. For instance, it is used for regular maintenance of high-voltage equipment, especially where environmental factors can contribute to insulation breakdown.

Earth Testing

Earth testing is used to check the  effectiveness of an earth electrode system to safely divert fault currents to the ground. It is critical for ensuring the safety of personnel and equipment by facilitating the safe discharge of fault currents. Proper earth testing is a key compliance requirement in electrical installations across various industries.

In an earth test, the tester checks the resistance between the earth point on a power appliance and the switchboard. If the resistance is low, it means that the connection is safe and in case of a leakage, the current will flow to the earth point. On the other hand, a high resistance indicates the risk of electric shock, and even death.

Over the years, earth testing has evolved significantly with advancements in grounding technology, reflecting growing awareness of earth fault hazards in densely populated and technologically dense environments.

Advanced Diagnostic Techniques

Electrical testing has evolved from simple manual checks to highly sophisticated diagnostic processes. These developments have been driven by the need to enhance the reliability and safety of increasingly complex electrical systems.

Hi-pot electrical testing of Oil immersed transformerFig 2: Hi-pot electrical testing of Oil immersed transformer

Among the most critical of these advancements are dielectric testing, high-pot testing, and thermographic inspections, each tailored to address specific challenges in the field of electrical engineering. The following table summarizes these advanced testing methods.

Testing Method


Technological Advancements

System Interaction

Fault Identification


Dielectric Testing

Applies a non-destructive high voltage to electrical components to measure dielectric strength and insulating properties.

Modern dielectric testers incorporate digital readouts and automated features that allow for more precise measurements and reduce the likelihood of human error.

This method is crucial for detecting minute flaws in insulation materials that could lead to electrical breakdowns under stress.

Particularly effective at identifying voids, cracks, or imperfections in solid insulating materials.

  • Ensures the integrity of electrical insulations in critical systems such as in aerospace and electric vehicles.

  • Routinely used for quality control in manufacturing sectors that produce high-voltage electrical components.

High-Pot Testing

Involves applying high voltage to determine the adequacy of electrical insulation.

Recent models feature automated voltage ramping and data logging, enhancing safety and efficiency during testing.

Stresses insulation in a controlled manner to verify its ability to operate under elevated voltages.

Identifies areas of degraded insulation and pinholes in solid dielectrics that are not visible to the naked eye.

  • Critical for commissioning new electrical installations and verifying their safety before they are brought online.

  • Used extensively in utilities and power stations to prevent potential failures that could lead to large-scale power outages.

Thermographic Inspection

Uses infrared imaging to visualize and quantify temperature variations of electrical components under normal operating conditions.

Modern thermal imagers offer high-resolution imaging and real-time analysis capabilities, allowing for quicker identification of problems.

Identifies hot spots caused by defects in connections, components, or overloaded circuits.

Effective in pinpointing overheating issues, which are precursors to more serious electrical failures.

  • Invaluable in predictive maintenance programs within industrial environments, helping to avoid unplanned downtime by identifying equipment at risk of failure.

  • Essential in energy audits to ensure optimal operation of electrical systems in large commercial buildings.

High Voltage Insulation Resistance Testing

Used to measure the resistance of insulation materials in electrical components to ensure their integrity and safety.

Integration of automated testing systems and advanced diagnostic tools for faster, accurate, and comprehensive testing of insulation integrity in electrical components.

Integration of testing equipment with computerized control systems or software interfaces. This allows for automated testing processes, data collection, analysis, and reporting

Effectively pinpoints the breakdown, contamination, and degradation in components. Helps figure out weak spots before they escalate into a bigger problem.

  • Used in electric vehicle manufacturing for ensuring the integrity of high voltage components such as batteries, cables, motor windings, and charging systems.

  • Widely used in power generation and distribution facilities to assess the insulation integrity of transformers, generators, switchgear, and transmission lines.

Dielectric testing for breakdown voltagesFig 3: Dielectric testing for breakdown voltages

The enhanced focus on advanced diagnostic techniques indicates the industry's shift towards preventive maintenance and efficiency, ensuring that electrical systems not only meet the current standards but are also prepared for future challenges.

Innovations in Electrical Testing Equipment

Cutting-edge Tools and Technologies

Modern electrical testing equipment has advanced to unbelievable heights, thanks to a  relentless pursuit of accuracy, efficiency, and user-friendliness, shaping the modern landscape of electrical engineering.

From the early rudimentary devices aimed at basic functionality checks to today's highly sophisticated systems, the journey reflects a response to growing industry complexities and regulatory demands.

  • Smart Testers - Revolutionized traditional testing by incorporating digital interfaces, enhanced connectivity, and automated data analysis capabilities. Smart testers are widely used in telecommunications and automotive industries, enabling engineers to diagnose systems on-the-go and integrate findings with cloud-based analytics platforms for immediate action.

An engineer uses a smart testing device for ground testingFig 4: An engineer uses a smart testing device for ground testing

  • Automated Test Systems - These systems automate the execution of complex test sequences, ensuring consistent and repeatable results that are essential for high-volume manufacturing environments. These systems are mainly used in manufacturing lines such as semiconductor assembly lines, consumer electronics, etc.

Recommended Reading: Flying Probe Test: An Extensive Guide to the Technology and Applications

  • Advanced Oscilloscopes - Used for signal integrity analysis, essential for the development of high-speed communication equipment. Equipped with features like higher bandwidth and faster sampling rates, modern oscilloscopes cater to emerging needs in testing sophisticated electronic devices. These instruments are integral to research and development labs across technology sectors, pushing the boundaries of consumer electronics, medical devices, and automotive systems development.

Traditional vs. Modern Electrical Testing Tools


Traditional Tools

Modern Tools

Data Analysis

Manual interpretation

Automated, real-time analysis


Limited or none

Wi-Fi, Bluetooth, and USB

User Interface

Basic dials and screens

Advanced graphical displays


Fixed functions

Highly customizable


Slower testing cycles

Rapid testing capabilities

Integration with IoT and AI

The advent of the Internet of Things (IoT) and Artificial Intelligence (AI) has ushered in a transformative era in electrical testing, addressing the growing demands for scalability and the handling of complex data systems. These technologies are pivotal in transitioning from traditional reactive testing methods to proactive and predictive maintenance strategies, significantly enhancing system reliability and efficiency.

  • IoT Enhancements in Electrical Testing - IoT devices are essential for continuous data streams from electrical systems, facilitating real-time monitoring and analysis—an essential capability in large-scale operations to prevent failures and optimize performance. For instance, in renewable energy installations such as wind farms, IoT sensors track performance metrics across multiple turbines. The data collected is then utilized to adjust operations, ensuring optimal efficiency and minimizing wear and tear over time. Likewise, electrical testing has a deep connection with Industrial Internet of Things (IIoT) in ensuring timely delivery of sensory data.

Recommended Reading: What Is IIoT?

  • AI and Machine Learning in Diagnostics

    • AI algorithms and machine learning models process and analyze the data collected by IoT devices to identify potential issues before they become critical. This predictive capability is essential for maintaining continuous operations in industries where downtime can have significant financial implications.

    • Algorithm Example -  Machine learning models that analyze electrical load and performance data to predict equipment failures, allowing for maintenance to be scheduled during off-peak hours, thereby minimizing operational disruption.

Case Examples of IoT and AI Integration

IoT devices are commonly used in Advanced Metering Infrastructure to monitor smart grids. By analyzing data from IoT sensors across the network, these system predict areas at risk of overload and reroutes power to prevent outages and extend the lifespan of grid components.

Real-World Applications of Advanced Electrical Testing

Manufacturing Industry

Advanced electrical testing methods ensure that systems are both efficient and compliant with stringent safety standards. TIn the manufacturing industry, it is mainly used for manual inspections, but thanks to automation and advanced testing methods, it has optimized and improved production speeds and efficiency.

For instance, An automotive manufacturer employs automated impedance testing and dielectric withstand tests to ensure component integrity. Each component is tested for electrical safety and performance before assembly, aligning with global automotive safety standards.

An automotive engineer testing an electrical engine.Fig 5: An automotive engineer testing an electrical engine

As a result of comprehensive testing, it improves the production parameters such as:

  • Safety - Enhances the safety of vehicles by ensuring that all components meet strict quality controls.

  • Efficiency - Automation speeds up the production process and reduces the rate of defective products.

  • Compliance - Complies with international standards, reducing liability and enhancing brand reputation.

Utilities Industry

The utility sector has evolved with smart grid technologies, emphasizing advanced electrical testing for grid integrity. For instance, a utility company employs thermographic inspections and advanced circuit analysis to preemptively detect potential failures in substations and transformers.

This proactive approach ensures uninterrupted power supply by addressing issues before they escalate. Such measures reflect a broader industry trend towards preventive maintenance and risk mitigation.

By leveraging advanced testing methods, utility companies enhance operational efficiency and customer satisfaction while meeting the evolving demands of energy distribution systems.

Research and Development in Material Sciences

Electrical testing in research and development settings serves as the backbone of innovation, particularly in the creation of new materials and components essential for advancing modern technology. In material sciences, the development of new conductive materials, such as advanced polymers and composites, is critical for applications in high-tech sectors including aerospace and renewable energy. Electrical testing validates these materials’ performance under extreme conditions, ensuring their viability in high-stakes environments.

Breakthrough - Graphene-based conductive materials, for instance, have been tested for their superior electrical conductivity and mechanical strength, offering promising applications in flexible electronic devices and enhanced solar panels.

Recommended Reading: Unusual Superconductivity Observed in Twisted Trilayer Graphene

Component Innovation

Semiconductor industries rely heavily on electrical testing to assess the functionality and longevity of nanoscale components. Techniques such as electron beam testing and atomic force microscopy provide insights into the electrical behavior of components at the atomic level, crucial for the miniaturization of electronic devices.

Breakthrough - Innovations in microprocessor technology, where increased transistor density has been tested for efficiency and heat tolerance, have paved the way for faster, more efficient computing devices, impacting everything from consumer electronics to data centers.

Challenges and Considerations in Electrical Testing

Navigating the complexities of electrical testing is pivotal in ensuring the reliability and safety of electrical systems. With the evolution of technology, the challenges in this field have become more intricate, ranging from electromagnetic interference to the accessibility of system components embedded in complex assemblies.

  1. Interference Issues

    • Challenge: Electromagnetic interference (EMI) and radio frequency interference (RFI) can significantly distort diagnostic readings, leading to potential misdiagnoses and subsequent system failures.

    • Solution:

      1. Utilize advanced shielding techniques that incorporate materials designed to block or absorb unwanted electromagnetic fields.

      2. Implement state-of-the-art filtering solutions that are capable of isolating and diminishing the effects of interference, ensuring cleaner test data.

    • Real-World Impact: In telecommunications, addressing EMI and RFI has been crucial for testing base station transmitters, where accurate signal integrity is essential for network reliability.

  2. Complex System Behaviors

    • Challenge: Modern systems often involve multiple, interdependent components whose interactions can produce unpredictable behaviors, complicating troubleshooting efforts.

    • Solution:

      1. Leverage sophisticated simulation software to predict system behaviors under various scenarios before physical testing, thereby identifying potential issues in design.

      2. Segment complex systems into modular components for targeted testing, which simplifies the identification of problematic elements.

    • Real-World Impact: In the automotive industry, simulations and modular testing have been integral in developing advanced driver-assistance systems (ADAS), ensuring components interact seamlessly to enhance vehicle safety.

  3. Access to Critical Components

    • Challenge: Many modern systems are designed with compactness and efficiency in mind, which can restrict physical access to key components for routine testing.

    • Solution:

      1. Develop remote testing technologies that do not require direct physical access, such as non-invasive sensors and probes.

      2. Train technicians in specialized techniques for rapid disassembly and reassembly to minimize downtime and risk during critical tests.

    • Real-World Impact: In renewable energy systems, such as wind turbines, remote testing technologies enable regular diagnostics of critical components that are challenging to access, maintaining operational efficiency and preventing costly failures.


Throughout this article, we've explored the significant role that advanced electrical testing plays in ensuring the safety, efficiency, and compliance of various engineering projects. From foundational concepts to cutting-edge tools and techniques, electrical testing has proven indispensable in the development, maintenance, and innovation of engineering solutions. Staying abreast of the latest advancements in testing technologies and methodologies is not just beneficial—it is essential for any engineering professional aiming to lead in their field, ensuring that their skills and knowledge remain relevant and cutting-edge.

Frequently Asked Questions

  1. What is the significance of dielectric testing in electrical safety?

Dielectric testing involves applying a voltage higher than the operating level to an electrical component or system to ensure it can operate safely under normal conditions. It helps in identifying manufacturing defects or insulation failures.

  1. How do modern advancements in IoT and AI influence electrical testing?

IoT and AI have transformed electrical testing by enabling real-time data collection and analysis, improving predictive maintenance strategies, and reducing downtime through early fault detection.

  1. Why is interference a major concern in electrical testing, and how is it mitigated?

Interference can lead to false readings and misdiagnosis of system health. It is typically mitigated through shielding, proper grounding, and the use of filters to eliminate unwanted noise.

  1. What are the challenges of accessing critical components during testing, and how are they overcome?

Access issues can hinder effective testing and maintenance. Solutions include the use of non-invasive testing techniques, remote monitoring technologies, and designing systems with modularity for easier access.

  1. Can electrical testing improve the energy efficiency of a system?

Yes, through routine and thorough electrical testing, systems can be optimized for energy efficiency by identifying and correcting losses due to faulty components, misconfigurations, or inefficiencies.
