Renesas Electronics RZ V2N Evaluation Kit
RZ/V2N Quad-core Vision AI MPU Evaluation Kit
General
Product Type | RZ/V2N Evaluation Kit |
Applications | Prototyping & Development |
Key Features | 86 GPIO pins, 8GB LPDDR4X, 64MB xSPI Flash , 8 digital 24 V DC inputs |
Technical Specifications
Processor | RZ/VN Embedded AI Microprocessor |
PMIC | RAA |
Clock Generator | LB |
Memory | GB LPDDRX |
Flash Storage | MB xSPI Flash |
Interface | Gigabit Ethernet, USB ., USB ., PCIe Gen, MIPI CSI-, MIPI DSI |
GPIO | pins |
Applications | AI Cameras, People Counting, Parking Monitoring, Roaming Robots, and Driver Monitoring |
Overview

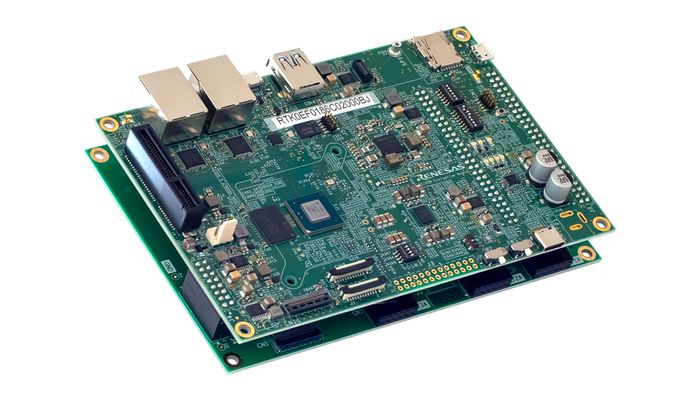

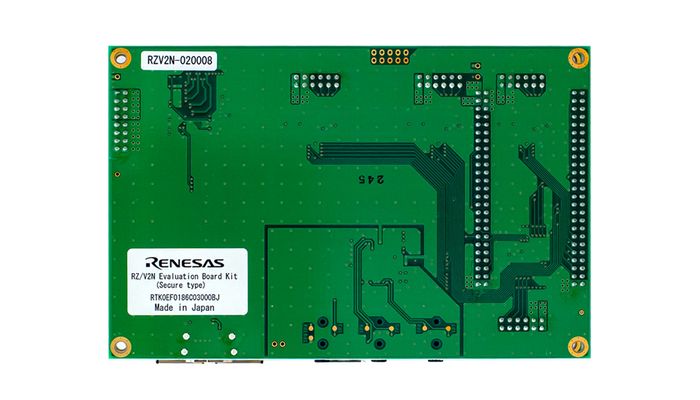

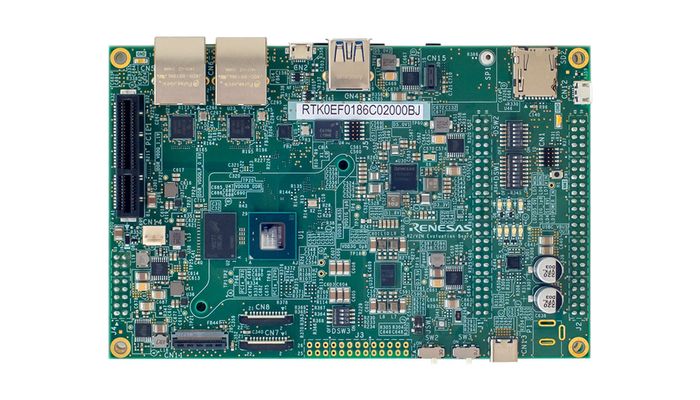

The Renesas Electronics RZ/V2N Evaluation Kit is a powerful platform designed for developing embedded AI applications. It centers around the RZ/V2N Mid-Range Embedded AI MPUs, offering robust processing capabilities. The kit consists of two boards: a compact main board (153mm x 100mm) and an expansion board. The main board integrates 8GB of LPDDR4X memory, 64MB of xSPI Flash, and flexible storage options including microSD and eMMC.
It features high-speed connectivity with dual Gigabit Ethernet, USB 3.2 Gen2, USB 2.0, and PCIe Gen 3. Imaging is supported by dual MIPI CSI-2 and a MIPI-DSI interface. The expansion board enhances functionality with HDMI Tx, Pmod interfaces, and audio I/O. This comprehensive kit provides a versatile environment for prototyping and validating AI-driven embedded systems.
Features of RZ/V2N Evaluation Kit
The Renesas RZ/V2N Evaluation Kit provides a comprehensive platform for embedded AI development. It integrates robust processing, versatile I/O, and extensive connectivity to facilitate rapid prototyping and deployment of AI-driven applications. Let’s explore these features in detail:
Modular Design and I/O Flexibility
The RZ/V2N Evaluation Kit offers a modular architecture with configurable I/O, making it adaptable for various embedded AI applications. Developers can tailor each I/O pin to specific industrial needs, utilizing eight digital 24VDC inputs, three analog sensor inputs, and two channels for encoder readings. It also includes programmable digital I/O, four analog outputs (0–10V, up to 20mA), and eight short-circuit-protected digital outputs. The modular expansion board further supports hardware upgrades such as HDMI output, Pmod connections, and advanced audio options. This modularity allows faster prototyping and adaptation for diverse industrial environments.
Real-Time Control and Embedded Intelligence
Designed for embedded AI tasks, the RZ/V2N processor of the kit, along with 8GB LPDDR4X and 64MB xSPI Flash, ensures high-speed processing for real-time edge computing. With support for MIPI CSI-2 camera inputs and MIPI-DSI display output, it enables the integration of vision-based applications and human-machine interfaces. An embedded RTC supports synchronized processes critical for precise timing and control tasks, while secure architecture and deterministic computing enable smart system behavior and predictive maintenance workflows.
Connectivity and Communication Capabilities
The platform includes advanced communication options such as dual Gigabit Ethernet ports, USB 3.2 Gen2 host, USB 2.0 OTG, and PCIe Gen 3 interface. It also supports CAN-BUS and RS232/422/485 protocols, making it compatible with standard industrial communication systems. Integrated wireless options like Wi-Fi® and BLE allow remote monitoring, cloud control, and over-the-air updates without external modules. The presence of Ethernet and serial ports enables fast data transmission and control, key for industrial automation and servitization models.
Robust Form Factor and Environmental Support
Engineered for reliability, the kit operates between -40°C to +85°C, making it suitable for harsh environments. With a compact footprint and DIN-rail-compatible housing, the main unit supports integration into space-constrained systems. Push-in terminals allow quick wiring and secure connection, reducing installation time. The power supply is regulated at 24V DC ±20%, ensuring stable operation. The system is CE, FCC, and RoHS certified, offering compliance for industrial deployments while supporting long-term stability without the need for external cooling.
Applications
The Renesas RZ/V2N Evaluation Kit supports a range of embedded AI applications. Its dual MIPI CSI-2 interfaces and robust processing capabilities facilitate the development of dashboard cameras and driver monitoring systems, as well as AI monitoring and visual inspection cameras. For smart spaces, it enables AI-based people-counting cameras, smart doorbells, and access control systems. In robotics, the kit's computational power and connectivity options are suitable for robot vacuum cleaners and lawn mowers. These applications leverage the ability of the kit to process visual data and perform real-time analysis, essential for automated systems and intelligent environments.
