project specification

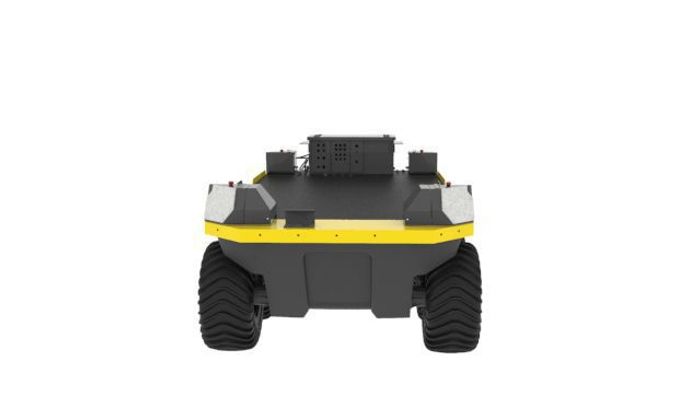

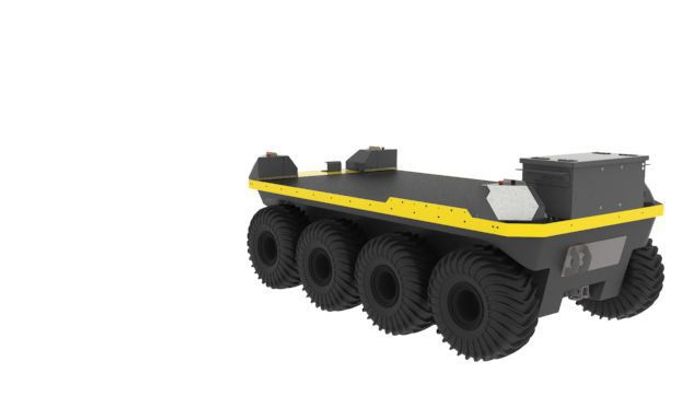

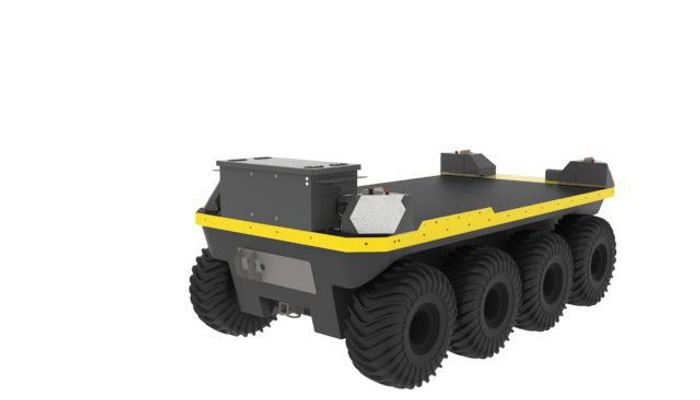

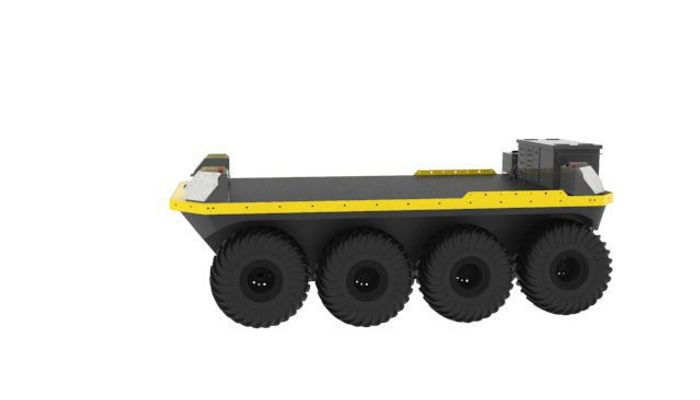

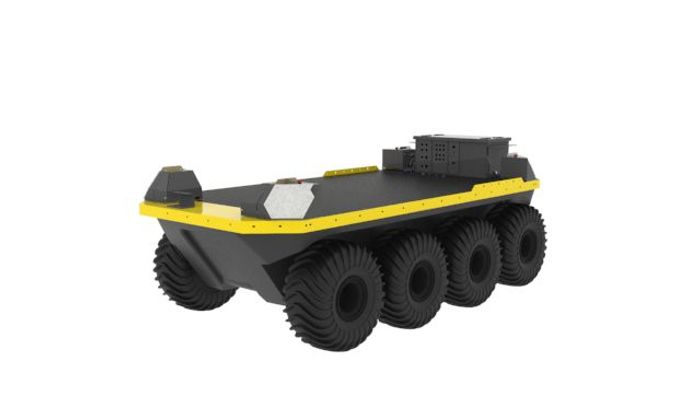

Moose Unmanned Ground Vehicle

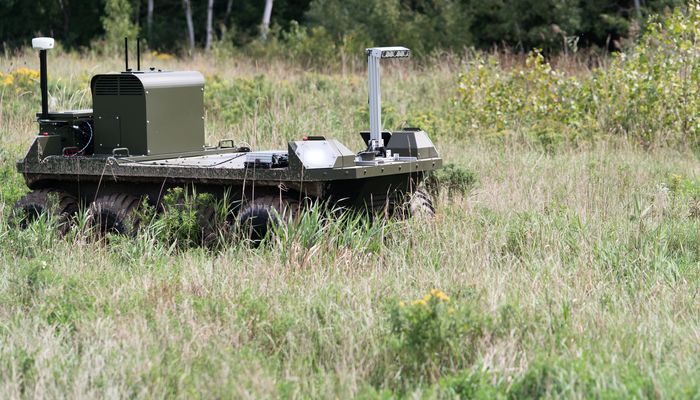

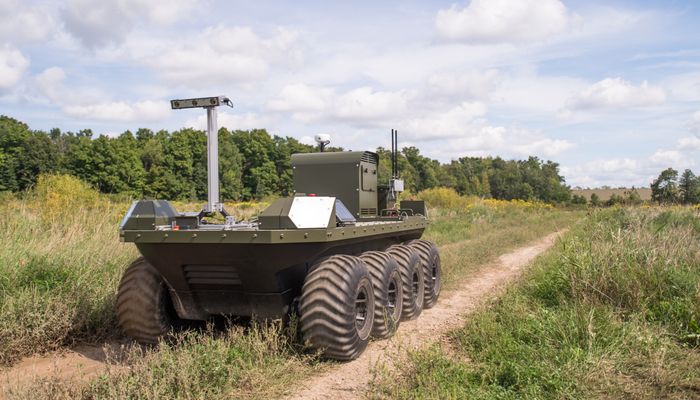

Moose UGV an handle tough environments with its rugged build, low ground pressure, and 8x8 traction tires, which allow mobility through soft soils, vegetation, thick muds, and steep grades. With a payload mounting area and accessible power and communication ports, Moose can be customized with sensors, manipulators and other payloads to accommodate a wide variety of robotics applications in mining, agriculture, construction and environmental monitoring.

Clearpath robotics

Specifications

• Size and weight

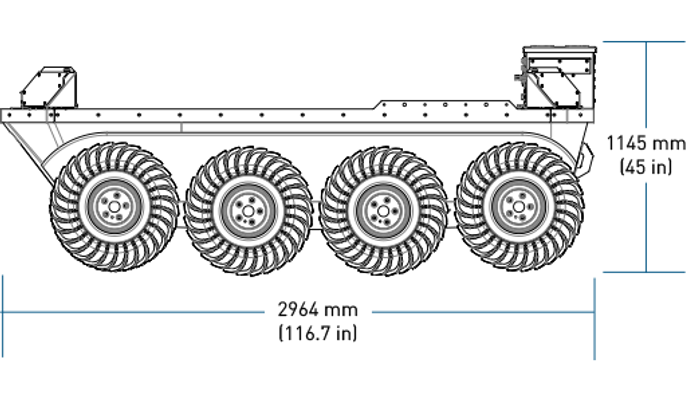

Length296 cm

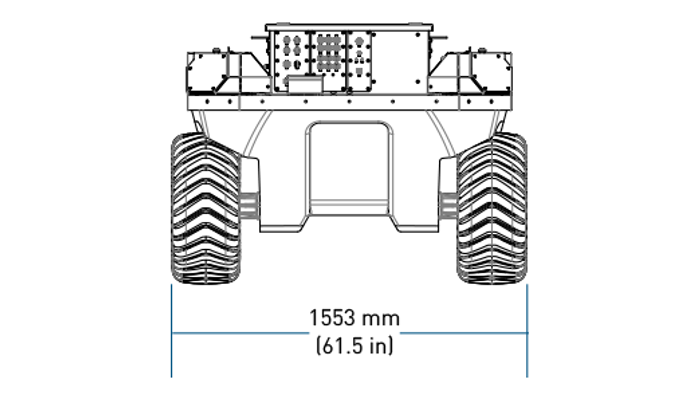

Width150 cm
Height114 cm
Base weight1590 kg
Gross weight1590 kg
• Speed and performance
Max payload513 kg
Max speed30 km/h
SuspensionFixed with low pressure tires
• Battery and power system
Battery chemistryLiFePO4
CapacityV 53 at Ah 400
Charge timechargers dual on hrs 12, charger single24 hours
Nominal run time6 hours
• Interface and communication
Control modesRemote control, computer controlled velocity comma
FeedbackBattery voltage, motor currents, wheel odometry
control system status, temperature, safety status
CommunicationEthernet, USB, Remote COntrol, Wi-Fi
Drivers & APIROS kinetic, Matlab API available
• Environmental
Operating ambient temperature-10 to 50 °C
Storing temperature-40 to 50 °C
IP RatingIP67 below top deck, IP 65 above top deck.
Vehicle designed to float, not fully submergedd=
AmphibiousFully amphibious, 4km/h max water speed

Overview

With a payload mounting area and accessible power and communication ports, Moose can be customized with sensors, manipulators and other payloads to accommodate a wide variety of robotics applications in mining, agriculture, construction and environmental monitoring.

Moose is rugged, lightweight steel and aluminum build gives it low ground pressure and traction to tackle all types of difficult terrains including steep grades and soft soils. With built-in bilge pumps and an IP rating of 65, Moose is fully amphibious, capable of moving through waterways at speeds up to 5 km/hr

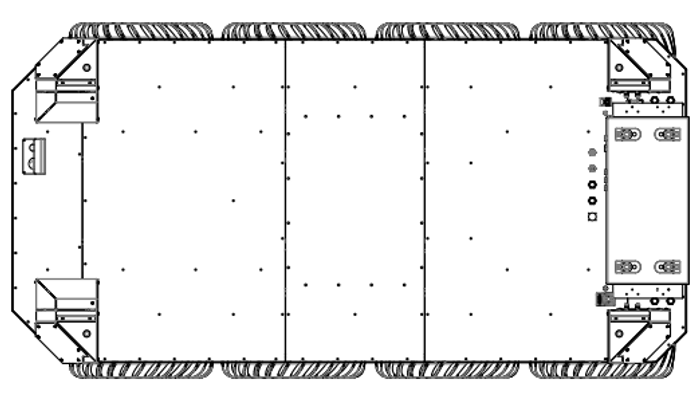

Users can integrate third-party sensors and components quickly and easily with flexible payload mounting, easy to access power and reconfigurable I/O (Ethernet, USB, WIFI, etc).

Moose’s drive-train is capable of moving 513 kg (1131 lbs) of payload and can reach speeds up to 30 km/hr on land. With the optional power generator, Moose is capable of operating for up to 6hrs.

Moose’s onboard PC comes with the open-source Robot Operating System (ROS) preinstalled and configured.

References

Clearpath Robotics Moose UGV Brochure which contains descriptions, images and specifications.

https://clearpathrobotics.com/

Show the different UGV's from CLearpath Robotics and the scale differences

https://clearpathrobotics.com/
