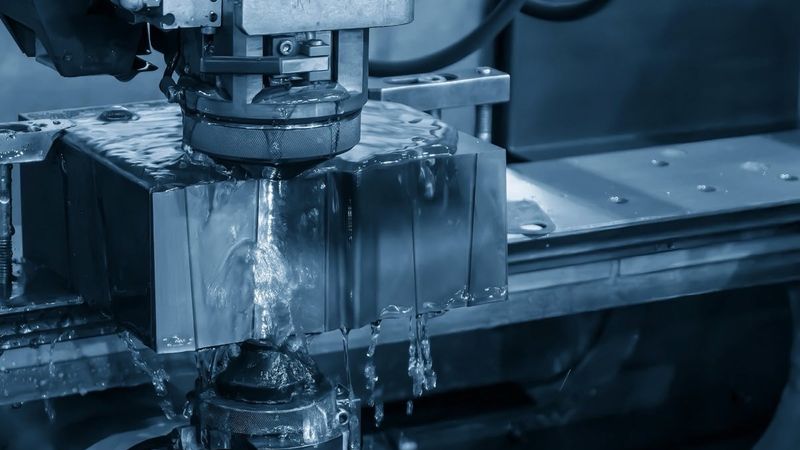

Wire EDM: Precision of Modern Engineering

Wire Electrical Discharge Machining (Wire EDM) has revolutionized precision machining, empowering manufacturers to tackle with intricacies in aerospace, medical devices, and electronics. This latest technology pushes boundaries with its ability to create complex shapes and achieve point accuracy.


While Wire Electrical Discharge Machining (Wire EDM) sounds complicated, the process essentially means using electricity to shape metal. Wire EDM uses electrical discharges via a thin electrically conductive wire. This machining process is typically applied to materials that don't respond to conventional machining methods [1].

The EDM process can produce fine surface finishes, tight tolerances, and complex shapes, making it useful in the aerospace, medical, and automotive industries. The method stands out because of its ability to manufacture parts that involve high precision or complicated designs. This article provides an in-depth understanding of the wire EDM process, its capabilities, applications, and challenges.

The Science Behind the Spark: Understanding the Basics of Wire EDM

There are several steps involved when using the EDM method to cut metal.


A metal workpiece and a thin electrically conductive wire are submerged in a dielectric fluid (deionized water) [2], which acts as a semiconductor. The metal and wire are then connected to a power supply.

Generating the Electric Discharge

When the power is turned on, a strong electrical field is created between the wire and the metal. This electrical field transforms the deionized water into a conductor, creating a path for the electricity.

Forming the Sparks

As the wire nears the metal, the electrical field intensifies, turning the deionized water into a plasma channel. Once the voltage passes a specific threshold, sparks occur between the wire and the metal, along the plasma channel.

Removing the Material

The sparks make contact with the metal's surface, and the thermal heat results in that area of the metal melting. The force of the sparks also chips away any molten material from the metal's surface. As the wire is fed through the meta (via a spool), the sparks continue to erode the metal's surface. This continuous erosion results in a metal that is shaped to a specific design.

Flushing the Metal Workpiece

During the process, dielectric fluid flows over the metal to remove any debris and cool the area.

The Physics Behind the Electrical Discharge Process

There are several physical principles involved during the EDM process.

  • Voltage: The driving force behind the electrical discharge process is the voltage, which is measured in volts (V). The electric field is created when a high voltage is applied between the metal workpiece and the wire electrode. This electric field ionizes the dielectric fluid or deionized water. The higher the voltage, the more intense the electric field. A higher voltage also means more energetic sparks.
  • Capacitance: Capacitance is measured in farads (F) and it is how well the system's circuit stores electrical charge, how quickly it can accumulate charge, and how fast it can discharge during the sparking process. When the system has a high capacitance, there will be more frequent and intense sparks. Capacitance can be altered by changing the shape of the electrodes, the properties of the fluid (deionized water or an electrolyte bath of paraffin), or even the distance between the metal workpiece and the wire.
  • Resistance: Resistance is measured in ohms (Ω), and it is essentially what slows down the flow of the electrical current. Higher resistance in the plasma channel means greater heating, which helps melt the metal workpiece. To improve the metal workpiece removal rates, machinists increase the resistance.

Recommended Readings: Electrical Discharge Machining (EDM): Everything you need to know

Key Components and Their Functions

Several key components make up a wire electrical discharge machining machine. These include:

Wire Electrode

The wire electrode is the thin electrically conductive wire that cuts through the metal workpiece. It is usually made from brass (as opposed to the sinker EDM method that uses an electrode made from copper, copper tungsten, or graphite). During the EDM process, the wire is fed through the metal while simultaneously being subjected to electrical discharges. The wire diameters can differ, and it is the diameter that determines how small the cuts will be.

  • Specifications: The wires used are very thin, with diameters ranging from 0.05 mm to 0.3 mm. The choice of material [3] determines how well it conducts electricity and, therefore, how well it will cut.
  • Interactions: The wire electrode sends electrical sparks to the metal workpiece, eroding the metal's surface. The programmed cuts then shape the metal into a specific shape.
  • Technological Advancements: Scientists have focused on improving the durability of the wire, its conductivity, and the surface finish. One useful advancement has been to coat the wire to provide thermal stability. A very thin layer of pure zinc (2-3μm) is often used to coat the wires. There have also been advancements in the wire spooling mechanism to improve how fast the wire moves through the spool (the feed rates).

Dielectric Fluid System

The dielectric fluid - typically deionized water or an oil-based solution - has three purposes. It conducts the electrical discharge, cools the metal workpiece and the wire electrode, and flushes away any debris. By continuously flushing away debris, the fluid prevents corrosion. Within the fluid, filters remove any suspended particles from the fluid. This helps maintain the machine's precision and extends the life of the individual components.

  • Specifications: The fluid used in the machine system affects how well it can handle electricity (dielectric strength), its ability to transfer heat (thermal conductivity), and how thick it is (viscosity). Common fluids used include deionized water and dielectric oil.[2]
  • Interactions: The dielectric fluid provides a path for the electrical discharge, it cools the metal workpiece and the wire electrode, and it flushes away any debris during the machining process.
  • Technological Advancements: Scientists working to improve the dielectric fluid focus on its dielectric strength, its thermal stability, and its environmental sustainability. Finer filtration [4] levels have been developed to improve the metal's finish and to reduce the number of times the machine backs up due to accumulated debris.

Power Supply Unit

The power supply unit delivers controlled pulses of electrical energy between the wire electrode and the metal workpiece. The power supply unit can be adjusted to control the sparks' intensity and frequency.

  • Specifications: The power supply unit delivers electrical pulses that range from tens to hundreds of volts, while the pulse durations range from microseconds to milliseconds. The voltage, current, and frequency can all be adjusted to control the intensity of the sparks as well as their frequency.
  • Interactions: By creating electrical discharges between the metal workpiece and the wire electrode, the machine can then create electrical sparks, which allows the wire to make small cuts.
  • Technological Advancements: Advancements to the power supply unit include adding digital control systems that can adjust the spark parameters and reduce wear and tear on the electrode.

Control System

Metalworking CNC milling machineMetalworking CNC milling machine

Without a control system or a CNC (Computer Numerical Control), the wire electrode would cut the metal workpiece randomly. The CNC acts like the brains of the machine, deciding what to cut and how to do it. The control system translates complex CAD/CAM designs into instructions the machine can understand. It also controls the movement of the wire electrode, the wire tension, and the wire threading.

  • Specifications: Software for CAD/CAM programming is integrated into the machine's CNC to direct and control all the machine's movements.
  • Interactions: The control system translates all software designs into instructions for the EDM machine so that the machine makes precise cuts that are in accordance with the specified designs.
  • Technological Advancements: With the rise of AI, there have been automation advancements, such as automatic wire threading [5][6]. This allows 24/7 production As some CNC systems can be complex, there have also been steps to create intuitive user interfaces to speed up productivity.

Suggested Readings: CNC Milling: A Comprehensive Guide to Understanding and Mastering the Technology

Recommended Readings: Process Control: A Comprehensive Guide to Implementation and Understanding in Industrial Systems

Recommended Readings: What is Distributed Control System (DCS)?

Workpiece Holding System

The workpiece holding system keeps the metal workpiece in place to ensure accuracy. The system typically includes vises and fixtures. Some complicated machining operations involve multi-axis positioning systems.

  • Specifications: The workpiece holding system is designed to firmly grip the conductive metal workpiece.
  • Interactions: The holding system minimizes any vibrations and movements during the time the metal workpiece's surface is being eroded. There are also quick-release mechanisms to speed up the machining process and adjustable clamps to reposition the metal workpiece.
  • Technological Advancements: Advancements have come in the form of better gripping properties to ensure there is no damage to the metal workpiece. There has also been an improvement in coatings to prevent slippage. AI has contributed to this area, too, with sensor-based monitoring capabilities. This reduces the need for human intervention that requires listening and watching for instabilities.

Cutting-Edge Innovations in Wire EDM Technology: Recent Technological Breakthroughs

Here are some of the latest advancements in EDM technology [7].

Precision Machining: Ultra-Fine Wire Electrodes

To achieve higher levels of precision, manufacturers have developed ultra-fine wire electrodes that have diameters as small as 0.02 mm. These ultra-fine wires provide even finer surface finishes, tighter tolerances, and greater accuracy when cutting metal workpieces, allowing micro-scale components to be produced.

Speed: High-Speed Machining

Manufacturers have developed high-speed machining to increase the feed rates of the wire and increase the cutting speeds. This allows manufacturers to produce more products faster and meet tight deadlines. There have also been improvements in the flushing systems, such as the inverted pressure flushing system [8], which allows more efficient removal of debris.

Materials: Improved Material Compatibility

There have also been advancements made with coatings. Coating the wires has improved thermal stability. In addition, better conductivity can be achieved with new alloys and coatings, improving the performance of the wire electrodes and extending their lifespans. Coating brass wire with zinc, for example, improved cutting speeds, straightness, and the tensile strength of the wire. The tensile strength of a high-speed brass wire is 142,000 + PSI versus 130,000 PSI for zinc-coated brass of the same diameter. Using coated wire can reduce production costs by up to 40%.

Multi-Axis Machining Capabilities

Some companies offer machines with multiple axes [9]. This allows complex cutting to be performed in one single setup. Essentially, one machine can have a rotary or tilt axis, for example, allowing the machine to cut from different angles. A machine with multiple axes reduces setup time and streamlines the machining process.

AI Algorithms

AI algorithms have transformed the EDM industry exponentially. Manufacturers have implemented AI-powered algorithms into their machines to analyze the software designs and translate them into language the machine can understand. This can be done in real time with the AI monitoring every parameter of the machine. AI-powered algorithms can also be used in other ways, including:

  • Monitoring for Wire Erosion: Using sensors and data analytics, AI can detect changes in the sparks that indicate there is erosion happening in the wire electrode.[6]
  • Monitoring for Gap Positions: The machine can monitor gap positions in real time and can automatically adjust to produce the best performance.
  • Following a Checklist: Once an operator inputs a "checklist" to follow, the AI-powered algorithm can ensure the entire checklist is followed and nothing is skipped due to human error.
  • Diagnosing Errors and Find Solutions: The Remote360 is an AI monitoring system that can diagnose an EDM machine and find solutions.

Enhancing Efficiency and Sustainability

Engineering solutions and innovations have been crucial in improving the sustainability and efficiency of EDM machines. Here are some examples.

Energy-Efficient Power Supplies

As mentioned above, the Remote360 machine can maximize the effectiveness of the EDM machine by monitoring it in real time. This not only minimizes energy waste, it can ultimately reduce operating costs.

More Efficient Wire Management Systems

The industry has also reduced production time by using advanced wire spooling mechanisms. New and more effective wire spooling mechanisms can ensure consistent tension and better feed rates during the machining process, avoiding interruptions in the workflow.

Green and More Sustainable Dielectric Fluids

Dielectric fluids include deionized water and oil-based solutions, such as hydrocarbon oil. However, oil-based solutions aren't particularly environmentally friendly due to their chemical makeup. Manufacturers have responded to this concern by developing eco-friendly dielectric fluids that are biodegradable and that have non-toxic ingredients [10][11]. Gaseous dielectrics and water-based dielectric fluids are options.

Closed-Loop Machining Systems

Closed-loop machining systems allow real-time monitoring and feedback to take place during the machining process. Adjustments can then be made as the machine conditions change. This reduces having to repeat the process due to an error. It also ensures consistent quality throughout. The Baoma BM500 closed-loop machine is an example. Some advantages this machine offers include two-step motors that provide four axes, a double-direction intelligent auto wire tension system, and the ability to directly upload your AutoCAD file format.

Improved Recycling and Filtration Systems for Dielectric Fluids

Improper disposal of dielectric fluids can significantly damage the environment. To help improve the recycling system for dielectric fluids, new companies are providing solutions. One example is the Engineered Fluids Recycling Program which provides companies with a low-cost or no-cost opportunity to recycle their used dielectric fluids. Oil-based dielectric fluids are recycled using standard waste oil reprocessing. The program's goal is to ensure heavy metals, PCBs, and similar toxins are not released into the environment.

Energy-Saving Modes in Newer Machines

Newer machines are now equipped with energy-saving modes, such as sleep modes when the machine is not in use for a specific amount of time. These modes reduce power consumption as they either shut down components that are not in use or lower the machine's output levels. In sleep mode, the energy usage equals that of a 100-watt light bulb.

Older machines use three pumps: one to filter the fluid, one for recycling the resin, and a large pump for the high-pressure system. Newer machines come with more than three pumps, spreading out the load and allowing the machine to run for a shorter time.

Finally, older machines have powder magnetic brakes and analog DC servo motors while newer machines use DC motors and digital AC servo systems. These updates require less energy to operate.

Overall, newer machines consume about 30% less energy than older EDM machines.

Wire EDM's Role in Engineering Marvels: Real-World Applications and Case Studies

Here are several real-world applications where the technology has been crucial in manufacturing complex components.

Aerospace Industry

Wire electrical discharge machining has been used to effectively drill diffuser holes in turbine blades for jet engines [12]. These holes are important for ventilation and cooling. As the holes needed to be intricate, small, and of a specific shape, finding a custom EDM solution was critical. The EDM process used also minimized distortion of the surrounding metal.

Medical Industry

The EDM process is also critical for orthopedic implants, surgical instruments, and dental prosthetics. Titanium and titanium alloy bone screws for orthopedic implants are created using the EDM process. Each bone screw must be customized for the patient's anatomy. This requires a great deal of precision and accuracy.

Automotive Industry

EDM machining is used for fuel injectors, engine valves, and transmission gears. The process is also used to create detailed plastic injection molds for vehicle interiors. Vehicle manufacturers have been on a mission to create vehicles that weigh less. To achieve their goals, they have replaced metal with high-performance plastic injection molds.[13]

How the Wire EDM Machine Addresses Specific Engineering Challenges

Some of the reasons the aerospace, medical, and automotive industries use the EDM process is due to the intricate shapes and high precision that can be achieved with this method.

Complex Geometries

Ultra-fine wire electrodes with a diameter of 1.02 mm or less can create detailed bone screws for the medical and dental industry. These same wire electrodes can guarantee a high-quality surface finish on turbine blades for jet engines.

Hardened Materials

Working with titanium and titanium alloys, especially in the medical industry, can be challenging due to their hardness and resistance. However, the EDM process allows thermal erosion to be applied in a selective area without damaging the material around it. This is especially beneficial for turbine blades.

Low-Volume Production

With AI-powered EDM machines, companies can manufacture bone screws in low volumes and as needed. In addition, the standby and sleep modes ensure a minimum of energy is used during the production process of prototypes

Navigating the Challenges: Technical and Ethical Considerations

While the wire-cut EDM process has proven highly effective in many industries, there are still challenges, both technical and ethical.

Maintaining Precision in Complex Cuts

Due to the intricate cuts needed for the aerospace or medical industry, maintaining precision can be challenging. To address this issue, one of the solutions has been updating the CAD/CAM software. By using software with specific "toolpaths", the machine can follow detailed instructions on where and how to cut. The CAD/CAM software also allows simulation capabilities that allow engineers to see how and where the machine will cut even before the cutting process begins. Furthermore, newer machines have higher-resolution CNC machining control systems that allow for more precise motion control and better positioning.

Managing Material Waste

Unfortunately, the EDM process can generate a lot of material waste, whether it's dielectric fluid, machining debris, or leftover metal from the workpiece material. When the machining process is used on a large scale, this can add up to tons of gallons daily.

Some ways industries can manage their material waste is by installing better filtration systems, maximizing the metal workpiece materials they use, and signing up with local recycling programs to dispose of their used dielectric fluid.

Surface Integrity

While the EDM process using wires often creates smooth finishes, there can be surface irregularities. These imperfections may affect the accuracy required.

One of the ways the industry has tried to solve this problem is by developing multi-pass machines. By controlling the way the metal is cut, new machines can provide smoother surface finishes. Another way to maintain the surface integrity is to invest in machines that use pulse control technology. This technology can adjust the frequency of the sparks, the duration, and even the waveform shape while allowing machinists to count the number of discharge pulses.[22] Fine-tuning these details can help minimize the damage to the metal workpiece. An example of a machine using pulse control technology is FANUC's Ai Pulse Control II.


As precise as the EDM process is, sometimes micro-cracks form. This can be due to intense localized heating or thermal stresses. While these micro-cracks may not be visible to the naked eye, they can worsen over time and eventually damage the metal.

Innovations, such as pulse-skipping techniques and low-energy pulsing, have helped reduce the heat applied to the cutting area. By reducing the heat, the risks of micro-cracks can be lowered. Other ways to reduce the risks of micro-cracks involve stress relief annealing.[14]

Disposing and Recycling of Consumables

Improper disposal of used wire electrodes can contaminate the surrounding water and soil due to the metal that leaches from the wire electrodes. To correctly dispose of used wire electrodes, companies should collect them, package them, and dispose of them following the county's guidelines for disposal of metal waste. Alternatively, recycling companies can reclaim the metal material used in wire electrodes and reprocess the metal to either produce other metal products or new wire electrodes.

Used dielectric fluid can be purified and reused in EDM processes or other industrial processes. Because disposal procedures must follow environmental regulations, companies should dispose of their used dielectric fluid by signing up with a company offering a recycling program.


The wire-cut EDM method has become an important technology in the manufacturing process as it allows for precision and efficiency when making intricate cuts to hard conductive metal. This technology has been instrumental to industries, like the aerospace, medical, and automotive industries. Diving deeper into this technology can create opportunities for new ideas and discoveries, which can lead to ongoing growth in the field of EDM machining.

Frequently Asked Questions

1. What materials can be processed with wire electrical discharge machining?

The wire-cut EDM method can process a variety of conductive materials. These include steel, aluminum, stainless steel, titanium, copper, brass, and tungsten. Exotic alloys, like Hastelloy and Inconel, can also be processed using the EDM method. Finally, hard materials such as carbides and tool steels can be processed as well.

2. How does wire electrical discharge machining compare to traditional machining methods in terms of precision and efficiency?

The wire electrical discharge machining method provides greater precision. The cutting tools don't touch the metal, unlike traditional machining methods, so there is less wear and tear during the cutting process as a result. The wire also provides a micro-level of accuracy, which is very beneficial in industries like electronics. Furthermore, the method allows industries to produce complicated shapes quickly with less waste.

3. What are the environmental impacts of wire electrical discharge machining, and how can they be mitigated?

The environmental impacts typically include improper disposal of the used dielectric fluid and wire electrodes. To mitigate these impacts, proper disposal and recycling practices must be implemented. Industries can also switch to eco-friendly dielectric fluids.[2]
