The STM32H7S78-DK Discovery Kit by STMicroelectronics is a complete demonstration and development platform for the Arm Cortex‑M7 core‑based STM32H7S7L8H6H microcontroller. Beyond the core, the development kit features a range of peripherals for comprehensive evaluation. This includes interfaces like USB Type-C, Octo-SPI flash memory, and audio codec support. Onboard digital microphones, ADC (Analog-to-Digital Converter), and user buttons further enhance development flexibility. Four flexible expansion connectors allow developers to customize the board for specific applications.

Whether you require wireless connectivity, advanced sensor integration, or analogue applications, the STM32H7S78-DK can adapt to your needs. The embedded STLINK-V3EC debugger/programmer simplifies development, while the comprehensive MCU Package offers all the necessary software tools. This discovery kit is suitable for developers looking to explore the capabilities of the STM32H7S7L8H6H microcontroller.

STM32H7S78-DK Discovery Kit Features

STM32H7S78-DK Discovery Kit offers a powerful core MCU, a vast array of peripherals for evaluation, and a user-friendly development environment. Let’s explore its notable features.

Hardware Features and Connectivity

The STM32H7S78-DK offers a robust foundation for embedded system development. At its core is the Arm Cortex-M7 based STM32H7S7L8H6H microcontroller, providing powerful processing capabilities. The kit integrates essential communication interfaces such as USB Type-C (with both HS and FS modes), Ethernet, and Wi-Fi for seamless connectivity.

Additionally, it includes audio functionalities like an I2S audio codec and a digital microphone, enabling audio-related applications. To support various input and output requirements, the kit provides a variety of connectors including USB Type-C, Ethernet RJ45, camera connector, microSD card slot, and expansion headers for Arduino, STMod+, and Pmod modules.

User Interface and Expansion Capabilities

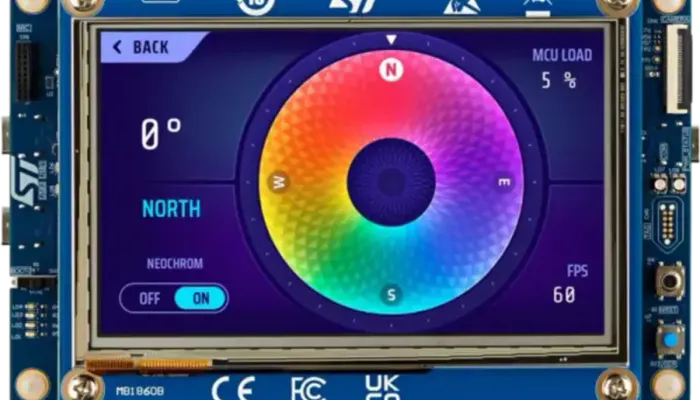

The STM32H7S78-DK Discovery Kit provides a user-friendly interface with a 5-inch LCD module equipped with a capacitive touch panel for intuitive interaction. Four user LEDs and dedicated push buttons offer visual feedback and control. The kit's versatility is further enhanced by multiple expansion connectors, including an audio MEMS daughterboard connector, allowing for customization and integration of additional components. These features empower developers to create engaging and interactive user experiences.

On-board Configuration and Memory

The STM32H7S78-DK Discovery Kit incorporates essential onboard resources to support development efforts. It features 1-Gbit Octo-SPI NOR flash memory for code storage and 256-Mbit Hexadeca-SPI PSRAM for data handling. These memory options provide ample space for application code and data. Furthermore, the kit includes a microSD card slot for additional storage expansion, offering flexibility for data-intensive projects.

Development Tools and Software Support

To streamline the development process, the STM32H7S78-DK Discovery Kit comes equipped with an onboard STLINK-V3EC debugger/programmer, providing essential debugging and programming capabilities. The kit is accompanied by a comprehensive MCU Package that includes free software libraries and examples, accelerating development efforts. Developers have the flexibility to choose from a wide range of Integrated Development Environments (IDEs) such as IAR Embedded Workbench, MDK-ARM, and STM32CubeIDE, allowing them to work with their preferred development tools.

Applications

The STM32H7S78-DK Discovery Kit is a versatile platform with applications spanning various domains. Its high-performance core and rich peripheral set make it ideal for audio processing, motor control, and human-machine interface development.

Additionally, the kit is well-suited for industrial automation, medical devices, and IoT applications requiring advanced connectivity and data processing. With its flexible expansion options, developers can create custom solutions for smart home, wearable technology, and other innovative projects. Whether you're working on audio processing, motor control, or industrial automation, the STM32H7S78-DK empowers you to bring your ideas to life efficiently.
