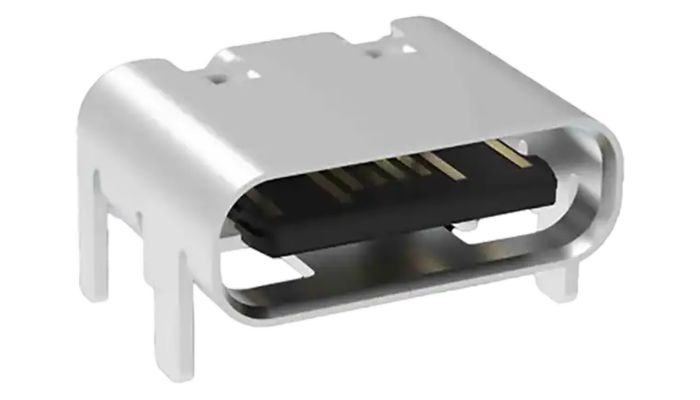

Amphenol Commercial USB Type-C Connector System

The Amphenol Commercial USB Type-C Connector System offers a compact, reversible interface supporting data transfer rates up to 40 Gbps (USB4 Gen3) and power delivery up to 240W (48V, 5A). It accommodates USB 2.0, USB 3.2 Gen1 (5 Gbps), and Gen2 (10 Gbps) protocols. The system facilitates audio and video signal transmission via alternate modes. Available in vertical, right-angle, and straddle-mount configurations, including waterproof options, its dimensions are comparable to Micro USB. Electrical specifications include an insertion force of 5N to 20N, an extraction force of 8N to 20N (6N to 20N after durability), a maximum initial contact resistance of 40mΩ, and a minimum initial insulation resistance of 100MΩ. It withstands 100VAC and operates between -40°C to +85°C, with a durability of 10,000 mating cycles.

Features of USB Type-C Connector System

The Amphenol Commercial USB Type-C Connector System offers high-speed data transmission, enhanced power delivery, and versatile mounting options. This makes it suitable for advanced electronic designs across multiple industries. Let’s explore some more features in detail:

Protocol Support and Data Transfer

The USB Type-C Connector System supports a wide range of USB standards, including USB 2.0, USB 3.2 GEN1 (5 Gbps), USB 3.2 GEN2 (10 Gbps), and USB4 GEN3, which delivers data rates up to 40 Gbps. This allows compatibility across legacy and high-speed devices. The system also supports alternate mode functionality, enabling the transmission of audio and video signals over the same connector.

Power Delivery and Mechanical Performance

This connector system supports USB Power Delivery (USB PD) with extended current ratings up to 5A, enabling power transmission of up to 240W (48V). It is engineered for mechanical robustness, with 5N–20N insertion force and 8N–20N extraction force, decreasing to 6N–20N after extended use. The connectors are rated for 10,000 mating cycles, ensuring reliable long-term operation in industrial and consumer environments.

Design and Mounting Options

Designed for compact and next-generation electronics, this USB Type-C system features a low-profile, reversible plug and cable orientation. Its form factor is similar to Micro USB, aiding integration into small devices. The connector is available in various configurations, including vertical, right-angle, straddle-mount, and waterproof types, making it suitable for applications across telecommunications, solid-state drives, chargers, industrial PCs, and medical devices.

Material Construction and Environmental Ratings

The connector housing is built from a high-temperature polymer rated to UL 94V-0 flammability standards, offering fire resistance and thermal stability. It includes copper alloy contacts for efficient conductivity and a stainless steel shell for added shielding and durability. It operates in a wide temperature range of -40°C to +85°C, with initial contact resistance ≤ 40mΩ, insulation resistance ≥ 100mΩ, and a withstand voltage of 100VAC, meeting the environmental and electrical demands of advanced systems.

Applications

The Amphenol Commercial USB Type-C Connector System is engineered for a broad range of high-performance applications. It is ideally suited for power delivery and data transfer in chargers, car media players, connector hubs, and telecommunication systems, where compact and reversible interfaces are critical. In consumer electronics, it supports flash drives, mobile phones, tablets, monitors, and notebooks, enabling fast charging and high-speed data communication. Its robust design makes it reliable for IoT devices, VR cameras, POS systems, and medical electronics. The high current and data capabilities are essential in hard disk drives, solid-state drives, and industrial computing systems, ensuring long-term durability.
