Plasma Cleaning: Cutting-Edge Innovations, Core Principles, and Real-World Applications

Introduction

Plasma cleaning represents a revolutionary approach to surface cleaning, using ionized gas to eliminate organic contaminants from material surfaces meticulously. Industries like semiconductor manufacturing, biomedical device fabrication, and automotive assembly benefit from this plasma cleaning process, which offers superior cleanliness compared to traditional chemical cleaning and solvents. By generating a gaseous plasma with ions and electrons, plasma technology achieves remarkable surface modification and surface preparation without the drawbacks of older cleaning methods. Understanding both the physics of plasma and its engineering applications enables professionals to leverage this technology for innovation and sustainability in product design and manufacturing. This knowledge empowers engineers and advances how industries address surface contamination.

Underlying Principles of Plasma Cleaning

Plasma, often termed the fourth state of matter, plays a crucial role in industries that require high precision and cleanliness at the molecular level. Understanding the underlying principles of plasma cleaning is crucial for its effective application in surface contamination removal, as well as in advancing product design and manufacturing processes.

The Physics of Plasma

Plasma cleaning is based on the ionization of gases, where an electric field energizes a process gas—such as argon, oxygen, or hydrogen—creating a plasma composed of free-moving electrons and ions. These charged particles initiate chemical reactions that effectively remove surface contaminants without the need for harsh chemicals or abrasives.

In industries like semiconductor manufacturing, low-temperature plasma (e.g., argon or oxygen plasma) is commonly used to clean delicate substrates. This process removes particulates and films from sensitive materials without risking damage. For example, argon plasma is frequently applied to prepare silicon wafers for further processing, ensuring a contaminant-free surface that is essential for optimal device performance.

In contrast, high-temperature plasma is employed to clean more robust materials, such as metals used in aerospace applications. Plasma treatment at higher temperatures prepares metal surfaces for coating and bonding, ensuring a clean, well-prepared surface that improves adhesion and performance. Hydrogen plasma and air plasma are also widely used for their versatility, effectively cleaning various materials, including plastics and ceramics, by breaking down organic contaminants.

Understanding the physics behind plasma cleaning and its ability to ionize gases is critical for harnessing its potential across different engineering fields. The varying energy states of plasma—low or high temperature—allow for targeted surface treatments tailored to the specific needs of different industries.

Recommended reading: Silicon Wafers: Production, Properties and Application

The Mechanism of Plasma Cleaning

Plasma cleaning utilizes ionized gases to clean surfaces at the molecular level, offering precise and efficient removal of contaminants. The process begins by applying electrical energy to a gas within a chamber, which strips electrons from atoms, creating a reactive plasma made up of electrons, ions, and neutral species. When directed onto a substrate, this plasma interacts with contaminants, effectively breaking them down and lifting them off the surface.

Oxygen plasma is commonly used to remove organic contaminants, as the oxygen radicals react with hydrocarbons, converting them into volatile byproducts that can be evacuated from the chamber. In contrast to traditional cleaning methods, which rely on harsh solvents, plasma cleaning is a more environmentally friendly alternative, eliminating the need for chemicals and reducing hazardous waste.

The effectiveness of plasma cleaning is enhanced by the precise control over plasma characteristics. Parameters such as power input, pressure, and gas composition can be adjusted to tailor the cleaning process to different substrates, including metals, ceramics, and polymers. This activation of the surface ensures that contaminants are thoroughly removed while minimizing the risk of damage to delicate materials.

Plasma cleaners are widely used in industries like semiconductor manufacturing, where they play a critical role in reducing defect rates. By ensuring ultra-clean surfaces, plasma cleaning improves the reliability and performance of electronic devices, making it a crucial tool in precision applications.

Cutting-Edge Developments in Plasma Cleaning

Plasma cleaning technology has evolved rapidly over recent years, driven by advancements in materials science, engineering, and process control. As industries continue to demand more efficient, precise, and environmentally friendly cleaning solutions, researchers and engineers are pushing the boundaries of plasma cleaning in several key areas.

Recent Technological Innovations

Recent innovations in plasma cleaning technology have significantly improved its application across industries that require high precision with minimal surface damage. One major breakthrough is pulse power technology, which delivers short bursts of high-energy plasma. This method reduces thermal stress on delicate components, increasing the durability and integrity of products such as aerospace and electronic devices. For example, pulse power technology has enabled electronics manufacturers to lower defect rates in critical equipment, leading to improved reliability and greater customer satisfaction. The ability to control the energy of the plasma allows manufacturers to perform surface cleaning on sensitive devices without causing thermal damage, a challenge with traditional methods.

Another key advancement is microplasma technology, which operates effectively at atmospheric pressure. This eliminates the need for complex vacuum chambers, simplifying the setup and significantly reducing operational costs. Microplasma systems have found wide applications in automotive manufacturing, where they provide an environmentally sustainable cleaning process. Unlike traditional methods that use harsh chemicals or solvents, argon plasma and oxygen plasma are used to remove organic contaminants and residues from surfaces, aligning with efforts to reduce hazardous waste and enhance energy efficiency. These systems offer reliable performance, ensuring that parts are thoroughly cleaned before painting or coating, which is crucial for adhesion and long-lasting finishes. The dual benefits of lower costs and improved environmental standards highlight the ongoing innovation in plasma cleaning technologies.

These technological improvements not only increase the efficiency of plasma cleaning but also bring significant sustainability advantages, making them an essential part of modern manufacturing processes.

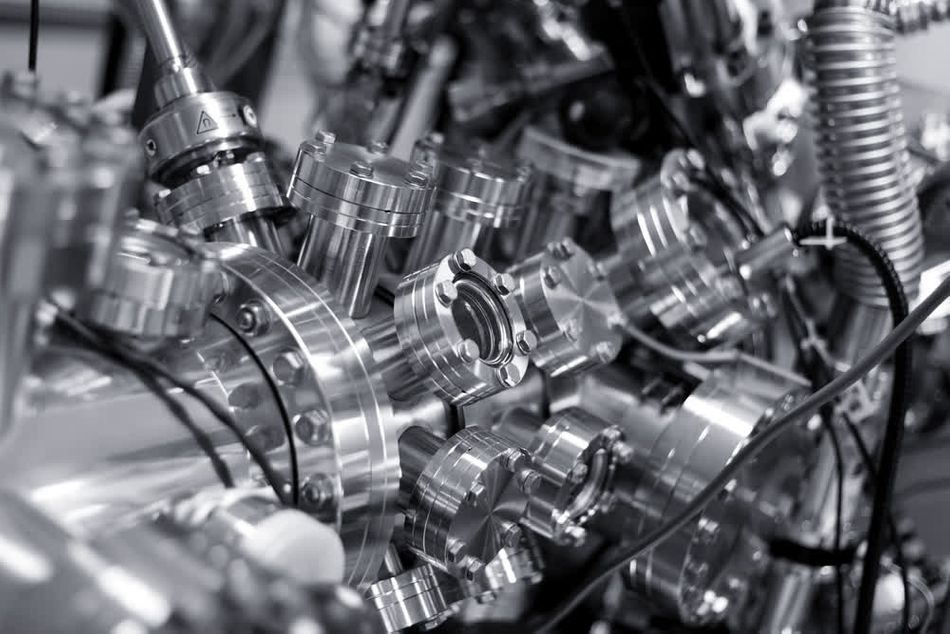

Advanced Ultra-High Vacuum Systems for Surface Treatment Applications

Emerging Trends in Plasma Applications

Plasma cleaning technology is evolving beyond its traditional applications, with new uses emerging across various sectors. In solar panel manufacturing, plasma treatment plays a critical role in preparing metal surfaces and ceramics for the production of photovoltaic cells. By removing contaminants like dust or grease, oxygen plasma ensures that the surface is free of impurities that could reduce the efficiency of solar cells. The result is a more reliable and sustainable energy source, which aligns with global efforts to improve renewable energy technologies.

In the healthcare industry, plasma cleaning is proving invaluable in the sterilization of medical devices. Unlike conventional sterilization methods that often rely on high temperatures, plasma cleaning works at lower temperatures, which reduces the risk of damaging sensitive instruments. This activation of surfaces ensures thorough cleaning while preserving the integrity of expensive medical equipment, extending its lifespan and ensuring patient safety.

Additionally, the automotive industry benefits from plasma technology in surface preparation before painting or coating. Plasma cleaning enhances the adhesion of coatings, improving the durability and longevity of vehicle parts. By removing oxide layers and organic residues, argon plasma and oxygen plasma treatments ensure that the surface is clean and ready for coating, leading to superior finishes. This not only enhances the aesthetic value of automotive components but also increases their resistance to wear and environmental damage.

These emerging trends demonstrate the broad applicability and growing importance of plasma cleaning technology across various industries. Whether it’s enhancing the performance of renewable energy systems, improving medical device sterilization, or preparing automotive parts for coating, plasma cleaning is becoming an integral part of many high-tech manufacturing processes.

Recommended reading: Bringing circularity to the solar panel industry

Operational Challenges and Solutions in Plasma Cleaning

Plasma cleaning faces several operational challenges, including maintaining precise control over the process gas composition and energy levels to ensure consistent results. Variability in parameters such as power, pressure, and electrode configuration can lead to inconsistent cleaning or even damage to the material surface, especially when treating sensitive polymers or delicate components. Additionally, air plasma systems, while versatile, may struggle with effectively removing stubborn hydrocarbons or impurities from certain surfaces, particularly when compared to traditional chemical cleaning methods. Here are some common challenges:

Common Challenges in Plasma Cleaning

Plasma cleaning, while effective, faces several integration and compatibility hurdles in manufacturing environments. Here’s an outline of the most pressing challenges:

1. Integration with Existing Production Lines: Incorporating plasma systems into production workflows introduces significant challenges, including increased costs and potential downtime due to necessary adjustments. Integrating plasma cleaning into wafer fabrication processes in the semiconductor industry is particularly demanding, as it requires precise synchronization to avoid disrupting the delicate and tightly controlled manufacturing stages. Failure to achieve this synchronization can lead to production inefficiencies, compromised wafer quality, and costly delays, underscoring the critical importance of careful planning and execution in adopting plasma technologies.

2. Material Compatibility Issues: Different materials respond uniquely to plasma exposure, which can impact their structural integrity and performance. In aerospace manufacturing, for instance, using hydrogen plasma to clean lightweight composites carries the risk of altering their surface properties. This change can negatively affect their suitability for critical processes such as coating or bonding, potentially leading to reduced durability, compromised functionality, and costly rework or material waste.

3. Complex Surface Property Requirements: Achieving the desired surface energy, contact angle, and wettability can be challenging, especially with complex geometries or sensitive materials. For instance, cleaning metal surfaces for soldering requires precise control to ensure strong adhesion while preserving the metal's physical and chemical properties. Failure to strike this balance may lead to weak joints, compromised product reliability, or increased production costs due to rework.

4. Adaptation to Diverse Surface Materials: Adapting plasma cleaning parameters to suit diverse materials such as ceramics, plastics, and wafer substrates is complex. In the electronics industry, for example, ensuring thorough cleaning of ceramic substrates without leaving residues is essential to uphold the high-performance standards required in components. Any inconsistency can lead to reduced reliability, diminished functionality, or even failure of the final product.

5. Disruption of Established Processes: Integrating plasma cleaning into established workflows can significantly disrupt traditional production methodologies. For instance, introducing atmospheric pressure plasma for wafer cleaning in semiconductor fabrication often necessitates reconfiguring tools and recalibrating processes. These adjustments can result in production delays, increased operational complexity, and potential risks to meeting critical deadlines in a highly time-sensitive industry.

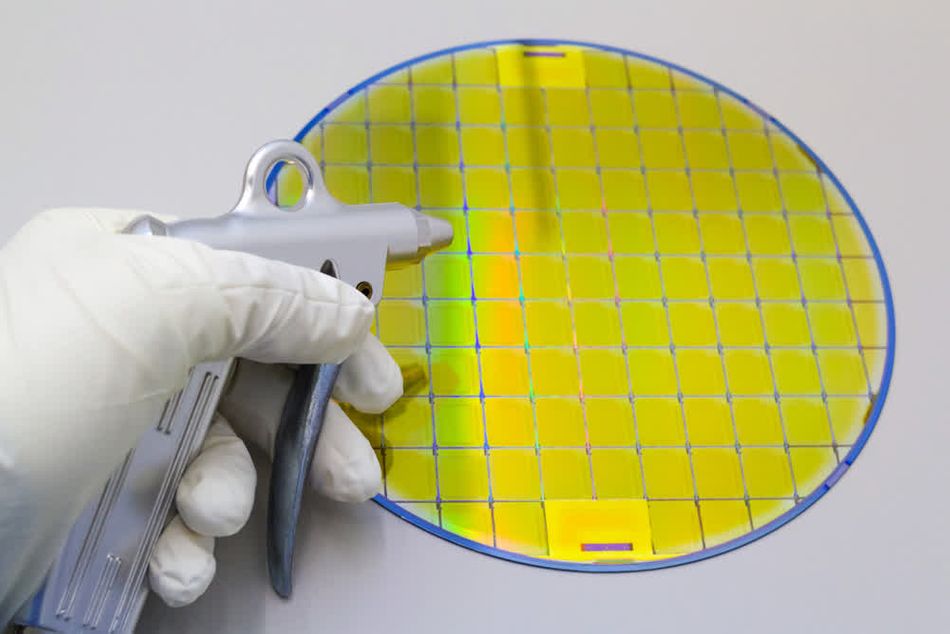

Wafer Cleaning with Nitrogen

6. Cost-Intensive Technology: The implementation of plasma systems comes with significant expenses, making it particularly challenging for industries operating with tight profit margins. For smaller manufacturing facilities, the high upfront costs of adopting plasma cleaning technology, coupled with the need for specialized maintenance, often act as substantial barriers. These financial constraints can delay modernization efforts and limit competitiveness in increasingly demanding markets.

Practical Solutions

Plasma cleaning technology continues to evolve, providing solutions to several challenges faced in manufacturing environments. These innovative approaches enhance the adaptability, efficiency, and overall performance of plasma cleaning systems, making them integral to various industries.

1. Integration with Existing Production Lines

Plasma cleaning systems face significant challenges when integrated into existing production lines. To overcome these hurdles, modular plasma systems have been developed. These systems are compact, adaptable, and designed for easy integration with minimal downtime, allowing for swift installation and reducing operational costs. For example, in the automotive industry, these systems are integrated into assembly lines for cleaning electronics and sensors. They help maintain high cleanliness standards without necessitating major changes to existing production setups. This modular design enables manufacturers to introduce advanced cleaning processes without disrupting their entire workflow.

2. Material Compatibility Issues

In industries like aerospace and electronics, material compatibility is critical. To address this, low-temperature plasma technology has been developed. By operating at lower temperatures, it cleans delicate materials like ceramics, hydrocarbons, and plastics without risking surface damage. For example, hydrogen plasma is used in aerospace to clean lightweight composite materials, preserving their structural integrity. Additionally, real-time monitoring systems allow plasma cleaners to adjust their parameters dynamically, ensuring that delicate substrates, such as wafers in semiconductor manufacturing, are treated optimally. This reduces the risk of damaging material surfaces while removing impurities and contaminants like organic residues.

3. Complex Surface Property Requirements

Plasma cleaning is crucial for modifying surface properties such as surface energy, wettability, and contact angle. Achieving the desired adhesion, especially in metal surfaces used for soldering or coating processes, requires precise control. For example, in automotive manufacturing, plasma etching is used to prepare metal surfaces for painting. This ensures superior adhesion by removing impurities and residues that could hinder the coating's durability and appearance. Similarly, atmospheric pressure plasma is used in electronics to clean ceramic substrates, ensuring that the surfaces are clean and prepared for subsequent soldering or bonding processes without leaving any residual material that could affect performance.

4. Adapting to Diverse Surface Materials

Plasma cleaning systems are now capable of adapting to various materials, including plastics, ceramics, and metal surfaces. This flexibility is critical in industries where materials vary greatly in composition and structure. For example, plasma cleaners can be used for surface preparation of ceramic substrates in electronics, ensuring that no residues or contaminants are left behind. By optimizing the cleaning process for each material, these systems enhance product reliability and reduce the likelihood of failures during production.

5. Cost-Intensive Technology

While plasma systems can be expensive, microplasma technology is making plasma cleaning more affordable and energy-efficient. Microplasma systems, which operate at atmospheric pressure, eliminate the need for vacuum chambers, significantly reducing setup costs and operational expenses. These systems are particularly useful in solar panel manufacturing, where plasma technology is used to clean photovoltaic cells without requiring expensive vacuum systems. In industries like automotive and electronics, the cost-effective nature of these systems makes plasma cleaning more accessible to smaller manufacturers, improving the overall quality of production.

Recommended reading: Understanding Plasma Etching: Detailed Insights into Its Techniques, Uses, and Equipment Maintenance

Conclusion

Plasma cleaning technology is at the forefront of transforming cleanliness and maintenance practices across various engineering sectors. Its precision and versatility have significantly advanced industries such as semiconductor manufacturing and biomedical device fabrication. The development of modular plasma systems, alongside improvements in low-temperature operations, has made plasma cleaning not only more efficient but also better integrated into existing industrial workflows, reducing disruptions and minimizing costs.

Looking ahead, plasma cleaning technology is poised for further integration into smart manufacturing environments, where automation and precision are critical. These advancements will likely align with stricter environmental regulations that demand cleaner production processes, positioning plasma cleaning as a pivotal solution for sustainable industrial practices.

The continued evolution of plasma cleaning technology reflects and drives the shift toward more sustainable, efficient, and high-precision manufacturing. As the technology is refined, it will play a key role in helping industries meet greener and more efficient operational standards, making it an indispensable tool for future engineering innovations.

FAQs on Plasma Cleaning

Q: How does plasma cleaning impact the durability of materials?
A: Plasma cleaning enhances material durability by removing contaminants delicately without physical contact or harsh chemicals. For instance, in aerospace manufacturing, plasma cleaning ensures high precision in part preparation, which crucially supports the longevity and reliability of aircraft components.

Q: What considerations are necessary for plasma cleaning of electronic components?
A: Key considerations include precise control of plasma parameters to prevent damage. In the electronics industry, low-pressure plasma systems are specifically used to clean circuit boards without risking electrical damage, demonstrating the importance of parameter adjustment.

Q: Can plasma cleaning be used for organic materials without causing damage?
A: Yes, with the correct settings, plasma cleaning is safe for organic materials. For example, in the biomedical field, plasma is used to sterilize sensitive equipment like catheters, ensuring cleanliness without compromising material integrity.

Q: How does plasma cleaning contribute to environmental sustainability?
A: Plasma cleaning reduces reliance on chemical solvents and lowers energy consumption. In the automotive industry, using plasma processes to clean parts before painting minimizes the environmental impact compared to traditional methods, aligning with green manufacturing initiatives.

Q: What advancements are enhancing the efficiency of plasma cleaning systems?
A: Recent innovations, such as the integration of pulse plasma systems, have significantly improved efficiency. These systems afford better control over cleaning intensity, crucial for applications like semiconductor fabrication where even slight variations can affect the product's quality.
