Mesh Topology: A Deep Dive into Principles and Applications

author avatar

16 Jun, 2023

Mesh Topology

Mesh Topology

Mesh topology is the most used network topology, as all computer networks are connected. Each computer sends signals and relays the data from other computer networks. The dedicated link transmits information from one node to another and connects all the nodes.


Mesh topology represents a unique and highly interconnected network design. In this configuration, all devices within the network are linked together, forming a web-like structure. This particular arrangement offers several advantages, including enhanced network efficiency, robustness, and resilience. Mesh topology is particularly well-suited for complex systems due to its ability to provide multiple paths for data transmission. This feature improves network traffic management and ensures redundancy in case of device failures. In this comprehensive exploration of mesh topology, we will delve into its core principles, advantages, drawbacks, and its practical applications in the modern digital landscape.

Understanding Network Topologies

Network topology refers to the architectural framework of a digital network, which encompasses the arrangement and interconnections of various nodes or devices. The chosen network topology plays a vital role in determining the communication methods, performance, reliability, and fault tolerance of the network. Additionally, it significantly influences the efficiency of data transfer by dictating how data is transmitted and received within the network. By understanding different network topologies, we can gain insights into their impact on the speed and effectiveness of data transfer.

Definition and Importance of Network Topologies

Network topologies can be categorized into physical and logical topologies. The physical topology refers to the physical arrangement of devices, cables, and components, while the logical topology focuses on the flow of data within the network, irrespective of the physical layout.

The importance of network topologies lies in their ability to dictate communication paths, which directly impact the speed, redundancy, and overall efficiency of the network. When designing a network, the chosen topology not only affects the initial setup cost but also influences future expansion expenses. Some topologies are more scalable, allowing for the easy addition or removal of nodes without causing significant disruptions to the network.

Furthermore, the selection of a network topology plays a crucial role in ensuring fault tolerance. Certain topologies exhibit inherent robustness and resilience due to redundant communication paths. This enables the network to remain operational even in the event of a node failure or connection disruption. In mission-critical applications where network downtime can lead to severe consequences such as financial losses or life-threatening situations, fault tolerance becomes of utmost importance. Mesh topology, which we will explore in depth, exemplifies a topology that offers high levels of fault tolerance.

Comparing Common Network Topologies

When you look at the various types of network topologies, each one has distinct attributes and characteristics that make them more suitable for certain applications over others. For instance, in a star topology, all devices are connected to a central node. This arrangement can minimize the chance of network failure because each device has an independent connection to the central node. However, if the central node fails, the entire network collapses. Furthermore, the star topology is not the most economical option for large-scale networks due to the amount of cabling required.

On the other hand, the bus topology uses a common backbone to connect all devices in a linear sequence. While this topology minimizes the need for cable compared to the star topology, it has its drawbacks. A break in the backbone can bring down the entire network, and network performance can degrade as more devices are added due to data collisions.

Ring topology, another type, connects devices in a circular loop where data travels in one direction. While it reduces the chances of data collisions compared to the bus topology, troubleshooting can be complex, and a failure in any device can disrupt the entire network.

The characteristics of these common topologies set the stage for understanding mesh topology. In contrast to the single paths of the star, bus, and ring topologies, mesh topology involves multiple paths, enhancing redundancy and resilience. As we will see in the following sections, this leads to distinct advantages but also involves some trade-offs.

Mesh Topology: A Comprehensive Overview

Mesh topology is an intricate network design that stands out due to its interconnectedness and redundancy. Unlike other topologies where nodes are connected in a linear, circular, or radiating fashion, mesh topology is characterized by a web-like structure where each node is connected to multiple other nodes. This results in multiple paths for data transmission, thereby enhancing network reliability and performance.

In the ever-evolving landscape of computer networking, mesh topology emerges as a transformative force, revolutionizing the way networks operate. By harnessing the potential of interconnected devices and leveraging cutting-edge technologies, mesh topology empowers networks with unparalleled performance and adaptability.

One key aspect that sets mesh topology apart is its ability to dynamically optimize network paths. Through intelligent routing algorithms and self-configuring capabilities, mesh networks intelligently distribute traffic across multiple paths, minimizing congestion and maximizing overall network performance. This ensures that data flows smoothly and efficiently, meeting the demands of modern applications and services.

Defining Mesh Topology

Mesh topology refers to a network design characterized by interconnectedness, where each device or node within the network is linked to one or more other devices. In a fully connected mesh topology, every node is directly connected to every other node, creating a highly resilient network. This arrangement enables data to traverse multiple paths, ensuring reliable data delivery even in the event of certain connection failures.

Alternatively, a partially connected mesh topology exists where nodes are selectively connected based on frequent communication or geographic proximity. This variation reduces the complexity and cost associated with a fully connected mesh topology while still providing a higher level of redundancy compared to other network topologies.

Both wired and wireless implementations of mesh topology are possible. Wireless mesh networks are commonly utilized in applications that require extensive coverage and high reliability, such as smart home setups, sensor networks, and metropolitan area networks. On the other hand, wired mesh networks, although more intricate and costly, find applications in environments that demand high data transfer rates and exceptional reliability, such as data centers and high-performance computing clusters.

Types of Mesh Topology

There are two principal types of mesh topology, each providing a distinct level of interconnectedness and redundancy: fully connected (or full mesh) and partially connected (or partial mesh).

In a fully connected mesh topology, every node in the network is directly connected to every other node. The key advantage of this topology is its high resilience. Since there are multiple paths for data transmission between each pair of nodes, the network can handle multiple points of failure without disrupting data traffic. However, this level of interconnectedness comes with a significant downside: complexity. As the number of nodes increases, the number of connections grows quadratically. This can make a fully connected mesh topology highly complex to set up and manage, not to mention the increased cost due to the need for more hardware and cabling.

A partially connected mesh topology, on the other hand, offers a compromise between redundancy and complexity. In this type of topology, not all nodes are directly connected to all other nodes. Some nodes might be connected to only a few other nodes, depending on factors such as data traffic patterns and geographic proximity. The advantage of a partially connected mesh topology is that it still offers multiple paths for data transmission, improving network resilience compared to linear topologies like bus or ring. At the same time, it reduces the complexity and cost associated with a fully connected mesh topology.

While both types of mesh topology have their merits, the choice between them depends on the specific needs and constraints of the network, such as the budget, the required level of reliability, and the availability of resources for network setup and management.

Recommended read : Types of Network Topology in Computer Networks

Components of a Mesh Network

The mesh network topology is comprised of several essential components that work together to provide its unique characteristics. Understanding these components is crucial for comprehending how the mesh topology offers superior fault tolerance, efficient data routing, and self-healing capabilities. At the core of any mesh network are the nodes, which function as standalone entities. These nodes can be diverse devices such as computers, switches, routers, or wireless devices, capable of transmitting, receiving, or routing data. Each node in a mesh network is interconnected with one or more other nodes, enabling data transmission through multiple paths.

Another fundamental component is the data links connecting these nodes. These links are communication pathways that allow the transmission of data from one node to another. In a fully connected mesh network, each node has a direct link to every other node in the network. In a partially connected mesh network, nodes have direct links to some, but not all, other nodes. The specific pattern of links determines the structure of the network and affects its reliability and efficiency.

The routing protocol used in a mesh network is also a crucial component. Routing protocols govern how data is sent from one node to another. Because mesh networks have multiple potential paths for data to travel, they require dynamic routing protocols that can adjust the path of data transmission in response to changes in the network. These protocols also provide the self-healing capabilities of mesh networks, automatically rerouting data when a node or link fails.

Finally, mesh networks also include network interface controllers (NICs), which are hardware components that provide the physical means for nodes to transmit and receive data. Each node in the network has at least one NIC, which translates data into a format that can be transmitted over the network and vice versa.

In essence, the complexity and efficiency of a mesh network depend on how these components are organized and managed. It is these elements that enable mesh networks to provide highly reliable and flexible data transmission.

 Hybrid Mesh Topology

In the realm of network architectures, the combination of mesh topology and tree topology brings forth a formidable hybrid solution that delivers exceptional performance and reliability. By integrating the strengths of both topologies, this hybrid approach combines the redundancy and fault tolerance of mesh networks with the hierarchical structure and scalability of tree networks.

At the core of this hybrid technology lies the Ethernet MAC (Media Access Control) layer, which enables seamless integration of various network devices. Relays strategically positioned throughout the network act as intermediaries, ensuring efficient data transmission and reducing latency. These relays play a vital role in maintaining optimal performance, as they create redundant connections and act as a bridge between different segments of the network. In the event of a failure, the relays swiftly reroute traffic, ensuring uninterrupted connectivity and minimizing disruptions across the whole network.

The use cases for hybrid mesh topology are vast and diverse. It proves particularly effective in environments where both scalability and reliability are paramount, such as large-scale enterprise networks, smart grids, and industrial automation systems. By combining the best elements of mesh and tree topologies, this hybrid approach optimizes network performance, reduces bottlenecks, and enables seamless expansion to accommodate growing network demands.

To fully harness the potential of this hybrid topology, careful planning and configuration are essential. Designing an efficient network layout, strategically placing relays, and optimizing the allocation of resources are key factors in maximizing the benefits of this hybrid approach. With its ability to adapt to changing network requirements and deliver robust connectivity, hybrid mesh topology proves to be a valuable tool in modern network infrastructure.

Working Principles of Mesh Topology

A deeper understanding of mesh topology requires a thorough knowledge of its operational principles. The core of mesh topology operation lies in its data transmission process, routing algorithms, and its remarkable ability to reconfigure itself when a component fails or when a new node is introduced.

Internet of thingsIoT

Data Transmission in Mesh Topology

Data transmission in a mesh network is inherently different from other network topologies due to its multi-nodal connections. Data transmission, in its most basic sense, is the process of transferring data packets from a source node to a destination node. However, in a mesh network, this process is quite complex due to the multitude of possible routes a data packet can take.

Each data packet transmitted in a mesh network contains information about the source and destination nodes. When a node receives a data packet, it checks the destination address. If the destination address matches its own address, it knows the data packet has arrived at the correct destination. If not, it uses the network's routing protocol to determine the best path to forward the data packet to its destination.

In a mesh topology, the concept of "best path" is crucial. Since each node is connected to multiple other nodes, there are often several paths a data packet can take to reach its destination. The routing protocol plays a vital role in determining the most suitable path based on various factors. These factors may include the number of hops involved, the presence of congestion on a particular path, the latency associated with different paths, or even the energy consumption considerations in the case of wireless mesh networks.

To illustrate, let's consider a scenario where a node "A" wants to send data to node "D" in a mesh network. It has two options: it can either send the data directly to node "D" or send it via node "B" and "C". The choice between these two paths would be made based on the criteria set by the routing protocol.

The "store-and-forward" method is commonly used in mesh networks, where each intermediate node stores the entire data packet before forwarding it to the next node. This method ensures the integrity of the data but may increase latency if the network is congested or if the packet is large.

Furthermore, to ensure efficient data transmission, mesh networks employ sophisticated error-checking and correction mechanisms. These mechanisms allow nodes to detect and correct errors that may occur during data transmission, thereby increasing the reliability of the network.

In conclusion, data transmission in a mesh network is a complex but efficient process, leveraging the unique architecture of the topology to deliver high data integrity, flexibility, and robustness.

Path Selection in Mesh Topology

Path selection is a fundamental aspect of data transmission in a mesh network. This process determines the specific route that data packets take from a source node to a destination node. The aim is to select an optimal path that balances the efficiency and effectiveness of data delivery. In a mesh topology, path selection is critical due to the multitude of potential routes available for data transmission due to multiple node interconnections.

In the path selection process, routing protocols play a central role. A routing protocol defines the rules that a router uses to communicate with neighboring routers, with the intent to establish and select the best path for data packet routing. The choice of a routing protocol can significantly influence the network's performance and resilience.

One of the commonly used routing protocols in mesh topology is the Dijkstra's algorithm. It is a shortest path algorithm that calculates the shortest path from a source node to all other nodes in the network. By calculating the shortest path, the Dijkstra's algorithm helps optimize data routing and ensure efficient communication across the mesh network.

For instance, if node A is the source and node D is the destination, Dijkstra's algorithm will compute the shortest path from node A to node D by considering the weights (which could be the distance, latency, or bandwidth) associated with the links between nodes.

While Dijkstra’s algorithm is suitable for static networks where link weights do not frequently change, it may not be ideal for dynamic mesh networks where network conditions can change rapidly. To accommodate such scenarios, dynamic routing protocols like the Bellman-Ford algorithm can be employed. This algorithm is capable of handling negative weights and adapting to changes in network conditions, making it more suited for dynamic mesh networks.

Path selection in mesh networks can also be influenced by the network's congestion level. To mitigate the impact of congestion on data transmission, congestion-aware routing protocols may be used. These protocols select a path based on not only the shortest distance but also the current network traffic situation.

For instance, if data from node A to node D can take either of two paths, one via node B and another via node C, and the path via node B is shorter but more congested, the congestion-aware routing protocol may opt for the longer but less congested path via node C. This decision aims to ensure the smooth and reliable transmission of data packets despite the longer path.

In conclusion, path selection in a mesh topology is an intricate process heavily influenced by routing protocols, network conditions, and congestion levels. These factors combined ensure optimal data transmission across the mesh network.

Fault Tolerance and Redundancy in Mesh Topology

Mesh topology demonstrates robust fault tolerance due to its inherent structure of redundancy. Fault tolerance in a network refers to its ability to continue functioning even when one or more components fail. In a mesh topology, this is facilitated through the availability of multiple routes for data to traverse between any two nodes. Fault tolerance in a network refers to its capability to maintain operation even in the presence of component failures. In a mesh topology, fault tolerance is achieved by providing multiple routes for data transmission between any two nodes. This redundancy in the network ensures that if one route becomes unavailable due to a node or link failure, alternative paths can be utilized to ensure continuous data flow. By offering these redundant routes, mesh topologies enhance the resilience and reliability of the network.

When discussing fault tolerance, it's important to distinguish between node failure and link failure. A node failure occurs when a device in the network ceases to function, while a link failure is when a connection between two devices becomes unavailable.

In the event of a node failure in a mesh topology, the network automatically adjusts to bypass the non-functional node. Data packets are rerouted along different paths, avoiding the failed node, to reach their intended destination. These alternative paths are made possible due to the redundant links inherent in mesh topology.

Similarly, mesh topology demonstrates resilience to link failures. When a link fails, the data packets are rerouted via alternate paths. The high level of interconnectivity between nodes in a mesh network ensures there are usually multiple alternate paths between any source-destination pair.

The exact mechanisms for detecting and compensating for node or link failures are usually defined by the routing protocol in use. For instance, the Link State routing protocol involves each router maintaining a map of the network topology. When a link fails, the state of the link is updated across the network, allowing each router to compute new paths avoiding the failed link.

Redundancy, on the other hand, refers to the duplication of critical components or functions of a system with the intention of increasing reliability. In mesh topology, redundancy is inherent in the multiple connections between nodes. This not only contributes to the high fault tolerance of mesh networks but also aids in load balancing.

Load balancing is the distribution of network traffic across multiple paths to maximize throughput, minimize response time, and avoid overload. The presence of multiple connections between nodes in a mesh topology allows for data to be spread across these connections, reducing the load on any single path.

In summary, the mesh topology provides a robust level of fault tolerance and redundancy. The design ensures continuous operation even in the event of component failures, thanks to the availability of multiple paths for data transmission. This redundancy not only enhances the reliability of data transmission but also allows for efficient load balancing.

Advantages and Disadvantages of Mesh Topology

Advantages of Mesh Topology

Mesh topology offers a significant advantage in terms of reliability, thanks to its interconnected structure. Each node in the network has multiple connections, enabling data rerouting through alternative paths in the event of node failure or unstable connections. This automatic route switching ensures uninterrupted communication, making mesh topology particularly valuable for mission-critical applications where even minimal downtime can have severe consequences. The inherent redundancy of mesh topology enhances system resilience and minimizes the risk of data loss or service disruption.

Data transmission in mesh topology can also benefit from load balancing due to the availability of multiple paths. Load balancing enhances the network's performance by evenly distributing the network traffic, preventing any single path from becoming a bottleneck. As a result, it improves the overall throughput and decreases the response time, thereby enhancing user experience and productivity.

Mesh topology's decentralization aspect is another significant advantage. In a mesh network, each node functions as a self-sufficient entity with the ability to transmit, receive, and route data. This decentralized nature eliminates the reliance on a single central node or server, resulting in increased network robustness and flexibility. Decentralization allows for efficient local decision-making, faster data processing, and improved fault tolerance. Additionally, it enables scalability and easy expansion of the network without causing disruptions, making mesh topology a versatile choice for various applications. In a mesh network, there is no centralized hub or switch that controls data transmission. As such, the failure of a single node does not impact the entire network's functionality. Moreover, each node in the network is capable of self-discovery, which allows for easier network expansion and maintenance.

The robustness of the mesh topology can also lead to improved privacy and security. The direct connectivity between nodes in a mesh topology provides an opportunity to enhance data security during transmission through the use of encryption on individual links. This means that data can be protected using encryption algorithms, ensuring confidentiality and integrity. Moreover, the decentralized nature of a mesh network makes it inherently resistant to attacks, as there are no single points of failure that can be targeted. This distributed architecture makes it challenging for an attacker to bring down the entire network, further enhancing the overall security and resilience of the system. Finally, mesh topology can provide greater coverage and speed for wireless networks. Unlike other network topologies, wireless mesh networks can easily extend coverage by adding more nodes, with each node only needing to communicate with its neighbors. Additionally, due to multiple possible communication paths, data can travel faster across the network.With multiple available communication paths between nodes, data can be routed through the most efficient and least congested path, leading to improved speed and reduced latency. The abundance of alternative routes allows for optimized data flow and efficient utilization of network resources, resulting in faster transmission times and enhanced overall network performance.

Disadvantages of Mesh Topology

Despite the multitude of advantages that a mesh topology offers, it also has a few potential downsides. One such disadvantage is the complexity of its design and management. With each node connecting to multiple others, the setup and maintenance of such a network can become quite challenging. Network administrators must constantly update and monitor the paths to ensure optimal operation. The setup of the network also requires substantial planning and resources, which may not be feasible for small businesses or networks.

The cost of implementing a mesh topology can be quite high compared to other network topologies. This is primarily because of the need for additional hardware and cabling to establish multiple connections between the nodes. For instance, if a network has n nodes, in a full mesh topology, the number of connections would be n*(n-1)/2. This means that as the number of nodes increases, the cost and complexity grow quadratically.

While mesh topology offers numerous advantages, it is important to consider the potential drawback of excessive redundancy resulting from the abundance of connections. With each node connected to multiple others, there is a possibility of redundant paths within the network. This redundancy can lead to increased complexity, higher resource requirements, and potential inefficiencies in terms of network utilization. It is crucial to carefully design and manage the connections in a mesh network to strike a balance between redundancy and efficiency, ensuring optimal performance without unnecessary duplication. Although redundancy is beneficial for reliability, having too many redundant paths may result in wastage of resources. It can also increase the overall network latency as it might take more time to decide the best path for data transmission, especially in a large mesh network.

Mesh topology can also result in high power consumption, particularly in wireless mesh networks. Since each node needs to transmit and receive signals from multiple nodes, it requires more power, which could be a disadvantage in environments where power conservation is necessary.

Finally, the scalability of a mesh network can be both an advantage and a disadvantage. While adding a new node to the network is relatively easy, if the network grows too large, managing and maintaining the network can become incredibly complex and resource-intensive. Therefore, mesh topology might not be the best choice for very large-scale implementations without a well-planned management strategy.

Applications of Mesh Topology

Mesh Topology in Internet of Things (IoT)

Mesh topology has found a significant role in the field of the Internet of Things (IoT), primarily because of the vast number of devices that need to connect and communicate within such systems. In an IoT network, devices range from simple sensors to complex computing systems, all of which need to share data for the network to function effectively.

The mesh topology's strength in IoT lies in its robustness and fault tolerance. As IoT devices often operate in dynamic and unpredictable environments, the robustness of mesh topology allows for continuous network operation even when individual devices fail or lose connectivity. The mesh network autonomously reconfigures itself to bypass any faulty node, ensuring continuous data flow without the need for manual intervention.

A good example of mesh topology in IoT can be seen in smart home systems, where devices like thermostats, security systems, smart appliances, and lighting systems all connect to create a network. In this setup, if one device loses its connection, the network can still operate by routing data through other devices. This scenario exemplifies the self-healing property of a mesh topology, which is crucial in ensuring the reliability of IoT systems.

Furthermore, mesh topology in IoT supports scalability. As the number of IoT devices in a network grows, mesh topology allows the network to expand without significant degradation of network performance. This is particularly useful in applications like smart cities, where thousands or even millions of IoT devices may need to connect and communicate.

Another application is in industrial IoT (IIoT) where the factory machines, sensors, and other systems need to be interconnected to monitor and optimize production in real time. Here, the high redundancy and path diversity of mesh topology prove beneficial in ensuring the uninterrupted operation of the network despite any single point of failure.

However, despite the advantages, using mesh topology in IoT also comes with challenges such as the need for sophisticated routing protocols to manage data transmission paths and ensure efficient resource usage. Moreover, as the number of devices in the network increases, the overhead for network management can increase substantially. Therefore, a balance needs to be struck between the scalability benefits and the management overhead when implementing mesh topology in IoT applications.

Mesh Topology in Wireless Networking

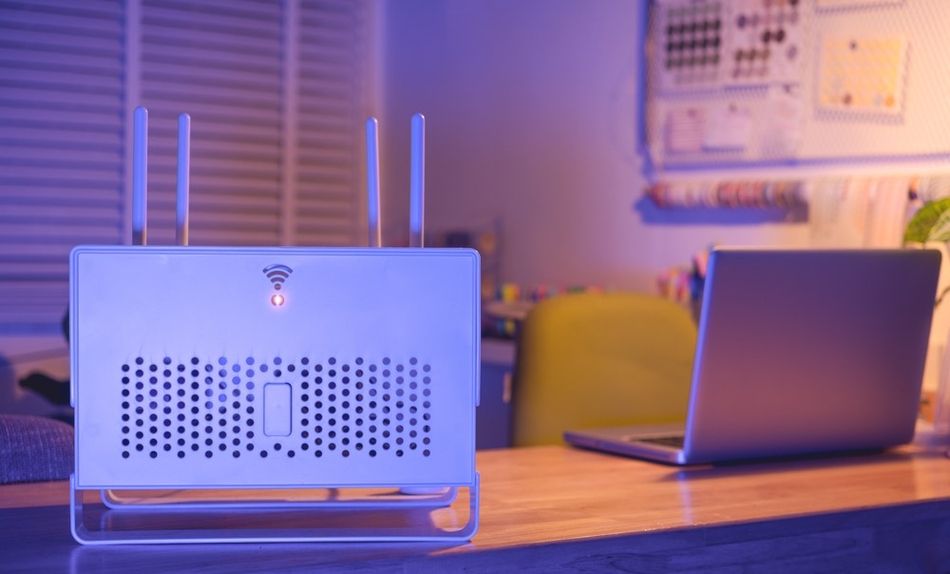

Wireless NetworkWireless Network

Mesh topology plays a significant role in the realm of the Internet of Things (IoT), offering a robust and scalable network infrastructure for interconnected devices. In IoT applications, where numerous devices communicate and collaborate, mesh topology provides a versatile solution. Its decentralized nature and multiple interconnections enable seamless communication and data exchange between IoT devices, enhancing overall system efficiency.

Mesh topology has an impactful role in the arena of wireless networking. This impact is due to its inherent qualities such as resilience, redundancy, and self-configuration that make it particularly suitable for wireless networks. These networks can be varied and wide-ranging, including wireless sensor networks (WSN), mobile ad-hoc networks (MANETs), and wireless personal area networks (WPANs).

One of the most widely recognized implementations of mesh topology in wireless networking is Wi-Fi mesh networks. A Wi-Fi mesh network consists of multiple routers (often called nodes or points) that communicate with each other wirelessly. This formation of routers creates a broad and robust Wi-Fi coverage area that can span large distances.

In this setting, if a user's device is distant from the primary router but closer to a mesh node, the device connects to the mesh node, which then communicates with the primary router. The router and nodes constantly communicate to identify the least congested and fastest path for data to travel. This dynamic rerouting ensures optimal bandwidth utilization and provides a consistent, high-quality internet connection.

Moreover, the mesh topology's inherent self-healing characteristic is particularly beneficial in wireless networks. In an environment where a node can fail or become unreachable due to various factors such as physical obstructions, signal interference, or power failure, the self-healing property of mesh networks allows them to automatically reroute data through other nodes. This characteristic ensures continuous network operation, maintaining connectivity for end-users.

Mesh topology is also used in Bluetooth 5, the latest version of Bluetooth technology as of my knowledge cutoff in September 2021. In Bluetooth 5, a mesh network can consist of up to 32,767 devices, allowing for large-scale device communication. This capability makes Bluetooth 5 an ideal solution for creating large, interconnected systems such as home automation networks, where numerous devices need to communicate and share data.

Recommended reading : Bluetooth Mesh

However, the implementation of mesh topology in wireless networking is not without challenges. The signal strength can diminish over large distances or through physical obstructions, reducing network performance. Moreover, managing and configuring large-scale mesh networks can be complex, requiring sophisticated management and routing protocols. Despite these challenges, the benefits of mesh topology in wireless networking often outweigh the difficulties, making it a popular choice for many wireless networking applications.

Overall, mesh topology is a powerful networking solution for IoT applications, offering reliability, scalability, fault tolerance, and security. Its decentralized and interconnected structure enables efficient communication, making it a valuable choice for the ever-expanding world of IoT.

Mesh Topology in Wide Area Networks (WANs)

Mesh topology in Wide Area Networks (WANs) underpins the global infrastructure of the internet. The expansive network that connects numerous networks globally is fundamentally a mesh topology at its core.

In a WAN, the mesh topology enables robust and reliable communication. Each router or switch in the WAN can have multiple paths to choose from to send data packets to their destination. Such multiple-path architecture in WANs is crucial for maintaining network uptime and performance.

For example, consider the global backbone of the internet, which comprises numerous cross-continental data connections such as submarine and terrestrial fiber optic cables. These connections between different parts of the world form a mesh-like structure. If a particular path, like a submarine cable, becomes non-operational due to physical damage or other factors, the data packets can be rerouted through alternate paths in the mesh, ensuring continuous global connectivity.

Moreover, mesh topology in WANs aids in load balancing, as traffic can be distributed across multiple paths. This functionality helps prevent congestion in any single path and maintains a high level of network performance. For instance, in Content Delivery Networks (CDNs), data is often delivered through a mesh network of servers that are strategically located around the world. The CDNs can balance the load by routing data through servers that are underutilized or closer to the end user thereby improving the delivery speed and reducing latency.

Another application area of mesh topology in WANs is in satellite networks. Here, each satellite can connect to multiple other satellites to form a mesh network. The low-earth-orbit (LEO) satellites used by SpaceX's Starlink project, as an example, aim to provide global internet coverage using a mesh network of thousands of interconnected satellites.

Even though implementing mesh topology in WANs can be expensive and complex due to the requirement of additional hardware and sophisticated routing protocols, the benefits of increased reliability, load balancing, and network resiliency make it an ideal choice for large-scale, geographically dispersed networks such as WANs.

Frequently Asked Questions (FAQs)

1.How does a mesh network improve data transmission?
A mesh network improves data transmission by providing multiple pathways for data packets. This means that if one node fails, the network can automatically reroute data through another path, reducing the risk of network downtime and improving overall reliability.

2.What is a full mesh vs. partial mesh topology?
A full mesh topology is where every node is connected to every other node in the network, providing the highest level of redundancy. In contrast, a partial mesh topology is where some nodes are connected to all others, while some are only connected to those with which they exchange the most data. Full mesh topologies provide greater redundancy, but are more expensive and complex to set up and manage than partial mesh topologies.

3.What role does Ethernet MAC (Media Access Control) play in hybrid mesh topology?
Ethernet MAC is a crucial component in hybrid mesh topology. It facilitates the integration of various network devices and enables efficient data transmission. The MAC layer governs access to the network and coordinates the flow of data between devices, ensuring seamless communication within the hybrid mesh network.

4.Why is mesh topology expensive?
Mesh topology is expensive due to the requirement for each node to be interconnected. This means that a significant amount of cabling and a higher number of I/O ports are needed, leading to increased hardware and maintenance costs. Additionally, the complexity of managing and configuring such a network also adds to the expense.

5.Where is mesh topology used?
Mesh topology is used in a variety of settings including Wide Area Networks (WANs), the internet backbone, local area networks (LANs), wireless networks, and home automation systems. IoT devices, like smart home devices and wearable technology, often use mesh networks to connect and communicate reliably.

6.Why is redundancy important in a mesh topology?
Redundancy in a mesh topology ensures that the network remains operational even if one or more nodes fail. With multiple paths available for data transmission, the network can dynamically reroute data if a node goes offline, ensuring continuous network service. This level of redundancy is particularly important in mission-critical applications where network downtime could have significant consequences.

7.Are there any specific industries or applications where mesh topology is commonly employed?
Mesh topology finds applications in various industries, including transportation systems, smart cities, industrial automation, and surveillance systems. It is also commonly used in scenarios where reliable and flexible communication is essential, such as disaster response and military operations.

8.How does mesh topology handle network congestion?
Mesh topology can mitigate network congestion by providing multiple paths for data transmission. This allows for load balancing and efficient distribution of network traffic, reducing the likelihood of bottlenecks and optimizing overall network performance.


The mesh topology has emerged as a significant network structure due to its robustness and redundancy capabilities. Its ability to maintain network functionality even in the face of multiple node failures is a testament to its strength, making it an attractive option for mission-critical systems. However, the initial setup cost, complexity of management, and resource requirements must be carefully considered before implementing a mesh topology. It remains a particularly effective choice for large-scale, geographically dispersed networks, like the internet, and for applications demanding high availability, such as IoT and WANs.

In the dynamic landscape of computer networks, mesh topology stands as a groundbreaking advancement that reshapes the way we connect and communicate. With its ability to seamlessly interconnect various network devices, including access points, routers, and switches, mesh topology assists in creating robust and reliable networks. This innovative approach, rooted in computer science and hybrid technology, leverages the strength of wired and wireless connections to establish efficient and scalable networks. Wi-Fi networks, in particular, benefit greatly from the flexibility and redundancy offered by mesh topology, ensuring optimal coverage and seamless roaming experiences for users. As we delve deeper into the realm of mesh topology, it becomes evident that its impact extends far beyond traditional network architectures. It opens doors to new possibilities, enhances connectivity, and paves the way for future advancements in the field of computer networking.
