Enhancing Industrial Processes through Design for Manufacturing: A Comprehensive Guide

author avatar

31 May, 2023

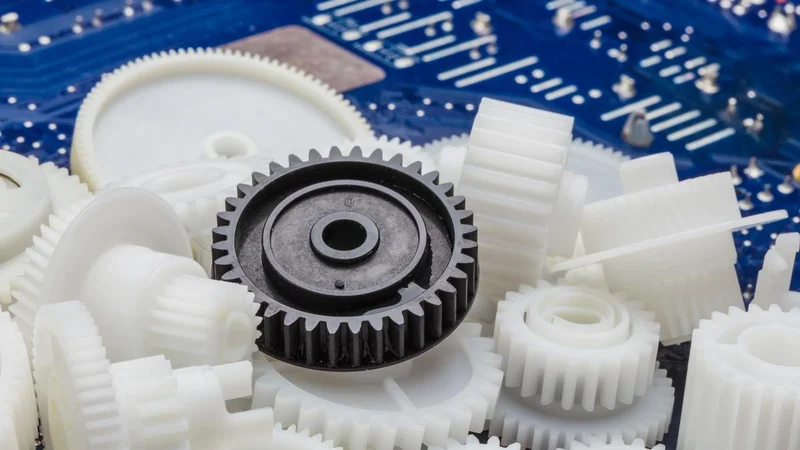

Electric machinery parts manufacturing in industry

Electric machinery parts manufacturing in industry

This guide delves into DFM's principles, implementation process, impacts, and challenges, aiming to provide readers with a comprehensive understanding of this integral concept.


Design for Manufacturing (DFM) is the process of designing parts, components, or products for easy manufacturing to make a better product at a lower cost. This is done by simplifying, optimizing, and refining the product design. Design for Manufacturing is a critical aspect of engineering and manufacturing, impacting the overall success of the product lifecycle. It ensures the feasibility of a product design in the production phase. By facilitating the transition from a design to a tangible product, DFM not only enhances manufacturing efficiency but also leads to cost reduction and improved product quality.

Principles of Design for Manufacturing

The principles of Design for Manufacturing (DFM) provide a structured approach to designing products that are easier and more cost-effective to manufacture. These principles primarily focus on reducing product complexity, standardizing components, and promoting design modularity. There are three key principles; let’s explore each in detail:

Principle 1: Minimization of Complexity

The principle of minimizing complexity is an integral aspect of DFM, with significant implications for the manufacturing process. The concept revolves around designing products with the least amount of parts and simplifying those to the greatest extent possible without compromising the product's functional and aesthetic integrity.

Minimizing complexity often involves a rigorous product design review, identifying and eliminating redundant or unnecessary components. This simplifies the manufacturing process and reduces the potential for errors during production. For example, reducing the number of unique parts in a product can decrease the time-consuming setup for each production run, increasing production speed and efficiency.

According to a study by The Boston Consulting Group, minimizing complexity can reduce direct manufacturing costs per assembled part by 20%. This is primarily due to lower assembly costs, a reduced need for unique parts, and fewer errors in assembly.

Moreover, the principle of minimizing complexity also extends to the design of the manufacturing process itself. By streamlining manufacturing workflows and reducing the number of steps involved in the production process, companies can increase efficiency, minimize waste, and reduce production costs. For instance, Toyota, the pioneer of the lean manufacturing approach, incorporates this principle by minimizing the complexity of their assembly line processes, thereby reducing waste and increasing efficiency. [1]

However, it is essential to note that while minimizing complexity, maintaining the product's functionality, reliability, and quality is paramount. Thus, every effort to reduce complexity must be balanced against the potential impact on the product's performance and user experience.

Principle 2: Standardization of Components

Standardized stainless steel screws to be used in manufacturing Standardized stainless steel screws to be used in manufacturing

Standardization is another cornerstone principle of Design for Manufacturing. It focuses on using standard components across multiple product designs, leading to a more efficient manufacturing process. Standard components are parts with uniform specifications that are readily available in the market. They are often used in multiple product designs, reducing the need for custom-made parts.

Applying standardization in DFM has several advantages. Primarily, it reduces the number of unique parts required for a product, which can significantly streamline inventory management. For example, having fewer unique parts can simplify procurement processes, reduce the time required for stock control, and decrease the space needed for inventory storage.

Moreover, using standardized components can also enhance the reliability of products. The performance and reliability of standard components are usually well-established based on extensive use and testing. For instance, using standard bolts, fasteners, and nuts in machinery manufacturing reduces the chance of part failure, thereby increasing the overall reliability of the machinery. This also employs ease of manufacturing in producing a standard component.

Standardization also promotes the interchangeability of components, which can be particularly beneficial in the post-sale service and maintenance phase. For instance, if a particular product component fails, replacing it with a standard part is usually quicker and easier than sourcing a custom-made component. This not only improves the product's serviceability but also enhances customer satisfaction. Companies focus on the development of standard, multi-functional parts.

A report by McKinsey found that companies that effectively implemented component standardization saw a reduction of up to 15-20% in direct material costs. This is mainly attributed to the economies of scale achieved when purchasing standard components in large volumes and the reduction in overheads associated with managing a large number of unique parts.

However, while standardization offers numerous benefits, it should be carefully applied. Over-standardization can lead to overly generic products, potentially impacting their differentiation in the market. Therefore, a balance must be struck between standardizing components for manufacturing efficiency and customizing design elements to create unique products.

Principle 3: Design for Modularity

Designing for modularity is a principle of Design for Manufacturing that involves creating a product design consisting of independent modules or components. Each module is a self-contained unit that can function independently and be assembled with other modules to create the final product.

Modularity has several advantages in manufacturing. One of the primary benefits is flexibility. When products are designed with modular components, changes or upgrades can be made to individual modules without affecting the entire product. This allows manufacturers to adapt to market demands or technological advancements without a complete product overhaul. For example, in the computer industry, modular design enables users to upgrade individual components like memory or graphics cards without replacing the entire system.

Another advantage of modularity is the potential for cost savings. Manufacturers can use economies of scale by reusing modules across different products, reducing per-unit costs. Furthermore, modular designs simplify assembly and disassembly processes, reducing labor costs and improving product serviceability.

From a manufacturing perspective, modularity can enhance efficiency by allowing parallelism in the production process. Different modules can be manufactured simultaneously, reducing the overall production time. According to a Massachusetts Institute of Technology study, modular manufacturing can lead to a 18% increase in production efficiency compared to traditional manufacturing methods.

A modular approach can also facilitate product customization, catering to customer needs while maintaining production efficiency. For instance, automakers like Tesla use modular architectures to offer varying degrees of performance and range in their electric vehicles while leveraging common parts to maintain manufacturing efficiency. [2]

While modularity brings considerable benefits, it also has its limitations. Designing for modularity can be complex, requiring careful planning to ensure all modules function seamlessly. Overemphasis on modularity can lead to suboptimal overall product performance if individual modules are not effectively designed and integrated. Therefore, balancing modularity, performance, and manufacturing efficiency is crucial.

Recommended Reading: Five Principles of Electronics DFM (Design for Manufacturing)

Key Steps in Implementing Design for Manufacturing

Implementing Design for Manufacturing in any production process involves a systematic approach that ensures every design decision aligns with the goal of efficient manufacturing and high product quality. The process typically follows a series of key steps, which we will delve into in the following subsections.

Step 1: Conducting a Product Design Review

Engine part’s product design review processEngine part’s product design review process

The first step in implementing DFM is conducting a comprehensive product design review. This involves evaluating every design aspect from a manufacturing perspective, examining how each component will be produced and assembled.

Engineers and designers work collaboratively in this phase, leveraging their combined knowledge and experience to identify potential manufacturing challenges and suggest design modifications to alleviate them. For instance, they might identify parts with complex shapes that would be difficult to manufacture and propose simpler designs that would achieve the same function but be easier to produce.

A successful design review also involves assessing the material choices in the design. Materials are pivotal in manufacturing, affecting the production process and the final product's performance. For instance, a design might call for a particular type of plastic for a component. An alternative material might be proposed if that plastic requires a high processing temperature that increases production costs.

Moreover, the design review phase should consider the tolerances specified in the design. More tight tolerances can be necessary for the manufacturing process and increase costs, so evaluating if the specified tolerances are practical and economically feasible is crucial. Design review is a critical step in the DFM process, and its thoroughness can significantly impact the manufacturability of the product.

Step 2: Identification of Key Design Elements

The second step in implementing DFM is the identification of key design elements. This involves determining which design aspects are fundamental to the product's functionality and aesthetic appeal. These elements might include anything from the shape and size of the parts to the materials used in their construction.

Identifying the key design elements in part design is crucial because these aspects of the product can only be compromised by affecting its function and time to market. Therefore, these elements will directly impact the manufacturing process and must be carefully considered during the development of the manufacturing plan.

For example, if a key design element is a consumer electronic device's thin, sleek profile, the design-for-manufacturing process must account for this. Manufacturing methods that produce thicker, bulkier components won't be suitable. Therefore, manufacturing may need specialized machinery or techniques to maintain the thin profile while ensuring the product's structural integrity.

Similarly, if a design's key element is its lightweight, the materials selected for manufacturing must align with this requirement. This could mean choosing high-strength, lightweight materials like carbon fiber or specific grades of aluminium. Additionally, the manufacturing process would need to minimize the addition of any unnecessary weight.

This step is crucial because it informs subsequent decisions in the DFM process, particularly those concerning manufacturing methods and material selection. By clearly identifying the key design elements, manufacturers can ensure that their processes align with the product design, facilitating efficient production without compromising the design's integrity.

Step 3: Iterative Redesign and Refinement

Iterative redesign and refinement is the third step in the DFM process. This step involves repeated design modification and evaluation cycles to optimize the product design for manufacturing. This iterative process is crucial in ensuring that the design is not only manufacturable but also economically viable and efficient.

One primary method employed in this step is the Design of Experiments (DoE). It involves a structured, organized approach to investigating the design parameters that can be changed. For example, the thickness of a part, the material used, or the orientation during assembly. By changing these parameters within specified limits and analyzing the impact on the product, we can optimize the design for manufacturing.

Design of Experiments (DoE) process on car’s body panel during manufacturingDesign of Experiments (DoE) process on car’s body panel during manufacturing

Take the example of a car's body panel: using the DoE approach, the design team might vary the thickness of the panel, the type of steel used, and the method of forming the panel, such as stamping or hydroforming. With each iteration, the design team assesses the impact on the panel's weight, strength, manufacturability, and cost. The aim is to find an optimal combination of design parameters that meet performance requirements while being cost-effective and easy to manufacture.

Statistical Process Control (SPC) is vital in iterative redesign and refinement process. SPC tools can help monitor and maintain quality control during manufacturing. It enables the design team to understand the process variability and discover potential issues that could lead to defects.

Design for Assembly (DfA) simplifies the product structure, focusing on reducing the required product parts and making assembly more efficient. Increasing ease of assembly using keyed parts or components that can only go together in a certain orientation.

Moreover, this step is integral in using Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software. CAD/CAM software allows for efficient alterations in the design and immediate evaluation of the consequences. This software also supports the rapid prototyping of designs, allowing for physical assessment and testing of the product.

The iterative redesign and refinement stage is essential because it ensures the design is continually improved and optimized for manufacturing. This step helps to streamline production, reduce costs, and improve quality standards. This creates a product that meets the needs and expectations of the end user.

Impact of Design for Manufacturing on Industrial Efficiency

Reduction in Manufacturing Costs

Design for Manufacturing (DFM) has a profound impact on industrial efficiency, primarily through the reduction of manufacturing costs. The DFM approach enables this by simplifying the product design, and optimizing the use of materials, thereby reducing overall production costs.

Consider the simplification of product design. This often involves reducing the number of parts in a product or using easier and cheaper parts to manufacture. For instance, a product that initially required a part to be made using a complex, multi-step machining process, i.e., 3D printing, might be redesigned using a single-step injection molding process instead. [3] This redesign reduces the cost of producing the part and the time it takes to manufacture it, leading to substantial cost savings over the product's lifetime.

The optimization of material usage is another critical aspect of DFM that helps to reduce manufacturing costs. DFM encourages the efficient use of materials by considering aspects such as recyclability and the ease of sourcing materials. A more expensive material to procure might replace a cheaper alternative that fulfills the same function. Alternatively, the design might require less of a particular material without compromising the product's quality or functionality. For example, redesigning a part to be thinner or lighter could significantly save material and overall part costs.

Lastly, DFM also promotes ease of assembly. This involves designing products that are easy to assemble, thereby reducing assembly steps, time and minimizing errors that could lead to costly rework or waste. For example, designing parts that can only be assembled in one way eliminates the possibility of assembly errors. Using standardized parts across multiple products reduces the complexity of inventory management and can lead to economies of scale in purchasing.

DFM can substantially reduce manufacturing costs through these and other measures, making industries more efficient and competitive.

Increase in Product Quality

An effective Design for Manufacturing (DFM) approach can lead to an increase in product quality. DFM can improve product quality by using robust product design, appropriate materials, and an efficient assembly methodology. The robustness of a product's design significantly impacts its overall quality. A well-designed product fulfills its intended function and withstands real-world conditions over its expected lifespan.

The DFM approach stresses the need to consider various factors during the design phase, such as the product's anticipated usage conditions, the environment in which it will operate, and potential stress factors. For example, a product intended for outdoor use may need to withstand harsh weather conditions, while a product meant for constant use might need to resist wear and tear. Considering these factors during the design phase, the product can be designed to meet these demands, enhancing its overall quality.

Material selection leads to a quality product. The materials used in manufacturing a product should be selected based on their suitability for its intended function. This involves balancing factors, such as the material's durability, strength, cost, and availability. For instance, a part that experiences high stress might be manufactured from a more durable but potentially more expensive raw material to ensure its longevity and reliability.

The efficiency of assembly methods is another aspect where DFM can enhance product quality. DFM encourages the design of easy-to-assemble products, minimizing errors during manufacturing operations. This can result in a decrease in defective products and increase the overall quality of the product line. Consider, for instance, an assembly process that involves attaching multiple parts. If the design ensures these parts can only fit together correctly, it reduces the likelihood of assembly errors, ensuring a high-quality final product.

In the realm of measurable improvements, an analysis conducted by the American Society for Quality found that companies adopting DFM principles reported up to an 18% increase in product quality metrics. This exemplifies how a thoughtful application of DFM principles can lead to tangible improvements in product quality, reinforcing the product's market value and customer satisfaction.

Recommended reading: Design for Manufacturing (DFM): The Ultimate Guide to Streamlining Product Development and Reducing Costs

Challenges and Solutions in Implementing Design for Manufacturing

Challenge 1: Balancing Design and Manufacturing Considerations

Striking a balance between design considerations and manufacturing capabilities is a common challenge in implementing Design for Manufacturing (DFM). There are instances where an optimal design from an engineering or user perspective may be difficult or costly to manufacture. On the other hand, constraining design strictly by manufacturing limitations can lead to a product that only partially leverages technological advancements.

A way to navigate this challenge is by facilitating strong communication between design and manufacturing teams from the early stages of product development. This cross-functional collaboration can aid in harmonizing design aspirations with manufacturing realities. Tools such as Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) can be crucial in this collaborative effort. They offer the ability to simulate design outcomes and manufacturing processes before actual production.

CAD Software and Design of 3D Industrial Machinery ComponentCAD Software and Design of 3D Industrial Machinery Component

From a strategic standpoint, companies can address this challenge by adopting a concurrent engineering approach. Concurrent engineering involves integrating all aspects of a product's lifecycle, from design and manufacturing to end-of-life considerations, at the early design stage. This method ensures manufacturing capabilities and limitations are considered alongside design factors, leading to a balanced and efficient product development process.

A real-world example of balancing design and manufacturing considerations comes from the automotive industry. Tesla Motors' initial design for the Model S luxury electric car included many unique design elements, such as retractable door handles, which, while innovative, led to manufacturing complexities and challenges. Over time, Tesla worked to streamline their designs, incorporating principles of DFM to balance design innovation and manufacturability. This ultimately leads to improved production efficiency and product quality.

Challenge 2: Effective Cross-Functional Communication

Maintaining effective cross-functional communication poses a significant challenge in implementing Design for Manufacturing. Product design and manufacturing are often seen as separate entities, with different teams having distinct priorities. This can result in a disconnect, wherein design teams may not fully understand the implications of their decisions on the manufacturing process. Manufacturing teams may also struggle to communicate their capabilities and constraints to design teams.

One way to overcome this challenge is to implement a cross-functional team structure, where designers and manufacturers work together from the inception of the product design. This arrangement encourages open communication and understanding, leading to more informed decisions throughout the design process. Digital collaboration tools, such as shared CAD/CAM software, can facilitate this communication by allowing designers and manufacturers to visualize and discuss designs and their manufacturing implications simultaneously.

In addition to team structure and digital tools, investing in training can further improve cross-functional communication. By understanding the basics of each other's disciplines, designers and manufacturers can anticipate potential issues and collaboratively develop solutions. For instance, designers might be trained in basic manufacturing processes, while manufacturers might learn about fundamental design principles and constraints.

Implementing a Design for Manufacturing and Assembly (DFMA) approach is another strategy to enhance cross-functional communication. DFMA encourages concurrent design and manufacturing considerations from the early stages of product development. Following DFMA guidelines can improve communication between design and manufacturing teams, making the new product development process more efficient and aligned with design and manufacturing considerations.

The smartphone industry provides a compelling example of effective cross-functional communication. Companies like Apple and Samsung work with an intricate network of designers, engineers, and manufacturers to ensure a seamless transition from design to production. This involves intense collaboration, clear communication of design intents, and a shared understanding of both the technological possibilities and limitations, leading to the production of highly sophisticated devices.

Case Studies of Successful Design for Manufacturing Implementation

Case Study 1: Automotive Industry

Assembly Line Manufacturing High-Tech Electric Vehicles Assembly Line Manufacturing High-Tech Electric Vehicles

In the automotive industry, implementing Design for Manufacturing (DFM) has led to noteworthy improvements in efficiency and product quality. A particular example of successful DFM can be observed in Toyota's production system, recognized worldwide for its effective incorporation of DFM principles.

Toyota's production system embodies a lean manufacturing approach, where waste reduction is a core focus. The company achieved this through the Kaizen philosophy, emphasizing continual, incremental improvements in both design and manufacturing processes. Their design teams actively participate in the production process, gaining firsthand knowledge of manufacturing constraints and opportunities for design improvements.

One tangible manifestation of DFM in Toyota's process is the reduction of part variety in their vehicles. By designing components that can be used across multiple models, the company reduces the complexity of its supply chain and manufacturing processes. For instance, the same 2.5L four-cylinder engine is utilized in several models, such as the Camry, RAV4, and Avalon. This design decision results in significant cost savings and streamlines the manufacturing process.

Another notable aspect of Toyota's DFM approach is its focus on error-proofing, or Poka-Yoke. Designs are created to prevent assembly errors, incorporating features that make it obvious when a part is misaligned or missing. This attention to design details reduces manufacturing errors and enhances the quality of the finished vehicles.

A crucial measure of Toyota's success is its consistently high rankings in reliability and customer satisfaction surveys. For example, in 2022, Toyota ranked fifth in the J.D. Power Vehicle Dependability Study, demonstrating the effectiveness of its DFM practices in producing quality vehicles. Toyota's successes provide a compelling case study of DFM implementation in the automotive industry. [4]

Case Study 2: Consumer Electronics Industry

Mobile phones manufacturing in phone intelligence factoryMobile phones manufacturing in phone intelligence factory

One of the well-known examples of successful Design for Manufacturing (DFM) implementation in the consumer electronics industry is Apple Inc. This company has managed to create products that stand out for their unique design, quality, and consistency, both of which are a testament to their effective use of DFM principles.

Apple's iPod provides an exemplary case of DFM in practice. Launched in 2001, the iPod revolutionized portable music players with its minimalist design and user-friendly interface. Its development offers a window into Apple's successful DFM strategies.

A cornerstone of Apple's DFM approach is its early involvement of manufacturing considerations in the design process. The iPod's distinctive unibody design was an aesthetic choice and a manufacturing decision. Using a single aluminium block eliminated the need for additional components, simplified the assembly process, and increased durability. The implementation of this unibody design was facilitated by advanced Computer Numerical Control (CNC) milling technology, showcasing Apple's ability to merge cutting-edge manufacturing processes with innovative design.

Another essential element in Apple's DFM process is standardization. Like Toyota, Apple has effectively used shared components across its product range. For instance, the proprietary 30-pin connector introduced with the 3rd generation iPod was used across Apple's portable device lineup until it was replaced by the Lightning connector in 2012. This standardization allowed for streamlined manufacturing and easier inventory management, improving cost and efficiency.

Apple's success with DFM is evident in its strong market performance and customer satisfaction. Despite the higher price point, Apple's share of the global smartphone market was about 23% in 2022, according to data from Statista. Moreover, Apple has consistently scored high in customer satisfaction surveys, scoring 8o out of 100 in the American Customer Satisfaction Index for 2022. [5] Apple's application of DFM principles, thereby aligning the objectives of design and manufacturing, has been a critical factor in its market success.


Design for Manufacturing plays a critical role in modern industry. The benefits of DFM are tangible and have a profound impact on both manufacturing efficiency and product quality. It helps reduce production costs, improves the quality of the product, and can shorten the product development cycle, making it an indispensable part of any product development process. The successful implementation of DFM is not without its challenges. Balancing design and manufacturing considerations, fostering effective cross-functional communication, and ensuring continuous knowledge growth is essential for harnessing the full potential of DFM.

Frequently Asked Questions (FAQs)

Q. What is Design for Manufacturing (DFM)?

A. Design for Manufacturing (DFM) is an engineering practice that focuses on designing easy and cost-effective products. DFM aims to minimize manufacturing difficulties and costs by considering manufacturing processes and capabilities during the design phase.

Q. How does Design for Manufacturing improve industrial efficiency?

A. Design for Manufacturing can significantly improve industrial efficiency by reducing production costs and increasing product quality. DFM strategies help eliminate unnecessary design complexity, reducing the chances of manufacturing errors and defects. Moreover, they can reduce the lead time taken from design to market, enhancing the overall efficiency of the product development process.

Q. What are some challenges in implementing Design for Manufacturing?

A. Some challenges in implementing Design for Manufacturing include balancing design and manufacturing considerations, ensuring effective cross-functional communication, and keeping up with evolving manufacturing technologies. Effective management strategies and a strong emphasis on communication and training can help overcome these challenges.

Q. Can you provide examples of successful Designs for Manufacturing implementation?

A. Automotive and consumer electronics industries provide notable examples of successful DFM implementation. Toyota's Production System, which emphasizes minimizing waste and maximizing efficiency, is a classic example in the automotive industry. In the consumer electronics industry, Apple Inc. stands out with its distinctive unibody designs, which are aesthetically pleasing and simplify manufacturing.
