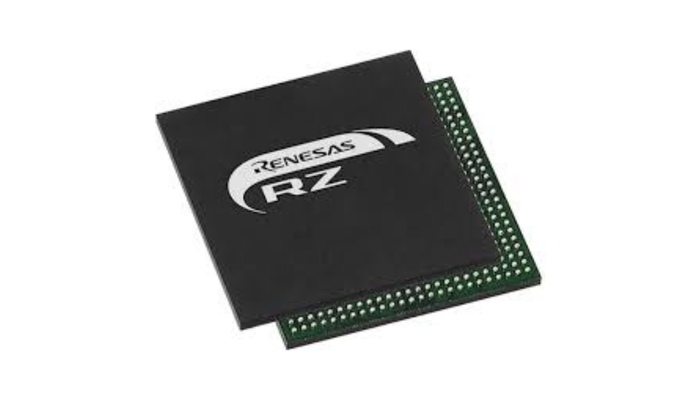

Renesas Electronics RZ/T2H MPU

The Renesas Electronics RZ/T2H MPU is designed for industrial automation and robotics, integrating application processing with precise real-time control on a single chip. It features up to four Arm Cortex-A55 cores operating at 1.2GHz for general-purpose computing, complemented by two Arm Cortex-R52 cores at 1GHz for time-sensitive tasks. This architecture facilitates advanced processing for applications such as multi-axis motor control and industrial Ethernet protocol management, supporting standards like TSN, EtherCAT, and PROFINET. The MPU incorporates high-speed LPDDR4-3200 memory with in-line ECC and two PCIe Gen3 interfaces. This allows for integration with external modules, enhancing its capability for demanding industrial applications. The RZ/T2H is compatible with Linux, RTOS, or bare metal, offering flexibility across embedded systems.

Renesas Electronics RZ/T2H MPU Features

The Renesas Electronics RZ/T2H MPU is a high-performance processor combining real-time control and application processing. Let’s go through its features in detail:

Dual-Core Architecture for Mixed Workloads

The Renesas Electronics RZ/T2H MPU integrates a heterogeneous multi-core architecture. It incorporates up to four Arm Cortex-A55 cores, clocked at 1.2GHz, designed for application processing. For real-time control tasks, the MPU includes two Arm Cortex-R52 cores, operating at 1GHz. This hybrid architecture allows the device to manage both user-level applications and low-latency control processes simultaneously, making it suitable for real-time industrial automation systems.

Memory and High-Speed Connectivity

The RZ/T2H MPU supports high-speed LPDDR4 memory, specifically 32-bit LPDDR4-3200 with in-line ECC for data integrity. This memory subsystem complements the processing cores by providing bandwidth for demanding applications. For external connectivity and expansion, the MPU features two PCIe Gen3 interfaces, enabling integration with modules such as Wi-Fi 6 and local 5G. This connectivity ensures adaptability for advanced industrial use cases. The optional hardware security features are available to meet safety and data integrity requirements in connected industrial ecosystems.

Real-Time Control and Industrial Networking Capabilities

Designed for motion-centric applications, the MPU supports motor control peripherals for up to nine axes. It includes built-in encoder interfaces such as A-format, BiSS-C, EnDat2.2, and HIPERFACE DSL, enabling compatibility with a wide range of industrial position sensors. These features are optimized for precise and synchronized control in robotics and motion control systems. For industrial communication, the RZ/T2H supports multiple Industrial Ethernet protocols, including TSN, EtherCAT, PROFINET RT/IRT, and EtherNet/IP, addressing the connectivity requirements of modern automation equipment.

Software Ecosystem and Targeted Applications

The RZ/T2H MPU offers compatibility with various software environments, including Linux, RTOS, or bare metal, providing flexibility for application development. Its integrated capabilities make it suitable for a range of industrial applications. These include industrial automation systems, autonomous mobile robots (AMR), automated guided vehicles (AGV), industrial robotics, motion control systems, and programmable logic controllers. An optional security feature is also available.
