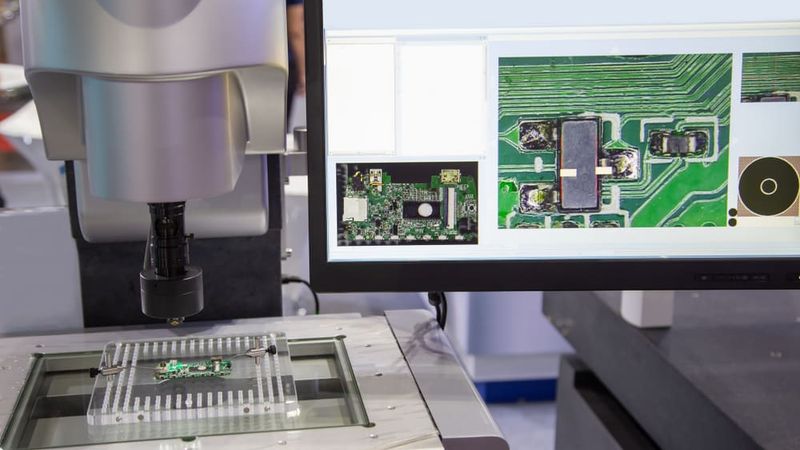

Vision measuring instrument inspecting a printed circuit board

Vision measuring instrument inspecting a printed circuit board

2D and 3D Automated inspection systems are often used for detecting manufacturing errors in fast production lines. Learn how they provide a comprehensive and efficient solution for quality assurance.


Automated Optical Inspection (AOI) is a visual inspection technology widely used in the electronic manufacturing industry to enhance product quality by efficiently identifying defects during the manufacturing process. This technology combines advanced optics, cameras, and image processing capabilities for inspections. AOI is known for its speed and precision, making it valuable in various industries such as automotive, consumer electronics, and medical device manufacturing, where it helps maintain high-quality standards.

AOI, an essential system for visual inspection on production lines, checks for defects, surface feature errors, and quality issues. It functions as an industrial inspection machine, using digital cameras or scanners and artificial intelligence to mimic human vision inspection but with greater speed, accuracy, and consistency. Primarily a PCB testing method, AOI detects quality failures or catastrophic failures like missing components. This non-contact test method is often used post-production or after solder reflow.

AOI machines inspect various surface features, including presence or absence, size, color, shape, alignment, and pattern of components. They check each component in real-time during the manufacturing process to ensure it meets specific design criteria. For instance, in electronic board manufacturing, post-reflow AOI integrated PCB inspection systems can detect issues like open circuits, short circuits, solder shorts, excessive solder, and incorrect component placement.

AOI Components

AOI systems have two basic components, an optical system and a software algorithm that can vary depending on the manufacturing process.

Optical Systems in AOI

In an AOI system, the optical system plays a key role, as it is responsible for acquiring images of the item to be inspected. The quality of these images directly affects the overall performance of the system. The typical optical system in an AOI consists of a light source, a set of lenses, and a digital camera.

  • Light Source: The light source illuminates the product under inspection. The type of light source, its color, and the angle of illumination can greatly impact the effectiveness of defect detection. Different AOI systems use different types of light sources depending on the application. Previously different light sources like fluorescent lamps, incandescent lamps, and ultraviolet lights were used. However, modern systems use LED arrays and halogen lamps, which provide consistent and uniform illumination.

  • Lenses: This component of the system directs the light reflected off the product into the camera sensor. High-quality lenses are crucial to capture sharp images. The lens system can be adjusted to vary the field of view and the depth of field, enabling inspection of different sizes and types of products.

  • Camera: Finally, the digital camera captures the image of the product. Cameras in AOI systems can range from standard 2D cameras to sophisticated 3D sensors that capture depth information. They contain millions of tiny light-sensitive cells called pixels that convert the light received into digital data. This data is then processed by the AOI's software algorithms to perform the inspection.

White light LED optical sensor scanner scan engine part in an Industrial manufacturing settingWhite light LED optical sensor scanner scaning an engine part

Software Algorithms in AOI

The performance of an AOI machine or system is heavily reliant on the power and precision of the processing software algorithms that it utilizes. These algorithms take on the task of analyzing the data captured by the optical system to identify defects or anomalies in the items being inspected. In essence, they serve as the 'brain' of the AOI system, enabling it to discern acceptable units from those with defects.

There are several types of software algorithms commonly used in AOI systems.

  • Pattern matching algorithms: They work by comparing the image of an inspected item to a stored reference image, looking for significant deviations. This technique is highly effective in applications where consistency is key, such as checking the placement and orientation of components on a printed circuit board.

  • Statistical pattern matching: It is a more advanced variant of pattern matching. This algorithm learns the normal variations in the appearance of a product over a number of good units and uses statistical measures to determine when a product deviates too far from the normal variation. This allows for a much more adaptive system capable of handling natural product variation without false alarms.

  • Feature-based algorithms: These are particularly useful when the inspection task involves verifying complex characteristics. These algorithms identify and quantify specific features in the image, such as edges, corners, or areas of a particular color or texture. The identified features are then compared against predefined criteria to determine whether the inspected unit passes or fails.

  • ML algorithms: In recent years, machine learning algorithms have begun to find their place in AOI systems. These algorithms, often based on neural network architectures, are capable of learning to identify defects from a large set of training images. This makes them particularly effective for tasks where the defect types are diverse and difficult to define explicitly, or where the appearance of the product can vary significantly.

It's important to note that the choice of algorithm depends largely on the specifics of the inspection task. Certain algorithms may perform exceptionally well in some situations, but not others. Therefore, a thorough understanding of the inspection requirements is crucial in selecting the most effective algorithm for a given AOI system.

Different Types of AOI Systems

AOI Systems come in various forms, each suited to different kinds of inspection tasks. A key factor that differentiates these systems is the type of imaging technology they use. AOI systems typically fall into one of two categories: 2D or 3D systems. Both have their unique strengths, and the choice between them often depends on the specifics of the inspection task at hand.

2D AOI Systems

Two-dimensional AOI systems are the most common type of AOI in use today. These systems use 2D cameras to capture images of the item under inspection. This type of AOI is particularly effective in detecting a range of surface-level defects such as incorrect components, missing components, misaligned components, and soldering defects.

The 2D AOI system primarily uses conventional imaging and pattern recognition technologies to perform inspections. The process typically involves capturing an image of the inspected item, usually a PCB (Printed Circuit Board), and comparing this image against the stored data of a flawless, defect-free PCB. This comparison allows the system to pinpoint any discrepancies or defects on the actual PCB.

Advantages of AD AOI:

2D AOI systems are a robust solution for many inspection tasks and continue to be widely used across the electronics manufacturing industry.

  1. These inspection and quality control systems are reliable when it comes to image quality, frame rate, camera resolution, ability to produce HD pictures, and image comparison based on algorithms.
  2. These systems have good inspection speed and are also less complex and cheaper than 3D AOI systems.

Limitations of 2D AOI:

While 2D AOI systems are effective at identifying a wide range of defects, they have some limitations.

  1. First of all, they may not accurately identify some types of defects that occur in three dimensions, such as lifted leads or components, or insufficient solder volume under a component.
  2. They may struggle with certain lighting conditions due to their reliance on two-dimensional imaging.

3D AOI Systems

A yellow robot arm with built in 3D scanner during an automated scanning.Robot arm with 3D scanner. Automated scanning

Three-dimensional AOI systems represent a more advanced evolution of AOI technology. These systems use 3D imaging technology, typically based on either laser triangulation or structured light projection, to capture a detailed topographical map of the inspected item.

  • Laser triangulation: It involves projecting a laser line onto the surface of the item, then using a camera to capture an image of the line. By analyzing the distortion in the line, the system can infer the height profile of the surface. This method is extremely precise and capable of measuring heights with a resolution of up to 1 micron. However, it is relatively slow, as it requires scanning the laser line across the entire surface of the item.

  • Structured light projection: This is a faster alternative to laser triangulation. This method projects a pattern of light onto the surface of the item and captures an image of the distorted pattern with a camera. By analyzing the distortion in the pattern, the system can infer the height profile of the surface. This method is faster than laser triangulation but slightly less precise, with a typical height resolution of around 10 microns.

Advantages of 3D AOI:

These systems are highly precise and capable of detecting complex defects.

  1. One of the primary advantages of 3D AOI systems is their ability to detect a wider range of defects, including ones related to the volume and shape of components and solder joints. For instance, a 3D measurement system can accurately measure the volume of a solder joint and identify if it is insufficient or excessive, a task that is beyond the capabilities of 2D systems.
  2. Another advantage is that 3D systems are less affected by variations in lighting and component color than 2D systems. This makes them more robust and versatile, capable of inspecting a wide range of components without needing adjustments for different component types or colors.

Limitations of 3D AOI:

  1. Despite some major advantages, there are few fronts where 2D systems have an edge.
  2. 3D AOI systems are more complex and expensive than 2D systems.
  3. These systems also require more computational power to process the 3D data, which can make them slower in some cases.

While 2D AOI systems have been prevalent for some time, offering cost-effective solutions for inspections based on patterns and color differentials. On the other hand, 3D AOI technology, while more complex and costly, provides significant benefits in inspecting three-dimensional defects that would otherwise go unnoticed with the 2D inspection.

Implementation of AOI in Manufacturing

Automated Optical Inspection (AOI)  plays a significant role in ensuring the quality of products, particularly in electronics manufacturing. By leveraging the capabilities of AOI, manufacturers are better equipped to identify defects in the early stages of production, thereby minimizing the risk of defective products reaching the market.

Role of AOI in Quality Control

Optic camera of high precision vision inspection in continuous automation line for sort or screen of product quality control in manufacturing process in factoryOptic camera of high precision vision inspection during manufacturing process in factory

AOI is primarily implemented in the quality control process to detect faults and defects in manufactured products. The precision and efficiency offered by AOI systems are indispensable in modern high-speed manufacturing lines where manual inspection would be inadequate or impractical.

AOI systems detect a broad range of potential defects, from misaligned or missing components to incorrect polarity or faulty soldering. By performing these checks immediately after each manufacturing step, AOI allows defects to be corrected early in the process, reducing the likelihood of wasted materials and rework later on.

Additionally, AOI systems can provide valuable data for process control and improvement. By analyzing the data collected by the AOI system, manufacturers can identify trends and patterns in defect occurrence, which can then be traced back to specific stages of the manufacturing process. This capability allows manufacturers to pinpoint where issues are arising and make necessary adjustments to reduce the occurrence of such defects in the future.

Given the stringent standards and high customer expectations in industries such as consumer electronics, automotive, and aerospace, the role of AOI in quality control is invaluable.

Suggested Reading: What Is Lean Manufacturing?

AOI in High-Speed Manufacturing Lines

 High-speed manufacturing necessitates a production line capable of maintaining a high throughput without sacrificing the quality of the output. Given the fast-paced nature of such lines, manual inspection is often inadequate due to human limitations in speed and precision. One example can be detecting tiny solder bridges that can be notoriously difficult to catch without machine vision during board inspection.

Automated Optical Inspection systems can process hundreds, or even thousands, of components per minute depending on the system's configuration and the specific components being inspected. This pace matches well with high-speed manufacturing lines, where production rates can reach similar speeds. For instance, modern Surface Mount Technology (SMT) lines can place over 40,000 components per hour, and AOI systems have been designed to keep up with these high rates.

AOI systems in high-speed manufacturing not only identify defective components, but also facilitate real-time feedback to earlier stages of the production line. For instance, if an AOI system detects a pattern of misaligned components coming from a specific pick-and-place machine, this information can be fed back immediately, enabling the machine's alignment parameters to be adjusted on-the-fly. This capability reduces defect propagation and the subsequent cost of rework or scrap.

Moreover, the high-speed capabilities of AOI also enable more efficient use of floor space in the manufacturing facility. Rather than slowing down the line for manual inspections or storing intermediate products for later inspection, products can be checked as they move through the line. This continual flow contributes to the overall efficiency and compactness of high-speed manufacturing lines.

Overall, AOI provides a solution that aligns with the demands for speed, precision, and efficiency in modern manufacturing. Keeping in mind the manufacturing trends and development of Industry 4.0, a lot of future manufacturing processes are supposed to be intelligent or automatic. This will further increase the importance of AOI integration in the coming years.

Suggested Reading: Industry 4.0 Technology Deep Dive


The impact of Automated Optical Inspection technology on modern manufacturing processes is profound. These systems utilize advanced optical systems (both 2D and 3D solutions, which come with a unique set of advantages and limitations) and software algorithms to perform inspections at a level of speed and precision unattainable by human inspectors.

In conclusion, AOI technology has already transformed the world of manufacturing and continues to evolve to meet the ever-increasing demands of industries worldwide. Its impact on enhancing productivity, reducing costs, and improving quality is an undeniable testament to its essential role in modern manufacturing.

Frequently Asked Questions (FAQs)

1. What are the reasons for deploying automated optical inspection in manufacturing?

AOI, or Automated Optical Inspection, is used in the modern manufacturing industry to enhance inspection consistency and accuracy as well as reduce production cost and time. It is exceptionally useful in maintaining quality standards, especially in high-speed manufacturing lines where manual inspection is impractical.

2. What are 2D and 3D AOI systems?

2D AOI systems inspect products based on two dimensions: width and height, identifying defects using patterns and color differentials. 3D AOI systems add depth to the inspection process, allowing them to detect three-dimensional defects that might be missed by 2D AOI.

3. How does AOI contribute to quality control in high-speed manufacturing?

AOI systems can inspect hundreds to thousands of components per minute, matching the pace of high-speed manufacturing lines. They also provide real-time feedback, allowing for adjustments to be made immediately if defects are detected. This contributes to improved product quality and reduced waste.

4. How has AOI technology evolved over time?

The evolution of AOI technology has seen advances in both hardware and software aspects. Modern AOI systems leverage cutting-edge optical systems and sophisticated software algorithms to detect an ever-wider range of potential defects. This ongoing evolution continues to enhance the capabilities of AOI in meeting the demands of modern manufacturing.
