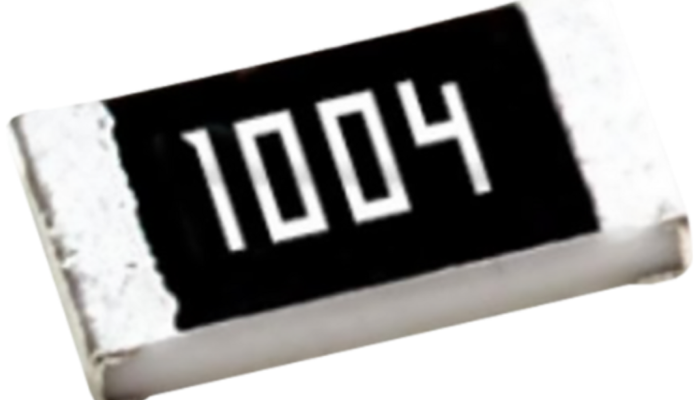

YAGEO VT High-Voltage Thin Film Chip Resistors

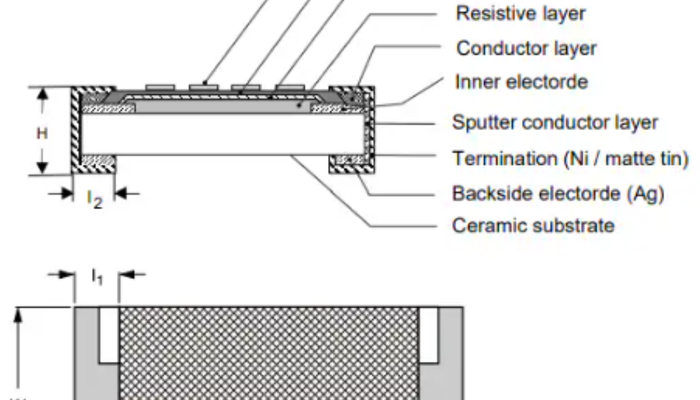

YAGEO VT High-Voltage Thin Film Chip Resistors are designed for demanding applications, offering a maximum operating voltage of up to 700V. They are AEC-Q200 qualified, making them suitable for automotive electronics, as well as industrial, medical, telecommunications, and test and measurement equipment. These resistors are built for durability and performance. They feature a high-grade ceramic body with internal metal electrodes connected by a resistive layer. This construction, combined with halogen-free epoxy, provides superior resistance against sulfur-containing atmospheres, ensuring high component and equipment reliability.

Eco-Friendly Features for Long-Lasting Applications

YAGEO VT High-Voltage Thin Film Chip resistors are designed for robust applications, ensuring compact design and high-voltage performance. Their design material features halogen-free epoxy, which is good for both environmental responsibility and user safety. Hence, even if the resistor is burned or improperly disposed of, it won’t release toxic and corrosive gases. Moreover, it reduces the risk of harmful gas emissions, making it safer for manufacturing personnel and end-users, especially in enclosed environments.

The resistors also provide superior resistance against sulfur-containing atmospheres. Hence, they prevent the corrosion of internal components. Due to their high resistance to degradation in harsh environments, these resistors are extremely low-maintenance, reducing overall fabrication cost, especially in high-voltage applications like motor control, telecommunication, automotive applications, etc.

High Performance Specifications for Wide-Ranging Applications

YAGEO VT resistors’ high-voltage specs make them ideal for demanding applications like automotive electronics, industrial control systems, and high-power medical equipment. The resistors have a 700V maximum operating voltage, making them suitable for power electronics applications like power inverters, converters, driver circuits, etc.

The resistors offer a wide operating temperature range of -55°C to +155°C. This ensures stable and consistent performance even in harsh environments, such as PCB designs in industrial applications. The resistors’ high-grade ceramic construction further enhances their durability and long-term reliability, providing users with a robust component they can trust.

The VT resistors’ MSL 1 rating signifies the lowest moisture sensitivity, allowing for a long-lasting application in typical factory environments. It simplifies handling and storage, reducing the need for special baking procedures before assembly and ultimately lowering manufacturing costs and improving production efficiency. The resistors are lead-free without RoHS exemption, demonstrating the manufacturer’s commitment to environmental responsibility. Therefore, it provides a future-proof solution that aligns with stricter regulatory requirements and caters to environmentally conscious product designs.
