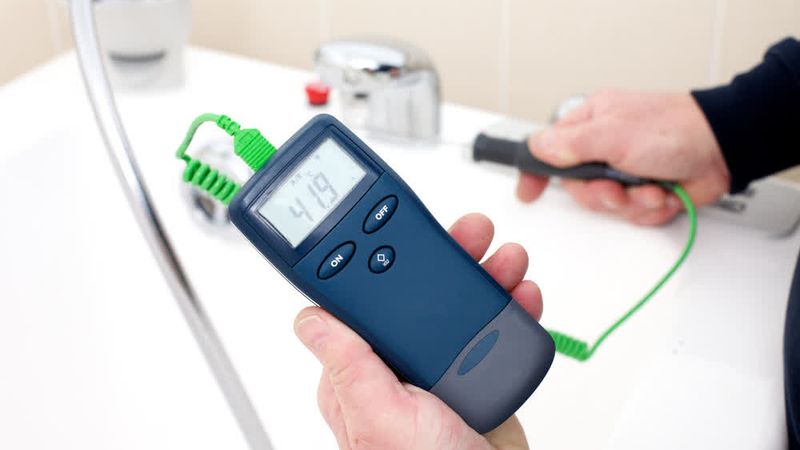

Thermistor vs Thermocouple: Which Temperature Sensor Suits Your Engineering Needs?

Navigating the differences between thermistors and thermocouples can be pivotal for engineers seeking precision in temperature measurement. This guide delves into their unique properties, advancements, and applications to help you make an informed decision.

Introduction

In engineering, precision in temperature measurement is crucial for the optimal performance and safety of various systems. Temperature sensors, such as thermistors and thermocouples, are vital tools in this endeavor, each offering unique characteristics and benefits.

While both sensors are similar, they have several technical differences. Hence, understanding these differences is essential for engineers, as the choice can significantly impact the efficiency and reliability of engineering projects. Selecting the appropriate sensor type not only enhances accuracy in temperature monitoring but also ensures the longevity and stability of the systems in which they are employed.

This guide aims to provide a detailed comparison, aiding engineers in making informed decisions tailored to their specific needs.

Understanding Thermistors and Thermocouples

What is a Thermistor?

A thermistor, a contraction of the term "thermal resistor," is a highly sensitive temperature sensor that plays a crucial role in various engineering applications. Thermistors were initially developed in the 20th century and have become indispensable in fields requiring precise temperature control.

These components exploit the predictable change in electrical resistance with temperature, allowing for accurate readings over a limited range.

There are two main types of thermistors:

  • Negative Temperature Coefficient (NTC)

  • Positive Temperature Coefficient (PTC).

NTC Thermistors: These decrease in resistance as the temperature increases, making them ideal for temperature sensing and control. NTC resistors are typically part of a Wheatstone bridge, and their low-cost versions can measure from -40 to +300 degrees Celsius.  They are generally, made from ceramic materials composed of metal oxides such as manganese, nickel, cobalt, and copper. NTC thermistors offer high sensitivity and stability. Their design enables applications in medical devices, automotive systems, and environmental monitoring.

PTC Thermistors: These increase in resistance with rising temperatures. PTC thermistors are often used for overcurrent protection and as self-regulating heating elements. Constructed from polymers or ceramics doped with barium titanate, they are commonly found in power supplies and circuit protection devices.

The materials used in thermistors are critical to their performance. For instance, the metal oxides in NTC thermistors provide exceptional sensitivity and stability, essential for accurate temperature measurement.

Close-up of a ThermistorFig 1: Close-up of a Thermistor

The resistance-temperature relationship of thermistors is non-linear, described mathematically using the Steinhart-Hart equation or a simpler beta parameter equation. This relationship allows thermistors to be used in circuits requiring precise temperature control, such as HVAC systems and industrial process control.

Suggested Reading: Process Control: A Comprehensive Guide to Implementation and Understanding in Industrial Systems

Thermistors are known for their:

  • High sensitivity to temperature changes

  • Fast response time

  • Limited temperature range (typically -50°C to 150°C)

  • Non-linear resistance-temperature relationship

  • Excellent stability and repeatability in specific temperature ranges

  • Cost-effectiveness for precise temperature measurements

Real-World Thermistor Examples

Real-world examples underscore the importance of thermistors.

  • In the automotive industry, they are critical for monitoring engine temperature, ensuring optimal performance and safety.

  • Thermistors provide accurate body temperature readings, crucial for patient care.

  • Compared to other sensors like RTDs and thermocouples, thermistors offer unmatched sensitivity and cost-effectiveness in specific applications, making them a preferred choice in many engineering solutions.

What is a Thermocouple?

A thermocouple is a highly reliable temperature sensor that consists of two dissimilar metal wires joined at one end, creating a junction where the temperature is measured. This technology, which dates back to the early 19th century, operates on the principle of the Seebeck effect. When there is a temperature difference between the junction and the other ends of the metals, a voltage (thermoelectric voltage) is generated. This voltage can then be measured and used to determine the temperature.

Thermocouples come in various types, each with specific characteristics suited for different applications:

  • Type J (Iron-Constantan): Suitable for general-purpose applications, Type J thermocouples operate in a temperature range of -210°C to 760°C. They are relatively inexpensive but can be susceptible to rusting at higher temperatures.

  • Type K (Chromel-Alumel): Known for their wide temperature range of -200°C to 1372°C, Type K thermocouples are highly versatile and commonly used in various industries. Their chromel-alumel construction offers durability and reliability.

  • Type T (Copper-Constantan): With a range of -200°C to 400°C, Type T thermocouples are highly accurate and suitable for cryogenic and low-temperature measurements.

A thermocouple in a heaterFig 2: A thermocouple in a heater

The Seebeck effect is fundamental to the operation of thermocouples. When two different metals are joined and exposed to a temperature gradient, electrons flow from the hot junction to the cold ends, generating a measurable voltage. The magnitude of this voltage depends on the types of metals used and the temperature difference.

The choice of materials in thermocouple construction significantly impacts performance.

For instance, Type K thermocouples use chromel (a nickel-chromium alloy) and alumel (a nickel-aluminum alloy), which provide good resistance to oxidation and high stability over a wide temperature range. These material properties make Type K thermocouples suitable for a broad array of industrial applications, from furnaces to jet engines.

Real-World Applications of Thermocouples

Real-world applications of thermocouples demonstrate their importance.

  • They are used in aerospace engineering for monitoring critical temperatures in engines and other components, ensuring safety and performance.

  • In manufacturing, thermocouples are essential for controlling metal forging and glass production, where precise temperature regulation is crucial.

Thermocouples offer a broader temperature range,  than other temperature sensors like RTDs and thermistors. This makes them particularly valuable in applications where extreme temperatures and rapid changes are encountered.

Key characteristics of thermocouples:

  • Wide temperature range capabilities

  • Fast response time

  • Rugged and durable construction

  • Varying accuracy levels depending on the type

  • Cost-effective for high-temperature measurements

  • Suitable for use in harsh environments

Key Differences Between Thermistors and Thermocouples

Thermistors and thermocouples differ significantly in several key areas, which influence their suitability for various applications in engineering.

Response Time

Thermistors typically have faster response times compared to thermocouples. Their smaller mass and higher sensitivity to temperature changes allow them to react quickly, making them ideal for applications requiring rapid temperature detection and control.

On the other hand, thermocouples, with their rugged construction, may have slightly slower response times but are still fast enough for most industrial applications.

Also, thermistors have a non-linear response while thermocouples mostly produce a linear response.

Accuracy

In terms of accuracy, thermistors generally offer higher precision within their specific temperature range. This precision can be attributed to the well-defined resistance-temperature relationship, which allows for fine-tuned measurements.

Thermocouples, while versatile, can exhibit variations in accuracy depending on the type and quality of the junctions. For example, Type T thermocouples are highly accurate at low temperatures, whereas Type K thermocouples provide reliable accuracy over a broader range.

Temperature Range

Thermocouples have a significantly wider temperature range than thermistors. They can measure temperatures from as low as -200°C up to 1200°C. It makes them suitable for extreme environments such as furnaces and jet engines.

A metal thermocouple installed in an industrial environmentFig 3: A metal thermocouple installed in an industrial environment

Thermistors, on the other hand, typically operate within a narrower range, from -150°C to 200°C, which is adequate for many applications but limits their use in extremely high or low temperatures.

Durability

Thermocouples are more robust and can withstand harsh conditions. Their construction using metals like nickel, chromium, and alumel provides excellent resistance to environmental factors such as oxidation and corrosion.

Even though thermistors, are more sensitive and accurate, they are more fragile and can be affected by mechanical stress and environmental conditions, requiring careful handling and installation.

Resistance Temperature Characteristics

The resistance-temperature characteristics of thermistors are highly non-linear. This property, described by the Steinhart-Hart equation or the beta parameter equation, allows for precise temperature measurements over a limited range.

The Seebeck coefficient is a measure of the voltage generated per unit of temperature difference across the thermocouple junctions. Different types of thermocouples have varying Seebeck coefficients, which influence their sensitivity and suitability for different applications.

Recommended Reading: How to Select the Best Temperature Sensors for Your Smart Project

The following table summarizes the differences between thermistors and thermocouples.

Parameter

Thermistors

Thermocouples

Response Time

Faster due to smaller mass

Slower but sufficient for most applications

Accuracy

Higher within a specific range

Varies, generally high for specific types

Temperature Range

-150°C to 200°C

-200°C to 1200°C

Durability

Less durable, sensitive to conditions

Highly durable, withstands harsh environments

Resistance-Temperature Characteristics

Non-linear, high-sensitivity

N/A

Seebeck Coefficient

N/A

Varies by type, affects sensitivity


Recent Technological Advancements

Innovations in Thermistor Technology

Innovations in materials and design have led to thermistors with improved temperature ranges, increased stability, and greater accuracy.

Material Sciences

Advancements in materials science have played a critical role. Researchers have developed new ceramic compositions and polymer materials that offer higher thermal stability and better performance at extreme temperatures.

For example, advanced NTC thermistors now utilize metal oxide ceramics with enhanced grain structures, improving their sensitivity and stability over a wider temperature range.

Specific innovations include:

  • High-Temperature Thermistors: Recent designs can withstand temperatures up to 300°C, expanding their use in automotive and industrial applications.

  • Flexible Thermistors: Incorporating polymer-based materials has led to the development of flexible thermistors that can be integrated into wearable technology and other applications requiring flexible sensors.

  • Miniaturized Thermistors: Advances in microfabrication techniques have enabled the production of extremely small thermistors, suitable for use in medical devices and intricate electronic systems.

These advancements are supported by several research studies and industry reportsFor instance, a study published in the Journal of Materials Science detailed the development of a new ceramic material for NTC thermistors, which demonstrated enhanced thermal stability with high resistivity and a wider operational temperature range.

Applications in Engineering

Utilizing Thermistors in Modern Engineering

Thermistors are used in various engineering applications due to their high sensitivity and accuracy in temperature measurement.

Automotive Industry: thermistors are crucial for monitoring and controlling engine temperature, ensuring optimal performance and preventing overheating. For example, in modern internal combustion engines, NTC thermistors are used to measure the coolant temperature. This data is fed to the engine control unit (ECU), which adjusts fuel injection and ignition timing to maintain efficiency and reduce emissions. Additionally, thermistors are used in battery management systems for electric vehicles to monitor and regulate battery temperature, extending battery life and improving safety.

HVAC Systems: Thermistors regulate indoor climate control. They measure ambient air temperature and adjust heating or cooling outputs to maintain desired temperature settings. Advanced HVAC systems utilize thermistors to monitor and optimize the performance of heat exchangers, ensuring energy efficiency and occupant comfort. For instance, thermistors are used in smart thermostats, providing precise temperature data that enables automated adjustments and energy savings.

Medical Devices: The medical devices industry relies heavily on thermistors for accurate temperature monitoring. In devices such as digital thermometers, patient monitoring systems, and incubators, thermistors provide real-time temperature readings critical for patient care. For example, in neonatal incubators, thermistors help maintain a stable and safe environment by continuously monitoring the temperature and adjusting the heating elements accordingly.

Leveraging Thermocouples for Accurate Temperature Measurement

Thermocouples are widely used across various engineering fields due to their ability to accurately measure a wide range of temperatures, their durability, and their fast response times. These characteristics make them indispensable in many industrial and scientific applications.

Aerospace Manufacturing: Thermocouples are essential for monitoring and controlling temperatures in critical components such as jet engines and spacecraft. For instance, in jet engines, thermocouples measure exhaust gas temperatures, providing data crucial for optimizing engine performance and ensuring safety. The high-temperature capabilities of thermocouples, often exceeding 1600°C, allow them to withstand the extreme conditions found in these environments.

Manufacturing Industry: Thermocouples play a vital role in processes that require precise temperature control. For example, in metal forging and heat treatment processes, thermocouples ensure that materials reach and maintain the necessary temperatures to achieve desired mechanical properties. The data provided by thermocouples help maintain process consistency, improve product quality, and reduce waste. In glass manufacturing, thermocouples monitor the temperature of molten glass to ensure uniformity and prevent defects.

Electronics Industry: The electronics industry relies heavily on thermocouples for various applications. In semiconductor fabrication, thermocouples are used to monitor and control the temperature of wafers during critical processes like chemical vapor deposition (CVD) and etching

Accurate temperature measurement is essential to maintain the integrity and performance of electronic components. Additionally, thermocouples are used in the testing electronic devices, where precise thermal profiling is necessary to ensure reliability and performance.

Suggested Reading: Semiconductor Resilience with Innovations in Testing Techniques and Packaging

Challenges and Considerations

Limitations of Thermistors

Thermistors, while highly sensitive and accurate within their operational range, face several challenges and limitations that engineers must consider.

Limited Temperature Range

One significant limitation is their relatively narrow temperature range. Typically, thermistors operate effectively between -150°C and 200°C. Beyond these limits, their performance can degrade, making them unsuitable for applications requiring extreme temperature measurements.

Environmental Fragility

Sensitivity to environmental conditions is another challenge. Thermistors can be affected by factors such as humidity, mechanical stress, and chemical exposure. For example, in high-humidity environments, moisture ingress can alter the resistance of the thermistor, leading to inaccurate readings. Similarly, mechanical stress from vibrations or shocks can damage the thermistor, affecting its reliability.

Thermal Stability

Thermal stability is a critical factor, especially in applications requiring consistent performance over time. Thermistors can experience drift in their resistance values due to prolonged exposure to high temperatures, which impacts their accuracy. This drift necessitates periodic recalibration to maintain precision.

To mitigate these challenges, engineers can employ several strategies:

  • Temperature Range Management: Select thermistors specifically designed for extended temperature ranges if needed. Manufacturers offer specialized thermistors capable of operating at higher or lower temperatures, expanding their application scope.

  • Environmental Protection: Encapsulate thermistors in protective coatings or housings to shield them from moisture, chemicals, and mechanical stress. Using hermetically sealed thermistors can significantly improve their durability in harsh conditions.

  • Thermal Stability Enhancement: Use high-quality materials and advanced manufacturing techniques to improve the thermal stability of thermistors. Regular calibration and maintenance schedules can also help maintain accuracy over the sensor's lifespan.

Challenges with Thermocouples

Thermocouples, despite their broad temperature range and durability, present their own set of challenges. One of the primary issues is calibration drift.

Over time and with repeated thermal cycling, the accuracy of a thermocouple can degrade. This drift can result from changes in the thermoelectric properties of the metals or contamination at the junctions.

Complex Installation

Installation complexity is another consideration. Proper installation is crucial for accurate temperature measurement, and factors such as wire routing, junction placement, and insulation integrity must be carefully managed. Improper installation can introduce errors and reduce the reliability of the temperature readings.

A typical Thermocouple interface schematic for data acquisition via serial communicationFig 4: A typical Thermocouple interface schematic for data acquisition via serial communication

Response Time

Response time variations can also pose a challenge. While thermocouples generally offer fast response times, this can vary depending on the specific type and construction. Thicker sheaths or protective coatings, while enhancing durability, can slow down the response time, affecting the sensor's ability to provide real-time data.

To address these challenges, engineers can adopt the following solutions:

  • Calibration Practices: Implement regular calibration routines to correct for drift. Using calibration standards traceable to national or international standards ensures consistency and accuracy. Advanced thermocouple designs with self-calibrating features are also becoming available.

  • Proper Installation: Follow best practices for thermocouple installation, such as ensuring proper insulation, avoiding sharp bends in the wires, and placing the junctions in thermally stable environments. Following the guidelines from standards organizations like ASTM or IEC can help minimize installation-related issues.

  • Response Time Optimization: Choose thermocouples with appropriate sheath materials and thicknesses for the specific application. For critical applications requiring rapid response times, opt for thermocouples with minimal protective coatings and shorter lag times.

By understanding and addressing these limitations, engineers can effectively utilize thermistors and thermocouples in a wide range of applications, ensuring accurate and reliable temperature measurements.

Conclusion

In the complex field of temperature measurement, understanding the distinct advantages and limitations of thermistors and thermocouples is essential. Thermistors offer high sensitivity and accuracy within a limited temperature range, making them suitable for applications requiring precise measurements at moderate temperatures.

Thermocouples, with their broad temperature range and robust durability, are ideal for high-temperature environments and industrial applications. Selecting the right sensor for a specific engineering need can significantly impact the performance, reliability, and efficiency of a project. By carefully considering the characteristics and requirements of each sensor type, engineers can make informed decisions that enhance their systems' overall functionality and longevity.

FAQs

  1. What are the main differences between thermistors and thermocouples?

Thermistors and thermocouples differ primarily in their operational principles, temperature range, and sensitivity. Thermistors are resistive devices whose resistance changes with temperature in a highly predictable manner, offering high accuracy and sensitivity within a limited temperature range (-50°C to 150°C). They are ideal for precise measurements at moderate temperatures. Thermocouples, on the other hand, generate a voltage based on the Seebeck effect, where two dissimilar metals create a measurable voltage in response to temperature differences. They cover a broad temperature range (-200°C to 1372°C for Type K) and are durable, making them suitable for extreme and industrial environments.

  1. Which sensor is more accurate: thermistor or thermocouple?

Thermistors are generally more accurate than thermocouples within their specified temperature range. Their high sensitivity to temperature changes allows for precise measurements, which is why they are often used in applications requiring fine temperature control, such as in medical devices and HVAC systems. Thermocouples, while versatile and able to measure a broader range of temperatures, may exhibit less accuracy due to potential issues like calibration drift and junction instability. However, certain high-precision thermocouples, like those made from platinum-rhodium alloys, can provide excellent accuracy for specific high-temperature applications.

  1. Can thermistors and thermocouples be used interchangeably?

Thermistors and thermocouples cannot be used interchangeably due to their different operational principles and application-specific strengths. Thermistors are best suited for applications requiring high sensitivity and accuracy within a moderate temperature range. They excel in environments where precise temperature control is necessary. Thermocouples, however, are more appropriate for high-temperature measurements and industrial settings due to their robustness and wide temperature range. The choice between the two should be based on the specific requirements of the application, including the desired temperature range, accuracy, response time, and environmental conditions.

  1. How do I choose between a thermistor and a thermocouple for my project?

Choosing between a thermistor and a thermocouple depends on several factors:

  • Temperature Range: If your application involves temperatures outside the range of -50°C to 150°C, a thermocouple may be more suitable due to its broader temperature capabilities.

  • Accuracy and Sensitivity: For applications requiring high accuracy and sensitivity within a moderate temperature range, thermistors are preferable.

  • Durability and Environmental Conditions: For harsh environments or high-temperature conditions, thermocouples offer better durability and performance.

  • Response Time: Consider the response time required for your application. Thermistors generally have faster response times, making them ideal for applications needing quick temperature adjustments.

  • Cost and Maintenance: Evaluate the cost and maintenance requirements. Thermistors are typically more cost-effective and require less frequent calibration compared to thermocouples.
