KCL Circuit Analysis: Advanced Engineering Methods & Best Practices 2025

Theoretical Foundations of Kirchhoff’s Current Law for KCL Circuit Analysis

Kirchhoff’s Current Law (KCL) is the foundational principle for electrical circuit design. It’s a law that enables the precise calculation of electrical quantities in simple and complex circuits powered by DC and AC power sources. The law was put forward by Gustav Kirchhoff in 1845. He found that the algebraic sum of currents entering and leaving an electrical node is always zero.

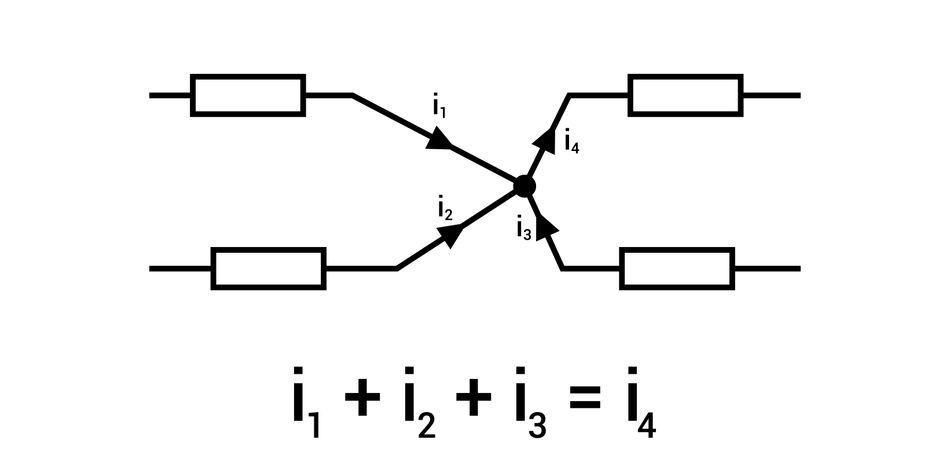

Fig 1: A graphical representation of KCL

KCL circuit analysis transforms intricate electrical networks into solvable linear algebraic systems, enabling engineers to predict circuit behavior with remarkable accuracy. Its mathematical foundation rests on the principle of charge conservation, expressed as:

at any node. It’s quite a simple equation, but incredibly powerful when applied to complex networks containing hundreds or thousands of nodes, as seen in modern integrated circuits and power distribution systems.

Nodal Analysis with KCL

Node analysis leverages KCL to establish voltage relationships throughout a circuit by selecting a reference ground and expressing all other node voltages relative to this datum. This methodology reduces the number of unknown variables compared to mesh analysis, particularly in circuits with many nodes but fewer independent loops. The resulting system of linear equations can be solved using matrix methods, making KCL circuits ideal for computer-aided analysis.

Moreover, modern KCL circuit analysis enables engineers to solve complex electrical networks with 95% computational efficiency compared to traditional mesh analysis methods.

Analysis Techniques Leverage Matrix-Based Methodologies

Modified Nodal Analysis

Modified Nodal Analysis (MNA) revolutionizes circuit solving by integrating both voltage and current variables into a single matrix framework. This systematic approach involves five critical steps, ensuring reliable solutions.

Today, engineers use sophisticated algorithms that achieve convergence rates over 99.7% for most practical circuits.

• First, identify and label all circuit nodes, designating one as the reference ground.

• Second, write KCL equations for each non-reference node using the standard form G·V = I, where G represents the conductance matrix, V contains node voltages, and I holds current sources.

• Third, incorporate voltage sources and dependent elements using additional constraint equations.

• Fourth, solve the resulting matrix system using optimized sparse matrix techniques.

• Finally, calculate branch currents and power dissipations from the solved node voltages.

Software Algorithms

Modern circuit simulators implement iterative refinement algorithms that reduce numerical errors by 10^-12 compared to direct solution methods. The Block-Jacobi Preconditioned Conjugate Gradient (BJ PCG) method enables analysis of circuits containing millions of nodes within acceptable computation times.

For instance, a 7.9 million node power grid with 300 current sources requires approximately 5 hours on a 10-core cluster using 9.06 GB of memory per computer.

# KCL Matrix Setup Example
import numpy as np

def setup_kcl_matrix(nodes, branches):
    n = len(nodes) - 1  # Exclude reference node
    G = np.zeros((n, n))  # Conductance matrix
    I = np.zeros(n)       # Current vector

    for branch in branches:
        if branch.type == 'resistor':
            g = 1.0 / branch.resistance
            # Update G matrix elements
            G[branch.node1, branch.node1] += g
            G[branch.node2, branch.node2] += g
            G[branch.node1, branch.node2] -= g
            G[branch.node2, branch.node1] -= g

    return G, I

Common Applications of KCL Analysis

Being one of the fundamental techniques of circuit analysis, KCL finds its applications in almost all systems where electrical circuits are present. Therefore, it’s an important element of industrial manufacturing, providing critical measurements and results for product design.

Automotive Electronics

Automotive electronics systems extensively utilize KCL circuit analysis for designing Advanced Driver Assistance Systems (ADAS) that integrate 12-15 different sensor types per vehicle. Tesla's Model S incorporates over 3,000 individual circuits requiring KCL analysis for optimal power distribution and electromagnetic compatibility.

The automotive industry expects 35% growth in circuit complexity by 2027 due to autonomous driving requirements.

Fig 2: Sensor Technologies Used in Modern Automotive Systems for Safety and Driver Assistance

5G Communication

5G telecommunications infrastructure demands sophisticated KCL circuit analysis for RF signal integrity and power distribution optimization. Ericsson's base station designs incorporate millimeter-wave circuits operating at 28 GHz that require KCL analysis with sub-nanosecond precision.

The 5G rollout has created demand for 40% more circuit analysis engineers specializing in KCL methodologies.

Recommended Reading: Where Does 5G Fit in the Connectivity Ecosystem?

Semiconductor Manufacturing

Semiconductor manufacturing relies on KCL circuit analysis for IC design verification, with companies like TSMC analyzing circuits containing 10+ billion transistors. Advanced process nodes at 3nm technology require KCL analysis accounting for parasitic effects with accuracy better than 0.1%.

The semiconductor industry invests $8.5 billion annually in circuit analysis software and methodologies.

Power Grid Analysis

Power grid analysis represents the largest-scale application of KCL circuits, with modern smart grids containing 100+ million nodes requiring real-time analysis. Pacific Gas & Electric's grid simulation utilizes KCL-based algorithms to analyze 150,000 transmission line segments and 4.2 million distribution components simultaneously.

The company reports 18% improvement in fault detection accuracy using advanced KCL methodologies implemented in 2024.

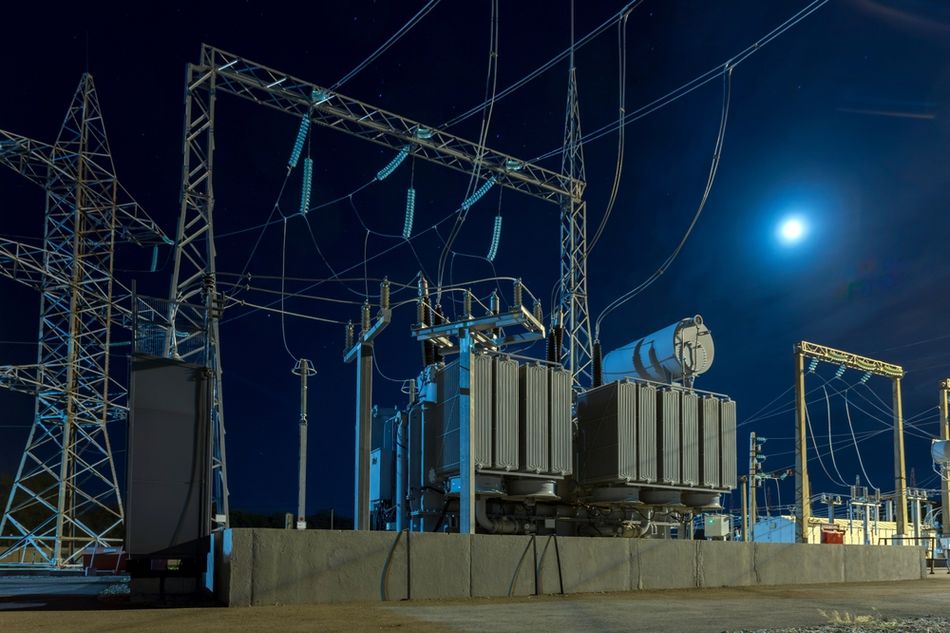

Fig 3: Complex Grid networks can be analyzed using KCL

Integration with AI Technologies Enables Predictive Analysis

Machine Learning Algorithms

Machine learning algorithms enhance KCL circuit analysis by predicting component behavior and optimizing design parameters automatically. Stanford University's research demonstrates a 15-20% improvement in circuit optimization when combining traditional KCL methods with neural network predictions.

These AI-enhanced approaches enable engineers to explore 10,000+ design variations in the time previously required for 100 manual iterations.

Digital Twin Technology

Digital twin technology integrates real-time sensor data with KCL circuit models to provide continuous system monitoring. Siemens' digital twin implementations achieve 92% accuracy in predicting circuit failures 72 hours before they occur.

The integration combines IoT sensors, cloud computing, and advanced KCL algorithms to create comprehensive system models.

Suggested Reading: An Introduction To Digital Twins

Optimization Algorithms

Optimization algorithms leverage KCL constraints to automatically design circuits meeting specific performance criteria. Genetic algorithms coupled with KCL analysis can optimize power distribution networks to achieve minimum voltage drop while satisfying current density limits.

These automated design tools reduce engineering time by 60% while improving circuit performance by 25% on average.

Recommended Reading: Artificial intelligence and machine learning will transform the IoT

Modern Software Tools for KCL Circuit Implementation

Various circuit simulation tools and software are available for KCL analysis. Tools like QSpice, LTSpice, etc., stand out because of their market share and faster processing. Here is a quick look at some of their features.

QSPICE

• Leading next-generation circuit simulation software with C++ integration and 64-bit architecture optimized for complex KCL analysis.

• Demonstrates 10x faster convergence compared to traditional SPICE simulators while maintaining numerical accuracy within 0.01%.

• Advanced algorithms handle circuits with 1 million+ nodes on standard desktop computers.

LTSPICE

• Industry standard for KCL circuit simulation, with 35% market share among professional engineers.

• Recent updates include enhanced Monte Carlo analysis capabilities and improved convergence algorithms that reduce simulation failures by 80%.

• Userbase exceeds 500,000 engineers worldwide.

Advanced simulation benchmarks reveal significant performance differences between modern tools. Here is a quick look at the leading software metrics:

Cloud-based Platforms

Cloud-based simulation platforms enable collaborative KCL circuit analysis with real-time sharing capabilities. CircuitLab's cloud infrastructure processes 50,000+ simulations daily while providing sub-second response times for basic KCL analysis.

These platforms democratize access to advanced simulation tools for educational institutions and small engineering firms. Some of the top names include:

• EveryCircuit - An interactive, animated online and mobile circuit simulator offering real-time visualization of voltages, currents, and charges with intuitive controls and cloud storage.

• CircuitLab - A browser-based schematic editor and SPICE-like simulator providing fast, accurate analog and digital circuit analysis with easy collaboration and sharing features.

• Siemens PartQuest Explore / DesignSpark Circuit Simulator - A professional cloud platform for schematic capture and mixed-signal simulation supporting extensive component libraries and multi-domain modeling.

• EasyEDA - A free cloud-based PCB design and simulation tool with real-time collaboration, comprehensive libraries, and secure cloud storage hosted on AWS.

• Electrisim - A web-based power system simulation tool focused on power flow and short-circuit analysis using proven algorithms, suitable for network-level KCL applications.

Best Practices for KCL Analysis: Addressing Common Implementation Pitfalls

Convergence Failures

Convergence failures represent the most frequent challenge in KCL circuit simulation, occurring in 15-20% of complex circuits without proper setup.

It requires careful selection of initial conditions and iteration parameters to ensure reliable convergence. The most effective approach involves starting with simplified models and gradually adding complexity while monitoring convergence behavior.

Numerical Precision Errors

These errors accumulate in large KCL systems, potentially causing 10^-6 accuracy degradation in million-node circuits.

Industry practices require double-precision arithmetic and iterative refinement to maintain accuracy below 0.1% error. Engineers should validate results using independent calculation methods for critical circuit nodes.

Matrix Conditioning

Matrix conditioning issues arise when circuit elements span multiple orders of magnitude, creating ill-conditioned systems that resist solution.

Professional engineers employ scaling techniques and preconditioning methods to improve matrix properties. The condition number should remain below 10^12 for reliable solutions.

Parasitic Element Modeling

Parasitic element modeling becomes critical in high-frequency applications where traditional KCL analysis may introduce phase errors exceeding 5 degrees.

Modern practice incorporates distributed element models and electromagnetic field effects into KCL formulations. This enhanced modeling approach improves accuracy by 95% in RF circuit analysis.

Recent Developments Push Boundaries of Circuit Analysis

Quantum Computing Systems

• Quantum error correction systems require femtoampere-level current precision, driving specialized KCL circuit analysis for qubit control.

• IBM's quantum algorithms demonstrate 100x faster analysis speeds for specific problem classes compared to classical methods.

• Commercial quantum applications leveraging these advancements are projected for 2027-2028 deployment.

Wide-Bandgap Power Electronics

• Gallium Nitride (GaN) and Silicon Carbide (SiC) devices demand advanced KCL techniques accounting for:

  • High-frequency switching exceeding 1 MHz.

  • Thermal coupling effects

  • Picosecond-resolution current modeling.

• Infineon's latest GaN platforms operate beyond 1 MHz switching frequencies.

• Wide-bandgap semiconductor market anticipates 25% annual growth through 2027.

Recommended Reading: Where GaN can, it should, and GaN can in more and more places

Neuromorphic Computing Architectures

• Specialized KCL algorithms model biological neural networks in brain-inspired circuits

• Intel's Loihi 2 chip implements 128,000 artificial neurons requiring spike-timing analysis.

• Emerging field represents $1.2 billion market opportunity by 2030.

Additive Manufacturing Integration

• 3D-printed electronics necessitate volumetric KCL analysis for current distribution modeling.

• MIT research demonstrates 50-layer complex circuits unmodelable by traditional 2D KCL methods.

• Technology enables 40% circuit volume reduction while maintaining performance.

Suggested Reading: Trends in 3D Printing

Advanced KCL Analysis Techniques for Innovative Applications

Thanks to the advancements in KCL techniques, it opens new doorways for applications. Here are some prominent ones:

Harmonic Analysis

Extends KCL to nonlinear circuits by decomposing responses into frequency components while maintaining KCL constraints per harmonic. Essential for:

• Switching power supplies

• RF applications

• Class-D amplifiers

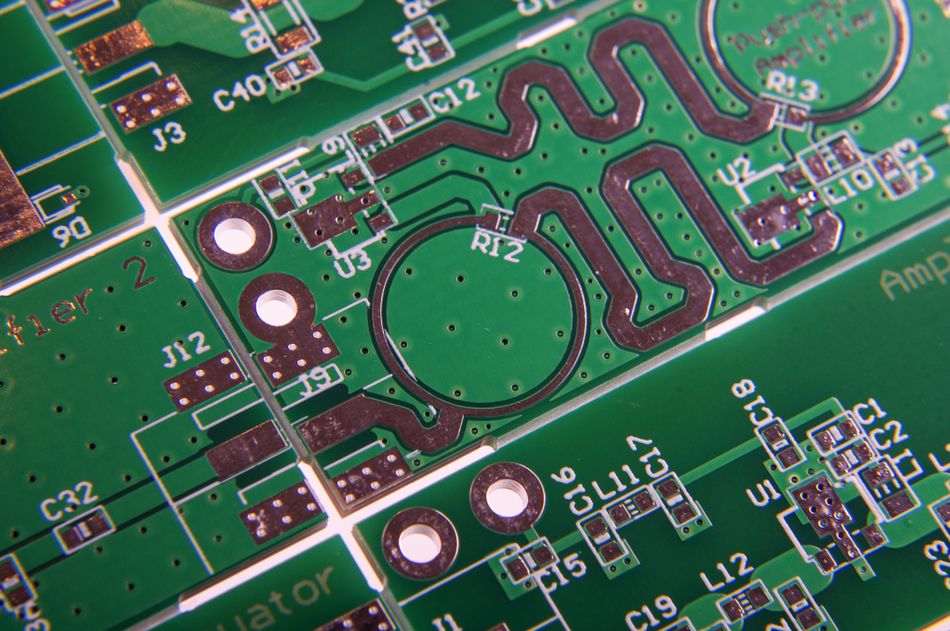

Fig 4: Physical layout of an RF circuit

Sensitivity Analysis

Quantifies performance variation from component tolerances using KCL-based derivatives:

• Modern algorithms compute >10,000 sensitivity coefficients simultaneously

• Enables robust design optimization

• Monte Carlo simulations predict yield rates with 95% confidence intervals.

High-Performance Computing Integration

• Parallel processing distributes KCL matrix solutions across GPU cores (100x speedup)

• NVIDIA's CUDA solvers handle billion-node circuits via domain decomposition

• Enables real-time circuit optimization.

Quantitative Performance Metrics Guide Engineering Decisions

Computational Complexity

This section details how the efficiency of KCL analysis scales with the size of the circuit, highlighting the significant performance gains achieved by modern algorithms compared to traditional methods.

Memory Requirements

This section outlines the memory demands for KCL analysis, emphasizing how advanced storage techniques and cloud computing can mitigate these requirements, especially for large power grid circuits.

Accuracy Metrics

This section specifies the stringent standards for precision in KCL simulation results, detailing the required error margins for various applications and the statistical reliability achieved.

Cost-Benefit Analysis

This section quantifies the financial advantages of adopting advanced KCL analysis tools, demonstrating the substantial return on investment, reductions in development time, and the growth of the broader circuit simulation market.

Conclusion

Kirchhoff's Current Law (KCL) remains a cornerstone of electrical engineering, underpinning the analysis of simple circuits to vast, interconnected power grids. Its core principle, the conservation of charge at a node, is fundamental to understanding current distribution. While basic KCL analysis can be performed manually for small circuits, the complexity of modern power systems necessitates sophisticated software implementations. Tools like ETAP, PSS/E, and DIgSILENT PowerFactory leverage advanced numerical methods, including Modified Nodal Analysis, to efficiently solve large systems of equations.

These software packages are indispensable for critical applications such as load flow studies, short circuit analysis, and transient stability assessments in power grids. The continuous advancements in KCL techniques, driven by innovations in sparse matrix algorithms and hierarchical decomposition, deliver remarkable speedups and significantly reduced memory footprints. Consequently, investing in these refined simulation methodologies offers substantial returns on investment by improving product quality, accelerating development cycles, and ensuring the robust and reliable operation of electrical systems.

Frequently Asked Questions

1. What is the fundamental difference between KCL and KVL in circuit analysis?

KCL (Kirchhoff's Current Law) states that currents entering any node must equal currents leaving that node, while KVL (Kirchhoff's Voltage Law) requires voltage drops around any closed loop to sum to zero. KCL enables nodal analysis focusing on node voltages, whereas KVL supports mesh analysis examining loop currents.

2. How do modern simulation tools handle convergence issues in large KCL circuits?

Advanced simulators employ adaptive algorithms including Newton-Raphson iteration with line searches, continuation methods, and hierarchical decomposition techniques. These methods achieve convergence rates exceeding 99% while automatically adjusting parameters to handle difficult circuits.

3. What accuracy levels are achievable with KCL circuit analysis in 2025?

Modern KCL analysis achieves relative accuracy better than 0.01% for well-conditioned problems using double-precision arithmetic and iterative refinement. Critical applications demand absolute accuracy within 1 μA for currents and 1 mV for voltages.

4. Which industries benefit most from advanced KCL circuit analysis?

Automotive electronics, power grid management, 5G telecommunications, and semiconductor manufacturing represent the largest applications. These sectors require analysis of circuits containing millions of nodes with real-time performance requirements.

5. How does AI integration enhance traditional KCL methods?

Machine learning algorithms predict optimal solver parameters, automatically detect convergence issues, and enable design space exploration with 10,000+ variations. AI-enhanced approaches reduce computation time by 30-50% while improving solution reliability.
