EMI Gaskets: The Unsung Heroes of Electromagnetic Interference Shielding

author avatar

23 Apr, 2024

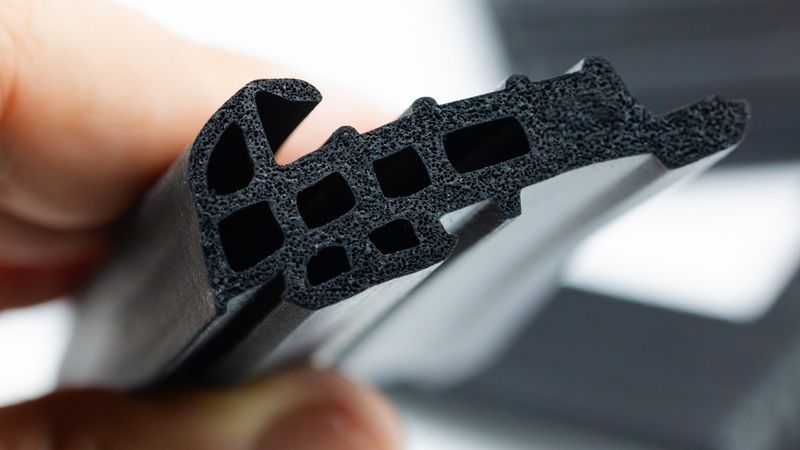

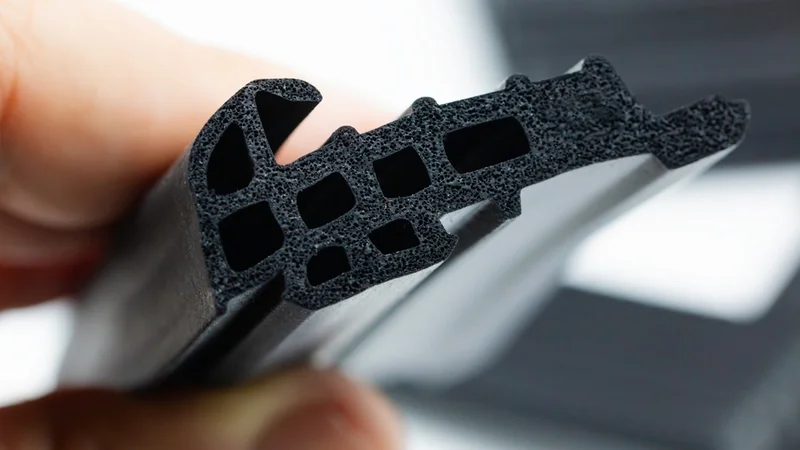

EMI gaskets used in electronic equipment

EMI gaskets used in electronic equipment

This article delves into the fundamentals of EMI gaskets, types, and their critical role in protecting electronic devices and ensuring optimal performance in various engineering applications.


EMI gaskets, the silent guardians of modern electronics, are critical components in the field of electromagnetic interference shielding. These unsung heroes utilize conductive materials like metal-filled elastomers or fabrics to protect electronic devices and systems from the detrimental effects of EMI.

EMI gaskets ensure the proper functioning and reliability of sensitive electronic equipment by effectively sealing enclosures and preventing the ingress or egress of electromagnetic waves. The impact of EMI gaskets extends across various industries, from consumer electronics to aerospace and medical devices, making them indispensable in today's increasingly interconnected world.

Let’s get into the fundamentals of EMI gaskets, types, and their critical role in protecting electronic devices and ensuring optimal performance in various engineering applications.

Understanding Electromagnetic Interference (EMI)

Electromagnetic Interference (EMI) is a disruptive phenomenon where unwanted electromagnetic energy interferes with the normal operation of electronic devices. This interference can lead to various problems, from minor signal degradation to complete system failure. EMI can originate from both natural and man-made sources and can propagate through various means, including conduction, radiation, and coupling.

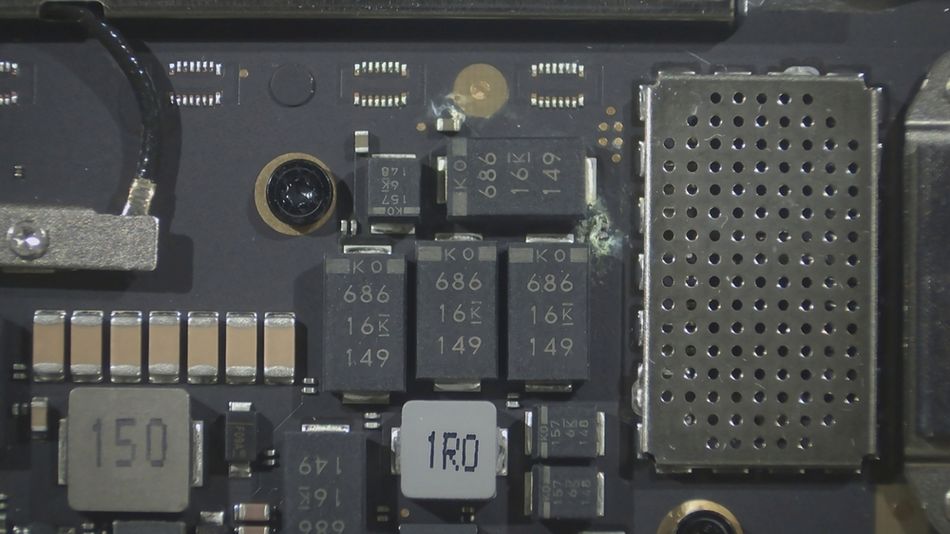

EMI Shield on the logic board and several small black and grey chipsetsEMI Shield on the logic board and several small black and grey chipsets

Effective EMI shielding is essential to protect electronic systems from its detrimental effects. EMI can cause data corruption, signal distortion, and even permanent damage to sensitive components without proper shielding. EMI shielding involves using specialized materials and techniques to absorb, reflect, or redirect unwanted electromagnetic energy away from the protected device. [1]

Sources of EMI

The common sources of EMI include:

  • Radio Frequency (RF) Sources: These include cell phones, Wi-Fi routers, and radio broadcasts. Their radio waves can interfere with sensitive electronic circuits.

  • Power Lines and Motors: The flow of electricity in these elements generates electromagnetic fields that can couple with nearby devices.

  • Switching Circuits: The rapid on-and-off switching within electronic circuits can create electromagnetic pulses that can interfere with other circuits.

  • Natural Sources: The natural world also contributes to EMI. Lightning strikes and electrostatic discharge (ESD), commonly known as static shocks, generate powerful bursts of electromagnetic energy. On a larger scale, solar flares and cosmic radiation emit high-energy particles that can induce currents in electronic circuits.

Effects of EMI

The consequences of EMI can range from minor inconveniences to complete system failures. Here are some potential effects:

  • Data Corruption: EMI can introduce errors into data signals, leading to incorrect information being processed.

  • Equipment Malfunction: Strong EMI can disrupt the delicate operation of electronic circuits, causing unexpected behavior or complete shutdown.

  • Reduced Performance: Even low levels of EMI can degrade the performance of electronic devices.

Types of EMI

EMI can be classified into two main categories: conducted EMI and radiated EMI. [2]

Conducted EMI occurs when electromagnetic energy is transmitted through physical connections, such as power lines, signal cables, or ground planes. This type of EMI can introduce power supply noise, signal distortion, and cross-talk between adjacent circuits. For instance, a poorly designed power supply can inject conducted EMI into a system, causing erratic behavior or reduced performance.

Radiated EMI, in contrast, occurs when electromagnetic energy is transmitted through the air as electromagnetic waves. Sources of radiated EMI include antennas, high-speed digital circuits, and electrostatic discharges. Radiated EMI can interfere with nearby electronic devices, resulting in signal corruption, data loss, or unintended system behavior. For example, a cell phone placed near a sensitive medical device may emit radiated EMI, potentially disrupting its operation and compromising patient safety.

EMI Shielding Gasket Fundamentals

EMI shielding gaskets, or RFI shielding gaskets, are meticulously designed barriers crafted from conductive materials like metal-filled elastomers or conductive fabrics. Their primary function is to create a continuous electrical pathway along an enclosure's interface. EMI gaskets work by creating a low-impedance path for electromagnetic energy to flow, effectively redirecting it away from sensitive components or containing it within the shielded enclosure. This effectively seals the gap, preventing unwanted electromagnetic leakage that could disrupt delicate signals within the device.

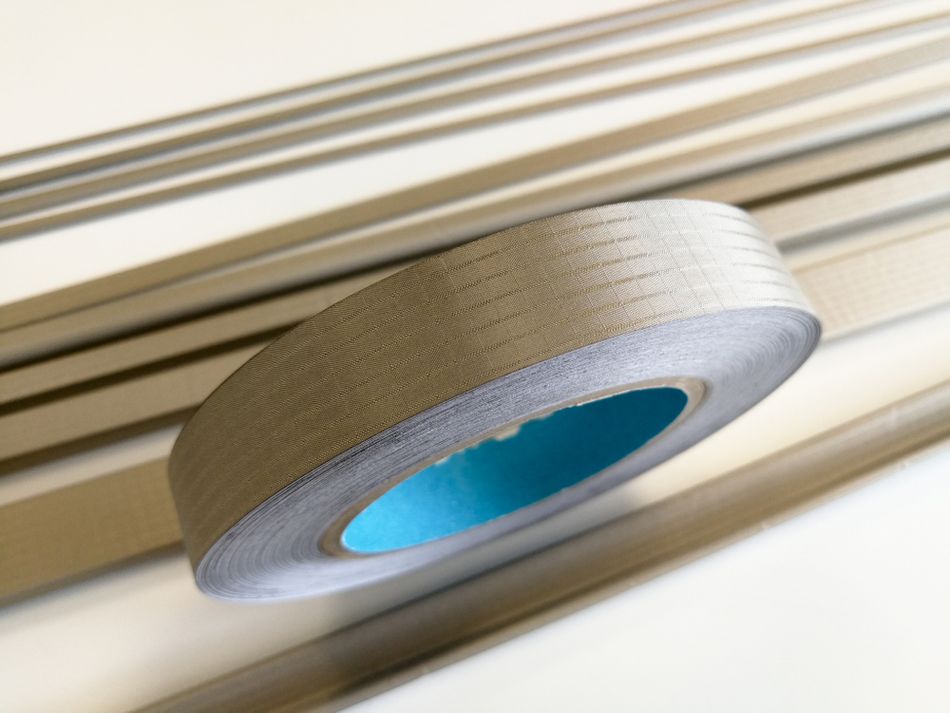

Conductive shielding gaskets for reducing Electromagnetic Interference (EMI)Conductive shielding gaskets for reducing Electromagnetic Interference (EMI)

Effective EMI gaskets possess the following characteristics:

  1. High electrical conductivity to facilitate the flow of electromagnetic energy.

  2. Adequate compression force to ensure reliable and continuous contact between the gasket and the mating surfaces.

  3. Resilience and durability to withstand repeated compression cycles and environmental stresses.

  4. Compatibility with the shielded electronic enclosure materials to prevent galvanic corrosion.

Shielding effectiveness, measured in decibels (dB), quantifies an EMI gasket's ability to attenuate electromagnetic energy. It depends on factors such as the gasket material, thickness, and frequency range of the radio frequency interference. Higher shielding effectiveness values indicate better EMI attenuation performance. [3]

Compression force is crucial in EMI gasket design, as it ensures intimate contact between the gasket and the mating surfaces, preventing gaps or leakage points that could allow EMI to pass through. However, excessive compression force can damage the gasket or deformation, compromising its shielding performance.

EMI gasket materials, such as silver, copper, or conductive elastomers, are chosen for their high electrical conductivity, which enables the efficient transfer of electromagnetic energy from the gasket to the shielded enclosure.

Connector Gaskets are specialized conductive gaskets designed to fit around connectors, providing EMI shielding and environmental sealing at connection points. Similarly, conductive gaskets feature materials that conduct electricity to manage electromagnetic interference shielding.

Common EMI Gasket Geometries

Gasket geometry, including shape and profile, should maximize contact area and minimize gaps between the gasket and the mating surfaces. Proper gasket geometry ensures consistent compression and reliable shielding performance across the sealing interface.

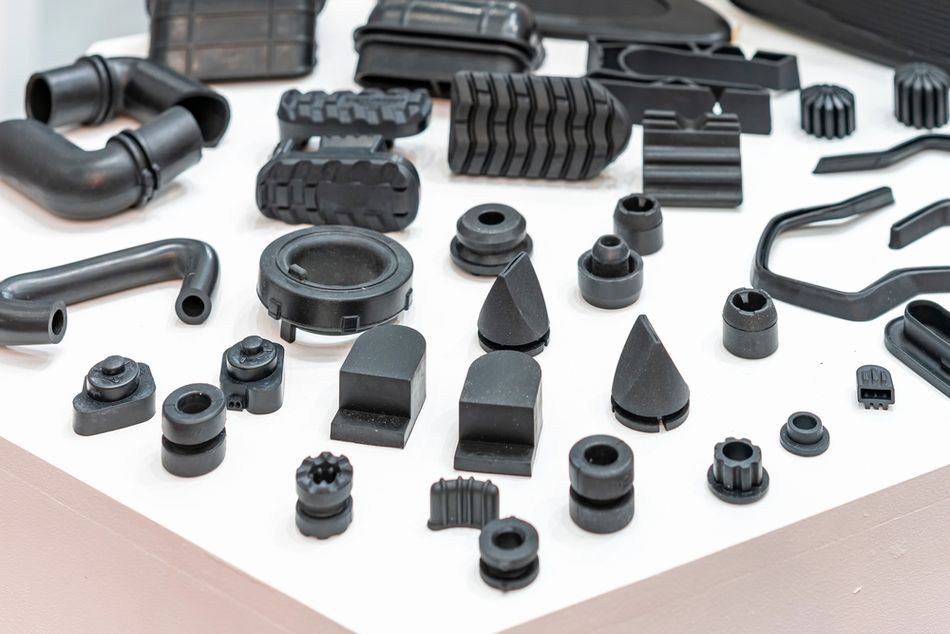

Molded rubber sample parts as per EMI gasket geometries different applicationsMolded rubber sample parts as per EMI gasket geometries different applications

Here's a breakdown of some common EMI gasket geometries:

D-Shaped Gaskets: These versatile workhorses feature a D-shaped cross-section, ideal for fitting into grooves or channels around enclosures. Their simple design allows for easy installation and provides good compression against the enclosure walls.

P-Shaped Gaskets: Similar to D-shaped gaskets, P-shaped gaskets have a prominent flange on one side. This flange offers additional contact area, potentially improving shielding effectiveness. They are often used for applications requiring a tighter seal or where space limitations necessitate a one-sided flange design.

Fingerstrips: These thin, flexible strips offer a high degree of conformability, making them suitable for applications with uneven surfaces or irregular shapes. They can be easily cut and customized to fit specific gaps around enclosures.

Spiral Wound Gaskets: As the name suggests, these gaskets consist of a conductive material wound in a spiral pattern. This design creates a spring-like action, providing continuous contact pressure and excellent shielding effectiveness, particularly for vibrations or thermal cycling applications.

Knitted Wire Mesh Gaskets: These lightweight, flexible gaskets are constructed from a mesh of conductive wires. They offer good ventilation and EMI shielding across a broad frequency range. They might be suitable for applications requiring airflow alongside EMI protection.

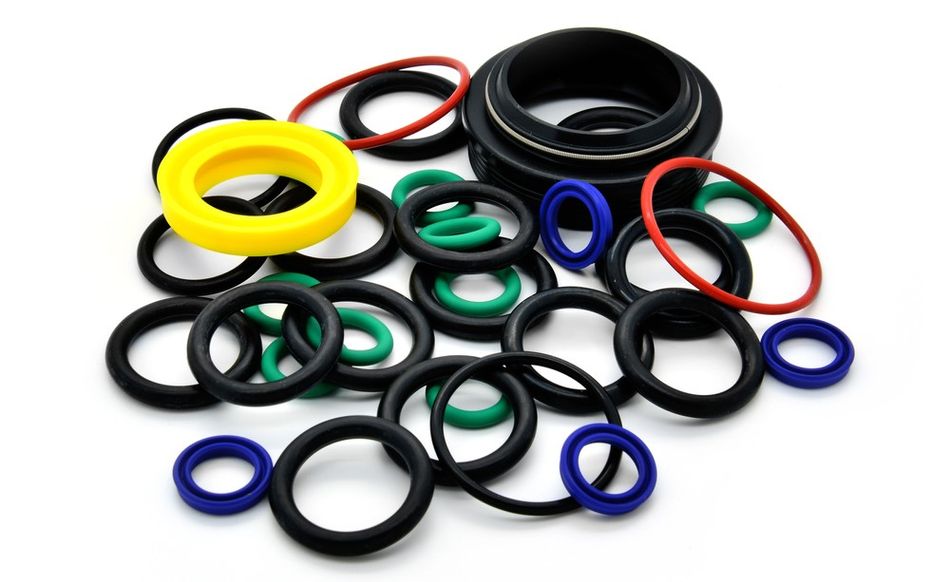

Silicone rubber gaskets, seals, O-rings, and dust wiperSilicone rubber gaskets, seals, O-rings, and dust wiper

Silicone Rubber Gaskets: These versatile gaskets are formed from conductive silicone rubber, offering good environmental resistance and flexibility. They can be moulded into complex shapes, making them ideal for applications with intricate sealing requirements.

By understanding the common EMI gasket geometries, engineers can select the most appropriate solution for their specific application, ensuring optimal EMI shielding and maintaining the smooth operation of their electronic devices.

Recommended Reading: 3D Printed Rubber: What's Possible and What Isn't

Advancements in EMI Gasket Technology

Recent advancements in EMI gasket technology have focused on improving shielding performance, durability, and manufacturing processes. These advancements have led to the development of innovative materials and techniques that enhance the overall effectiveness of EMI gaskets in various applications.

Novel conductive filler materials, such as carbon nanotubes (CNTs) and graphene, have emerged as promising solutions for enhancing EMI shielding performance. These materials exhibit exceptional electrical conductivity and high aspect ratios, enabling the creation of EMI gaskets with improved shielding effectiveness. Research has shown that incorporating CNTs into silicone elastomers can increase shielding effectiveness by up to 20 dB compared to traditional metal-filled silicones. [4] The high aspect ratio and intrinsic conductivity of CNTs allow for the formation of a conductive network within the elastomer matrix, resulting in superior EMI attenuation.

Advanced manufacturing processes, such as 3D printing and laser cutting, have revolutionized the fabrication of EMI gaskets. These processes enable the creation of complex gasket geometries with high precision and repeatability. 3D printing techniques, like fused deposition modeling (FDM) and selective laser sintering (SLS), allow for the customization of gasket designs with optimized shielding performance. A case study involving 3D-printed conductive elastomer gaskets for a high-frequency electronic device demonstrated a 15 dB improvement in shielding effectiveness compared to traditional die-cut gaskets.

Design optimizations through finite element analysis (FEA) and electromagnetic simulation tools have been crucial in advancing EMI gasket technology. By simulating the electromagnetic behavior of gaskets under various operating conditions, engineers can identify potential weaknesses and optimize the gasket geometry for maximum shielding effectiveness. A study involving the optimization of a beryllium copper fingerstock gasket using FEA demonstrated a 10 dB improvement in shielding effectiveness across a wide frequency range.

The optimized design featured a unique cross-sectional profile that maximized contact pressure and minimized gap formation, enhancing EMI attenuation.

Simulation and Testing Methods

Simulation and testing are crucial in the development and evaluation of EMI gaskets, allowing engineers to predict gasket performance, identify potential issues, and optimize designs before physical prototyping and manufacturing. These methods save time, reduce costs, and ensure that EMI gaskets meet the required shielding effectiveness and performance criteria.

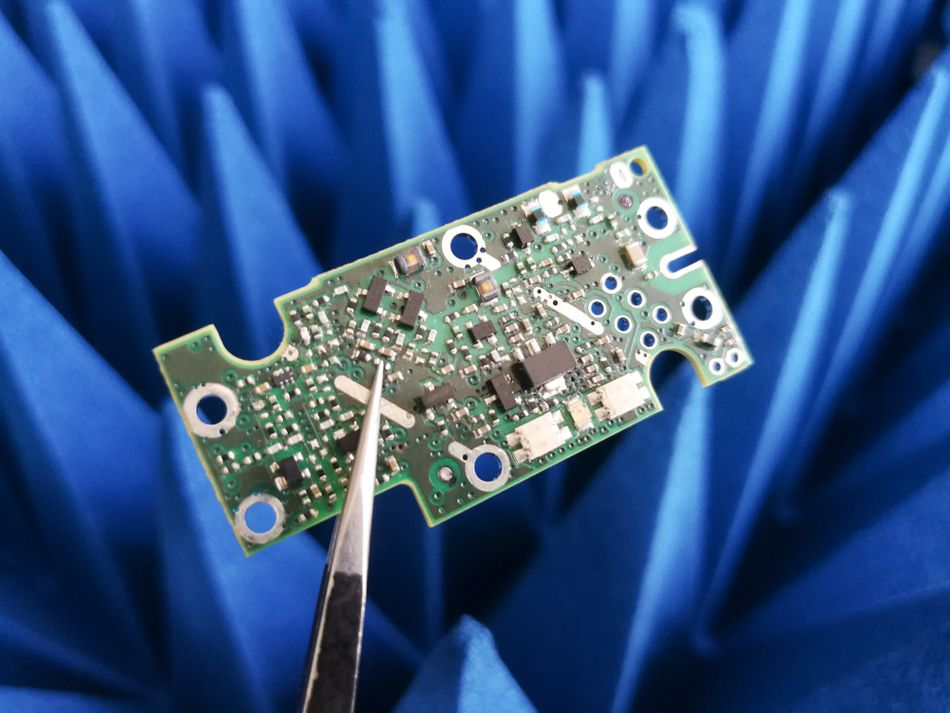

Electronics PCB in front of Electromagnetic compatibility measurement absorbersElectronics PCB in front of Electromagnetic compatibility measurement absorbers

Common simulation methods used in EMI gasket development include:

  • Finite Element Analysis (FEA): FEA divides the gasket geometry into smaller elements and solves electromagnetic field equations to predict shielding effectiveness. This method allows engineers to analyze the electromagnetic behavior of gaskets under various operating conditions and optimize their design for maximum performance.

  • Electromagnetic Simulation: Software such as CST Studio Suite or ANSYS HFSS enables engineers to model and simulate the electromagnetic properties of EMI gaskets. These tools can predict shielding effectiveness, analyze electromagnetic coupling, and visualize field distributions, helping engineers to identify potential leakage points and optimize gasket designs.

Testing methods used to evaluate EMI gasket performance include:

  • Shielding Effectiveness Testing: This involves measuring the attenuation of electromagnetic energy through the gasket using a network analyzer or spectrum analyzer. This test determines the gasket's ability to reduce EMI across a specific frequency range and ensure compliance with relevant EMC standards.

  • Compression Set Testing: This evaluates the gasket's ability to maintain its environmental sealing properties after prolonged compression. The test involves compressing the gasket to a specified deflection for a set duration and measuring the permanent deformation. Compression set testing helps predict the long-term performance and reliability of EMI gaskets.

The benefits of using simulation and testing methods in EMI gasket development include:

  • Reduced development time and costs by identifying and addressing issues early in the design process.

  • Optimization of gasket designs for maximum shielding effectiveness and performance.

  • Prediction of gasket behavior under various operating conditions and environments.

  • Verification of compliance with relevant EMC standards and regulations.

By combining simulation and testing methods, engineers can gain a comprehensive understanding of EMI gasket performance.

EMI Gasket Applications in Engineering

EMI gaskets are essential components in various engineering domains, ensuring the electromagnetic compatibility and reliable operation of electronic systems. These versatile components are crucial in industries such as aerospace, automotive, medical devices, and consumer electronics, where EMI shielding is vital to prevent interference and maintain system integrity.

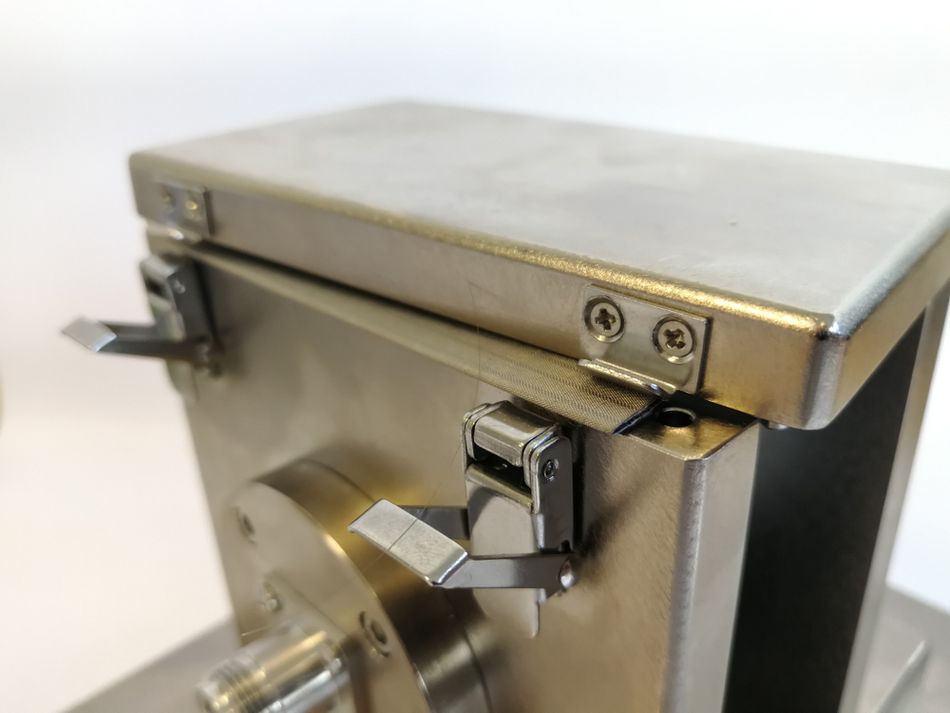

Conductive shielding gaskets used to improve electrical contact for reducing electromagnetic emissions (EMI)Conductive shielding gaskets used to improve electrical contact for reducing electromagnetic emissions (EMI)

In the aerospace industry, EMI gaskets shield sensitive avionics, satellite communication systems, and ground support equipment from electromagnetic interference. For example, conductive elastomer gaskets used in an aircraft's electronic warfare system significantly reduced EMI, ensuring reliable operation in hostile electromagnetic environments.

The automotive industry relies on EMI gaskets to protect electronic control units (ECUs), in-vehicle infotainment systems, and advanced driver assistance systems (ADAS) from electromagnetic interference. Custom-designed wire mesh gaskets, such as O-rings implemented in an EV battery management system help mitigate EMI issues, ensuring optimal battery performance and safety.

Medical devices, such as MRI machines, pacemakers, and patient monitoring equipment, require robust EMI shielding to prevent interference and ensure patient safety. Beryllium copper fingerstock gaskets used in an MRI machine's RF shielding enclosure demonstrated excellent shielding effectiveness, ensuring high-quality imaging and patient safety.

In consumer electronics, EMI gaskets are used in smartphones, laptops, gaming consoles, and smart home devices to prevent electromagnetic interference and ensure compliance with EMC regulations. Conductive foam gaskets in a high-performance gaming laptop helped reduce EMI emissions and improve the device's overall performance and user experience.

These examples showcase the critical role of EMI gaskets in tackling the challenges posed by electromagnetic interference across diverse industries. As technology advances and the demand for effective EMI shielding grows, the application of EMI gaskets in engineering will remain essential in ensuring the electromagnetic compatibility, reliability, and safety of electronic systems.

Selecting the Right EMI Gasket for Your Application

Choosing the most suitable EMI gasket for a specific engineering application is crucial to ensure optimal shielding performance and long-term reliability. The selection process involves considering various factors and following a systematic approach to identify the best gasket material and design for the requirements.

Key steps in selecting the right EMI gasket:

  1. Determine the frequency range of the electromagnetic interference: Identify the frequency spectrum of the EMI sources in your application. This information is essential to select a gasket material that provides adequate shielding effectiveness across the relevant frequency range.

  2. Calculate the required shielding effectiveness: Estimate the minimum shielding effectiveness (SE) needed to attenuate the EMI to acceptable levels. The required SE can be calculated using the following equation:

    Where P₁ is the power of the EMI source, and P₂ is the maximum allowable power after attenuation.

    For example, if an EMI source has a power of 1 W and the maximum allowable power after attenuation is 1 μW, the required SE would be,

  3. Consider environmental conditions: Evaluate the environmental factors the EMI gasket will be exposed to, such as temperature range, humidity, chemical exposure, and UV radiation. Select a gasket material that can withstand these conditions without degradation in performance.

  4. Assess mechanical requirements: Determine the mechanical properties required for the EMI gasket, such as compression force, compression set resistance, and durability. The gasket material and design should maintain adequate contact pressure and sealing effectiveness over the product's lifetime.

  5. Evaluate compression force: The compression force required to achieve adequate sealing and shielding effectiveness is critical in EMI gasket selection. Too low compression force may result in gaps and leakage, while excessive compression force can lead to gasket damage or deformation. Use the gasket manufacturer's data and recommendations to select a gasket that provides the optimal compression force for your application.

  6. Select the appropriate gasket material: Based on the frequency range, required SE, environmental conditions, and mechanical requirements, choose the most suitable gasket material from options such as metal-filled silicones, fluorosilicone, conductive elastomers, wire mesh, graphite or beryllium copper. Refer to the material properties and shielding effectiveness data provided in the datasheets by the gasket manufacturer to make an informed decision.

  7. Optimize gasket design: Collaborate with the gasket manufacturer or use simulation tools to optimize the gasket design for your specific application. Consider factors such as gasket geometry, contact area, and mounting method to ensure optimal shielding performance and ease of installation. Each specific gasket design or material will have a unique part number for identification when ordering.

Recommended Reading: EMI Shielding: Protecting Electronic Devices in a Noisy World


EMI gaskets are conductive seals that prevent the ingress and egress of electromagnetic waves, ensuring the proper functioning and reliability of sensitive electronic equipment. This article has explored the fundamental concepts of EMI, different types of EMI gaskets, and their materials. It also mentioned recent advancements and how to choose the right gasket for a specific application. Selecting the right material and maintaining the gasket is crucial for its effectiveness. With growing demand for EMI shielding, the future of EMI gasket technology looks bright. Researchers are developing new materials and designs to create high-performance EMI shielding for complex devices. The evolution of EMI gasket technology will significantly impact the engineering field, ensuring the electromagnetic compatibility, reliability, and safety of electronic systems.

Frequently Asked Questions (FAQs)

Q. What are EMI gaskets, and how do they work?

A. EMI gaskets, or RFI shielding gaskets, are specialized components that provide a conductive seal between mating surfaces to prevent electromagnetic interference from entering or exiting a shielded area. They create a low-impedance path for electromagnetic energy to flow, effectively redirecting it away from sensitive components or containing it within the shielded enclosure.

Q. What are the common materials used in EMI gasket construction?

A. Common materials used in EMI gasket construction include fluorosilicone, electrically conductive elastomers, graphite, beryllium copper, and fabric-over-foam gaskets. Each material has unique properties and benefits, including shielding effectiveness, compression set resistance, electrical conductivity, and temperature range.

Q. How do I select the right EMI gasket for my application?

A. Selecting the right EMI gasket involves considering factors such as the frequency range of the electromagnetic interference, required shielding effectiveness, environmental conditions, mechanical requirements, and compression force. Following a systematic approach and consulting gasket manufacturer data is essential to choose the most suitable gasket material and design for your specific application.

Q. What are the benefits of simulation and testing methods in EMI gasket development?

A. Simulation and testing methods, such as finite element analysis, electromagnetic simulation, shielding effectiveness testing, and compression set testing, offer several benefits in EMI gasket development. These methods help reduce development time and costs, optimize gasket designs for maximum performance, predict gasket behaviour under various conditions, verify compliance with EMC standards, and improve the reliability and durability of EMI gaskets.

Q. How often should EMI gaskets be inspected and maintained?

A. The frequency of EMI gasket inspection and maintenance depends on the application's criticality and the gasket's expected lifespan. Generally, gaskets should be inspected at least once a year or more frequently for high-reliability applications. Regular inspection and maintenance help identify potential issues before they lead to EMI leakage or system failures.

Q. What are the signs that an EMI gasket needs replacement?

A. Signs that indicate an EMI gasket needs replacement include visible damage (cracks, tears, or permanent deformation), excessive compression set, corrosion or oxidation, contamination that affects performance, increased EMI leakage or reduced shielding effectiveness, and the gasket reaching the end of its expected lifespan as specified by the manufacturer.

Q. Can EMI gaskets be custom-designed for specific applications?

A. Yes, EMI gaskets can be custom-designed for specific applications. Gasket manufacturers often collaborate with engineers to develop tailored solutions that meet unique shielding requirements, environmental conditions, and mechanical constraints. Custom-designed gaskets can optimize shielding performance, improve durability, and simplify installation for a given application.
