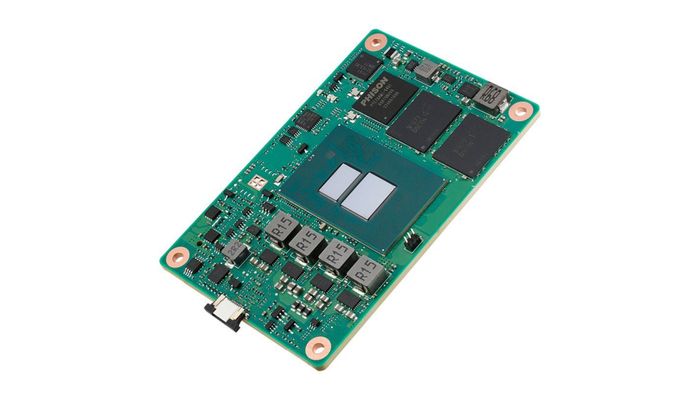

Advantech SOM-7533 COM Express® Mini Type10 Modules

The Advantech SOM-7533 are COM Express® Mini Type 10 modules utilizing Intel® Core™ i3, N-series, and Atom® x7000 series processors (Alder Lake-N/Amston Lake). It follows the COM Express R3.1 Mini Module Type 10 pinout, offering a scalable processing platform with up to 16GB of LPDDR5 4800MT/s memory and IBECC support. The module features 2.5GbE with TSN, enabling real-time networking for industrial applications.

Connectivity features include 2.5GbE with TSN for real-time networking, PCIe Gen3, USB 3.2 Gen2, and SATA 3.0 interfaces. Onboard eMMC storage is available as an option. Software support comprises Advantech iManager, embedded APIs, and Wise-DeviceOn for remote management and monitoring. The module targets industrial automation, edge computing, IoT, and embedded systems where small form-factor, performance, and varied I/O are required.

Features of SOM-7533 COM Express Mini Type10 Modules

The SOM-7533 COM Express Mini Type10 Modules are compact embedded computing platforms designed for high-performance processing and extensive I/O expansion. It supports Intel processors, LPDDR5 memory, and multiple connectivity options. Let’s explore some of their salient features:

Processor and Memory Architecture

The Advantech SOM-7533 COM Express Mini Type10 Module is powered by Intel Core i3, N series, and Atom x7000 Series Processors (Alder Lake-N/Amston Lake). It follows the COM Express R3.1 Mini Module Type 10 pinout, ensuring compatibility with various embedded computing platforms. The module supports up to 16GB of LPDDR5 4800MT/s single-channel memory with In-Band Error Correction Code (IBECC), which enhances data integrity and reliability for industrial applications.

Networking and Connectivity

The SOM-7533 features 2.5GbE with Time-Sensitive Networking (TSN), providing low-latency and deterministic data transmission for industrial automation and IoT applications. Additionally, it offers multiple high-speed I/O interfaces, including PCIe Gen3, USB 3.2 Gen2, and SATA 3.0, allowing flexible expansion and peripheral integration. This makes it suitable for applications requiring real-time data processing and high-bandwidth communication.

Storage and Expansion Options

The module includes optional onboard eMMC storage, offering a compact and reliable non-volatile memory solution. This is useful for applications needing embedded storage without relying on external drives. The PCIe Gen3 interface enables high-speed expansion, allowing developers to integrate additional components like NVMe SSDs, GPUs, or specialized accelerators for performance optimization.

Advanced Management and Embedded Software Support

The SOM-7533 supports Advantech iManager, Embedded Software APIs, and Wise-DeviceOn, which enable advanced remote monitoring, device management, and secure system deployment. These features simplify embedded system integration, allowing developers to implement remote diagnostics, firmware updates, and real-time system monitoring. This module is designed for industrial automation, edge computing, and IoT applications, where reliability, efficiency, and connectivity are essential.

Applications

The Advantech SOM-7533 modules are suitable for a range of embedded applications. In industrial automation, the TSN-enabled Ethernet facilitates real-time control and communication. For edge computing, the processing power and compact form factor enable localized data processing. IoT devices benefit from the module’s low power consumption and connectivity options.

Smart retail applications can leverage the module for point-of-sale systems and digital signage.  Medical equipment can utilize the SOM-7533 for data acquisition and processing. Transportation systems can employ the module for fleet management and control systems. Finally, networking and communication systems can integrate the module for network appliances and gateways.
