Where the Buttons Never Stop Getting Pressed

Every day, technology shows up in public places as companies and public agencies look to cut costs and improve the customer experience. That shift brings real benefits, but it also creates a problem few people think about: the human-machine interface (HMI), usually a set of push buttons, has to survive contact with the public.

Devices we own ourselves get treated gently. Devices anyone can walk up to don't get that same care, whether the damage is deliberate vandalism or just careless, over-forceful use. A delicate membrane-based switch matrix won't last long under those conditions. As public-facing equipment keeps expanding, so does the need for HMIs that are built to take a beating.

You've Already Used One Today

Rugged, button-driven interfaces are everywhere once you start looking. Fill up at a gas station, and you're pressing buttons to select fuel grade. Charge an EV, and you're working through a panel of start/stop and payment controls. At the same station, adding air to your tires or running your car through a wash means more button interaction.

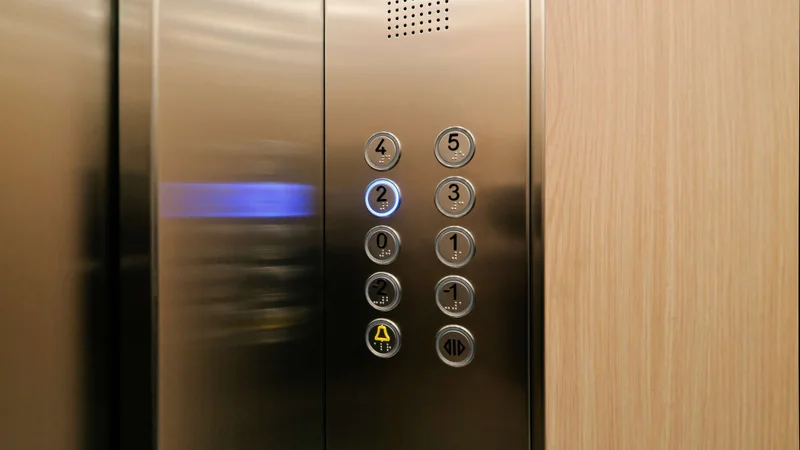

Take the train instead, and you'll hit buttons to open doors, access the restroom, or use the intercom, even at the machine where you bought your ticket. Once you arrive, an ATM gives you cash through a rugged keypad, an access control panel or intercom gets you through the door, and an elevator panel takes you the rest of the way. None of these systems receive constant monitoring, and none of them can afford to fail.

What Makes a Switch Vandal-Resistant

Switches built for these environments differ from standard components in both materials and construction. Anti-vandal switches are typically metal-bodied: stainless steel remains the top choice for durability and finish, nickel-plated brass balances strength with aesthetics, and anodized aluminum serves applications that call for a lighter, more modern look.

Sealing matters just as much as the housing material. These switches need to resist moisture — from weather or from spills, accidental or otherwise — which typically means an IP67 or IP6K7 ingress protection rating, the latter covering high-pressure spray. On the impact side, most anti-vandal switches carry an IK10 rating, the highest available, protecting against impacts up to 20 Joules.

Many of these switches also include an illuminated legend option, using an LED to show function and give visual feedback even in low light.

C&K's ATP Family: One Platform, Four Sizes

C&K, one of the world's leading switch suppliers, addresses this need with four series in its ATP family: ATP16, ATP19, ATP22, and ATPS19. The main differences between them come down to panel diameter and body depth, while all four hold to the same rugged environmental and impact standards.

What They All Have in Common

Across the entire ATP portfolio:

• Extreme protection: Every series carries an IP67 rating for water and dust resistance, plus an IK10 rating (with stainless steel bushings) for maximum impact resistance.

• Premium materials: All models use high-strength, lightweight, corrosion-resistant stainless steel housings with scratch-resistant actuators.

• Functionality options: Every series is available in momentary (spring-back) and lock/latching versions.

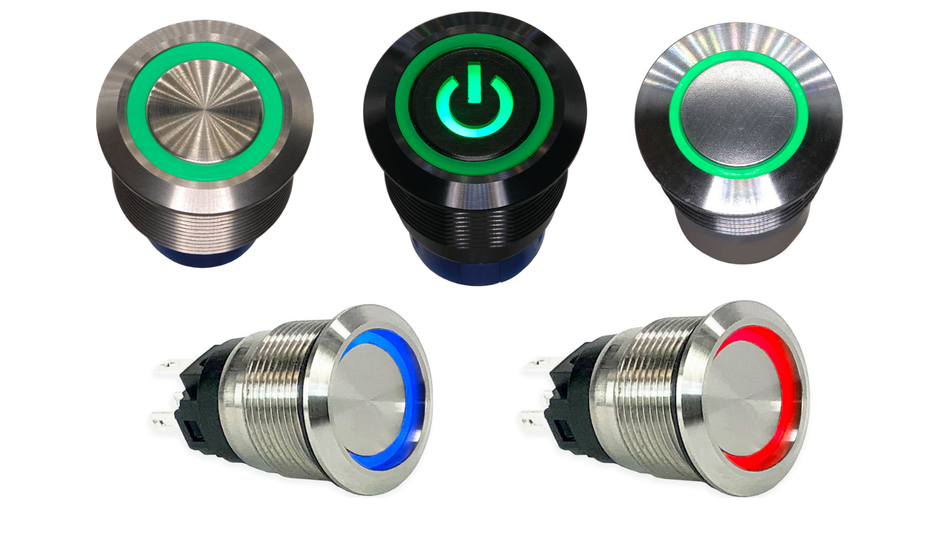

• Visual indicators: All models support optional LED illumination in multiple colors, with spot, ring, or power-logo configurations.

Where They Differ

ATP16 is the smallest of the family at 16mm, and it delivers a notably longer mechanical lifespan of up to 1 million cycles, making it a strong fit for high-traffic access control and intercom systems.

ATP19 and ATP22 share industry-standard 19mm and 22mm dimensions, carry a slightly higher electrical load capacity (3A vs. 2A), and offer a broader range of actuator shapes, including raised and dome options.

ATPS19 is built for tight enclosures. It keeps the 19mm diameter but trims 40% off the internal depth of a standard ATP19, making it the choice when space is the limiting factor.

Choosing the Right Fit

The C&K ATP Series Anti-Vandal Switches bridge the gap between uncompromising ruggedness and design versatility by pairing industrial-grade IP67 sealing and IK10 impact protection with a refined stainless steel finish that holds up against both harsh weather and intentional abuse.

Whether the application calls for the extended mechanical life of the compact ATP16, the higher load capacity of the industry-standard ATP19 or ATP22, or the space-saving profile of the ATPS19, the ATP portfolio gives designers the specific configuration needed to build durability into the product from the start. This kind of durability helps build a brand promise for long-term reliability.
