WARR Launches Cryogenic Rocket with Machined Parts

Damian Kolodziej

fromMakerVerse

23 Aug, 2023

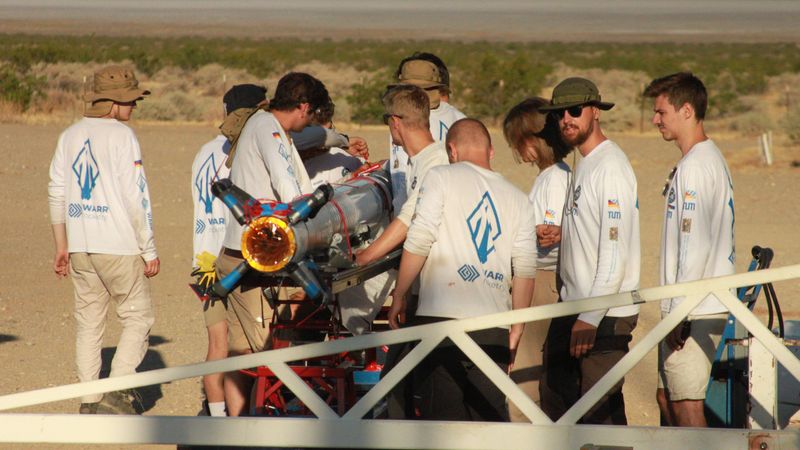

The assembly team preparing the rocket.

See how the student group from Technical University of Munich reached an altitude of nearly 13 kilometers with their rocket launched in the US. Some key components were made by MakerVerse, the on-demand manufacturing platform for industrial-quality parts.

cnc milling

- space

- spacecraft

Pushing the boundaries of space technology requires innovative thinking and the right tools for the job.

The Scientific Workgroup for Rocketry and Spaceflight (WARR) at the Technical University of Munich launched their cryogenic rocket 12.7 kilometers above the earth. See how the group transformed “Project Cryosphere” from an idea to a reality with critical parts made by MakerVerse.

Project Cyrosphere successfully takes off. Photo credit: Matthew Swenson.

The challenge: Blasting Off to 11 Kilometers

Since its foundation in 1962, WARR has been no stranger to ambitious space-related projects. Within that group is WARR Rocketry, whose student members come from all backgrounds ranging from mechanical engineering to business.

The team’s previous altitude record was 4 kilometers. With Project Cyrosphere, they wanted to go far beyond. WARR knew they needed an impeccable design and perfect parts to achieve that goal.

One of the significant challenges is the extreme conditions that the rocket would undertake. The 135-kilogram rocket would travel 3.5 times the speed of sound, undergoing intense strain until reaching the apogee. Every part must be precisely manufactured to handle severe heat and cold.

Furthermore, the student group faced tight deadlines to complete the rocket in time for the scheduled launch in California (US).

The solutions: MakerVerse for the Universe

The interior and exterior of the aluminum critical connectors made by MakerVerse. They're attached to carbon fiber.

WARR’s rocket is made largely of carbon fiber, as this material combines strength with reduced weight. For the crucial connector interfaces, which connect the carbon fiber with the cryogenic tank and the upper segments of the rocket, WARR turned to MakerVerse.

With MakerVerse’s on-demand manufacturing platform, WARR gained access to the full range of manufacturing technologies and materials. In this case, CNC machining created these aluminum connectors to exact specifications. Considering the delicacy and difficult conditions, MakerVerse’s attention to detail was critical.

The assembled structure.

Throughout the process, MakerVerse provided very clear pricing and communications, which helped ensure all lead time expectations were met.

The results: Reaching for the Stars

With the successful launch of its cryogenic rocket WARR, gained invaluable date on supersonic flight and the performance of the hardware. This data will be put to use for other projects.

The team already has other ambitious projects planned for the near future, including innovative new rocket designs. For these projects, WARR plans to work with MakerVerse again using a combination of additive manufacturing, CNC machining, and other technologies as needed.

“MakerVerse was a great partner for our manufacturing projects,” said Francesco Longhetti, Head of WARR Rocketry. “They helped save us a lot of time.”
