The Story of the Birth of E One

Team RPWORLD

fromRPWORLD

09 Dec, 2022

A company well-known for superior analytical instruments and laboratory equipment opted for RPWORLD to produce 100 units assembly parts of a Spectrometer per order, the total demand is 400 sets per year.

Injection Molding

- digital manufacturing

- manufacturing systems

Project Background

A company well-known for superior analytical instruments and laboratory equipment opted for RPWORLD to produce 100 units assembly parts of a Spectrometer per order, the total demand is 400 sets per year.

Challenges

How to select the most suitable manufacturing processes to meet the customer’s requirements?
How to achieve the good surface effect and mechanical perfor mance for the products?
How to guarantee high quality and meet client’s tight deadline?

RPWORLD Solutions

Processes Chosen

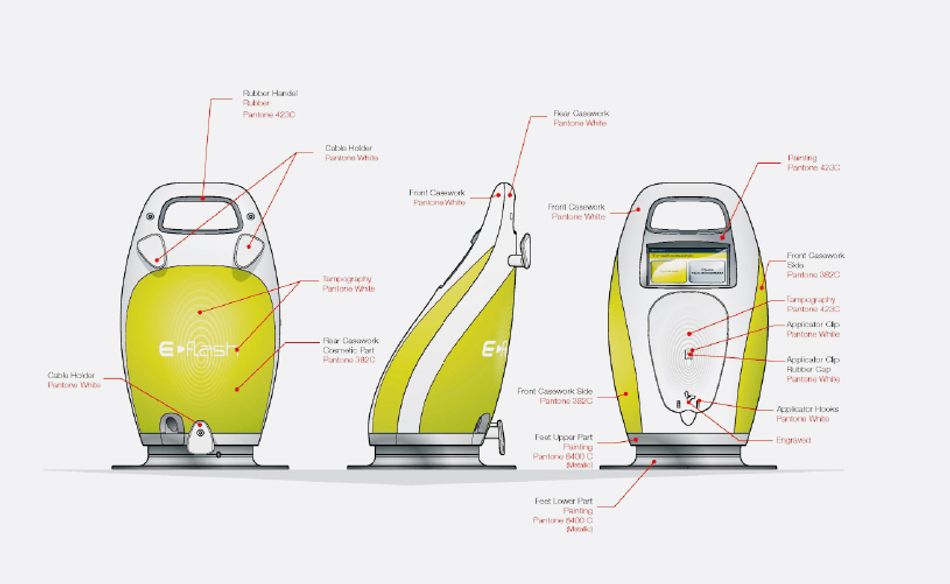

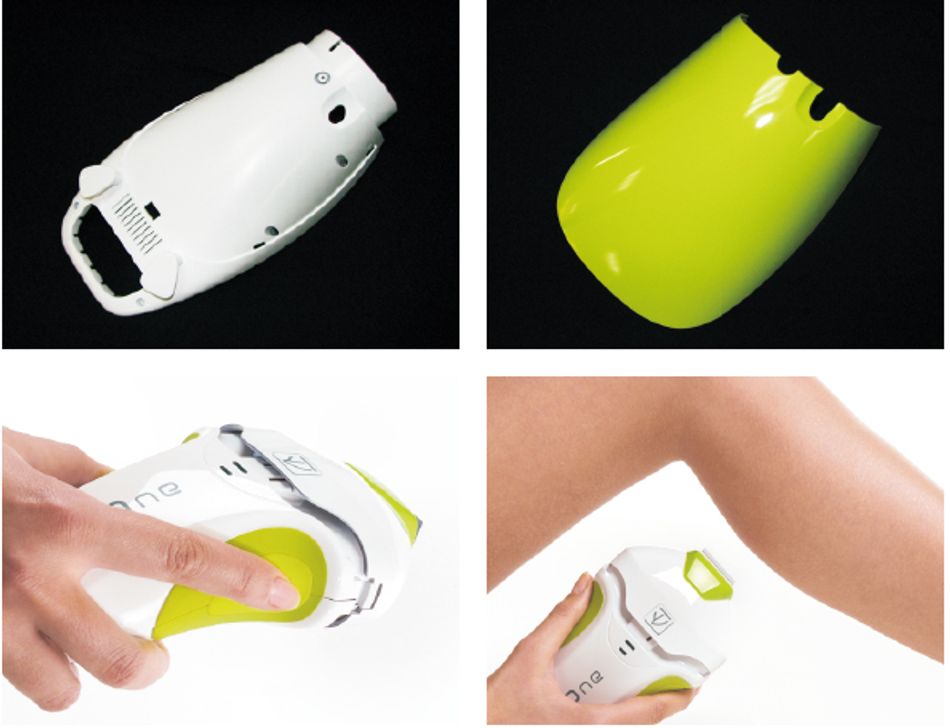

• After meticulous analysis and discussion, we chose vacuum casting combined with over-molding process, for the metal parts, we use CNC machining and sheet metal process.
• Internal copper painting for EMC.

Material Choice

• ABS performance Polyurethane Resin, PC,TPE
• Rubber to be over-molded
• Stainless steel, aluminum

Project Schedule

• Rapid prototyping and testing	7 days
• Silicon mold manufacturing and testing	3 days
• 100 units replication by urethane casting	15 days
• After-treatment by specialist	5 days
• Total	30 days

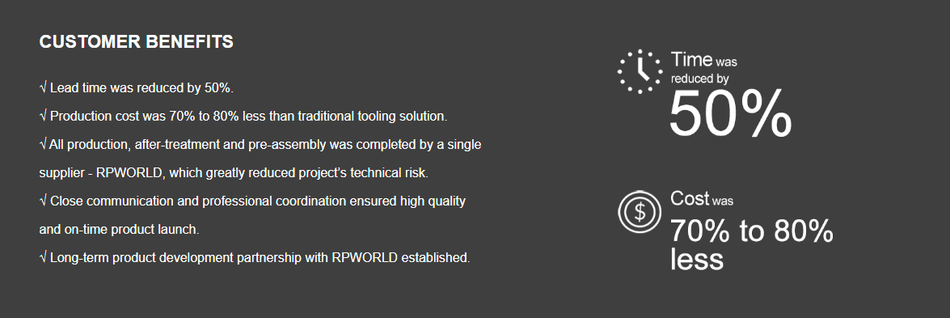

Customer Benefits

Testimonials

The characteristics of RPWORLD are good quality, delivery on time, good technical knowledge of employees and fair prices. So RPWORLD became our preferred supplier for our new product development projects.
