Introduction

Imagine a scenario where you need to assemble a piece of machinery, but choosing the wrong method for preparing screw holes leads to instability or a protruding fastener. A counterbore and a countersink are both methods used to prepare holes for screws or bolts, but they serve different purposes.

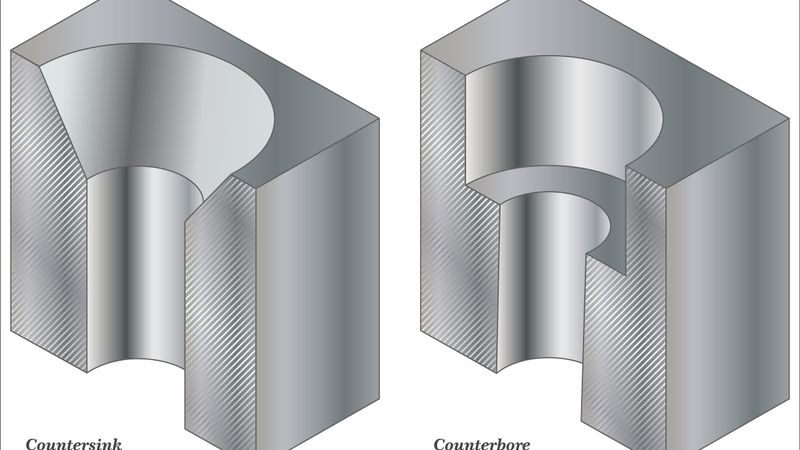

A counterbore creates a flat-bottomed, enlarged opening so that the head of a screw or bolt can sit flush with or below the surface, while a countersink creates a conical recess for the screw to sit neatly.

Understanding the differences between these two techniques is crucial to ensure proper fit, functionality, and aesthetic quality in various applications, whether in woodworking, metalworking, CNC machining, or machinery assembly. Choosing the correct approach can impact the integrity of the assembly, making it essential to know when and why each technique should be used.

Is it Necessary to Use a Counterbore or Countersink?

While counterbore and countersink may be an aesthetic element in machining, they serve a critical purpose in machine design. Unless these holes are created, the machines may be left with protruding screw heads which could lead to improper functionality and obstruction in machines with moving parts.

These holes allow a clean and clear surface for both operation and maintenance and therefore, have become a critical part of machine assembly.

Fig 1: A protruding screw head due to no countersink or counterbore holes

What is a Counterbore?

A counterbore is a cylindrical, flat-bottomed hole that enlarges another hole to allow the head of a screw or bolt to sit flush with or if needed, below the surface of the material. The walls of a counterbore hole are perpendicular to the surface of the material.

Counterbore is typically used to create a clean, recessed area so fasteners such as socket-head screws do not protrude, ensuring a smooth finish and enhanced aesthetic appeal. Moreover, the enlarged hole allows for the addition of washers or to create deeper recesses for bolts that require a high level of stability, making it especially important in mechanical applications where even minor protrusions can lead to interference or safety issues.

Generally, counterbores are used in machinery, woodworking, and assembly projects where the head of a screw or bolt needs to be hidden or protected.

For example:

• In woodworking, a counterbore allows screws to be covered with a wooden plug, providing a seamless look, which is particularly desirable for furniture making and other detailed woodwork projects.

• In machinery, counterbores ensure that bolt heads do not interfere with moving parts, which is crucial for maintaining mechanical components' proper movement and safety, eventually leading to less preventive maintenance in industrial machines.

Additionally, counterbores are used in applications requiring precision, such as aerospace and automotive assemblies, where ensuring components are flush can affect overall structural integrity and performance.

Counterbores are typically used with socket head cap screws, hex bolts, or other fasteners that have cylindrical heads. These holes are created with a counterbore bit. It has a flat bottom that helps create a uniform recess to match the diameter and shape of bolt heads. Moreover, the flat design also allows the mounting of nuts in the screw head area.

Fig 2: A counterbore cutting bit for metal machining

How Counterbores Are Used

For example, in assembling a piece of furniture, counterbores are preferable in situations where the head of a fastener must sit below the surface of the material for functional or aesthetic reasons. This is especially important in applications where a smooth surface is needed, such as in mechanical parts that move against each other, or in woodworking projects where a seamless appearance is desired.

Benefits of Counterbores

• Flush-Mounting Fasteners - Counterbore holes allow the heads of bolts or screws to sit flush with the surface of the material, creating a clean and uniform appearance. It prevents the fastener heads from protruding and interfering with other components or surfaces.

• Bearing and Bushing Seating - Counterbore holes provide a flat and level surface for bearings or bushings to rest on, ensuring proper alignment and load distribution.

• Washer Seating - Counterbore holes can be used to create a recessed area for washers, preventing them from rotating or shifting during assembly or use.

• Sealing Applications - Counterbore holes can accommodate O-rings or gaskets, providing a secure seal between components.

How to Create a Counterbore using a drill press:

1. Mark the location where the hole is to be drilled.

2. Use a center punch to create a small indentation at the marked location to prevent the drill bit from wandering.

3. Drill a pilot hole to the required depth using a standard twist drill bit.

4. Switch to a counterbore bit or use a drill bit with a larger diameter to create the counterbore hole.

5. Drill down to the specified depth, ensuring the flat-bottomed hole is deep enough to accommodate the fastener head.

6. Clean out any debris from the hole to ensure a smooth fit for the fastener.

Recommended Reading: Innovative Ways of Using a Single Flute End Mill on A CNC Machine - Drilling - Boring

What is a Countersink?

A countersink is a conical hole cut into a material to allow the head of a screw or bolt to sit flush with or slightly below the surface. It differs from a counterbore in that it creates a tapered opening rather than a flat-bottomed one, accommodating screws with tapered heads. The main purpose of a countersink is to ensure that fasteners do not protrude from the surface, creating a smooth and aesthetically pleasing finish.

Fig 3: Countersink drill bits create a conical hole in the surface

Countersinks are commonly used in woodworking and metalworking. They are ideal for applications where tapered screws are needed, such as drywall or cabinetry. For example, countersinks are ideal when working with tapered flat-head screws, ensuring that the screw head sits flush with the material's surface.

Countersinking is done with a countersink bit which has a conical shape. Hence, it creates the angular profile to match with that of a flathead screw. The angle is critical to ensure that the screw flush mounts with the surface.

Countersinks are compatible with flat-head screws, oval-head screws, and other fasteners designed with a tapered head to fit securely into the conical recess.

Fig 4: A tapered flat-head screw fitting inside a countersink with conical walls

 When to Use Countersinks

Countersinks are more suitable in situations where it is necessary to have a screw or bolt sit flush with or below the surface of the material, especially when using screws with tapered heads.

This helps create a smooth and finished look, which is important in applications like cabinetry, furniture making, and drywall installation.

Benefits of  Countersinks

• Reduced material stress by evenly distributing the force of the screw head across the conical surface.

• Improved screw alignment, especially in softer materials, which helps prevent the screw from stripping or damaging the material.

• Enhanced aesthetic quality by ensuring fasteners are not visible or do not protrude from the material surface.

To correctly create a countersink in various materials:

1. Mark the spot where you want to create the hole.

2. Use a center punch to make a small indentation to keep the drill bit in place.

3. Drill a pilot hole using a drill bit appropriate for the screw size.

4. Switch to a countersink bit and align it with the pilot hole.

5. Drill the countersink hole to the required depth, ensuring the conical recess is sufficient for the screw head to sit flush.

6. Clean any debris from the hole to ensure a smooth fit.

Counterbore vs Countersink: A Detailed Comparison

Choosing between a counterbore and a countersink is a crucial decision that depends on the type of fastener and the specific requirements of your project. Below, we provide a detailed comparison to help you make the right choice.

Fig 5: Counterbore vs countersink drill bits

Advantages and Disadvantages

Real-World Applications and Scenarios

In various industries, the choice between counterbores and countersinks can significantly impact the quality and functionality of the final product. Here are some examples of when each approach is preferable:

Suggested Reading: Sustainable and Smart Manufacturing Enabling a Competitive Dutch Automotive Industry

Common Mistakes & Best Practices

Common Mistakes:

• Using a countersink where a counterbore is needed, leads to insufficient support and potential failure of the fastener.

• Drilling the counterbore or countersink too deep, can weaken the material or result in an improper fit.

• Choosing the wrong type of fastener for the prepared hole, causing instability or damaging the material.

Best Practices:

• Always choose the correct type of recess (counterbore or countersink) based on the fastener head shape and application requirements.

• Use a depth stop when drilling to ensure consistent depth and prevent weakening the material.

• Match the countersink angle to the screw head angle to ensure a proper fit.

Do's and Don'ts for Using Counterbores and Countersinks

Some Other Types of Holes in Mechanical Design

Other than counterbore and countersink, several other types of holes are commonly used in mechanical designs. Here is a quick look:

• Simple Hole - It is a simple circle cut in the surface to create a hole. It is denoted by the diameter symbol ‘∅’. The holes that go through the surface are called ‘through holes’ while the ones that don’t go through the surface are referred to as ‘blind holes’.

• Spot Face - It is a type of shallow counterbored hole. It is used for creating smooth and flat surfaces.

• Counterdrill - It is a type of countersink hole with specified depth. It has a recess above it.

• Tapered - A tapered hole has a different start diameter and end diameter. It appears as a fully conical hole and typically used to secure cutting and drilling tools.

• Screw Clearance Hole - A clearance hole is a simple hole that has a slightly larger diameter than the screw, allowing it to easily pass through.

Suggested Reading: 5 Design Guidelines for Your Drilling Parts

Conclusion

Counterbores and countersinks are essential techniques used to prepare holes for screws or bolts, each serving a distinct purpose. Counterbores are best suited for applications where stability is crucial, and the fastener head needs to be flush or below the surface, such as in mechanical assemblies. Countersinks are ideal when using tapered screws for a smooth, finished appearance, which is often desired in woodworking and cabinetry.

For beginners, the key to choosing between a counterbore and a countersink lies in understanding the type of screw or bolt being used and the desired outcome. Use a counterbore for a secure fit with a cylindrical screw head, and a countersink for a flush, visually appealing finish with a tapered screw head.

Frequently Asked Questions (FAQs)

1. Can I use a countersink instead of a counterbore?

No, countersinks are designed for tapered screw heads, while counterbores are for cylindrical heads. Using a countersink in place of a counterbore may lead to insufficient support.

2. What are the best tools for creating counterbores?

A drill press with a counterbore bit is ideal for creating precise counterbores. You may also use a handheld drill, but accuracy may be harder to maintain.

3. What is the difference between a counterbore and a countersink?

A counterbore creates a flat-bottomed recess for cylindrical screw heads, while a countersink creates a conical recess for tapered screw heads.

4. Can countersinks be used on metal?

Yes, countersinks can be used on metal, especially when working with sheet metal to allow screws to sit flush with the surface.

5. How do I avoid splitting wood when countersinking?

To avoid splitting, use a pilot hole before countersinking, and control the depth to ensure the material is not weakened.
