Anthropomorphic robotic hand

A biomimetic anthropomorphic robotic hand with human-like kinematic properties. To achieve human-like dexterity in robotic hands the biomechanical advantages of the human hand are reinterpreted from a roboticist’s perspective. The hand is constructed of artificial joint capsules, crocheted ligaments and tendons, laser-cut extensor hood, and elastic pulley mechanisms. The proof-of-concept design has a repeatability in finger motions and can be teleoperated to grasp and manipulate daily objects with a variety of natural hand postures based on hand taxonomy.

Specifications

Weight (including actuation system)942 g

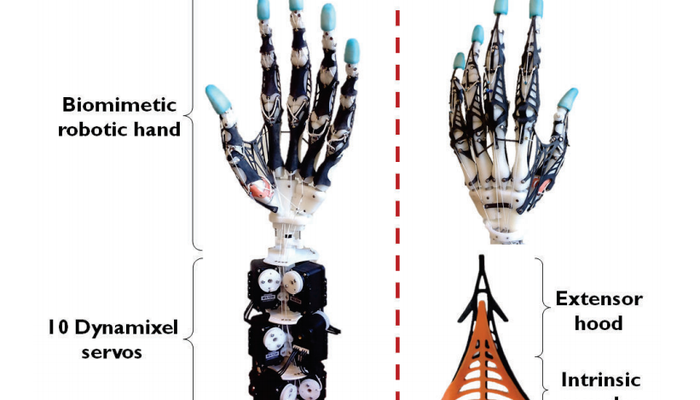

Actuation10 Dynamixel servos (nine MX-12W, one AX-12A)
3D printing TechniqueFDM
Printbed20 x 20 cm
Print Resolution0.025 mm
Printing Time2 hrs
Material for LigamentsHighly resilient rubber sheets

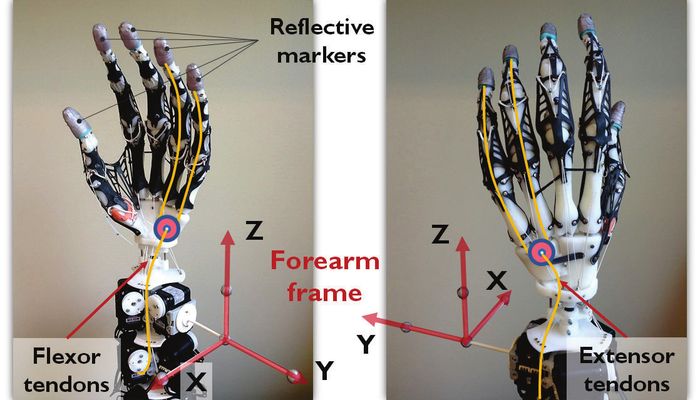

Material for Flexor TendonsSpectra strings (200 N yield strength)

Overview

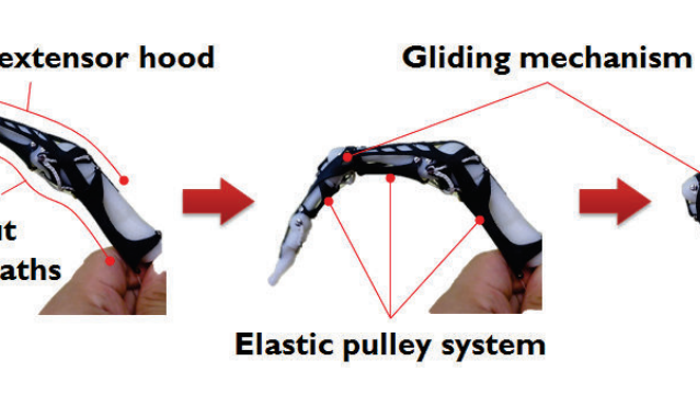

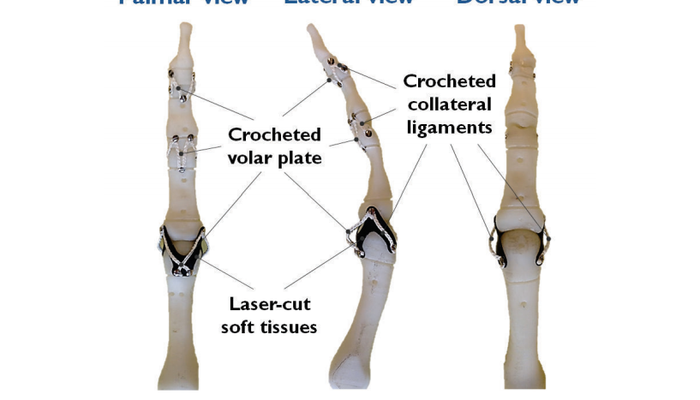

To achieve human-like dexterity in robotic hands the biomechanical advantages of the human hand are reinterpreted from a roboticist’s perspective. The hand is constructed of artificial joint capsules, crocheted ligaments and tendons, laser-cut extensor hood, and elastic pulley mechanisms.

The proof-of-concept design has a repeatability in finger motions and can be teleoperated to grasp and manipulate daily objects with a variety of natural hand postures based on hand taxonomy.

The design benefits from several digital manufacturing technologies:

  • The shape of the bones have been captured with a laser/MRI scanner.
  • The bones were 3D-printed with detailed surface features such as joint shapes and tendon insertion sites.
  • Soft tissues were mimicked by using compliant silicone rubbers whose mechanical properties match that of the skin.
