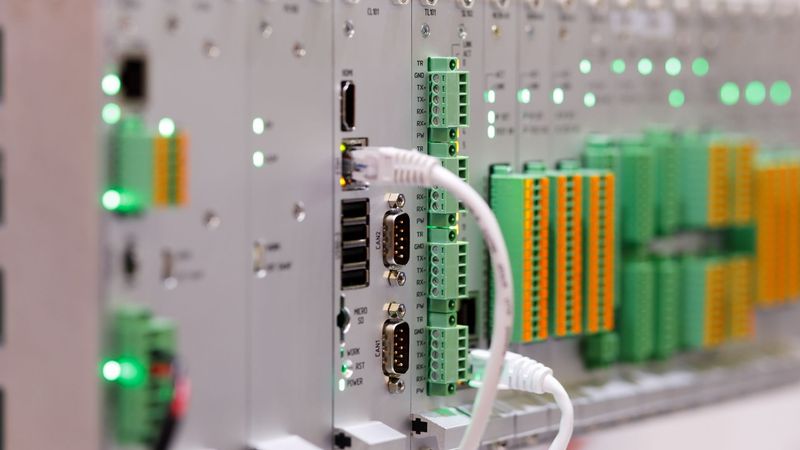

What's The Difference Between A Compact PLC And A Modular PLC?

The essential differences between a compact PLC and a modular PLC boil down to:

• Size

• Structure

• Memory capacity

• I/O configuration

• Circuit design

• Maintenance requirements

• Applications

• Cost considerations

We’ll go into these in more detail below, distinguishing the identifying characteristics of both modular and compact PLCs in order to determine how they’ll best suit your needs. First of all, though, let’s look at the parent.

What Is A PLC?

A Programmable Logic Controller (PLC) is a computer interface for controlling and monitoring automated processes. Its specialised design is intended for use in industrial environments, where it might have to withstand harsh operating conditions. It’s programmed to carry out specific tasks, including starting and stopping machinery, process regulation, monitoring and data collection.

The programming language for PLCs is a ladder logic that’s similar to electrical relay logic. This makes it easier to design control sequences that enhance safety, reliability and efficiency in industrial applications.

What Is A Compact PLC?

Compact PLCs are exactly what they say on the label: a PLC designed for smaller-scale use where space is limited. You’d use one if the input/output (I/O) needs of your industrial automation applications are limited.

Some of the benefits of the small and simple compact PLC include:

• Saving significant space in small control rooms and cabinets.

• Reducing costs, as they’re cheaper than larger PLCs. For projects where your automation requirements are limited, compact PLCs are a cost-effective solution.

• Simplicity of installation and use. You can connect a user-friendly compact PLC to an existing system, requiring few modifications to transition smoothly to automated operations.

What Is A Modular PLC?

A modular PLC isn’t size-related, but a design developed to make industrial automation applications more flexible. You can add or remove I/O modules easily, so they’re ideal for applications with fluctuating automation needs.

Some of the benefits of the versatile modular PLC include:

• Scalability, so you can easily adapt it to your increasing automation needs.

• More future-proof, as it can evolve to incorporate your future technological or operational needs.

• Simplicity of maintenance and troubleshooting, as replacing faulty modules doesn’t impact the entire system.

Some Disadvantages to Modular PLCs

Modular PLCs can get complex in terms of programming. With modules mounted on a rack and especially with a large number of modules, you’ll have to set up a dedicated hardware configuration file for every mounted application. This will include details of the CPU, as well as model numbers and specifications for each module.

I/O scanning times on the PLC will increase every time you add more I/O modules, so you need to consider scan time optimisation as part of your design criteria. Power distribution to I/O modules installed on each rack is done via a back panel, using common bus modules, so it’s also critical to select the correct power supply.

So What’s the Difference Between a Modular and a Compact PLC?

Although compact and modular options are both types of PLC, you’ll find several factors that distinguish them. Some of these include:

1. Size

Compact PLCs are by definition smaller than standard, designed to fit into limited spaces. They offer great efficiency for smaller operations and limited industrial applications. They may be small, but compact PLCs still have advanced computing capabilities, a robust power supply and comprehensive I/O connectivity.

2. Structure

I/O set-up on a compact PLC is incorporated directly into the CPU in a closely integrated format. A modular PLC, however, is mounted on a rack or chassis with various slots where the IOs are inserted. This more flexible design allows you to insert different kinds of modules, making the architecture expandable and scalable for future needs.

3. Memory Capacity

The capabilities of compact PLCs are constrained by their nature, so your capacity for data storage is limited. Modular PLCs have a much greater memory capacity, permitting substantial data and information storage and larger datasets.

4. I/O Configuration

The I/O capabilities of a compact PLC are determined by the manufacturer, making it fairly inflexible. You can easily modify and customise the I/O configurations on a modular PLC, simply by adding or removing modules. This makes them more adaptable to the variety of industrial automation requirements.

5. Circuit Design

The design of a compact PLC presents an effortless integration of CPU, I/Os and power supply. On a modular PLC, these are mounted on a modular rack system, together with specialised and interface modules, allowing greater flexibility and scalability.

6. Maintenance Requirements

Maintenance of a compact PLC can be challenging, with intricate repairs, and you may end up having to replace the entire unit. Maintenance on a modular PLC is much simpler, as you can replace faulty modules selectively. This simplifies troubleshooting and significantly reduces downtime.

7. Application and Use

A compact PLC is better suited to domestic or small-scale industrial operations, as it puts simplicity before scalability. Modular PLCs are primarily designed for industrial settings, where they can manage the dynamic demands of automated systems.

8. Cost Considerations

If you’re on a budget, then a compact PLC is the most economical choice. You’ll pay more for a modular PLC, but you'll be rewarded with its enhanced capabilities. The cost is justified by its versatility and adaptability, representing an investment for a complex automation project. A modular PLC offers a strategic choice if your industrial requirements are more sophisticated.

Compact PLC vs Modular PLC

Compact and modular PLCs both have their advantages and limitations. They’re programmed differently to cater for your particular industrial requirements. That means that your industrial purpose will dictate your choice.

If you have a smaller operation demanding spatial efficiency and simplicity, then a compact PLC is ideal. When your operation has more complex automation requirements, demanding scalability and flexibility, you’ll be looking at a modular PLC. Understanding the differences and benefits of compact and modular PLCs means you can make a more informed decision.
