What is Die Casting: A Technical Perspective Guide for Engineers

Explore die casting's intricacies, principles, and evolving technologies redefining industry standards. Understand the challenges and critical considerations in mastering this process, highlighting its profound impact on contemporary manufacturing.

author avatar

25 Jun, 2024. 16 min read

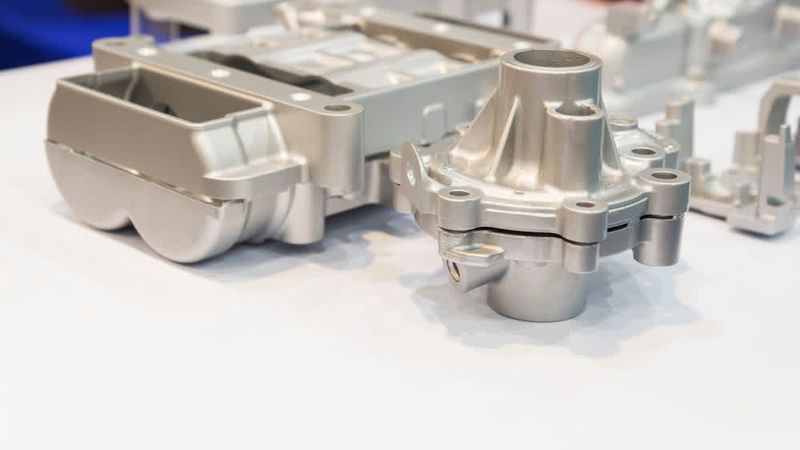

Introduction

Die casting is a precision manufacturing process where molten metal is forced into a mold cavity under high pressure. This technique is highly regarded for producing complex shapes with excellent dimensional accuracy and smooth finishes. Its importance in manufacturing stems from its ability to mass-produce components with consistent quality and minimal post-processing.In the engineering field, die casting is particularly relevant due to its application in producing high-strength, lightweight parts essential for industries such as automotive, aerospace, and consumer electronics.

Core Concepts and Principles of Die Casting

What is Die Casting?

Die casting is a manufacturing process that has revolutionized the production of complex metal parts since its inception in the early 20th century. This method involves injecting molten metal into a steel mold, known as a die, under high pressure to produce components with precise dimensions and smooth surface finishes. Its capability to produce intricate shapes with high accuracy and repeatability made die casting indispensable in modern manufacturing.

A detailed die-casting process illustration showing molten metal being pushed into a mold cavity and the solidifying metal taking shape. Illustration of Die Casting Process

The basic die casting process includes several critical steps:

  • Preparation: Before casting begins, the die is meticulously prepared. A lubricant is applied to the die surface to regulate temperature and aid in the release of the final product. This step ensures the longevity of the die and enhances the quality of casting. Proper preparation also involves setting up the gating system, which includes the sprue, runners, and gates that facilitate the flow of molten metal into the die cavity.
  • Injection: Next, molten metal is ladled from a furnace into a chamber known as the gooseneck of the die casting machine. A plunger, operated hydraulically or mechanically, then exerts high pressure, typically ranging from 1,500 to 25,000 psi, forcing the molten metal into the die cavity through the gating system. This high-pressure injection is critical for achieving detailed and consistent shapes in the final product, ensuring that all parts of the mold are filled.
  • Cooling: Once injected, the molten metal rapidly cools and solidifies within the die cavity. Efficient cooling is essential as it influences the strength and durability of the finished part, minimizing shrinkage and ensuring dimensional accuracy. Water-cooled channels within the die help accelerate the cooling process, maintaining precise control over solidification rates and metal microstructure.
  • Ejection: After the metal has solidified, the die is opened using ejector pins, which are built into the die and push the casting out of the die cavity. This process requires precision to avoid damaging the newly formed part during removal. The ejector pins retract back into the die after ejection, ready for the next cycle of casting.
  • Trimming: Finally, excess material, known as flash, is trimmed off the casting along the parting line to achieve the desired shape and dimensions of the final component. This trimming process may be automated or manual, depending on the complexity of the part and production requirements. It ensures that the finished casting meets exact specifications and quality standards before further processing or assembly.

This systematic approach to die casting, involving meticulous preparation, precise injection under high pressure, controlled cooling with water-cooled channels, careful ejection using ejector pins, and meticulous trimming of flash, underscores its effectiveness in producing intricate metal parts for a wide range of industrial applications.

Types of Die Casting

Die casting encompasses several specialized methods tailored to different material requirements and production needs. These methods play crucial roles in various industries, from automotive and aerospace to electronics and consumer goods.

Hot Chamber Die Casting

Hot chamber die casting is employed for metals with lower melting points, such as zinc, tin, and lead alloys. In this method, the die casting machine features an integrated furnace that keeps the metal in a molten state. A hydraulic piston then injects the molten metal into the die cavity under high pressure. This process is highly efficient for producing high-volume batches of smaller parts like connectors, gears, and certain automotive components. The seamless integration of melting and casting operations reduces production cycle times, making hot chamber die casting ideal for applications requiring rapid production rates and consistent part quality.

Cold Chamber Die Casting

Cold chamber die casting is suitable for metals with high melting points, including aluminum, magnesium, and copper alloys. Unlike hot chamber die casting, the molten metal is poured into a separate furnace and then ladled into the cold chamber machine. A hydraulic piston forces the metal into the die cavity at high pressure. This method is preferred for larger parts requiring robust mechanical properties and is commonly used for automotive engine components, structural parts in aerospace, and other applications where durability and strength are critical. Cold chamber die casting allows for the production of complex shapes and thicker-walled components that require precise dimensional control and superior surface finishes.

Gravity Die Casting

Gravity die casting utilizes gravity to fill the mold cavity with molten metal. The metal is poured into a steel mold, ensuring a controlled fill that minimizes turbulence and improves metal density. This method is favored for casting large and thick parts such as engine blocks, pump housings, and structural components. Gravity die casting results in parts with superior mechanical properties and surface finishes compared to sand casting, making it ideal for applications where strength and precision are paramount. Its simplicity and reliability make it suitable for both low and high-volume production runs in industries ranging from automotive to industrial equipment.

Low-Pressure Die Casting

Low-pressure die casting involves injecting molten metal into the die cavity at low pressure, typically from below the mold. This method is well-suited for producing high-integrity parts with minimal porosity, commonly using aluminum alloys. It offers precise control over the casting process, making it ideal for complex shapes and thin-walled components like automotive wheels, cylinder heads, and housings. Low-pressure die casting ensures uniform filling of the mold cavity, resulting in parts with consistent mechanical properties and dimensional accuracy, crucial for industries requiring high-performance and reliable components.

High-Pressure Die Casting (HPDC)

High-pressure die casting involves injecting molten metal into the die cavity at pressures exceeding 10,000 psi, suitable for a range of metals like aluminum, magnesium, and zinc. This method ensures intricate molds are filled with precision and minimal porosity, producing parts with exceptional dimensional accuracy, superior surface finish, and excellent mechanical properties. HPDC is crucial in industries requiring high-volume production of intricate components, such as automotive parts, electronic housings, and consumer goods.

 A series of four images illustrating the high-pressure die casting process. The first image shows molten metal being poured into the chamber of the die casting machine. The second image depicts the machine injecting the molten metal into a steel mold under high pressure. The third image illustrates the cooling phase, where the metal solidifies within the mold. The fourth image shows the mold opening and the final solid metal casting being ejected. Each step highlights the sequential stages of the process, emphasizing the precision and technology involved.Illustration of High Pressure Die Casting Process

HPDC's capability to achieve high production rates while maintaining consistent part quality is advantageous. The process is automated, and efficient, and allows for rapid cycle times, making it cost-effective for complex component manufacturing. Its versatility in producing lightweight yet durable parts with intricate designs and tight tolerances benefits automotive applications, electronics for precise housing, and consumer goods for lightweight, durable designs.

Squeeze Die Casting

Squeeze die casting combines elements of high-pressure and low-pressure die casting techniques. The molten metal is initially injected into the mold cavity under high pressure to fill it. After injection, additional pressure is applied to compact and densify the metal, enhancing its mechanical properties and reducing porosity. This method is used for manufacturing parts that demand high structural integrity and dimensional accuracy, such as automotive transmission components and hydraulic parts. Squeeze die casting provides superior material density and mechanical strength, making it suitable for applications where durability and reliability are paramount, such as in heavy machinery and industrial equipment.

Each type of die casting method has its advantages, making it suitable for specific applications based on material properties, part complexity, and production volume requirements. Its ability to produce high-strength, lightweight parts efficiently sets it apart from other manufacturing processes. By understanding the intricacies of die casting, engineers can leverage its benefits to innovate and improve product design and manufacturing workflows.

Key Components of Die Casting

In die casting, several primary components are essential to the process, ensuring the production of high-quality and precise metal parts. The main components include molds, dies, and the casting machine, each playing a crucial role in the effectiveness of the manufacturing process.

  • Molds: These are the hollow forms that shape the molten metal into the desired geometry during the die casting process. Molds, typically crafted from high-grade steel, must withstand repeated use and high temperatures. The development of durable molds has been pivotal in the advancement of die casting, allowing for more complex and precise parts.
  • Dies: Specialized molds used in die casting, often comprising two halves—the cover die and the ejector die. The cover die remains stationary, while the ejector die moves to release the cast part. Dies must be designed with precision to ensure accurate and repeatable casting results. The evolution of die technology has significantly improved the efficiency and accuracy of the die casting process.
  • Casting Machine: The casting machine is a critical component that injects molten metal into the die cavity under high pressure. It regulates the injection speed, pressure, and temperature control to ensure the proper filling of the mold cavity and the formation of high-quality castings.
  • Auxiliary Equipment: Various auxiliary equipment, such as ladles, goosenecks, and cooling systems, support the die casting process by facilitating the handling of molten metal, maintaining optimal temperatures, and ensuring efficient operation of the casting machine.

These components work together to maintain the reliability, precision, and efficiency required in die casting, supporting the production of intricate metal components across diverse industries.

Recommended reading: A Perfect Fit: 3D Printing for molds and casting

Common Materials Used in Die Casting

Die casting alloys such as aluminum, zinc, magnesium, and copper are commonly used materials in the die casting process. These non-ferrous metals are selected for their unique properties and technical specifications, providing advantages such as lightweight strength, precision casting capabilities, and high thermal and electrical conductivity.

  • Aluminum Alloys: Aluminum's introduction into die casting brought significant advantages due to its lightweight and high-strength properties. It offers excellent corrosion resistance and good thermal and electrical conductivity, making it ideal for automotive parts, aerospace components, and housings.
  • Zinc Alloys: Zinc, known for its low melting point and high ductility, is excellent for producing thin-walled components. Its impact strength and efficiency in precision casting make it a staple in electronics and precision components manufacturing.
  • Magnesium Alloys: Magnesium is celebrated for being extremely lightweight with a high strength-to-weight ratio. Its good machinability makes it suitable for aerospace and automotive applications where weight reduction is critical.
  • Copper Alloys: Copper's high thermal and electrical conductivity, combined with its excellent wear resistance, makes it indispensable in the production of electrical connectors and heat exchangers. Copper alloys are chosen for applications requiring high mechanical properties at elevated temperatures.

Material Properties Comparison Table

Material

Melting Point

Density (g/cm³)

Tensile Strength (MPa)

Thermal Conductivity (W/mK)

Applications

Aluminum

660°C

2.7

310

237

Automotive parts, aerospace, housings

Zinc

419°C

7.1

268

116

Electronics, precision components

Magnesium

650°C

1.74

210

156

Aerospace, automotive, handheld devices

Copper

1085°C

8.96

210

401

Electrical connectors, heat exchangers

By understanding the key components and materials used in die casting, engineers can optimize their design and material choices to enhance the performance and quality of the final products. This knowledge is crucial for selecting the right materials and components that align with specific application requirements, ensuring efficiency and reliability in the manufacturing process.

Recommended reading: A Closer Look at Material Properties

Innovations in Die Design and Fabrication

The field of die casting has seen remarkable advancements in recent years, driven by the need for greater efficiency, precision, and capability. These innovations in die design have their roots in the historical evolution of manufacturing techniques, where each new development builds upon past successes to create more sophisticated and effective methods.

  • Additive Manufacturing for Die Components:Additive manufacturing, or 3D printing, has transformed the creation of die components. Initially developed for rapid prototyping, this technology now allows for the production of highly complex and customized die parts. For example, the integration of conformal cooling channels directly into the die structure significantly enhances cooling efficiency, reducing cycle times and improving the overall quality of the cast parts. Industries like automotive and aerospace benefit greatly from these advancements due to their need for high-precision and durable components.

A person wearing a protective mask and gloves is operating a metal 3D printing machine. The person is examining a 3D-printed part inside the machine. The scene is well-lit, highlighting the detailed and technical environment of the 3D printing process.3d Printed Metal Part

  • Advanced Simulation and Modeling Software: Modern simulation software has become indispensable in die design, offering engineers the tools to model and predict the behavior of molten metal within the die. These tools, which have evolved from basic CAD systems, now provide detailed insights into potential issues such as air entrapment, thermal stresses, and material flow patterns. By addressing these problems in the design phase, manufacturers can reduce the need for costly and time-consuming physical prototypes. This predictive capability is especially valuable in high-stakes industries like aerospace and medical devices, where precision and reliability are paramount.
  • High-Precision Machining Techniques: High-precision CNC machining has enabled the fabrication of dies with exceptional accuracy and surface finish. Techniques such as electrical discharge machining (EDM) allow for the creation of intricate details and fine features that are crucial for high-quality cast parts. The ability to machine complex geometries with high precision has expanded the possibilities for die casting, making it feasible to produce components that meet stringent industry standards. This advancement is particularly beneficial in the electronics industry, where small, detailed parts are common.
  • Use of Advanced Materials: The development of advanced materials, such as high-performance steel alloys and specialized coatings, has significantly extended the lifespan of dies. These materials offer enhanced resistance to thermal fatigue, wear, and corrosion—common challenges in die casting operations. For instance, Physical Vapor Deposition (PVD) coatings can drastically reduce die wear, allowing for longer intervals between maintenance and replacement. This improvement not only lowers operational costs but also increases production efficiency, benefiting sectors like consumer goods and heavy machinery.
  • Real-Time Monitoring and IoT Integration: The integration of Internet of Things (IoT) technologies into die casting processes has enabled real-time monitoring and data analysis. Sensors embedded within dies track critical parameters such as temperature and pressure during casting, providing valuable data for optimizing the process on the fly. This capability ensures consistent quality and reduces the incidence of defects, making the process more reliable and efficient. The implementation of IoT solutions is particularly advantageous in large-scale manufacturing operations, where even minor improvements in efficiency can lead to significant cost savings.

These technological advancements have not only improved the quality and efficiency of die casting but also expanded the possibilities for producing more complex and precise components. By leveraging these innovations, engineers can push the boundaries of what is achievable with die casting, driving forward the capabilities of modern manufacturing.

Recommended reading: Remote industrial monitoring provides critical data and insights

Applications of Die Casting Across Various Sectors

Die casting is integral to many industries due to its ability to produce complex parts, and high-performance components with strength, durability, and precision. Here are some key applications across different sectors:

Aerospace Sector

Die casting is utilized to manufacture a variety of critical aerospace components that must meet stringent specifications and perform reliably under extreme conditions.

  • Engine Components: Components such as turbine blades, housings, and compressor casings are often produced using die casting. These parts must withstand high temperatures and stresses during operation, requiring exceptional precision and strength.
  • Structural Components: Structural parts like ribs, brackets, and mounts contribute to the overall integrity of the aircraft structure, ensuring it can endure the mechanical stresses encountered during flight.
  • Avionics and Electronics Housings: Die-cast housings for avionics and electronic systems protect sensitive equipment from environmental factors while providing structural support. The ability to produce intricate and robust housings is a significant advantage of die casting.

Automotive Sector

The automotive industry benefits greatly from the precision and durability offered by die casting, which is used to produce a wide range of components.

  • Engine Blocks and Cylinder Heads: Die casting is used to manufacture engine blocks and cylinder heads that require high strength and heat resistance.
  • Transmission Cases and Gearboxes: These components need to be durable and capable of withstanding high mechanical stresses, making die casting an ideal manufacturing method.
  • Chassis and Suspension Components: Die-cast aluminum and magnesium parts help reduce vehicle weight while maintaining structural integrity, contributing to better fuel efficiency and performance.

Electronics and Telecommunications

Die casting plays a crucial role in the production of electronic and telecommunications equipment, where precision and thermal management are essential.

  • Housings and Enclosures: Die-cast housings protect delicate electronic components from environmental factors and mechanical damage. They also provide efficient thermal management.
  • Heat Sinks: The excellent thermal conductivity of die-cast metals like aluminum makes them ideal for heat sinks, which are critical for dissipating heat in electronic devices.
  • Connectors and Hardware: Precision die-casting ensures the reliable performance of connectors and other hardware components used in telecommunications.

Consumer Goods

Die casting is widely used in the consumer goods sector to produce aesthetically pleasing and durable products.

  • Appliance Components: Die-cast parts are found in a variety of household appliances, offering durability and a high-quality finish.
  • Sporting Goods: Components for bicycles, golf clubs, and other sporting equipment are often die-cast to achieve the necessary strength and lightweight properties.
  • Tools and Equipment: Hand tools and other equipment benefit from the precision and strength of die-cast parts, ensuring longevity and reliability.

Industrial and Heavy Machinery

In the industrial sector, die casting is used to manufacture components that must withstand harsh operating conditions.

  • Machinery Parts: Components such as housings, brackets, and mounts for industrial machinery are die-cast to ensure they can handle heavy loads and wear.
  • Pumps and Valves: Die-cast metals provide the strength and corrosion resistance needed for pumps and valves used in various industrial applications.
  • Construction Equipment: Parts for construction equipment, including structural components and housing units, are die-cast to deliver durability and high performance.

By harnessing the advantages of die casting, manufacturers in various industries can create components that meet the strict demands of their specific applications. The process combines high strength, durability, precision, and a high production rate, making it essential for modern manufacturing.

Advantages of Die Casting Across Various Industries

Die casting offers numerous benefits that are valuable across a wide range of industries, including aerospace, automotive, electronics, and consumer goods. The versatility and efficiency of the die casting process make it a preferred manufacturing method for many applications.

  • High Strength-to-Weight Ratio: Die casting allows for the use of advanced alloys such as aluminum, magnesium, and zinc, which provide an excellent strength-to-weight ratio. This is crucial not only in aerospace but also in the automotive industry, where reducing vehicle weight can enhance fuel efficiency and performance. In consumer electronics, lighter components contribute to more portable and ergonomic designs.
  • Precision and Consistency: The high precision of die casting ensures that components meet exact specifications with minimal variation. This consistency is essential in industries where parts must fit together perfectly and function reliably, such as automotive engines, medical devices, and precision instruments. The process allows for tight tolerances, intricate details, and dimensional stability, ensuring each part adheres to stringent quality standards.
  • Enhanced Durability: Die-cast components exhibit excellent mechanical properties, including high tensile strength and resistance to fatigue and wear. These properties ensure the longevity and durability of parts, which is essential for the safety and reliability of products in various industries. For instance, in the construction industry, durable die-cast components are crucial for building reliable and long-lasting infrastructure.
  • Complex Geometries: The die casting process is capable of producing complex shapes with integrated features, reducing the need for additional assembly and welding. This capability allows for more efficient designs and improves the structural integrity of components. In the electronics industry, this enables the creation of intricate housings and enclosures that protect delicate components while minimizing weight and maximizing space utilization.
  • Cost-Effectiveness: Die casting is economically advantageous, particularly for high-volume production runs.  The initial tooling costs can be high, but the per-unit cost decreases significantly with larger production quantities, resulting in lower costs per unit. This makes die casting a cost-effective solution for manufacturing large batches of components, providing significant savings over the long term. Industries such as consumer goods and automotive benefit greatly from the lower costs associated with mass production.
  • Material Versatility: Wide range of materials, including various aluminum, magnesium, and zinc alloys can be used in die casting, each offering distinct benefits. This versatility allows engineers to select the most suitable material for specific applications, balancing factors such as weight, strength, corrosion resistance, and thermal conductivity. In the lighting industry, for example, die-cast aluminum is often used for its excellent heat dissipation properties.
  • Surface Finish and Aesthetics: Die casting can produce parts with smooth surface finishes, which are often superior to those achieved by other manufacturing methods. This can be particularly important in industries where aesthetic quality is critical, such as consumer electronics and automotive. The smooth finishes also facilitate subsequent processes like painting and coating, further enhancing the functionality and appearance of the components.
  • Environmental Benefits: Die casting is also environmentally friendly due to its ability to recycle scrap material. Many of the alloys used in die casting are recyclable, reducing waste and conserving natural resources. This sustainability aspect is increasingly important across all industries as they seek to minimize their environmental footprint.

By leveraging these advantages, manufacturers in various sectors can develop components that meet the rigorous demands of their industries. The die casting process's ability to combine high strength, durability, precision, cost-effectiveness, dimensional stability, and material versatility makes it a cornerstone of modern manufacturing, supporting innovations that enhance product performance and efficiency.

Conclusion

Understanding die casting technology is essential for engineers working in various industries, including automotive, aerospace, and electronics. This comprehensive guide has covered the core concepts, technological advancements, practical applications, and challenges associated with die casting. By grasping these elements, engineers can leverage die casting to enhance product quality, improve manufacturing efficiency, and drive innovation.

Frequently Asked Questions

Q: What is die casting?

A: Die casting is a manufacturing process where molten metal is injected into a mold cavity under high pressure. The molds, called dies, are typically made from hardened steel and are designed to create complex metal parts with high precision and repeatability.

Q: What are the main types of die casting processes?

A: The main types of die casting are:

  • Hot Chamber Die Casting: Suitable for low melting point metals like zinc, magnesium, and lead.
  • Cold Chamber Die Casting: Used for metals with higher melting points such as aluminum and copper alloys.
  • Gravity Die Casting: Utilizes gravity to fill the mold, ideal for large and thick parts.
  • Low-Pressure Die Casting: Injects molten metal at low pressure for high-integrity parts with minimal porosity.
  • High-Pressure Die Casting (HPDC): Injects metal at high pressures for precise, high-volume production.
  • Squeeze Die Casting: Combines high and low-pressure techniques for parts requiring high structural integrity.

Q: How does die casting compare to other manufacturing processes?

A: The comparison table between die casting, sand casting, and injection molding is given below.

Factor

Die Casting

Sand Casting

Injection Molding

Material Used

Metals (aluminum, zinc, etc.)

Metals (iron, steel, aluminum)

Plastics and polymers

Production Speed

High

Slow

High

Surface Finish

Excellent

Rough

Excellent

Complexity

High

Moderate

High

Cost

Moderate to high

Low

Moderate to high

Applications

Automotive, aerospace, electronics

Large parts, low volume

Consumer goods, electronics

Q: What factors affect the quality of die cast products?

A: Several factors impact the quality of die cast products. The most affecting factors are material quality (purity and composition of metal alloys), die design (optimizing metal flow), process parameters (temperature, injection speed, pressure control), cooling rate (affects material structure), and die surface lubrication (reduces wear, improves finish). These factors collectively ensure high-quality die cast products across industrial applications.

Q: What materials are commonly used in die casting?

A: Common materials used for die casting include:

  • Aluminum Alloys: Known for being lightweight with high strength.
  • Zinc Alloys: Excellent for precision and thin-walled components.
  • Magnesium Alloys: Extremely lightweight with good machinability.
  • Copper Alloys: High thermal and electrical conductivity, suitable for electrical components.

Q: What are some practical tips for ensuring high-quality die cast products?

A: Practical Tips for Ensuring High-Quality Die Cast Products

  • Use High-Quality Alloys: Select alloys with minimal impurities and optimal compositions for the intended application.
  • Optimize Die Design: Incorporate features like proper venting and gating systems to enhance metal flow and reduce defects.
  • Maintain Consistent Process Parameters: Regularly monitor and adjust temperature, pressure, and injection speed to ensure stable and repeatable production conditions.
  • Implement Controlled Cooling: Use controlled cooling techniques to manage the solidification process and improve the mechanical properties of the cast parts.
  • Regular Die Maintenance: Perform regular inspections and maintenance on the dies to prevent wear and extend their lifespan, ensuring consistent product quality.

Q: What are the advantages of die casting?

A: Advantages of die casting are:

  • High production rates and efficiency.
  • Ability to produce complex shapes with tight tolerances.
  • Excellent surface finish and detail.
  • Reduced machining and secondary operations.
  • Long tool life when using quality dies and materials.

Q: What are the key challenges in die casting?

A: Key challenges in die casting are:

  • Managing thermal stress and maintaining die integrity over multiple cycles.
  • Controlling porosity and ensuring a high-quality finish.
  • Dealing with the complexity of mold design for intricate parts.
  • Ensuring efficient cooling and solidification to minimize defects.
