Paste Noise Absorber. Properties. Noise radiation from board patterns

Properties and application of paste technology for noise reduction in high frequency (110-170 GHz) electronic devices and packaging . This is a dispensable material can be easily installed in narrow spaces, suppressing noise inside electronic devices used in beyond 5G/6G

- electronics

- materials

- Printed Electronics

This article was first published on

www.techblick.com

High-frequency devices, such as those used beyond 5G and 6G technologies, require precise and reliable signal transmission for optimal performance. High-frequency signals are more susceptible to noise interference, which can degrade the quality and integrity of the transmitted data. Noise mitigation is crucial to ensure that the intended signal is accurately received and interpreted.

Traditionally, noise-absorbing materials have been used as an effective method of making noise. Noise absorbing materials are generally sheet or sponge type. However, these types are difficult to apply beyond5G/6G devices which become smaller and more complicated.

We are speaking in Boston on 12-13 June 2024 at The Future of Electronics RESHAPED USA. Register now and come to hear our talk

To solve this problem, we propose a noise-absorbing paste. Dispensable material can be easily installed in narrow spaces, suppressing noise inside electronic devices used in beyond 5G/6G, and contributing to improved quality and performance.

Features:

Dispensable
Good conformability
High frequencies over 100GHz

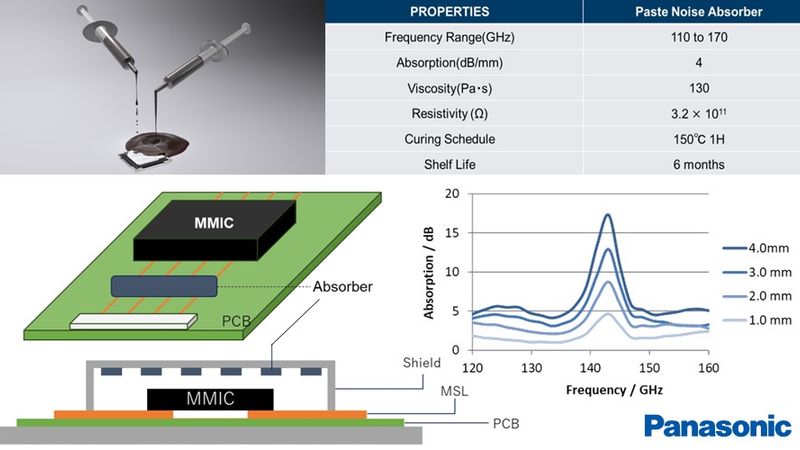

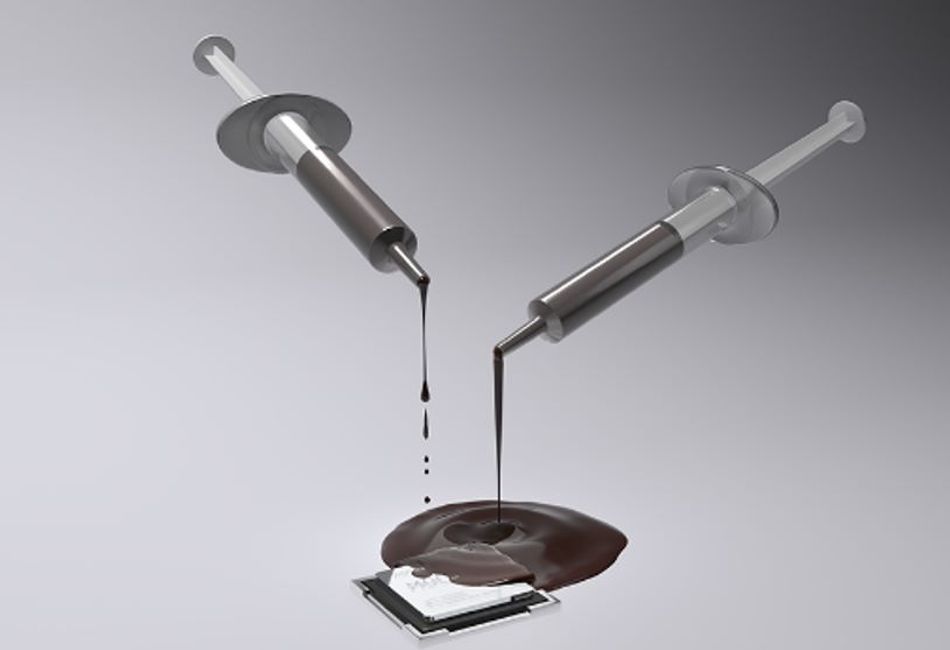

Figure 1: Paste Noise Absorber

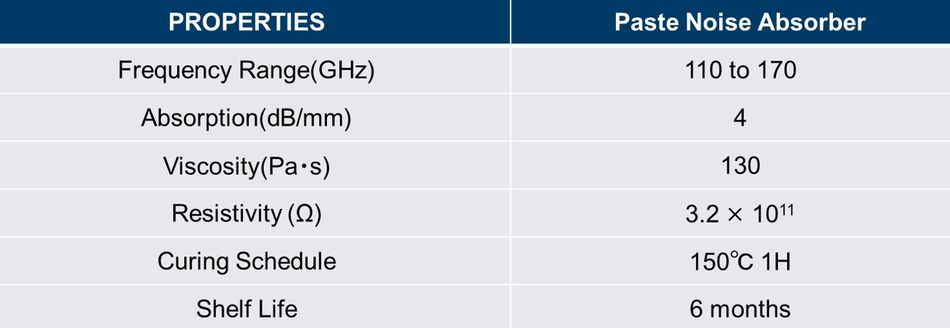

Table 1: Properties

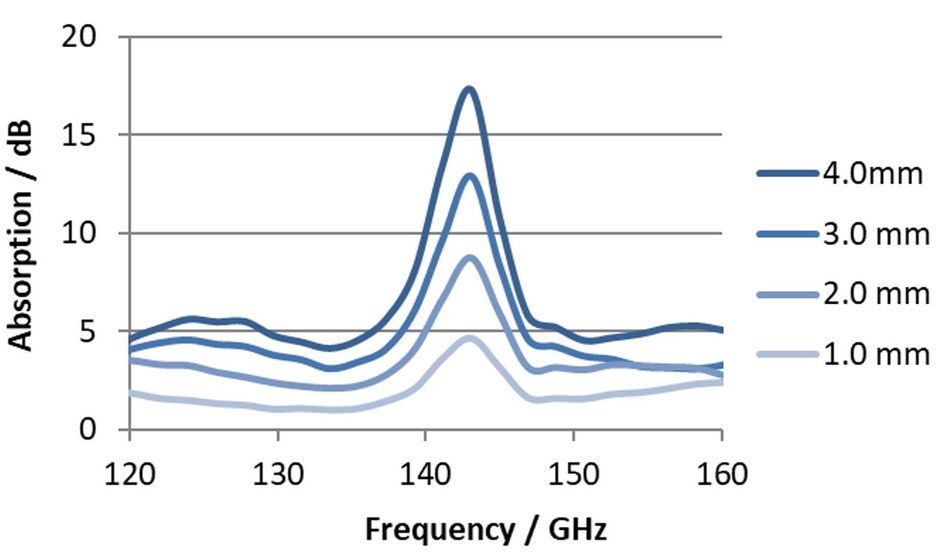

Figure 2: Absorption vs frequency

Case 1： For solving cavity resonance.

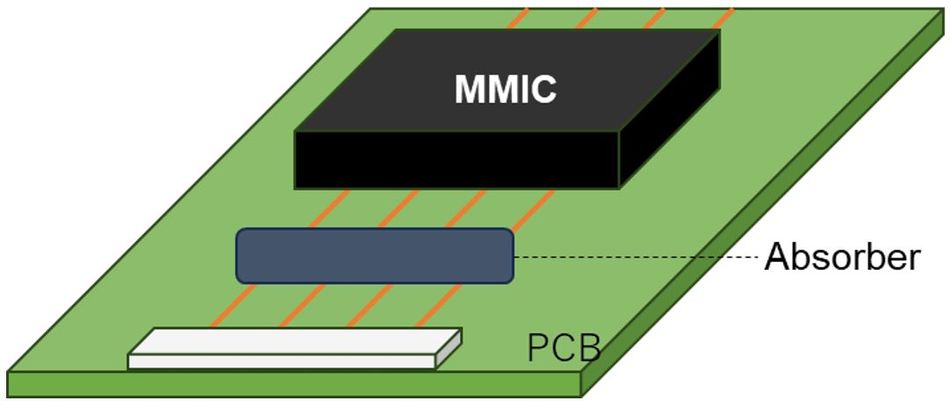

Figure 3: MMIC on antenna module.

Radiation noise of MMIC resonating in the cavity affects the antenna characteristics. (Figure.3). Noise absorbing paste can be installed on small space, and attenuating cavity resonance.

Case 2: For solving noise radiation from board patterns

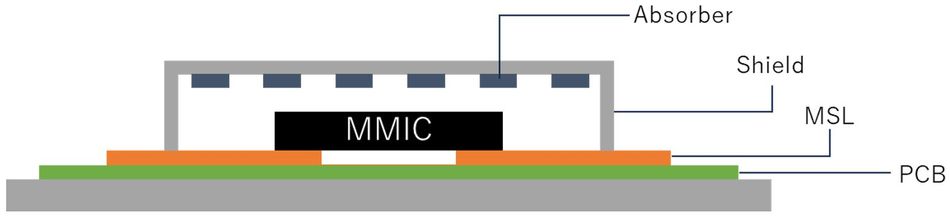

Figure.4 Noise radiation from board patterns.

Noise radiation from board patterns contaminates the antenna circuit, and it affects antenna characteristics. Noise absorbing paste can be installed on circuit and solve noise radiation, because it has insulation properties.
