Overmolding and Insert Molding: Engineering Precision in Hybrid Components

author avatar

06 May, 2024

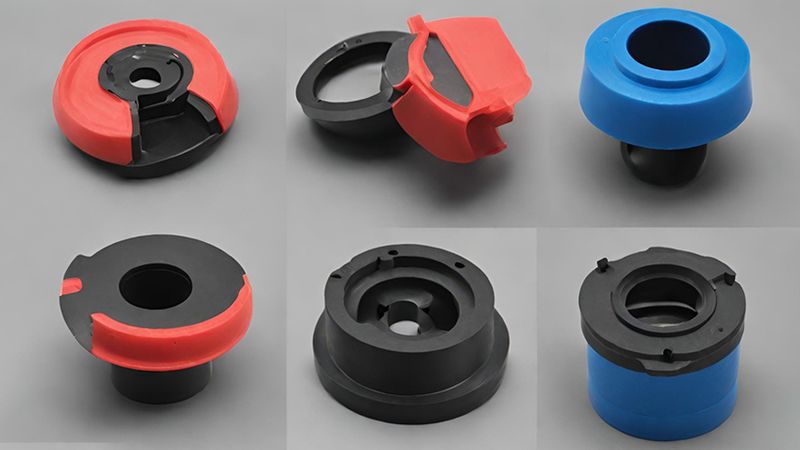

Overmolded Parts

Overmolded Parts

Explore the intricate technical details of overmolding and insert molding, the manufacturing processes that are revolutionizing the production of composite materials. This article unpacks the complexities and engineering expertise required to master these techniques.

Overmolding and insert molding are transformative manufacturing techniques that redefine the engineering landscape. These processes blend  precision and innovation to fabricate components with superior structural integrity and multifaceted functionality, representing a significant leap in product design and material application.

These techniques not only offer enhanced strength and functionality but also open doors to creative design possibilities previously constrained by traditional manufacturing methods. By seamlessly integrating disparate materials and components, overmolding and insert molding enable the production of products that not only meet but exceed the expectations of modern engineering standards.

Unveiling the Core: Understanding Overmolding and Insert Molding

The Essence of Overmolding

Overmolding is a manufacturing process that falls under the broader category of injection molding. Overmolding is a precision manufacturing process where one material is molded over another to form a single composite entity. This method is crucial for enhancing both the functionality and aesthetics of a product. It usually consists of  primary substrate material combined with a secondary overmold material. The process starts with placing the substrate inside the mold. The overmold material is then injected at high pressure, adhering to the substrate and conforming to the mold's shape. Some of the most commonly used materials in the overmolding process include:

  • Thermoplastic Elastomers (TPEs): Valued for their flexibility and stretchability, making them ideal for soft-touch components.

  • Polypropylene (PP): Chosen for its excellent chemical resistance and insulation properties, frequently used in automotive parts and consumer goods.

  • Thermoplastic Polyurethane (TPU): Selected for its durability and resistance to abrasion and tearing, suitable for protective cases.

  • Nylon: Preferred for its robust strength and high temperature resistance, often utilized in high-performance engineering applications.

  • Silicone: Known for its flexibility, heat resistance, and biocompatibility, silicone is often used in medical devices and consumer products.

  • Acrylonitrile Butadiene Styrene (ABS): Offering good impact resistance and surface finish, ABS is commonly used in automotive and electronics applications.

  • Ethylene Vinyl Acetate (EVA): With excellent shock absorption and softness properties, EVA is often used in footwear, sporting goods, and ergonomic grips.

  • Polyethylene (PE): Known for its low cost, chemical resistance, and ease of processing, PE is commonly used in various consumer and industrial applications

Recommended reading: 20240117-Protolabs Insight - Overmoulding Materials

Two-Shot Molding vs. Overmolding

Although overmolding and two-shot molding are often mistaken as the same process due to their shared use of multiple materials in injection molding, they actually differ significantly in their methodologies and intended outcomes.

Two-shot molding, also known as dual-shot or 2K molding, involves injecting two different materials into a single mold in consecutive steps, with each material forming distinct portions of the final part.

In contrast, overmolding integrates one material over another in a single process step, typically with one material serving as the substrate and the other as an additional layer. While two-shot molding is favored for its ability to produce complex parts with intricate designs and multiple colors, overmolding excels in enhancing the functionality and aesthetics of products.

The Backbone of Insert Molding

Insert molding is an advanced manufacturing technique that revolutionizes the production of composite materials by integrating preformed components into a mold.

A group of metal mold and insert parts on a metal surface.Mechanical insert of injection molding

Insert molding is also an injection molding process where preformed components, such as metal inserts or electronic parts, are placed into the mold cavity before plastic material is injected around them. The molten plastic material encapsulates the inserts, creating a strong bond between the insert and the surrounding plastic. Once the plastic material cools and solidifies, the resulting part incorporates the inserts, providing additional functionality or reinforcement.

This process  enhances structural integrity, functionality of the final product while reducing assembly time and costs.. Precision in insert placement is critical, as it influences the final product's performance and durability. Material behavior during the molding process, including bonding characteristics and thermal stability, is meticulously optimized to ensure superior quality.

Comparison of Overmolding and Insert Molding Parameters



Insert Molding

Material Compatibility

Broad, adaptable to various adhesives

Specific, dependent on thermal and chemical compatibility

Production Speed

Variable, influenced by curing times

Rapid, primarily limited by injection and cooling times

Typical Applications

Soft grips for tools, multi-material devices

Structural components in automotive, robust assemblies in electronics


 Provides excellent adhesion between materials, resulting in durable parts with strong bond strength.

Depending on the adhesive properties, inserts may have varying degrees of bond strength with the molded material.


Cost can vary depending on the complexity of the part and the materials used

Generally more cost-effective due to the simplified process and fewer material requirements.

Recommended reading: Calculating Injection Molding Costs: Tips and Facts You Need to Know

Innovations in Material Fusion

Cutting-edge Techniques in Overmolding

The landscape of overmolding has undergone a significant transformation with the emergence of  new material formulations and the integration of advanced manufacturing techniques notably automation. The integration of robotics into overmolding processes has streamlined production, ensuring precision and accelerating throughput in high-volume manufacturing scenarios.

Material scientists have engineered thermally conductive polymers that redefine the thermal management in electronic enclosures, enhancing heat dissipation capabilities. In the realm of medical devices, the introduction of bio-compatible polymers has revolutionized product design, meeting rigorous health standards while offering superior durability and functionality.

Advancements in Insert Molding Technology

Insert molding technology has leaped forward with the introduction of precision robotics and advanced mold design, significantly elevating the precision and efficiency of the process.

  • Precision Robotics: Automated robotics now play a pivotal role in insert placement, ensuring impeccable accuracy and repeatability. This leap in precision translates to enhanced product consistency and a streamlined production line.

  • Advanced Mold Design: Leveraging CAD software, mold designs have become more intricate, allowing for the creation of complex shapes and features with unprecedented precision, pushing the boundaries of what can be achieved in insert molding.

  • Enhanced Material Handling: New systems for material handling protect inserts from damage and ensure optimal placement, contributing to the overall integrity of the molded product.

  • Real-time Monitoring Systems: The integration of sensors within the molding equipment provides live feedback, enabling on-the-fly adjustments to molding conditions, ensuring each insert is perfectly molded.

The Art and Science of Hybrid Components

Design Considerations in Overmolding

In overmolding, the fusion of design and engineering is critical for achieving both aesthetic appeal and functional integrity. Here are pivotal considerations:

  • Material Compatibility: Selecting compatible materials for the substrate and overmold is crucial. They must bond effectively and accommodate each other's thermal behaviors to prevent issues like warping or separation under stress.

  • Mold Design: Precision in mold design is essential to manage material behaviors during the molding process. This includes accounting for material shrinkage and ensuring the mold parts align perfectly to avoid defects.

  • Part Geometry: Designing parts with suitable geometries is essential for successful overmolding. Sharp corners, thin walls, and complex features can pose challenges during the molding process and may result in defects. Designing parts with rounded edges and uniform wall thicknesses promotes smoother material flow and ensures consistent mold filling.

  • Finite Element Analysis (FEA): FEA simulations are indispensable in predicting how the overmolded parts will behave under various stress conditions. This tool helps in optimizing the design to enhance durability and performance.

  • Thermal Management: Effective thermal management ensures that disparities in material thermal properties do not affect the product's functionality. Designs must facilitate proper heat distribution to prevent material degradation or performance falter.

  • Aesthetics and Functionality: The overmold should not only complement the product's appearance but also contribute to its usability and feel. This dual focus on aesthetics and functionality is vital for consumer satisfaction.

Recommended reading: What are injection mold sprues, runners, and gates?

Precision Engineering with Insert Molding

Insert molding requires meticulous precision engineering to achieve the exacting standards necessary for high-quality components. This precision is facilitated through advanced digital tools and innovative technologies.

  • Computer-Aided Design (CAD): Essential in insert molding, CAD software enables engineers to meticulously plan and visualize the entire molding process. This includes the precise placement of inserts and the detailed architecture of the mold, ensuring flawless execution.

  • Simulation Software: Advanced simulations predict material behaviors during the molding process, such as the flow of molten plastic and potential stress points. These insights are crucial for refining mold designs to prevent defects and ensure the integrity of the final product.

  • Mold Design Considerations: Critical elements in mold design include the precise accommodation of inserts, optimal plastic flow, and efficient cooling systems. Attention to these details ensures the durability of the mold and the quality of the molded parts.

  • Integration of Smart Technologies: Incorporating sensors and real-time monitoring systems into the molding process enhances precision. These technologies adjust parameters in real-time, optimizing the process for consistency and high quality, particularly in critical applications like medical devices and aerospace components.

Integrating 3D Printing with Overmolding and Insert Molding

The convergence of 3D printing with overmolding and insert molding signifies a pivotal shift in manufacturing paradigms, ushering in an era of unprecedented possibilities. With 3D printing's ability to produce intricate geometries and customized parts without the constraints of traditional tooling, manufacturers gain unparalleled design freedom. This capability extends to the creation of intricate molds for overmolding, enabling the rapid prototyping and production of low-volume runs with reduced lead times and costs. Furthermore, 3D printing empowers the fabrication of tailored inserts for insert molding, addressing specific design requirements and niche applications that were previously impractical with conventional manufacturing methods.

A close-up of a machine containing a white-colored 3D-printed mold.3D Printed Mold

Hybrid manufacturing approaches leverage the complementary strengths of 3D printing, overmolding, and insert molding to achieve synergistic outcomes. By integrating the design flexibility of 3D printing with the structural integrity and functional diversity of overmolding and insert molding, manufacturers can craft hybrid components that surpass the limitations of individual techniques. This convergence heralds a new frontier in manufacturing, where innovation thrives, and the boundaries of what's possible are continually pushed. As hybrid manufacturing becomes increasingly prevalent, it propels the evolution of products and processes, driving industry-wide transformation and unlocking new avenues for creativity and advancement.

Recommended reading: The pros and cons of 3D printing low-run injection molds

Navigating the Complexities

Overcoming Obstacles in Overmolding

Overmolding introduces specific challenges that can impact the quality and functionality of the final product. Addressing these effectively is crucial for maintaining the integrity and performance of overmolded components.

  • Temperature Control: Precise temperature management is essential to ensure that different materials bond correctly without defects. Fluctuations in temperature can cause improper curing, resulting in weak bonds or surface imperfections. Utilization of state-of-the-art temperature control systems in molding machines allows for exact temperature settings, tailored to the thermal characteristics of each material used.
  • Material Interactions: The interaction between different materials can sometimes lead to adverse effects, such as chemical degradation or physical separation. Conducting extensive pre-production tests to assess material compatibility helps in identifying potential issues early. Additionally, the application of interface agents or specialized coatings can enhance the bonding strength and stability between different materials.
  • Design Complexity: Overmolding often involves intricate designs with multiple components, increasing the risk of part misalignment or incomplete coverage. Employing advanced CAD software and simulation tools allows for precise design validation, ensuring proper fit and alignment before production. Implementing automated assembly processes can also streamline the integration of complex components, reducing the likelihood of errors.
  • Dimensional Stability: Variations in material shrinkage rates during cooling can result in dimensional inaccuracies or warpage in overmolded parts. Employing materials with compatible shrinkage rates or adjusting the molding parameters to compensate for differential shrinkage can mitigate dimensional stability issues. Incorporating design features like ribs or gussets can also reinforce structural integrity and minimize warping tendencies in overmolded components.

Challenges in Insert Molding

  • Insert Placement: Precise positioning of inserts within the mold is essential for achieving the desired outcome. Any misalignment can result in defective parts or damage to the mold itself. Invest in precision molding equipment with automated insert placement features. Implement robust quality control processes to verify insert alignment before and during molding.
  • Quality Control: Maintaining consistent quality across multiple insert-molded parts requires rigorous quality control measures. Inspection techniques such as visual inspection, dimensional analysis, and material testing are essential to identify defects early in the process. Implement a multi-stage quality control system, including in-process inspections, automated vision systems, and statistical process control. Train personnel on defect detection and troubleshooting techniques to ensure consistent quality.
  • Material Compatibility: Ensuring that the materials used for both the insert and the molding process are compatible is crucial. Mismatched materials can lead to bonding issues, poor adhesion, or even material degradation. Conduct comprehensive material compatibility testing before production runs. Consult with material suppliers to ensure compatibility and performance under molding conditions.

Practical Applications of Overmolding Techniques

Automotive Industry

Overmolding serves as a cornerstone in the automotive industry, offering versatile solutions for a range of components. Beyond weather-resistant seals and ergonomic grips, it finds application in the creation of impact-resistant bumpers, durable dashboard panels, and noise-reducing insulation.

An image of a sleek, tan car dashboard created using an overmolding process. The dashboard features several control knobs, circular air vents, a digital display, and a manual transmission shifter in a close-up shot. Overmolded Dashboard Panel

Overmolded parts such as door handles and mirror housings benefit from enhanced aesthetics and tactile feedback. Moreover, the integration of overmolded electronics ensures reliable performance in critical automotive systems, including sensors and control modules. These innovations not only elevate the functionality and durability of automotive components but also contribute to advancements in vehicle safety and performance.

Consumer Electronics

Overmolding is utilized to create shock-absorbing features, and integrated buttons for enhanced user experience. Overmolded seals provide moisture resistance, ensuring the longevity and reliability of electronic devices in various environments. Notable examples include TV remote controls and smartphone cases, where overmolding not only improves aesthetics but also enhances functionality and durability.

Overmolded connectors and ports in devices such as headphones and charging cables ensure robust connections and long-term performance. As consumer electronics continue to evolve, overmolding remains at the forefront, driving advancements in design, functionality, and user satisfaction.

Medical Devices

In the medical device industry, overmolding plays a crucial role in enhancing the functionality and safety of various devices. Overmolding is used to encapsulate electronic components and sensors in biocompatible materials, ensuring patient safety and device reliability in medical applications. It is utilized to create seamless, biocompatible housings that protect sensitive internal components and ensure patient safety.

This process not only improves device reliability but also facilitates ease of use and sterilization, making it ideal for applications such as blood glucose meters and medical device housings. Moreover, overmolding enables the integration of additional features, such as ergonomic grips and tactile buttons, enhancing user interaction and overall user experience.

Household Products

In household products, overmolding offers a multitude of benefits, ranging from improved grip and durability to enhanced functionality and aesthetics. For kitchen utensils, overmolding provides ergonomic handles that offer comfortable grip and control, reducing user fatigue during prolonged use.

Overmolded handles on power tools enhance operator comfort and safety, while also dampening vibrations and reducing hand strain. Additionally, toothbrushes with overmolded handles offer better grip and maneuverability, improving oral hygiene routines. Furthermore, overmolding is utilized in the manufacturing of gardening tools to provide weather-resistant handles and ergonomic grips, enhancing user comfort and efficiency during outdoor tasks. Even door handles benefit from overmolding, as it improves grip and durability, while also adding a touch of style to interior and exterior doors.

Insert Molding's Impact in Automotive, Aerospace, and Beyond

Electrical and Electronics

Insert molding serves as a critical process for safeguarding delicate electronic components against environmental factors and mechanical stress. Insert molding is applied to encapsulate delicate electronic components such as connectors and switches, enhancing durability and reliability in electrical and electronic devices.

For instance, computer keyboard keys benefit from insert molding to ensure consistent performance and tactile feedback, while USB connectors are reinforced for reliable data transmission and longevity.

Automotive Components

Insert molding plays a vital role in enhancing both performance and assembly efficiency. By integrating metal inserts into plastic components such as dashboard panels and interior trim, insert molding reduces assembly time and costs while improving component strength and functionality.

Door handles, for example, incorporate metal inserts for added durability and longevity, ensuring smooth operation and resistance to wear over time. Similarly, instrument cluster bezels benefit from insert molding to reinforce mounting points and enhance overall structural integrity.

Aerospace Applications:

In Aerospace, insert molding is instrumental in producing lightweight yet robust components that meet stringent performance and safety standards. By combining metal inserts with high-strength plastics, insert molding creates components for aircraft interiors and avionics enclosures that withstand harsh operating conditions. Examples include lightweight seat components designed for comfort and safety in aircraft cabins, as well as cockpit controls engineered for precise operation and reliability in flight.


Throughout this article, we have explored the intricate technicalities of overmolding and insert molding. These processes are more than just manufacturing techniques; they are pivotal in the evolution of product design and functionality. Overmolding allows for the creation of composite materials with enhanced properties, while insert molding integrates different materials to produce components with superior structural integrity. Both processes are instrumental in advancing the capabilities of manufacturing and engineering design, pushing the boundaries of what can be achieved in terms of product performance and complexity.

Frequently Asked Questions (FAQs)

Q: What is the difference between overmolding and insert molding from a technical perspective?

A: Overmolding:

  • Involves applying a secondary material over a primary substrate to create a single part with multiple properties.

  • Materials bond through adhesion.

  • Used to create parts with enhanced functionality and aesthetics.

Insert Molding:

  • Involves embedding a preformed part, often made of a different material, into the substrate during the molding process.

  • Typically encapsulates an insert within the molded material.

  • Used to integrate components and create complex parts with varied properties.

Q: How do material properties affect the overmolding process?

A: Material properties such as thermal expansion, chemical resistance, and bonding affinity are critical in the overmolding process. These properties determine the compatibility of materials, the quality of the bond formed, and the durability of the final product. Materials must be carefully selected and tested to ensure they will perform as expected when combined through overmolding.

Q: Can insert molding be automated, and if so, what are the technical considerations?

A: Yes, insert molding can be automated. The technical considerations for automation include the precision placement of inserts, the control of the molding environment, and the integration of quality control systems. However, it requires significant upfront investment in machinery and technology, as well as careful planning to ensure that the automated process aligns with the specific requirements of the molded part.

Q: What are some common challenges encountered in insert molding?

A: Some common challenges in insert molding include achieving precise insert placement, ensuring proper adhesion between the insert and the molded material, and managing material flow to prevent voids or defects. Additionally, factors such as material compatibility, thermal expansion, and shrinkage must be carefully considered to avoid issues during the molding process.

Q: How does the cost of overmolding compare to traditional manufacturing methods?

A: The cost of overmolding can vary depending on factors such as material selection, complexity of the part, and production volume. In some cases, overmolding may incur higher initial tooling costs compared to traditional manufacturing methods. However, it can offer cost savings in the long run by reducing assembly steps, minimizing the need for secondary operations, and improving overall product quality and durability.


[1] Kerkstra R, Brammer S. Injection Molding Advanced Troubleshooting Guide. 2nd ed. 2021.

[2] Schreier-Alt T, Rehme F, Ansorge F, Reichl H. Simulation and experimental analysis of large area substrate overmolding with epoxy molding compounds. Microelectronics Reliability. 2011;51(3):668-675.

[3] Pokkalla DK, Hassen AA, Nuttall D, Tsiamis N, Rencheck ML, Kumar V, Nandwana P, Joslin CB, Blanchard P, Tamhankar SL, Maloney P, Kunc V, Kim S. A novel additive manufacturing compression overmolding process for hybrid metal polymer composite structures. Additive Manufacturing Letters. 2023;5:100128.

[4] Choi DS, Kim HS. A Study on Insert Injection Molding for BLDC Motor Stator. Journal of the Korea Academia-Industrial Cooperation Society. 2015 Sep 30;16:5737-5742

[5] Kamal MR, Isayev A, Liu SJ. Injection Molding: Technology and Fundamentals. 2009. Carl Hanser Verlag GmbH & Co. KG.
