If animals and insects can jump across grass and sand why can’t robots? Sarah Bergbreiter has found that researchers don’t have to look far to enable this in robots. Existing latch mechanisms that were once thought of as an “on” or “off” switch to release stored energy can also be used to control jump performance across a wide range of terrains.
“I am interested in how we can build these very functional, very small robots that can move around diverse environments,” says Bergbreiter, a professor of mechanical engineering. “Traditionally, jumping robots are studied on rigid surfaces, so designing a jumper that can function efficiently on soft substrates is a big step for robotics.”
Bergreiter’s team used a mathematical model to illustrate how the latch plays a role in the system’s ability to adapt its jump performance before testing their findings on a robot “jumper.”
“We found that the latch can not only mediate energy output, but can also mediate energy transfer between the jumper and the environment that it is jumping from.” Bergbreiter explains. “When using a round latch, we can delay the jump and allow the robot to take advantage of the substrate’s recoil.”

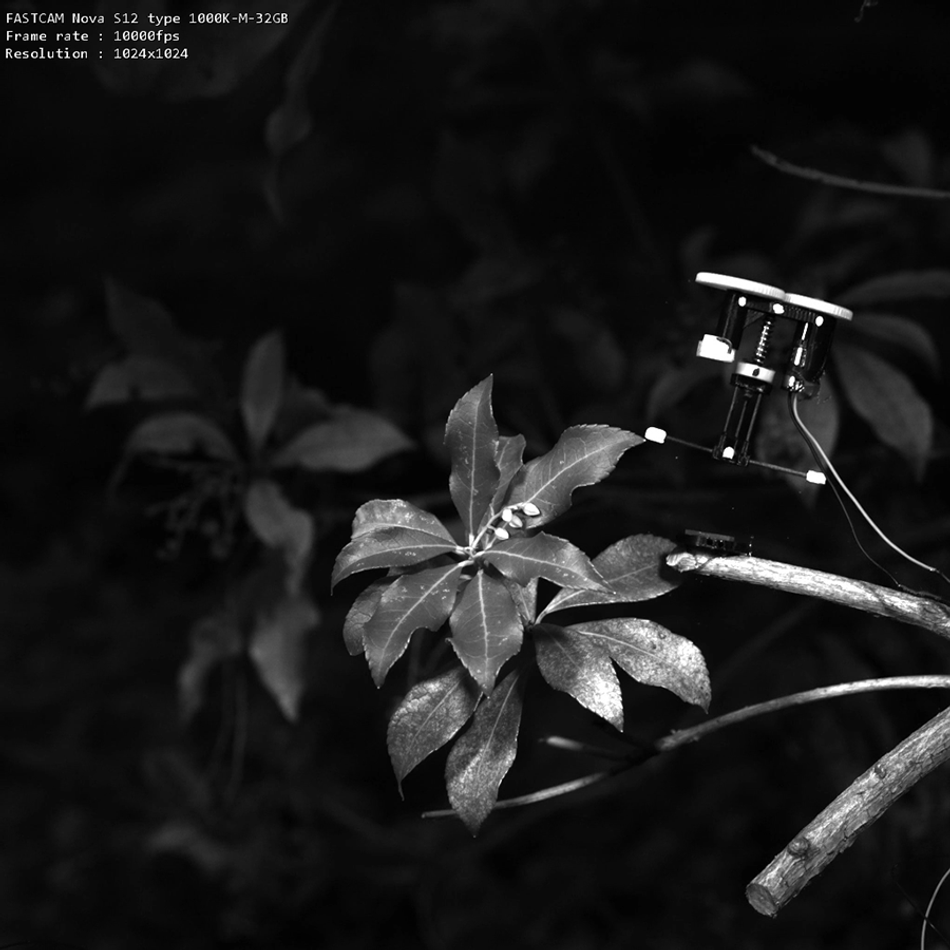

The team tested their jumper on a tree branch and watched as the branch recoiled before the jumper took off. This proved that the jumper recovered some of the energy initially lost to the tree branch.
Unexpectedly, Bergbreiter’s team found that a sharp (zero radius) latch sometimes outperformed their rounded latch, contrary to model predictions. In these instances, the tree branch collided with the robot after take-off, causing an unconventional form of energy recovery from the substrate bump. The bump gave the jumper additional energy enabling it to outperform the well-controlled rounded latch jumper.
“Now that we understand the natural design space, we can build something that takes advantage of the compliance of these soft substrates,” Berbreiter says.
Biologists are equally motivated to understand this space in order to discern how biological organisms, like grasshoppers, are able to control their energy output when jumping through grass.
It’s really fascinating that the latch—something that we already need in our robots—can be used to control outputs that we couldn’t have controlled before.Sarah Bergbreiter, Professor, Mechanical Engineering
“It has been nearly impossible to design controlled insect-sized robots because they are launched in just milliseconds. Now, we have more control over whether our robots are jumping up one foot or three. Or we can simply make it jump consistently despite wide variation in substrate. It’s really fascinating that the latch—something that we already need in our robots—can be used to control outputs that we couldn’t have controlled before.”
This research was published in Royal Society in collaboration with researchers at Dickinson College and University of California - Irvine
