Cheap, sustainable hydrogen through solar power

This article was discussed in our Next Byte podcast.

The full article will continue below.

A new kind of solar panel, developed at the University of Michigan, has achieved 9% efficiency in converting water into hydrogen and oxygen—mimicking a crucial step in natural photosynthesis. Outdoors, it represents a major leap in the technology, nearly 10 times more efficient than previous solar water-splitting experiments of its kind.

But the biggest benefit is driving down the cost of sustainable hydrogen. This is enabled by shrinking the semiconductor, typically the most expensive part of the device. The team’s self-healing semiconductor withstands concentrated light equivalent to 160 suns.

Currently, humans produce hydrogen from the fossil fuel methane, using a great deal of fossil energy in the process. However, plants harvest hydrogen atoms from water using sunlight. As humanity tries to reduce its carbon emissions, hydrogen is attractive as both a standalone fuel and as a component in sustainable fuels made with recycled carbon dioxide. Likewise, it is needed for many chemical processes, producing fertilizers for instance.

“In the end, we believe that artificial photosynthesis devices will be much more efficient than natural photosynthesis, which will provide a path toward carbon neutrality,” said Zetian Mi, a professor of electrical and computer engineering, who led the study reported in Nature.

The outstanding result comes from two advances. The first is the ability to concentrate the sunlight without destroying the semiconductor that harnesses the light. This offers a significant cost advantage because the semiconductor is far and away the most expensive part of a water-splitting solar panel.

“We reduced the size of the semiconductor by more than 100 times compared to some semiconductors only working at low light intensity,” said Peng Zhou, a research fellow in electrical and computer engineering and first author of the study. “Hydrogen produced by our technology could be very cheap.”

And the second is using both the higher energy part of the solar spectrum to split water and the lower part of the spectrum to provide heat that encourages the reaction. The magic is enabled by a semiconductor catalyst that improves itself with use, resisting the degradation that such catalysts usually experience when they harness sunlight to drive chemical reactions. Its self-healing property enables it to withstand light equivalent to 160 suns.

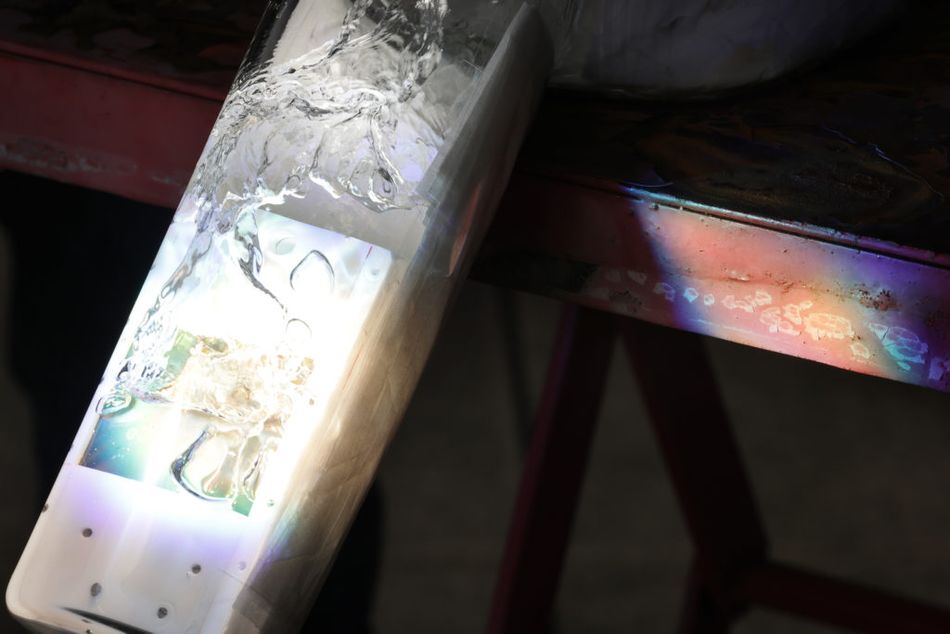

A close-up of the panel with the semiconductor catalyst and water inside. Bubbles of hydrogen and oxygen travel up the slope to be separated in the canister (maybe). Photo: Brenda Ahearn/Michigan Engineering, Communications and Marketing Photo: Brenda Ahearn/University of Michigan, College of Engineering, Communications and Marketing

In addition to handling high light intensities, it can thrive in the high temperatures that are punishing to computer semiconductors. Higher temperatures speed up the water splitting process, and the extra heat also encourages the hydrogen and oxygen to remain separate rather than renewing their bonds and forming water once more. Both of these helped the team to harvest more hydrogen.

For the outdoor experiment, Zhou set up a lens about the size of a house window to focus sunlight onto an experimental panel just a few inches across. Within that panel, the semiconductor catalyst was covered in a layer of water, bubbling with the hydrogen and oxygen gasses it separated.

The catalyst is made of indium gallium nitride nanostructures, grown onto a silicon surface. The gallium nitride captures the light, converting it into free electrons and holes—positively charged gaps left behind when electrons are liberated by the light. Those nanostructures are peppered with nanoscale balls of metal, 1/2000th of a millimeter across, that use those electrons and holes to help direct the reaction.

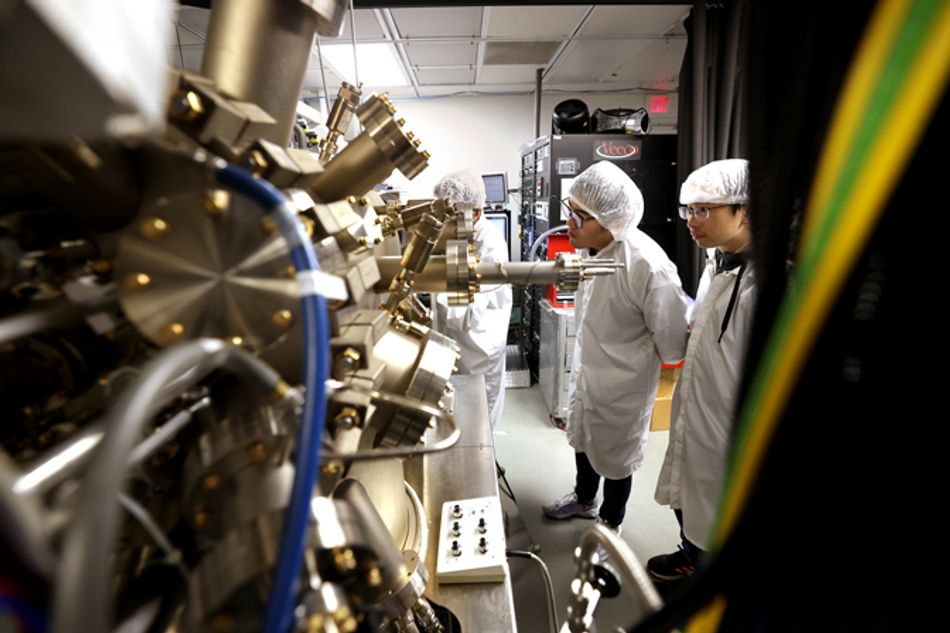

Peng Zhou, right, and Yuyang Pan, first year PhD student, observe the machine in which the semiconductor nanowires are grown. Photo: Brenda Ahearn/Michigan Engineering

A simple insulating layer atop the panel keeps the temperature at a toasty 75 degrees Celsius, or 167 degrees Fahrenheit, warm enough to help encourage the reaction while also being cool enough for the semiconductor catalyst to perform well. The outdoor version of the experiment, with less reliable sunlight and temperature, achieved 6.1% efficiency at turning the energy from the sun into hydrogen fuel. However, indoors, the system achieved 9% efficiency.

The next challenges the team intends to tackle are to further improve the efficiency and to achieve ultrahigh purity hydrogen that can be directly fed into fuel cells.

Other contributors to the project include Ishtiaque Ahmed Navid, a doctoral student in electrical and computer engineering, who produced the semiconductor materials. The structure of the semiconductor catalyst was examined with electron microscopes by Yinxin Xiao, a doctoral student in electrical and computer engineering; Kai Sun, an associate research scientist in materials science and engineering; and Ping Wang, an associate research scientist in electrical and computer engineering.

For the outdoor experiments, Peng Zhou had help from Yongjin Ma, a visiting student in electrical and computer engineering; Baowen Zhou, a former postdoctoral fellow in electrical and computer engineering; and Zhengwei Ye, a doctoral student in electrical and computer engineering.

Some of the intellectual property related to this work has been licensed to NS Nanotech, Inc. and NX Fuels, Inc., which were co-founded by Mi. The University of Michigan and Mi have a financial interest in both companies.

This work was supported by National Science Foundation (CBET 1804458), the Department of Defense (W56HZV-20-C-0025), the Michigan Translational Research and Commercialization Innovation Hub, the Blue Sky Program in the College of Engineering at the University of Michigan, and by the Army Research Office (W911NF2110337).
