Why Blue Laser is Becoming the Core of High-Fidelity 3D Scanning

When we first came up with the idea to enhance our projection units with the power of blue light wavelengths, we knew we were onto something extraordinary.

By solving long-standing challenges with difficult materials, extending scanning ranges, and enabling new multi-sensor configurations, blue laser vision systems are opening up application areas that were previously impractical or impossible.

Today, we can confidently say that the new generation of 3D scanners delivers 2.5x better data completeness and 50% more scanning power.

When paired with red laser systems in multi-sensor setups, you can also perform a simultaneous 3D scanning tasks with no interference, which can be essential for applications like  bin picking and 3D meshing.

The Physics Behind the Blue Laser Advantage

To understand why blue laser technology represents such a significant advancement, we need to dive into the fundamental physics of light interaction with materials. The key lies in wavelength.

Blue lasers typically operate at wavelengths around 405-450 nanometers. This is significantly shorter than the 650-670 nanometer wavelengths of traditional red lasers.

This shorter wavelength brings several crucial advantages.

Enhanced Surface Interaction

Shorter wavelengths scatter more effectively across a broader range of materials. This phenomenon means that blue light interacts more readily with surface textures and microscopic irregularities that longer wavelengths might pass through or reflect away from.

The result is dramatically improved data capture on challenging materials that have historically been problematic for 3D scanning.

Reduced Speckle Noise

One of the most significant technical improvements blue lasers bring is the reduction of speckle noise.

Speckle patterns – those granular interference patterns that appear when coherent light reflects off rough surfaces – have long been a nemesis of precision 3D scanning.

The finer speckle structure produced by blue lasers creates less interference with captured data, resulting in cleaner, more accurate point clouds.

Superior Signal-to-Noise Ratio

Blue laser vision systems can achieve higher signal-to-noise ratios, particularly when combined with sensors optimized for blue wavelengths.

This improvement translates directly into better data quality, especially in challenging scanning conditions where ambient light or material properties might compromise measurement accuracy.

Breaking Through Material Barriers

Perhaps nowhere is the advantage of blue laser technology more apparent than in its ability to handle materials that have traditionally challenged 3D scanning systems.

Reflective and Metallic Surfaces

Automotive manufacturing, with its abundance of polished metal components, stamped parts, and reflective surfaces, has been a particularly challenging environment for traditional 3D scanning

Blue lasers excel at penetrating through surface reflections and capturing meaningful geometric data from highly reflective materials.

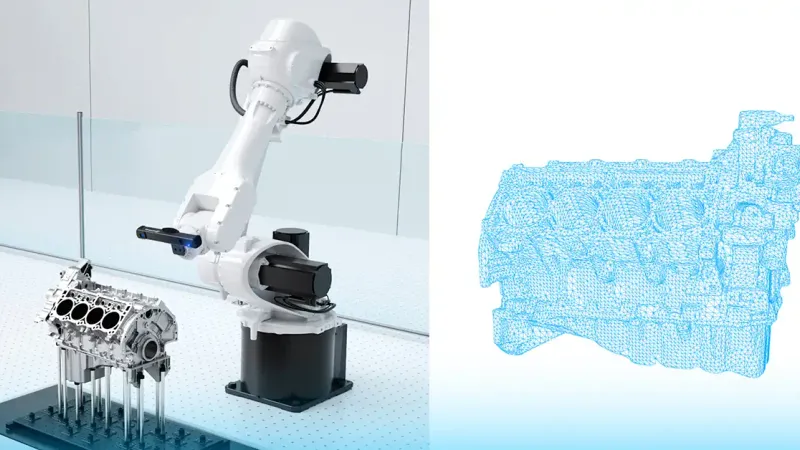

This capability opens up new possibilities for in-line quality inspection of  automotive components, from body panels to precision-machined engine parts.

To take a deeper look into how 3D vision can transform inspection and quality control. Not only in the automotive industry. Download our free e-book today.

Go to Download

Dark and Absorptive Materials

At the opposite end of the spectrum, very dark materials that absorb most incident light have also posed challenges for red laser systems.

Blue light’s high energy density and distinct absorption properties enable better data capture from difficult materials. Consequently, systems can reliably scan complex surfaces without requiring sprays or special surface preparation.

Transparent and Semi-Transparent Objects

One of the most exciting applications of blue laser technology is in scanning transparent and semi-transparent materials.

Blue laser systems unlock complex measurements previously considered impractical with red light. A primary example is automotive gap and flush inspection, where the system must accurately capture the interface between transparent plastic and painted metal.

Extended Dynamic Range Capabilities

Blue laser technology doesn’t just improve scanning quality at traditional ranges – it extends the useful scanning envelope significantly.

Several factors contribute to this enhanced dynamic range performance:

• Higher Power Density – Blue laser projection units can deliver significantly more optical power within the same laser safety class restrictions. This increased power density means a more useful signal reaches distant objects, enabling reliable data capture at ranges that would be marginal or impossible with red laser systems.
• Improved Dynamic Range – When combined with advanced sensors and processing algorithms, blue laser systems can achieve dynamic ranges 20dB or more beyond traditional systems. This extended dynamic range means the scanner can simultaneously capture fine details on nearby objects while still maintaining signal integrity from distant surfaces – a crucial capability for applications like palletizing, where robots might need to scan objects at various heights within a large working volume.
• Better Ambient Light Suppression – The spectral characteristics of blue lasers, combined with precisely matched optical filters, enable  superior ambient light suppression. This capability is particularly valuable in industrial environments where natural lighting, overhead fluorescents, or other illumination sources might interfere with scanning operations.

Multi-Sensor Synergy

One of the most innovative applications of blue laser technology is in multi-sensor scanning configurations. Because blue and red wavelengths operate in distinct spectral bands, sensors using different laser colors can operate simultaneously without interference.

This capability enables several powerful scanning modalities:

Parallel Multi-View Scanning

Scanning in succession adds time and complexity to the operation. Rather than scanning sequentially from different angles, blue and red laser systems can scan simultaneously from multiple perspectives.

This parallel operation cuts scanning time in half while providing the multiple viewpoints needed for complete object reconstruction.

Complementary Material Coverage

Different laser wavelengths interact differently with various materials. By using both blue and red lasers simultaneously, scanning systems can optimize data capture across a broader range of surface types. This way, you can essentially combine the strengths of both technologies.

Enhanced Robustness

Multi-wavelength scanning provides inherent redundancy. If one laser struggles with a particular surface or material characteristic, the other wavelength often compensates. The results introduces more complete and reliable data capture.

Applications Transformed by Blue Laser Technology

The capabilities enabled by blue laser technology are opening up entirely new application areas and dramatically improving existing ones:

Advanced Quality Inspection

The improved resolution and material compatibility of blue laser systems enable quality inspection applications that were previously impractical.

Weld bead inspection, surface finish analysis, and dimensional verification of complex geometries all benefit from the enhanced data quality and completeness that blue lasers provide.

Outdoor and Variable Lighting Applications

Superior ambient light suppression makes blue laser systems viable for applications in uncontrolled lighting environments.

Solar panel inspection, agricultural applications, and railway maintenanc. All of these scenarios where consistent artificial lighting isn’t practical – become feasible with robust blue laser scanning systems.

High-Precision Assembly Operations

In electronics manufacturing and other precision assembly operations, the improved resolution and material handling capabilities of blue laser systems enable more sophisticated guidance and verification tasks.

Component placement and quality verification can all be performed with higher confidence and accuracy.

Large-Scale Automation

The extended range capabilities of blue laser systems enable automation in larger working volumes. Warehouse automation, large-part manufacturing, and infrastructure inspection applications all benefit from the ability to capture high-quality data across greater distances.

Looking Forward: The Future of Blue Laser Technology

As blue laser technology matures, we can expect to see continued improvements in several areas:

Integration with Artificial Intelligence

The higher quality, more complete data provided by blue laser systems creates better inputs for AI-powered analysis and decision-making systems. This synergy between improved sensing and intelligent processing will enable even more sophisticated automation applications.

Enhanced Multi-Modal Sensing

Future sensing systems will evolve by integrating blue laser structured light with complementary modalities, such as thermal imaging, hyperspectral analysis, or advanced RGB processing. This synergy will enable comprehensive systems capable of unprecedented material analysis and geometric precision.

Explore Photoneo’s Blue Laser devices – MotionCam-3D Color (Blue) for dynamic scanning in motion and PhoXi 3D Scanner Gen3 for the maximum precision in static scenes.
