It can be extremely challenging for engineers when trying to integrate standard power supplies into sophisticated industrial systems. For example, conventional constraints such as high inrush current can force trade-offs between reliable circuit protection and system scalability, and require engineers to add cost and complexity to their installations. Similarly, limited peak current headroom, the absence of digital communication interfaces, and rigid certification profiles all constrain where and how standard DIN Rail supplies can be deployed.

Fortunately, MEAN WELL’s brand-new XDR series of single-phase DIN Rail power supplies offers an advanced suite of features that deliver all the performance benefits without the trade-offs. With new offerings such as reduced inrush current, improved transient-handling capabilities, and adherence to rigorous qualification standards, the XDR units let engineers deploy more robust, compact, and digitally integrated power architectures in their industrial designs.

Mitigating System Stress through Inrush Current Suppression

A major new feature introduced in the XDR series is improved inrush current suppression.

Inrush current occurs when a power supply’s internal bulk capacitance draws large amounts of energy to reach its required operating charge at system boot-up. For high-performance switching power supplies, inrush currents historically range from 30 to 80 A and can last for millisecond durations. In these instances, systems can experience nuisance tripping, where a short-duration startup spike exceeds a breaker's trip threshold, causing the system to shut down even when the continuous operating current remains perfectly safe.

In contrast, MEAN WELL’s new XDR series technology limits inrush current draw to less than 10 A at 230 Vac. By dampening this initial surge, the XDR series lets engineers use smaller, standard circuit breakers without the risk of nuisance tripping during system activation. And, because the XDR series manages these electrical transients internally, specialized breakers with expensive, high-tripping curves become unnecessary for most installations.

Beyond simplifying breaker selection, the improved inrush current suppression directly extends the lifespans of switches and protection relays. MEAN WELL achieves this by preventing contact pitting, a form of electrical wear in which high-current arcs damage metal surfaces, and by reducing overall thermal stress on the wiring. Such refined current limiting is especially important for high-voltage installations or EU-standard 230V grids, where inrush currents are naturally larger. Consequently, engineers can design more efficient distribution panels that use standard, lower-cost protection hardware without losing system reliability during cold starts.

Dynamic Power Delivery for Inductive and Laser Loads

Industrial loads are rarely static. Motors, solenoids, and laser systems all impose short-duration current demands that far exceed their steady-state draw, and a power supply that can’t accommodate those peaks becomes a bottleneck. The XDR series addresses this with two distinct levels of dynamic current support, each tuned to a different class of transient load.

Transient Handling with Pulse Current Operation

First, the XDR series introduces pulse current operation, which provides up to 600% of the supply’s rated current to handle extreme transients.

In traditional power supplies, high-current transients can cause voltage instability or system-wide power dips if not properly accounted for. With the ability to withstand significantly higher lagging currents than nominal, the XDR series helps power engineers guarantee robustness against volatile transients for stable output quality in all operating conditions. To further support this effort, MEAN WELL also designed advanced internal circuitry into the XDR series to actively manage associated thermal and electrical stresses.

Pulse current operation is particularly useful for applications such as industrial 3D printers and laser-guided automation tools. Specifically, industrial robotic applications can use XDR power supplies for high-speed laser etching or diode applications that require near-instantaneous on-off cycles to function correctly. With quick on-off transitions, these laser diodes often source high currents at millisecond intervals, which can cause instability or trigger protection shutdown in other power supplies. The XDR series prevents these operational failures with its generous current overhead designed specifically for fast switching.

Peak Power Capabilities

Beyond handling fast transients, the XDR series also supports a 200% peak power rating to meet the sustained, heavy demands of inductive or capacitive loads.

While pulse current operation handles millisecond spikes, peak power operation is meant for advanced current loads with durations of several seconds. Specifically, motor-driven equipment such as conveyor systems, pump motors, and pneumatic actuators all exhibit this startup profile, drawing high current to generate initial torque before settling into steady-state operation. With the XDR series, engineers have a tool that can support these longer-duration load currents without fear of shutdown or system failure. By supporting these transients natively, the XDR series removes the need for separate soft-start modules or oversized supplies in motor-heavy configurations.

Because of the XDR series’ peak power rating, engineers can select a power supply based on their continuous operating loads rather than a brief startup peak. As such, they can reduce the total cost and physical size of their control system.

Optimizing Space and Connectivity

High-Density Thermal Engineering

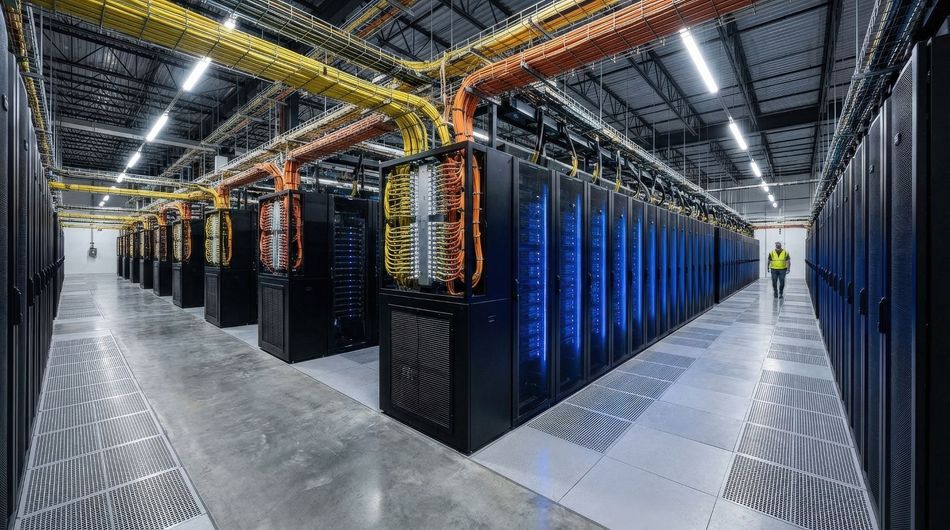

Another benefit of the XDR series is its ultra-slim chassis, which reduces the power supply's footprint by up to 45% compared to legacy XDR models. Because of its smaller size, the XDR series can deliver power densities up to 960 W and be paralleled to deliver up to 3.84 kW of output power. In data centers, for example, more power-dense solutions help engineers use less space for power infrastructure and repurpose it for more computing or memory, increasing return on investment.

MEAN WELL achieved this high power density by designing the XDR series with advanced components and an efficient layout that minimizes parasitics that would otherwise generate excess heat. For example, the series maintains up to 91% efficiency and less than 1 W of no-load power consumption. Similarly, MEAN WELL improved the system’s heat dissipation, enabling it to operate reliably even at extreme temperatures up to +85 °C. As such, designers can deploy the XDR series in unconditioned outdoor enclosures or on high-temperature factory floors where standard power supplies would typically fail.

Tool-Free Wiring for Faster Installation

Standard DIN Rail power supplies have historically relied on screw-type terminal blocks, which require a screwdriver and precise torque management to install correctly. Improper torquing leads to loose connections, higher contact resistance, and premature failures in high-vibration environments. For large-scale panel builds that require dozens of power supplies, the cumulative installation time and the risk of operator error can become significant concerns.

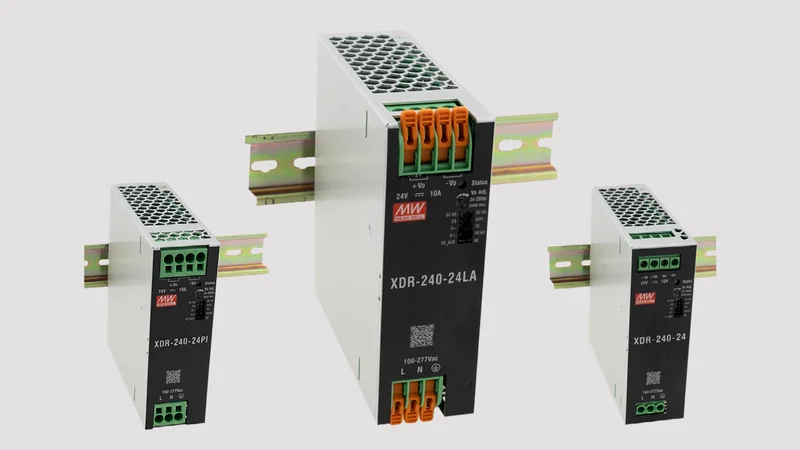

The XDR series addresses this with two tool-free terminal block variants as standard options. The first is a lever-actuated terminal, where installers lift a lever, insert the conductor, and lock it in place, with no tools required. The second is a push-in terminal that accepts wires with a single insertion motion, eliminating the need for manual torque. Both variants deliver consistent clamping force on every connection to reduce variability introduced by manual installation and improve long-term reliability.

For OEMs and system integrators assembling large control panels, these terminal options can substantially accelerate the build process and lower the risk of field failures caused by loose wiring. Teams can also standardize their wiring procedures for any installation type, regardless of operator experience level.

Digital Integration via Modbus RTU

For more intelligent system management, the XDR series also includes native Modbus communication in its higher-wattage models. Modbus RTU is a standard industrial communication protocol that lets many types of hardware devices share data over a single wired network. With built-in communication ports that support Modbus, the XDR series can help engineers more easily integrate power data into broader SCADA or PLC environments.

With more integrated networks, designers can monitor electrical and diagnostic data without needing physical access to the unit. As such, predictive maintenance workflows become a realistic possibility, meaning engineers can anticipate hardware failures before they occur and act accordingly to prevent system damage or unwanted downtime.

Similarly, the XDR series’ Modbus features enable engineers to connect multiple power supplies in parallel to scale system capacity without losing centralized control. Specifically, each unit can communicate its load to maintain a balanced, stable power system even when paralleled. In turn, these communication features directly reduce unexpected downtime and unlock a more intelligent approach to power management.

Engineers monitoring operations in a marine environment. Source: AdobeStock

Compliance and Reliability for All Environments

Specialized Safety and Marine Certifications

The XDR series comes pre-certified to a range of unique safety standards, including DNV-GL maritime standards. For marine environments specifically, MEAN WELL designed the XDR series with a rugged mechanical construction that protects the internal electronics from vibration and shock. These power supplies also have conformal-coated PCBs, which prevent moisture and salt from causing short circuits or corrosion, helping the units operate for longer periods in the humid, corrosive atmospheres found at sea.

Beyond maritime use, the XDR series also meets the C1D2 requirements for installation in hazardous locations. This C1D2 certification gives engineers confidence that their power supply won't release sufficient electrical energy to cause sparks or ignition in volatile environments, which is mandatory for sites that process flammable substances. Specifically, gas stations, chemical processing facilities, and similar sites require C1D2-rated equipment for any electrical hardware installed in classified zones.

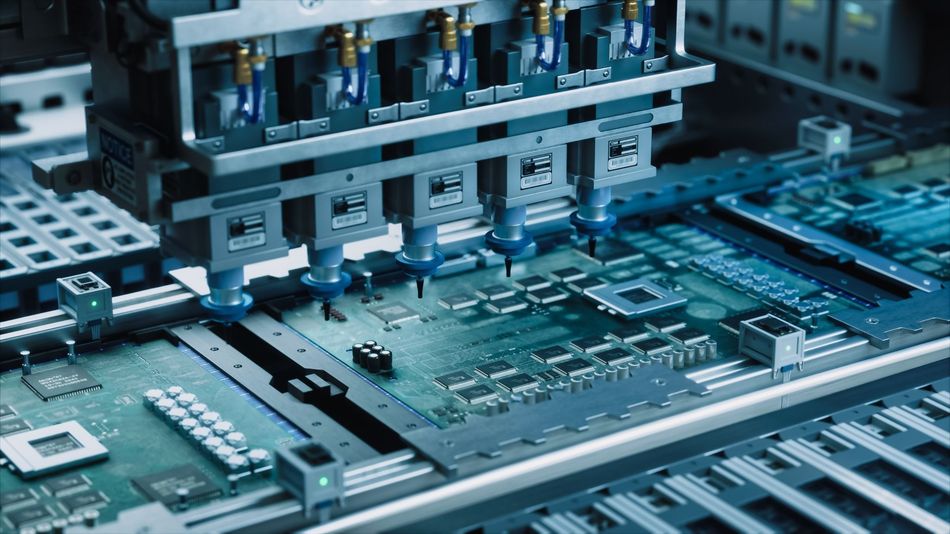

Semiconductor Fabrication and Power Stability

The XDR series also complies with the Semi-F47 standard, which specifies how a power supply should behave when the main AC supply experiences brief, unexpected interruptions. Meeting this standard means that the XDR series provides voltage-sag immunity on par with the demands of advanced semiconductor manufacturing facilities. In practice, this means the power supply can sustain its output through momentary grid dips that would otherwise interrupt sensitive lithography or deposition equipment.

With access to a single power supply that adheres to many of the most rigorous international standards for every major industrial sector, engineers can standardize on a single power supply family for complex global projects, knowing the hardware will meet whatever local safety and performance requirements they encounter. In turn, teams can build supply chains that are simpler, less prone to volatility, and easier to manage.

The XDR Series for Intelligent Power Design

The MEAN WELL XDR flagship power supplies are designed to handle the most demanding power requirements in industrial automation. By combining high-power-density hardware with intelligent monitoring and a suite of global certifications, MEAN WELL is making it easier for designers to deploy resilient power architectures in complex, harsh environments.
