Efficient water and fluid management is a priority across multiple sectors, including household appliances, industrial equipment, and smart infrastructure. Traditional mechanical flow sensors, such as Hall effect and turbine-based designs, come with inherent drawbacks like wear, inaccuracy, and limitations with miniaturization. Ultrasonic flow conversion offers an alternative approach that addresses many of these issues. This article discusses how ultrasonic flow conversion works, its advantages over traditional sensing methods, and how ScioSense’s UFM-02 module brings these benefits into practical, real-world applications.

What Are Ultrasonic Flow Converters?

Ultrasonic flow converters operate on a simple method known as the time-of-flight (ToF). This method works based on the difference between ultrasonic signals transmitted upstream and downstream within a fluid-carrying pipe. Inside the converter, two piezoelectric transducers act alternately as transmitters and receivers. When a signal travels with the flow of the liquid, it reaches the opposite transducer faster than a signal sent against the direction of flow. The difference in arrival times between these two paths determines the flow rate of the liquid without needing any physical obstruction or moving parts in the fluid path.

Key Advantages of Ultrasonic Flow Converter Technology

Ultrasonic flow converters offer several practical advantages over mechanical sensing technologies. Mechanical sensors, such as turbine-based designs, contain components that rotate or shift with the movement of fluid. These parts are subject to wear, mechanical failure, or clogging over time due to scaling or debris in the water. In contrast, ultrasonic systems have no internal moving parts, resulting in minimal maintenance needs, long operational life, and consistent measurement performance over extended periods.

Moreover, as ultrasonic flow converters measure the time difference of sound waves travelling with and against the liquid flow, they can maintain accuracy over a broad operational range. This allows them to deliver reliable readings in both low and high flow conditions, without the drop in precision that mechanical systems may experience at the extremes.

Ultrasonic measurement methods can be implemented in low-power designs, making them suitable for battery-operated or energy-efficient systems. Moreover, the absence of bulky mechanical assemblies allows ultrasonic flow converters to be produced in compact form factors. They can be readily integrated into a wide variety of systems, including systems with tight spatial constraints or embedded electronics that require a direct digital interface.

Applications Where Ultrasonic Flow Conversion Excels

Ultrasonic flow conversion technology is adaptable to a wide range of fluid measurement scenarios. Its ability to deliver accurate, real-time readings without mechanical wear makes it ideal for hygienic and maintenance-free operations.

For instance, in water metering and smart infrastructure applications for both residential and commercial water systems, ultrasonic converters provide precise measurements across a broad flow range, including near-zero flow conditions. This enables more accurate billing in metering applications and supports early leak detection in smart city networks. Moreover, their long operational lifespan reduces maintenance intervals. Similarly, ultrasonic converters used in smart faucets and toilets enable advanced control features such as automatic shut-off, water usage monitoring, and adaptive flow regulation.

In applications like boilers, HVAC systems, and industrial cooling, stable and accurate flow measurement is essential for energy efficiency and system protection. Ultrasonic sensing provides the precision needed for balancing fluid circulation, monitoring heat exchanger performance, and avoiding issues such as pump cavitation or inadequate cooling flow. Similarly, ultrasonic technology’s contactless operation makes it ideal for beverage dispensers, coffee machines, and water purifiers.

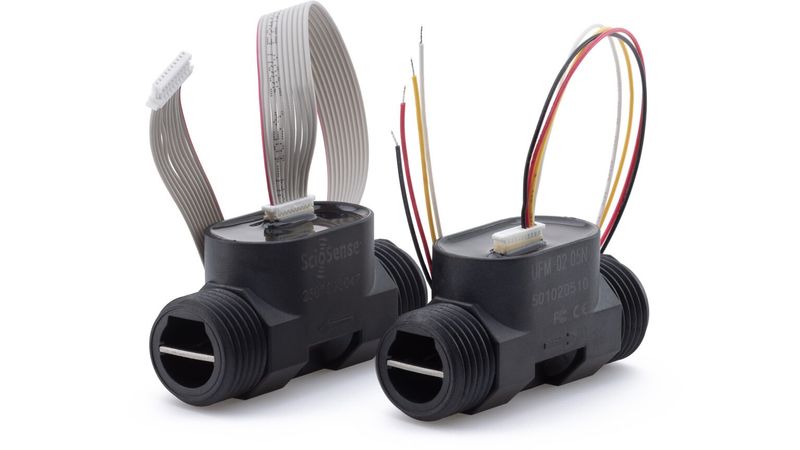

The UFM-02 Ultrasonic Flow Module

The ScioSense’s UFM-02 is an ultrasonic flow sensing module designed for precise and reliable measurement across a wide range of liquid applications. It is available at start with 0.5-inch pipe diameter and 1 inch pipe diameter, to be followed by 3.8 inch and 1.5 inch and covers measurable flow rates from as low as 4 l/h to as high as 18,000 l/h, depending on the model variant. The sensor maintains an accuracy of ±5% between transition flow and maximum flow and ±10% between minimum flow and transition flow, with repeatability of 0.2%. This range enables it to handle both very low flow detection and high-capacity flow measurement within a single product family.

Mechanical and Material Options

The UFM-02 modules are constructed with food-grade materials, allowing direct use with drinking water and other potable liquids. Multiple thread standards are supported, including BSPP and NPS, accommodating integration into different regional plumbing specifications. The spool piece dimensions vary with diameter but are compact, with overall lengths between 60 mm and 80 mm. The device is designed to operate at water pressures up to 1.75 MPa during normal operation, with a maximum water temperature of 60 °C.

Interface and Integration

The UFM-02 offers two main interface options, including a pulse output for applications requiring a simple volume-based signal and an SPI digital interface for more detailed data access and integration into embedded control systems. A 4-wire cable is used for the pulse-only configuration, while a 10-wire cable is available for SPI communication. The SPI interface provides access to flow rate, total volume, and temperature measurements, as well as error flags. These error flags include detection of bubbles, empty tube conditions, and measurement errors, enabling improved diagnostic capabilities.

Temperature Measurement Capability

The UFM-02 also measures water temperature within a range from 1 °C to 60 °C with ±1 °C accuracy. This feature allows designers to combine flow and temperature monitoring within a single compact module, simplifying system architecture in applications such as boilers, beverage dispensers, or thermal management systems.

Compact, Low-Power Operation

Despite its measurement range and diagnostic capabilities, the UFM-02 operates at an average supply current of approximately 50 µA when powered at 3.6–6 V. This low power draw supports battery-operated or energy-constrained systems. The combination of compact size, standardized threading, and integrated electronics allows the UFM-02 to be incorporated directly into production designs without additional calibration steps.

Real-World Value: How the UFM-02 Helps Designers and OEMs

The UFM-02 module is designed to integrate into a variety of product development workflows. As it provides standardized interfaces such as SPI and pulse output, it can be incorporated into existing control architectures without extensive redesign. Pre-calibrated modules reduce the need for additional adjustment during assembly, helping to shorten the time from prototyping to production.

The long operational lifetime of the UFM-02 can lower maintenance requirements in deployed systems, supporting consistent performance over years of operation. In uptime-critical applications such as water management infrastructure or high-use consumer appliances, this helps ensure stable service delivery and reduces lifecycle costs.

Built-in temperature measurement, based on the speed of sound in the medium, provides an additional input for process control without requiring a separate sensor. This capability allows appliance and system manufacturers to monitor both flow and temperature through a single integrated unit, which simplifies hardware design and reduces component count.

Moreover, the UFM-02’s compact form factor, multiple thread standards, and compatibility with a range of pipe sizes support manufacturing flexibility for high-volume production. The combination of measurement accuracy, integration ease, and durability enables OEMs to deliver high-quality products while optimizing development and operational efficiency.

Conclusion

Ultrasonic sensing is positioned to become the default approach in smart and efficient fluid measurement, with its ability to accurately detect a wide range of flow rates, operate reliably without wear, and integrate flexibly into digital control systems. ScioSense’s UFM-02 module exemplifies this transition by offering a compact, energy-efficient, and durable solution. For engineers and product designers tasked with building the next generation of appliances, water management systems, or industrial control solutions, ultrasonic flow sensing provides the precision and adaptability required.

To learn more about ScioSense’s ultrasonic flow sensing modules or request a sample of the UFM-02, visit ScioSense.com.
