Autonomous Driving Levels 0-5 Explained

Autonomous driving is no longer sci-fi, it’s become a reality and soon to be hitting our streets. Every week, Autotech companies are announcing their plan for self-driving tech. But, no two autonomous driving technologies are exactly alike.

Autonomous driving is no longer sci-fi, it’s become a reality and soon to be hitting our streets. Every week, Autotech companies are announcing their plan for self-driving tech. But, no two autonomous driving technologies are exactly alike.

“What we actually mean when we say a vehicle is self-driving, fully automated, and so on?

Do we mean that the vehicle can drive itself anywhere at anytime, with no-assistance inside it?

Or, that the vehicle always needs someone inside ready to take over just in case?

Or, that the vehicle can drive itself, as long as it is within certain constraints, such as good weather and in a defined area of operations?”

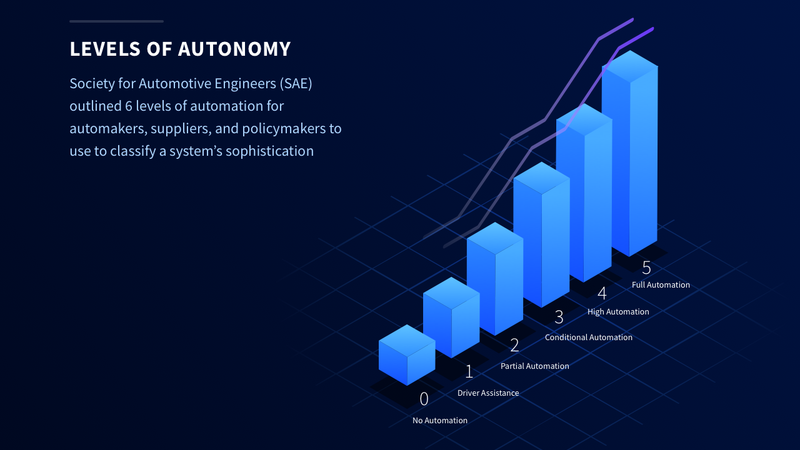

To bring clarity to such situations, the Society for Automotive Engineers (SAE) outlined 6 levels of automation for automakers, suppliers, and policymakers to use to classify a system’s sophistication via their standard titled J3016.

SAE’s Six Levels of Autonomy

The driver assistance systems of level 1 are very common today. Some cars even offer steering and lane-keeping assistance, as well as remote-controlled parking — all systems defined as level 2 “Partly Automated Driving (PAD)”. A good example is Tesla’s “Autopilot”, an industry-leading driver assistance system.

A crucial shift occurs between Levels 3 and 4 when the driver releases responsibility for monitoring the driving environment to the system. Level 3 “Highly Automated Driving”, level 4 “Fully Automated Driving” and level 5 “Full Automation” are still in the testing phase.

Level 0: No Automation

This is where the human driver controls the car completely without any support from a driver assistance system.

Level 1: Driver Assistance

SAE’s Level 1 is an automated system on the vehicle that can sometimes assist the human driver to conduct some parts of the driving task. In fact, many top-of-the-range car models offer level one automation. You’re still the driver with full-control on driving however, you may call upon technology like adaptive cruise control for active safety.

At Level 1, a computer can control either steering or acceleration/braking, but it is not programmed to do both at the same time. To sum it up, you still have full responsibility to monitor road situations and assume all driving functions if the assistance system cannot do so for any reason.

Level 2: Partly Automated Driving

Functions that make partial automation possible are already a reality and in practice. Semi-autonomous driving assistance systems, such as the Steering and Lane Control Assistant including Traffic Jam Assistant, make daily driving much easier. They can brake automatically, accelerate and, unlike level 1, take over steering.

With the remote-controlled parking function, it’s possible to pull into tight spots without a driver for the first time. In level 2, the driver continues to remain in control of the car and must always pay attention to traffic.

Here’s the list of some driving assistance systems,

  1. Adaptive Cruise Control automatically adapts speed to maintain a safe distance from vehicles in front.
  2. Autonomous Emergency Breaking detects an obstacle, warn the driver or automatically brake to avoid or mitigate a crash.
  3. Lane Detection using a forward camera to detect lane markings on the road.
  4. Lane Keeping Assist combines a forward-facing camera to detect lane markings with an electric steering system, keeping the vehicle in the center of the lane.
  5. Parking Assistance systems are designed to help a driver park. Some perform the entire job automatically, while others simply provide advice so that the driver knows when to turn the steering wheel and when to stop.
  6. Parking Line Detection system that detects markers on the road surface in order to determine the exact location of parking lots.

Level 3: Highly Automated Driving

In the third development stage, drivers gain more freedom to completely turn their attention away from the road under certain conditions. In other words, they will be able to hand over complete control to the car. The driver, however, must be able to take over control within a few seconds, such as at road construction sites.

Level 4: Fully Automated Driving

Level 4 is considered to be fully autonomous driving, although a human driver can still request control, and the car still has a cockpit. In level 4, the car can handle the majority of driving situations independently. The technology in level 4 is developed to the point that a car can handle highly complex urban driving situations, such as the sudden appearance of construction sites, without any driver intervention.

The driver, however, must remain fit to drive and capable of taking over control if needed, yet the driver would be able to sleep temporarily. If the driver ignores a warning alarm, the car has the authority to move into safe conditions, for example by pulling over. While level 4 still requires the presence of a driver, cars won’t need drivers at all in the next, final level of autonomous driving. However, their operations will be constrained to certain situations,

  • Limited to a geo-fenced area, such as paved streets in a defined area of town.
  • Limited by adverse weather, such as falling snow, snow-packed roads, intense rain, thick fog, etc.
  • Limited to a maximum speed, e.g., vehicles limited to 35 mph may be able to travel on most streets, but not on roads posted at 40 mph and above.

Level 5: Full Automation (Driverless)

Unlike levels 3 and 4, the “Full Automation” of level 5 is where true autonomous driving becomes a reality.

Here drivers don’t really even need to have a license. and everyone in the car is a passenger. Cars at this level will clearly need to meet stringent safety demands, and will only drive at relatively low speeds within populated areas. They are also able to drive on highways but initially, they will only be used in defined areas of city centres.
