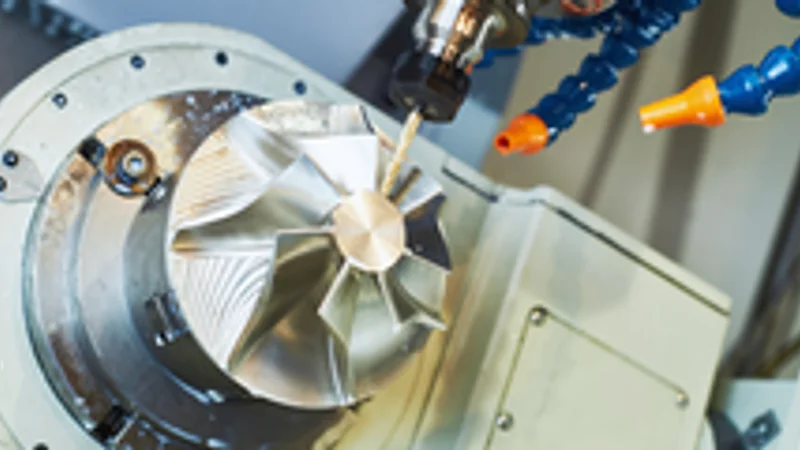

5-Axis Milling of Complex Components: Finding the Best Provi

Complex milled parts with tight tolerances, free-form surfaces, high precision, or highly complex shapes will sooner or later end up being machined using 5-axis CNC milling.

For buyers and project buyers, the main question isn't how the process works. What's more important is which vendor is truly technically qualified.
and what should be included in a well-written request. Quotes should be evaluated based on more than just the price.

This guide provides a structured answer to all these questions regarding the production of complex CNC-milled parts. It also offers guidelines to help you evaluate potential CNC milling suppliers.

What 5-axis milling is and when it is relevant

In 5-axis milling (or 5-axis milling operations), the tool on the CNC machine does not move solely along the three axes X, Y, and Z.

It also rotates around two additional axes of rotation. This allows for the machining of complex geometries from multiple directions in a single setup.

The result is fewer positioning errors and shorter cycle times. In addition, the tolerances achieved are difficult to replicate with a conventional 3-axis milling machine (3-axis milling) over multiple setups.

5-axis milling is particularly useful in situations where, where components require undercuts, free-form surfaces, angled holes, or geometrically complex multi-sided machining. Typical industries include Aerospace and Defense, Medical Technology, Automotive and Motorsports as well as tool and die making.

It exists indexed 5-axis milling machines (also known as 3+2). In this process, the workpiece is clamped in fixed angular positions and then machined using three axes. And then the Simultaneous 5-axis milling, in which all five axes are in motion at the same time.

The latter is more technically demanding and is required for true free-form geometries such as turbine blades or implants. Not every provider that advertises „5-axis“ machining is capable of handling both types.

The RFQ Package: What Should Be Included in a Well-Structured Request

An incomplete request for quotation will result in quotes that are not comparable. A complete RFQ package must include at least the following:

• 3D model (STEP)
• Technical drawing with all tolerances and GD&T specifications
• Material with material number
• Surface requirements (Ra values, coatings)
• Quantity and batch size
• Heat Treatment and Post-Processing
• Testing requirements (test report, FAI, material certificate)
• Desired delivery date

Highlight tolerance-critical features separately in the drawing. This makes it easier for the supplier to assess risks and leads to more precise quotes.

Key questions for the provider

These questions distinguish strong suppliers from weak ones:

• Do you regularly produce simultaneous 5-axis parts, or mainly 3+2 parts?
• What similar components have you manufactured in the past?
• What materials do you regularly machine, and how do you handle alloys that are difficult to machine?
• How do you ensure tight tolerances for complex geometries?
• What measurement technology do you use, and can you provide FAI reports?
• What is your clamping strategy for thin-walled or hard-to-reach parts?
• Where do you see risks or opportunities for design for manufacturing in your component?
• Which process steps do you handle internally, and which ones do you outsource?
