Technology Description: PVA-Removal Station

3D printers that use PVA, or PolyVinyl Alcohol, as a support material require post-processing to remove it. The PVA-Removal Station PolyVinyl Alcohol is designed to remove the support material

author avatar

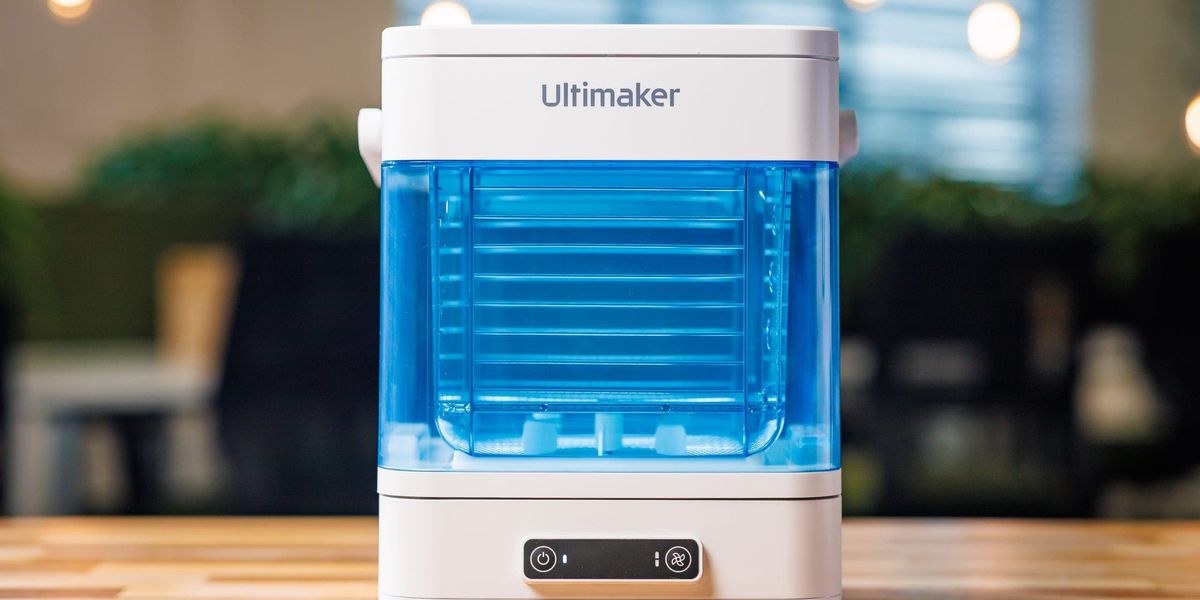

The Ultimaker PVA-Removal Station PolyVinyl Alcohol

The Ultimaker PVA-Removal Station PolyVinyl Alcohol


3D printers that use PVA, or PolyVinyl Alcohol, as a support material require post-processing to remove it.

The Ultimaker PVA-Removal Station PolyVinyl Alcohol is designed to remove the support material.

This is generally achieved by dissolving the PVA for a long period of time in water. Depending on the size, complexity of the design and density of the support structure, this process can take more than a day to complete.

The PVA-Removal Station is filled with 13.5 litres of water and its circulation direction will change automatically and the speed can be adjusted as needed. It comes with a basket and divider to fix prints and to keep them submerged.

The saturation indicator shows if water needs changing, and the transparent container allows for a quick view on the dissolving process. PVA is a biodegradable material, and in most cases disposing the water afterwards is easy.

Specifications

Category

Specification

Data

Properties

Container Volume

13.7 L


Maximum part size (XYZ)

200 x 230 x 165 mm


Supported materials

Optimized for: PLA and PVA Also suitable for: PETG, Tough PLA, Nylon, CPE in combination with PVA


Supported solvents

Water


Rotational speed

225 RPM (normal),100 RPM (low)


Operating sound

< 50 dBA




Physical dimensions

Dimensions

303 x 325 x 374 mm


Dimensions with handle extended

303 x 325 x 528 mm


Net weight

6.35 kg


Container weight (empty)

4.2 kg


Shipping box dimensions

400 x 400 x 500 mm




Ambient conditions

Operating ambient temperature

15 – 32 °C


Non-operating temperature

0 – 32 °C


Relative humidity

10 – 90% RH non-condensing




Electrical requirements

Voltage

100 – 240 V AC


Frequency

Frequency


Frequency

38 W

References

  1. https://ultimaker.com/learn/key-updates-from-the-ultimaker-showcase

  2. https://press.ultimaker.com/ultimaker-announces-pva-removal-station-enabling-post-processing-of-parts-four-times-faster/

  3. https://support.ultimaker.com/hc/en-us/articles/360011959100-How-to-dissolve-Ultimaker-PVA
