James Webb Space Telescope Science Instruments Explained

James Webb Space Telescope aims to take us to the unexplored realm of our cosmic origins. From observing the formation of the first stars and galaxies to looking for the possibility of life on other planets, the telescope will play a major role in the future of space exploration.

author avatar

21 Dec, 2021

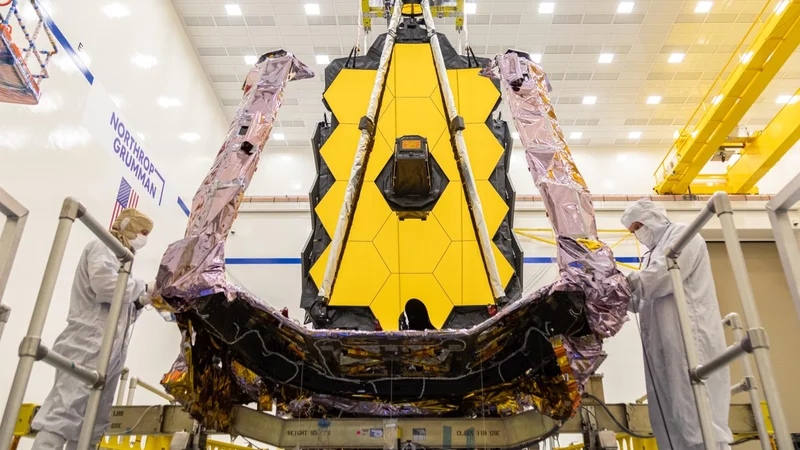

James Webb Space Telescope. Source: NASA

James Webb Space Telescope. Source: NASA

The James Webb Space Telescope (JWST) is the next biggest milestone in space exploration that aims to uncover the secrets of our cosmic origins. Equipped with four advanced scientific instruments, it is expected that JWST will shed some light and uncover some mysteries surrounding the earliest galaxies, stars and exoplanets.

The project is jointly developed by National Aeronautical Space Center (NASA), European Space Agency (ESA), and Canadian Space Agency (CSA) to be the successor of the Hubble Space Telescope (Hubble/HST). The mission is set to launch on 24 December 2021 at 07:20 EST. NASA TV’s live coverage of the launch event begins 24 December 2021 06:00 EST.

This article explains the scientific instruments that power the JWST. We start with the concept of the JWST and go on to explain how the telescope captures visuals from the past.

The idea behind the James Webb Space Telescope

All objects, when heated, radiate energy in the form of IR rays. Objects with a higher temperature emit IR rays with higher intensity and longer wavelengths. The first light in the universe was produced by the stars that were born within a few hundred million years after the big bang, which supposedly took place over 13.8 billion years ago. The light became fainter and redder until it became invisible to our eyes. JWST is designed to overcome this limitation and allows us to see what was never seen before.

Light travels at a speed of 299,792,458 m/s which means it takes a definite amount of time for light to reach us. The light from the sun roughly takes 8.33 minutes to get to us. The light from the nearest star, Proxima Centauri, takes over 4.2 years.

visibility-in-IR-visible-light-comparisonComparison between images captured in IR (left) and visible light (right). Source: European Southern Observatory (ESO)

Essentially we can arrive at a conclusion that the light emitted by objects that are far away from us reaches us with a time delay, or the way we see things is how they might have looked in the past. If someone from a faraway galaxy would look at the earth, they would probably see dinosaurs roaming around.

For reasons we don’t fully understand, the universe is expanding. Everything in space is moving away from everything else. This means that the light emitted by far objects gets stretched, resulting in an increase in its wavelength. This phenomenon is known as the Cosmological redshift. Consider this something loosely related to the doppler’s effect.

wavelengths-space-telescopes-hubble-jwstComparing the range of working wavelengths of difference space telescopes. Source: NASA

The light that comes to us from the galaxies situated far away gets stretched so much that the colour turns red and then IR. As the distance increases, the wavelength of light keeps getting longer and longer till it finally becomes invisible to the human eye.

JWST uses 18 hexagonal gold-plated Beryllium mirror segments, each with a diameter of 1.32 meters. Beryllium can withstand extreme temperatures and offers exceptional strength to weight ratio, making it a great choice for building the mirror. The resulting structure looks something like a giant flower.

james-webb-space-telescope-mirrorJWST's 18 segment gold plated mirror will be responsible for gathering all the IR light. Source: NASA

JWST Science Instruments

The four instruments that make up the JWST are explained in this section. Before we discuss the individual instruments in detail, let’s take a look at the ranges of wavelengths in which these instruments operate.

james-webb-space-telescope-science-instruments-working-wavelengthWorking wavelengths of different JWST science instruments. Source: NASA

Three out of four instruments present in JWST operate in the near IR zone, whereas the fourth one works in the mid-IR zone. We will discuss the reasons for spanning different wavelengths as we explain the science instruments.

Near-Infrared Camera (NIRCam)

NIRCam is the primary high-resolution imaging instrument of the JWST. It is designed to capture wavelengths ranging from visible red to mid-infrared. Light having a wavelength between 0.6 micrometres and 5 micrometres can be successfully captured by the NIRCam.

The NIRCam can operate in three imaging modes:

  • Standard imaging: During the operation in this mode, the instrument behaves just like digital cameras. The only difference is that it is much more capable and operates in the IR range.
  • Coronagraphic imaging: An imaging technique that involves masking a bright object in order to be able to observe the faintly lit things near it is known as coronagraphy. The technique gets its name from its ability to let observers watch the corona surrounding the sun by masking its brightly lit structure.
  • Time series imaging: Multiple observations are taken over a period of time to understand how the spectrum of light emitted by an entity changes over time. Changes in the brightness levels of stars and the planets orbiting them can be detected with this imaging mode.

Apart from the imaging capabilities, NIRCam can also perform some basic spectroscopy, which we shall discuss in detail in the next section of this article. But for now, here is a list of the two spectroscopy modes that the instrument supports:

  • Wide-Field Slitless Spectroscopy: The mode captures spectroscopy results of a wide-FOV region allowing observation of stars, parts of galaxies or multiple galaxies at once.
  • Time-Series Spectroscopy: This mode of spectroscopy is designed to enable the study of planets by taking multiple readings, spread over a period of time, as they orbit their stars.

NIRCam will let us observe light from the stars and galaxies that are still in the process of formation. The device can record observations from far beyond the Milky Way galaxy.

NIRCam also participates in JWST’s wavefront sensing and control system by readjusting the positions of the hexagonal mirrors in case of misalignment. This ensures that the subject always remains in focus.

Near-Infrared Spectrograph (NIRSpec)

It is impossible for NIRCam to show us everything we want to know about the properties of the celestial objects under observation. As the chronograph present on the NIRCam essentially blocks the light from the bright source, it is difficult to comment anything about what kind of physical conditions and elements are present on the celestial object.

NIRSpec takes a different approach to the process with the help of spectroscopy. The term refers to investigating the way electromagnetic radiations interact with matter. By studying the frequency spectrum of the light coming from a celestial object, it is possible to come up with solid conclusions regarding their chemical compositions, temperatures, and masses.

But since the IR lights coming from the faraway objects are so weak, to actually perform the spectroscopy, NIRSpec needs to collect the radiation for several hours to take a reading. To solve this limitation, the device uses a special Micro Electro Mechanical System (MEMS) solution in the form of a micro shutter array that allows it to focus on a hundred different objects at once, making simultaneous observations possible.

james-webb-space-telescope-microshutter-arrayWith the size just as much as a postcard stamp, the micro shutter array consists of roughly 250,000 windows that can be opened or closed with the help of a magnetic system. Source: NASA

The four spectroscopy modes that the instrument supports include:

  • Slitted Spectroscopy: It is used to carry out the spectroscopy of a single celestial object like a star or an exoplanet in wide FOV.
  • Multi-Object Spectroscopy: This method involves conducting spectroscopy of multiple sources together.
  • Integral Field Unit Spectroscopy: The technique combines the operation of imaging and spectrographic modes of the instrument. In this mode, NIRSpec captures images along with the spectra.
  • Time-Series Spectroscopy: This mode involves taking spectroscopic readings at a regular interval of time and collating it later to see how the spectra change over time.

Apart from the images captured during the Integral Field Unit Spectroscopy, the instrument doesn’t feature any dedicated imaging modes.

Near-Infrared Imager and Slitless Spectrograph (NIRISS)

NIRISS works in the same range of wavelength as of NIRCam and NIRSpec, but apart from the Standard Imaging mode, NIRISS includes another advanced imaging mode.

  • Aperture Mask Interferometry: NIRISS is the only instrument on JWST that can perform aperture mask interferometry. This enables the instrument to take high-resolution images of the target. The technique is helpful in distinguishing between multiple bright celestial bodies positioned close to each other.

Coming to the modes of spectroscopy, other than the Wide-Field Slitless Spectroscopy that we discussed earlier, the instrument also supports:

  • Single-Object Slitless Spectroscopy: As the name suggests, in the mode of operation, the instrument focuses on a single object like a star with a limited FOV.

Mid-Infrared Instrument (MIRI)

The function of the MIRI is to capture IR waves with wavelengths in a higher range than the other instruments. MIRI is equipped with a camera and spectrograph that can capture IR waves having wavelength greater than 5 micrometres and going all the way up to 28 micrometres.

The reason why capturing IR waves in this range is required is due to the ability of these waves to pass through the dust clouds. While on one hand, the near-IR waves mostly get attenuated by the presence of large dust clouds; mid-IR waves can pass through them.

The instrument operates in six modes: Standard imaging, Coronagraphic imaging, Time series imaging Single-Object Slitless Spectroscopy, Multi-Object Spectroscopy, Integral Field Unit Spectroscopy and Time-Series Spectroscopy. All the modes have been discussed in an earlier section of the article.

Though the concept is similar, the way these modes operate vastly differs between each instrument.

MIRI needs to be cooled to -266.5°C to function correctly. Otherwise, the instrument would pick up its own heat radiations. To solve this issue, a cryocooler powered with helium was designed. The system pumps the refrigerant through the tiny tubes to bring down the temperature of the MIRI to the desired value.

However, the cooling system can not block the IR radiation coming from the moon, earth and the sun. Engineers came up with the sun shield as a solution to the issue. The 21 meters long five-layer sheet is made with a material called Kapton polyimide film and coated with aluminium and doped silicon. The resulting structure is called a sun-shield and can provide a great degree of thermal isolation for the satellite.

james-webb-space-telescope-sun-shield-protectionDeployment and testing of the sun-shield. Source: NASA

JWST Orbit and Launch

Even after all the considerations, the telescope needs to be 1.5 million kilometres from the earth. For reference, the distance between the earth and the moon is just 0.38 million kilometres. For the telescope to be able to send data back to earth, it should be within the range of communication equipment. It was ultimately decided that JWST is going to be placed at Lagrange point 2 (L2), which is a stable orbit zone, standing up to all the requirements.

JWST is going to be launched with Ariane 5, one of the world’s most reliable satellites launch vehicles capable of delivering JWST right into its orbit zone. The rocket is developed by the ESA and will provide launch service to NASA’s mission.

james-webb-space-telescope-launch-vehicle-ariane-5Ariane 5 is the launch vehicle of choice for delivering JWST to its orbit. Source: NASA

During the first month after the launch of the JWST, it will undergo a complex unfolding sequence. It will take JWST another 5-6 months to complete the deployment, calibration and commissioning sequences, after which it will be ready to conduct scientific observations and send data back to the earth.

james-webb-space-telescope-deployment-unfolding-sequenceJWST’s deployment and commissioning will take around one month, and it will be sending the first images in around six months. Source: NASA

NASA is already working on the next multi-wavelength telescope going by the name of Large Ultraviolet Optical Infrared Surveyor (LUVOIR). The project might take another 20 years until it gets to see the light of the day.

Conclusion

JWST has a guaranteed expiry date. It has fuel only enough to maintain its position for around ten years, after which it will leave orbit, never to be found again. But despite its seemingly short life, the mission has the potential to change the very way in which we perceive the universe.
